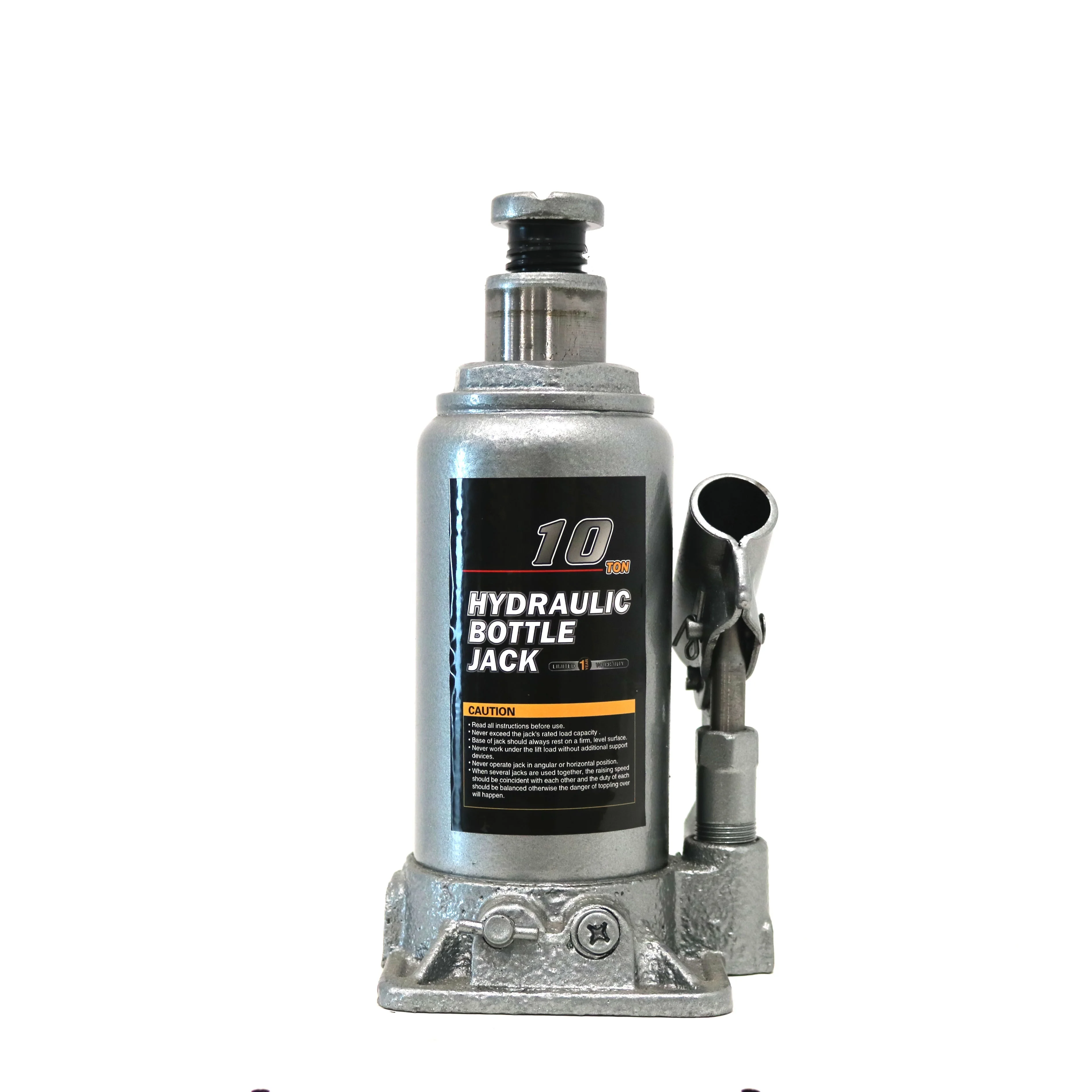

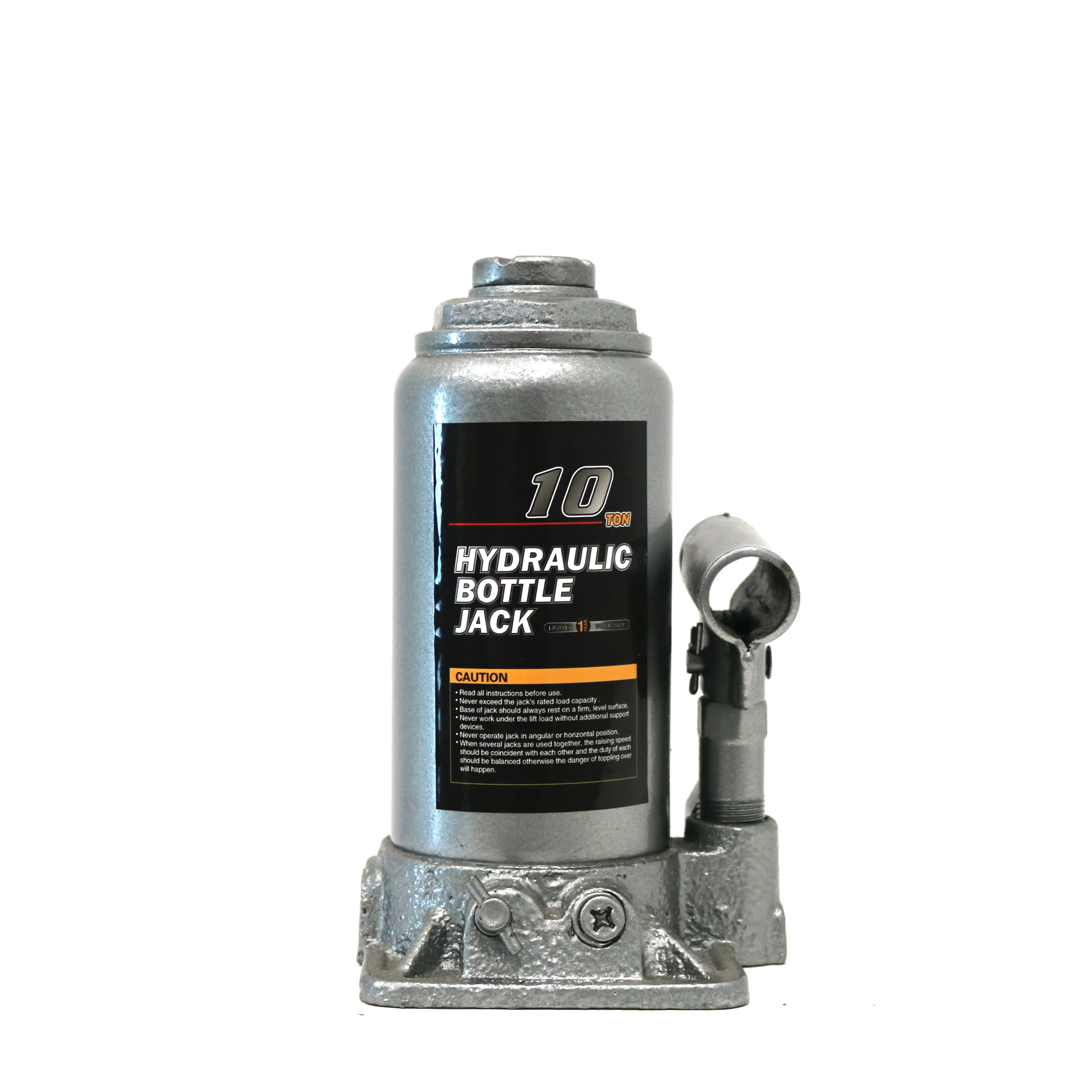

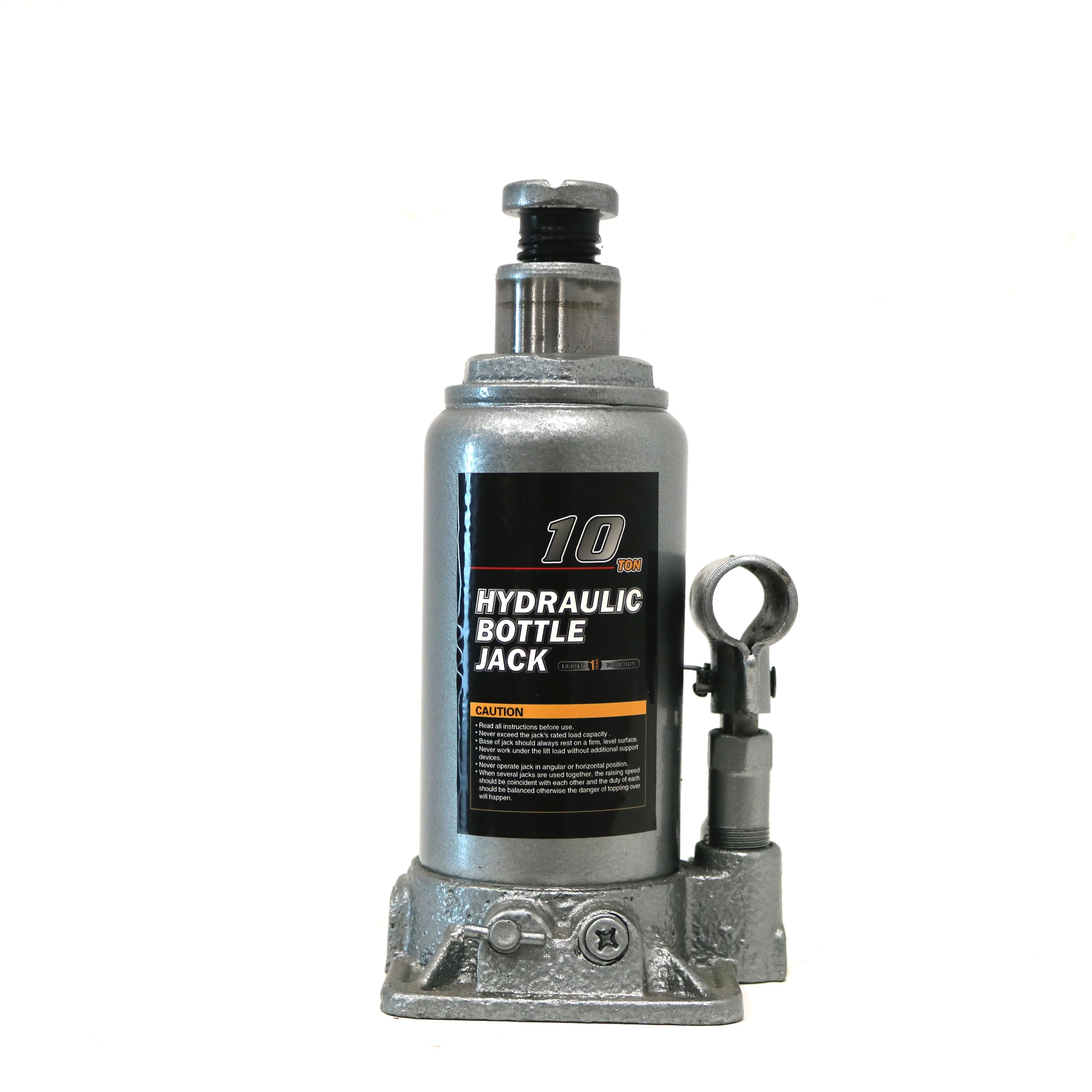

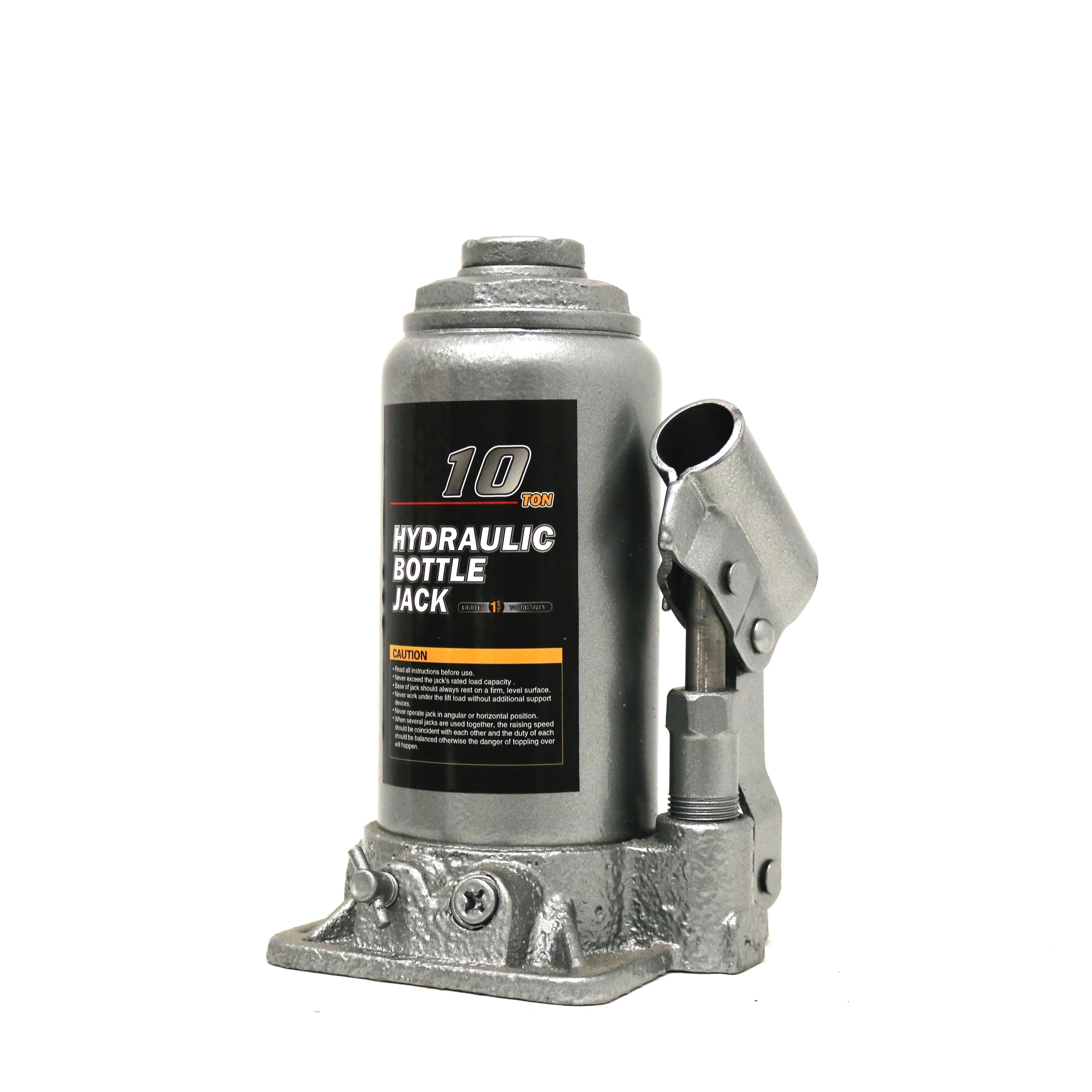

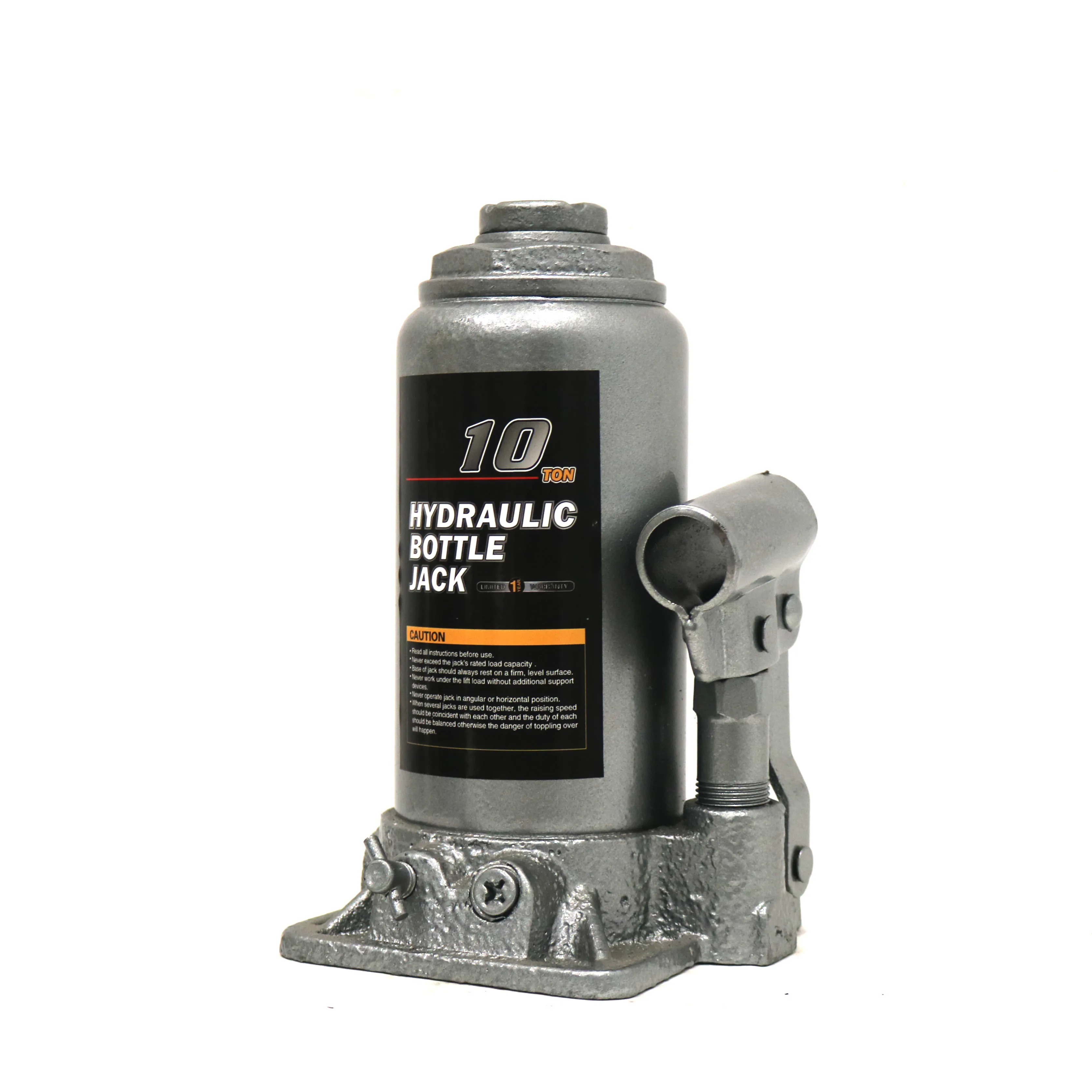

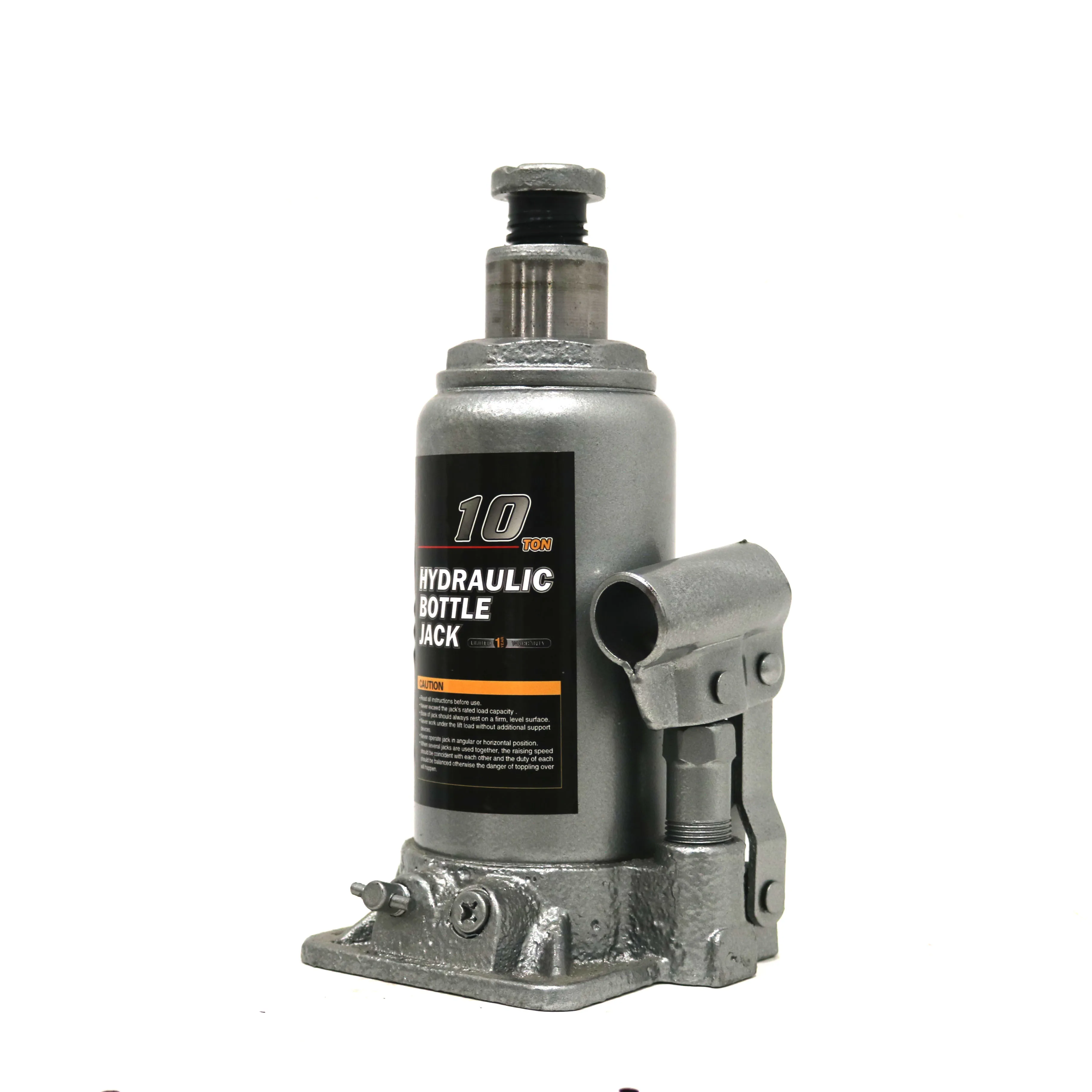

Лидер продаж 2022, высококачественный подъемный инструмент, гидравлический домкрат для автомобиля на 10 тонн
- Category: Bottle Jack >>>
- Supplier: Jiaxing Intop Import And Export Co. Ltd.
Share on (62196724892):
Product Overview
Description
model | lifting wt | min h | adjuest h | max h | net wt | qty/ctn |
kg | mm | mm | mm | kg | pcs | |
TBJ0204 | 2 | 181 | 50 | 346 | 2.4 | 10 |
TBJ0304 | 3 | 195 | 60 | 380 | 3.2 | 5 |
TBJ0404 | 4 | 195 | 60 | 380 | 3.2 | 5 |
TBJ0504 | 5 | 215 | 60 | 400 | 4.2 | 5 |
TBJ0604 | 6 | 215 | 60 | 400 | 4.2 | 5 |
TBJ0804 | 8 | 230 | 80 | 455 | 5.2 | 4 |
TBJ1004 | 10 | 230 | 80 | 455 | 6 | 4 |
TBJ1204 | 12 | 230 | 80 | 455 | 6.7 | 4 |
TBJ1504 | 15 | 230 | 80 | 455 | 7.5 | 2 |
TBJ1604 | 16 | 230 | 80 | 455 | 7.5 | 2 |
TBJ2004 | 20 | 245 | 60 | 455 | 10 | 2 |
TBJ3204 | 32 | 285 | / | 465 | 13 | 1 |
TBJ5004 | 50 | 300 | / | 480 | 29.5 | 1 |
Product Description
Direction for use
1 Tighten the valve clockwise to ensure that the oil return valve can not be turned as far as it will go.
2 According to the height of the car body,select the height of screw out.
3 Insert the handle without groove into the end.
4 Place the jack near the tire of the car chassis ,and pull the handle up and down to reach the desired height.
5 After completion,loosen the valve one or two turns times anticlockwise,and press by gravity.This jack does not have the function of automatic lowering.Remember that the oil return valve cannot be loosened too much,or the jack leaks oil.
2 According to the height of the car body,select the height of screw out.
3 Insert the handle without groove into the end.
4 Place the jack near the tire of the car chassis ,and pull the handle up and down to reach the desired height.
5 After completion,loosen the valve one or two turns times anticlockwise,and press by gravity.This jack does not have the function of automatic lowering.Remember that the oil return valve cannot be loosened too much,or the jack leaks oil.
Caution
Read all instructions before use
Never exceed the jack's rated load capacity
Base of jack should always rest on a firm, level surface
Never work under the lift load without additional support devices
Never operate jack in angular or horizontal position
Read all instructions before use
Never exceed the jack's rated load capacity
Base of jack should always rest on a firm, level surface
Never work under the lift load without additional support devices
Never operate jack in angular or horizontal position
Related Products
Company Introduction
Jiaxing INTOP import&export co.,ltd
is specialized in research,design,producing and developing all kinds of auto accessories.
Mainly in jacks and lifts,It has the annual sales volume of 1.0million pcs of
hydraulic bottle jacks,and has become one of the biggest companies in its field
in zhejiang Province.
We are located at beautiful Jiaxing city where is the central of Shanghai
is specialized in research,design,producing and developing all kinds of auto accessories.
Mainly in jacks and lifts,It has the annual sales volume of 1.0million pcs of
hydraulic bottle jacks,and has become one of the biggest companies in its field
in zhejiang Province.
We are located at beautiful Jiaxing city where is the central of Shanghai
Economic Zone,and at the exits of Shanghai -Hangzhou-Ningbo.
Packing&Shipping
FAQ
Q:Why choose us ?
A:1.Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every product must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 1 years warranty
Q:Do you offer samples ?
A:Yes , We are willing to supply samples at all your needs but the samples are not for free.
Q:Will you accept our designs ?
A:Sure ,OEM is welcomed.
Q:How about MOQ?
A:Different products have different MOQ, just tell us how many you want.
A:1.Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every product must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 1 years warranty
Q:Do you offer samples ?
A:Yes , We are willing to supply samples at all your needs but the samples are not for free.
Q:Will you accept our designs ?
A:Sure ,OEM is welcomed.
Q:How about MOQ?
A:Different products have different MOQ, just tell us how many you want.
