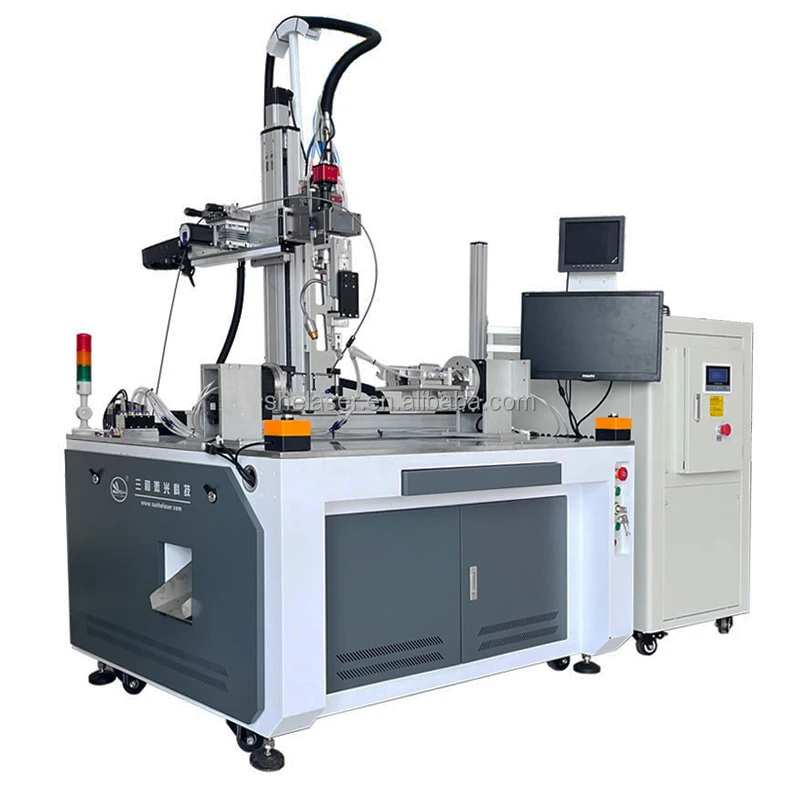

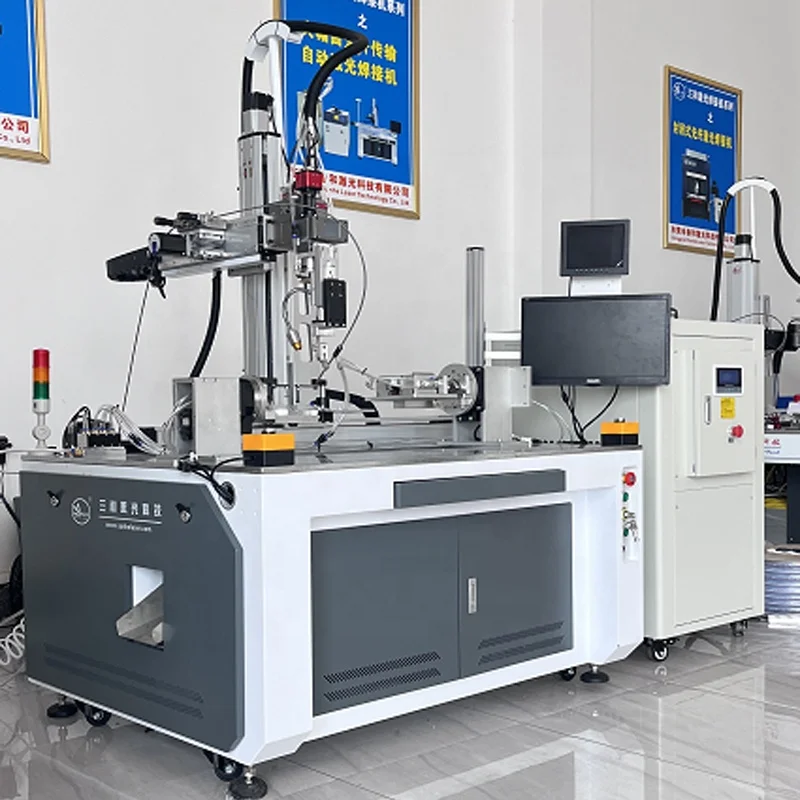

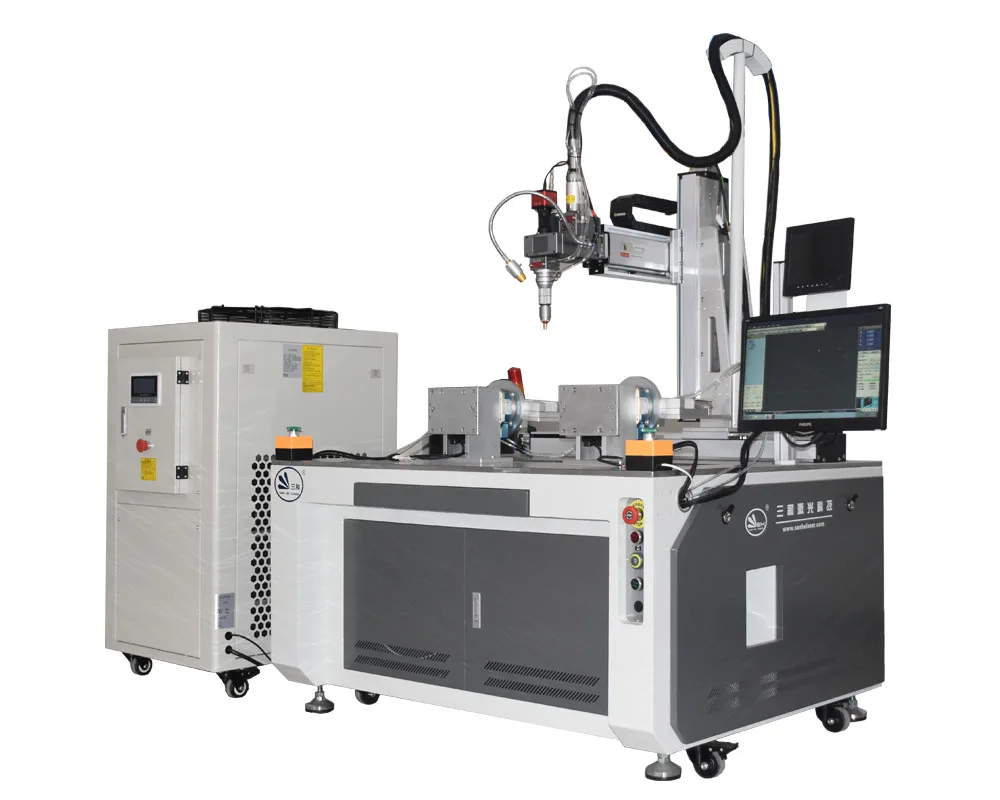

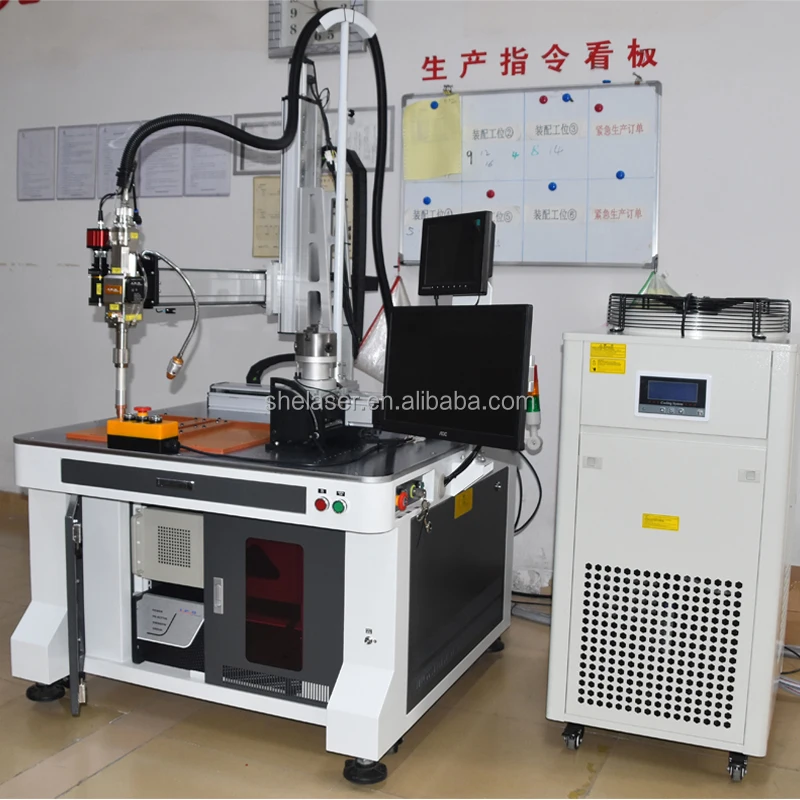

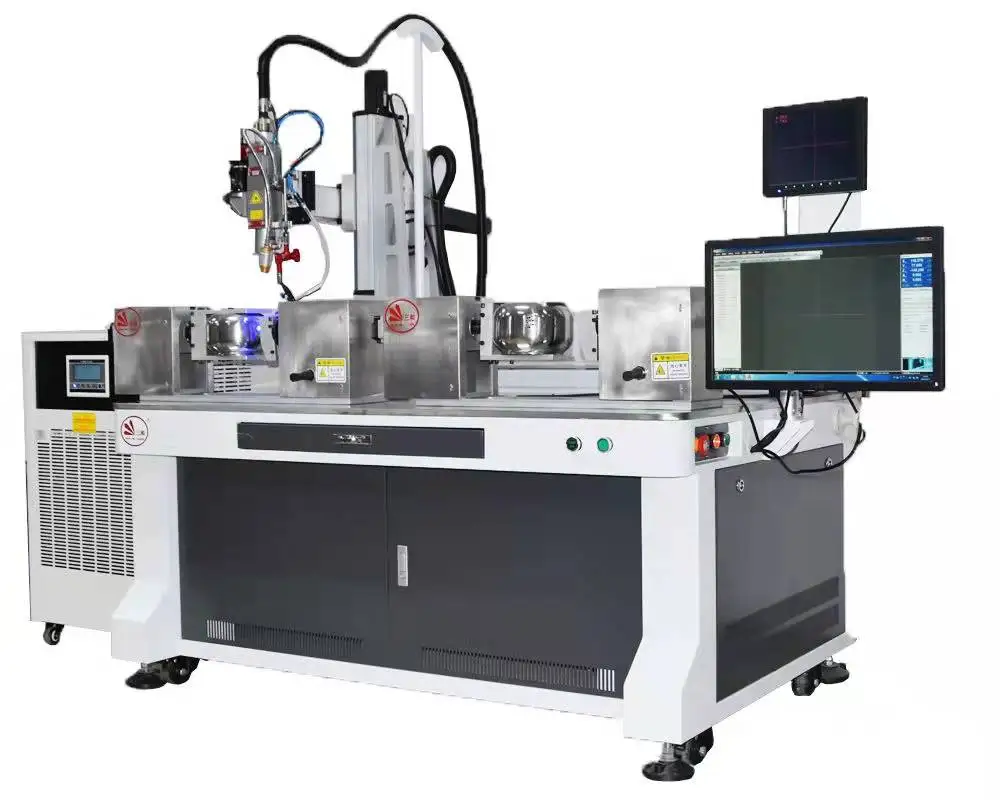

1000W 2000W continuous automatic fiber laser welding machine for metal stainless steel aluminum brass valve

Product Overview

Description





performance advantages

 1.high speed ,high precision ,more refined appearence .

 2.the size of solder joints can be adjusted according to the requirements ,and the heat affected zone is small, which will not cause the deformation of product precision .

3.it can weld small and fine geometry ,suitable for all size of products.

4.density welding does not appear porosity and trachoma ,,can be directly grinded and polished .

 products benefits and advantage

 1.the laser beam quality is excellent , the weld speed is fast ,the welding seam is strong and beautiful ,and the utility  model has the advantages of high efficiency and perfect welding scheme for users.

2.industrial PC control , the workpiece can do plane trajectory movement , you can weld points ,straigh line ,circles,squares ot straight line ,and arcs composed of arbitrary planar graphics .

3.high convesion rate ,low energy consumption , long time use can save a lot of processing costs for uesrs

4.high relibility ,can be 24 hours continuous and stable prosessing ,to meet the need of industrial mass pruduction and processing .

5.special customization ability , according to customer demand tailored exclusive models .

model	3HE-MF1000W/1500W/2000W/3000W
Laser Source Optical Parameters
Laser  source	Raycus RFL-C1000
Work Model	Continuous
Average Power(Pulse)	450w
Max.Power (W)	1000w
Laser Wavelength(nm)	1080±5
Repetitive Rate(Hz)	500-5000
Pulse Width(ms)	0.05-0.6
Output Power Stability	<2%
Right light	Yes
Repeat Position Precision
Output Parameters
Fiber Core Diameter(um)	25/50/100 Optional
BBP(mm. m rad)	0.4,2.5
Electronic Control Characteristics
Input Voltage	200-240VAC/47-63Hz
Control Model	External RS232/AD
Power Adjustment	10%-100%
Power Consumption (W)	1200
Welding Parameters
Welding Speed	According to welding materials (adjustable)
Welding Depth(mm)	0.2-3mm(adjustable)
Beam Range	0.1-4.0mm
Others
Auxiliary Gas	Argon
Dimension	W450*L240*H580mm
Weight	<50
Cooling	Watering cooling
Operating temperature ( ℃)	10-40
