Japan original linear guides cnc linear guide rail SRS9XM SRS linear guide slider
- Category: >>>
- Supplier: Tianjin Tengqi International Trade Co. Ltd.
Share on (62196941355):
Product Overview
Description
Product Description
Japan original linear guide SRS9XM SRS LM RAIL
. Use of a ball cage eliminates friction between balls, and achieves low noise, acceptable running sound, long-term maintenance-free operation, and superbly high speed response.
. Miniature Model SRS:Since its rail has a low sectional height, this Guide achieves a lightweight and compact structure
Product Name | Japan original linear guide SRS9XM SRS LM RAIL |
Material | Stainless Steel/chrome steel |
Quality | high-precision, high-rigidity, with long service lives. |
Feature | energy-saving, high-speed |
Application | Linear Rail on CNC machine. |
Brand Name | japan |
Block Series | SRS 5M/ SRS 5GM/SRS 5N / SRS 5GN / SRS 7S/ SRS 7GS/ SRS 7M/SRS 7GM /SRS 7N/SRS 7GN/SRS 9XS/SRS 9XGS/SRS 9XM /SRS 9XGM/SRS 9XN/SRS 9XGN/SRS 12S/SRS 12GS /SRS 12M / SRS 12GM/SRS 12N/SRS 12GN |
HS CODE | 8483300090 |

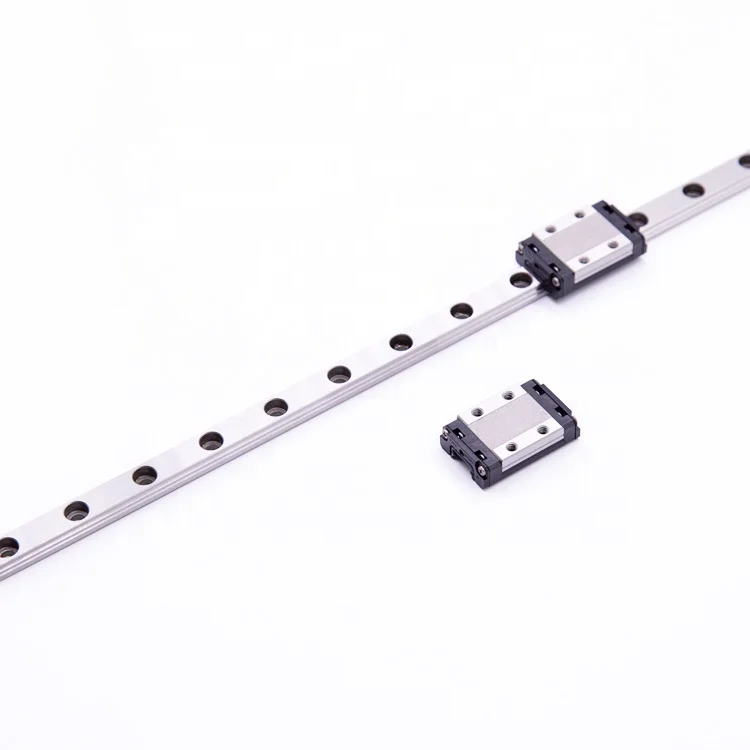

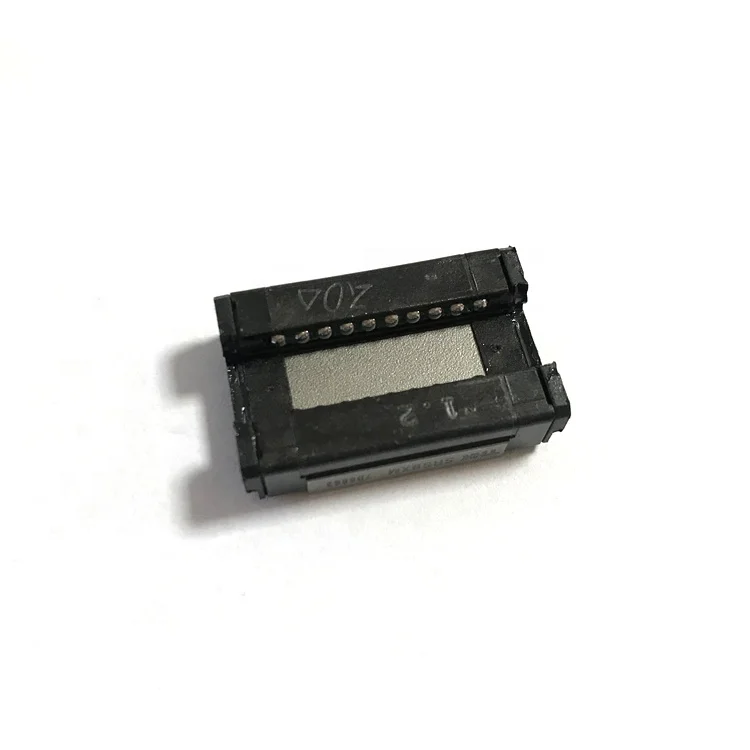

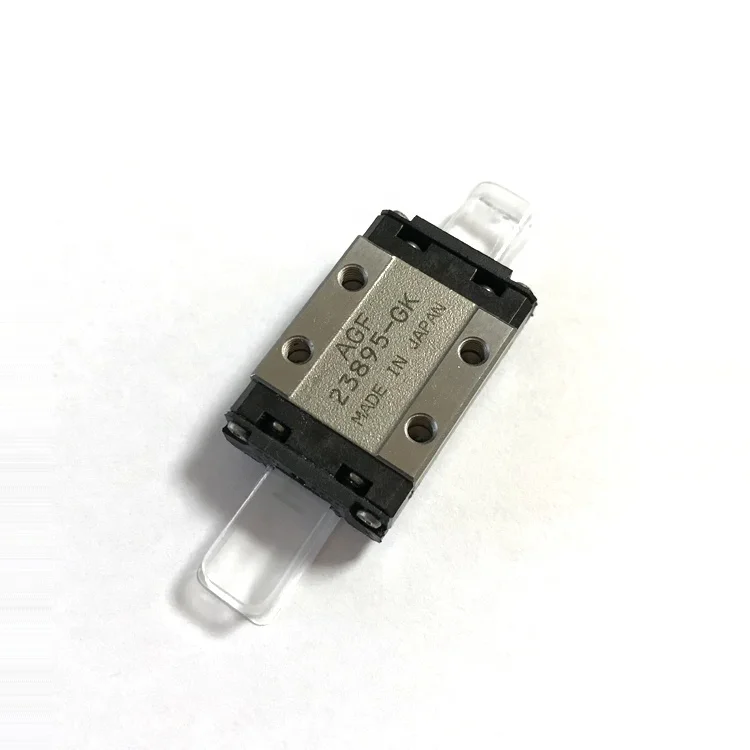

Products Show
Japan original linear guide SRS9XM SRS LM RAIL
Japan original linear guide SRS9XM SRS LM RAIL

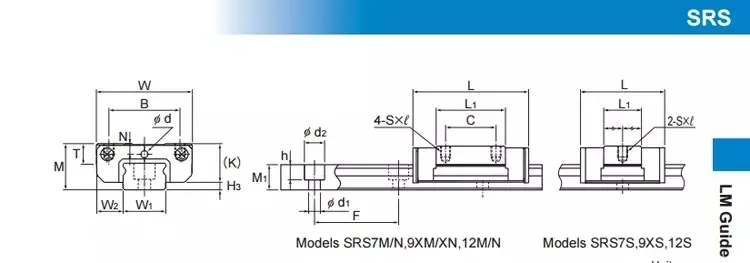

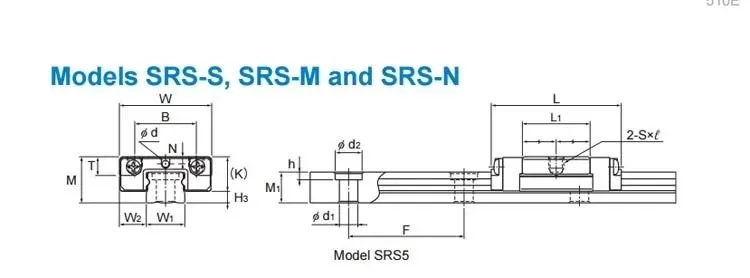

Model No. | Outer dimensions | LM rail dimensions | Mass | ||||||
Height | Width | Length | Pitch | LM block | LM rail | ||||
M | W | L | F | kg | kg/m | ||||
SRS 5M SRS 5GM | 6 | 12 | 16.9 | 15 | 0.002 | 0.13 | |||
SRS 5N SRS 5GN | 6 | 12 | 20.1 | 15 | 0.003 | 0.13 | |||
SRS 7S SRS 7GS | 8 | 17 | 19 | 15 | 0.005 | 0.25 | |||
SRS 7M SRS 7GM | 8 | 17 | 23.4 | 15 | 0.009 | 0.25 | |||
SRS 7N SRS 7GN | 8 | 17 | 31 | 15 | 0.012 | 0.25 | |||
SRS 9XS SRS 9XGS | 10 | 20 | 21.5 | 20 | 0.009 | 0.36 | |||
SRS 9XM SRS 9XGM | 10 | 20 | 30.8 | 20 | 0.016 | 0.36 | |||
SRS 9XN SRS 9XGN | 10 | 20 | 40.8 | 20 | 0.024 | 0.36 | |||
SRS 12S SRS 12GS | 13 | 27 | 25 | 25 | 0.017 | 0.65 | |||
SRS 12M SRS 12GM | 13 | 27 | 34.4 | 25 | 0.027 | 0.65 | |||
SRS 12N SRS 12GN | 13 | 27 | 47.1 | 25 | 0.049 | 0.65 | |||
Packing & Delivery
Our package
1 Single box
2. Single box + carton
3. Single box + carton + wooden box
4.according to demand of customers
1. Single box
2. Single box + carton
3. Single box + carton + wooden box
Shipping mothods available as below.
DHL, TNT, FEDEX, UPS, by air or by sea according to your request.
It usually takes 4-7 working days to deliver.
We'd like to check freight cost for your reference when order confirmed.
Warehouse
Contact US
FAQ
Q: Are you trading company or manufacturer ?
A: We are trading company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we provide samples, but need to pay the value of goods and freight
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
