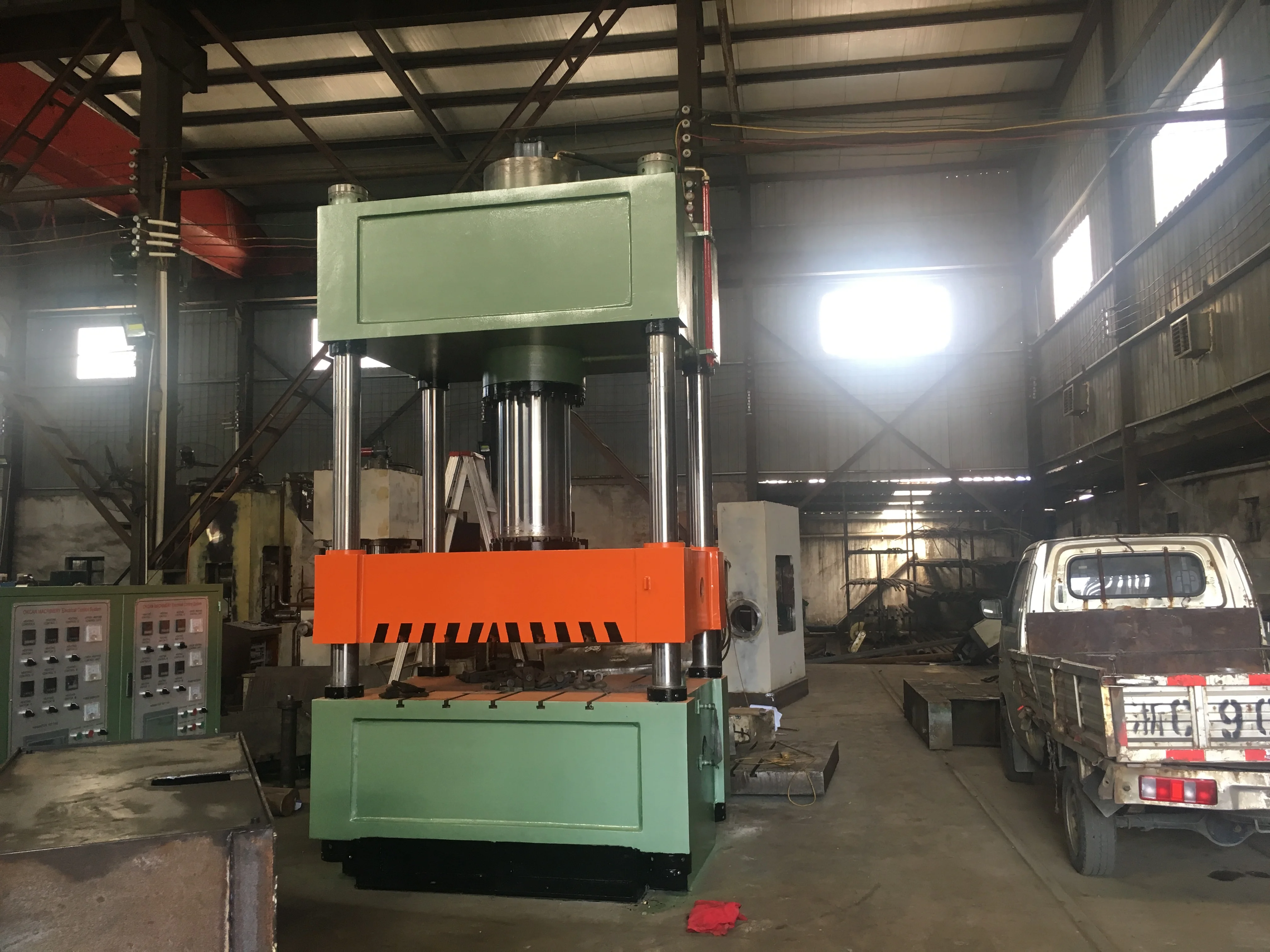

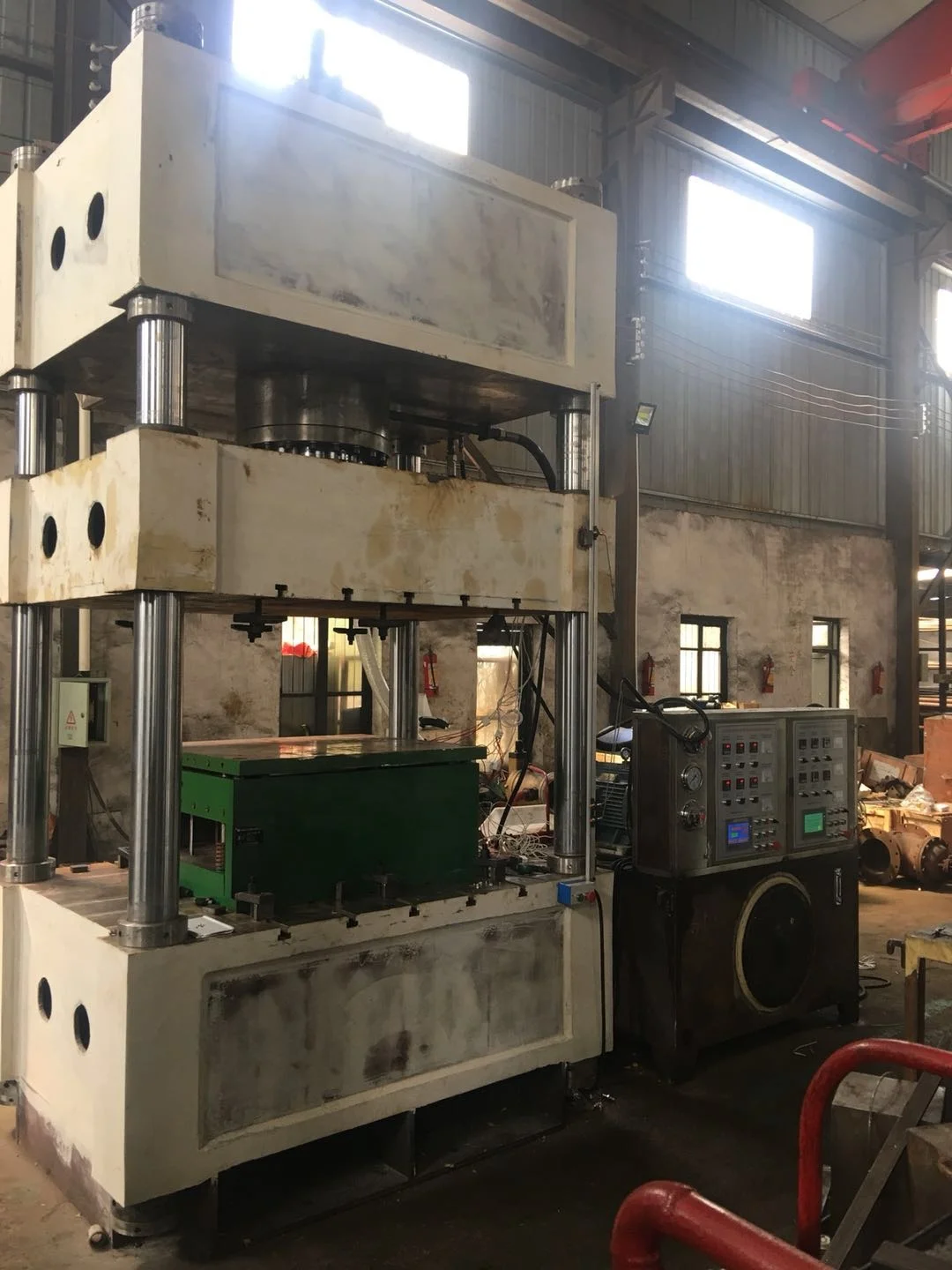

This series hydraulic press adopted four-column type construction, has the independent electrical and hydraulic power mechanism, hydraulic control part adopts advanced cartridge valve integrated system, long service life, simple structure, compact, reliable, convenient maintenance, high degree of generalization; Electrical control system with special pressure maintaining timing, automatic filling pressure, product count and temperature control device, adopts centralized control buttons, which can realize adjustment and hands cycle operation way; under ejection cylinder equipped with stroke protection switch, effectively prevent the mold from knocking bad.
This machine is mainly suitable for composite material manhole cover, glass fiber products, MMC, DMC material products and other plastic products.
Technical parameters:
Item
Unit
Pressure of main cylinder
KN
3150
5000
6300
Stroke of main cylinder
mm
800
800
900
Working table size
mm
1260*1160
1400*1400
1600*1400
Max daylight
mm
1100
1100
1500
Motor power
kw
18.5
22
30
Note:the prarameter can be designed according to your requirement
Our Services
Dear customers: hi First of all, thank you for choosing our products, at the same time of you choosing the products of our company, you will have the right to enjoy the good after-sales service of our company.
A. provide relevant technical advice for your company;
B. provide strong technical support for your company;
C. providerthe change or upgrade of electrical PLC program for free.
D. provide the drawings of some parts , for the user, convenient to replace the easy damaged parts after the warranty.
E. timely inform you of our products information such as the technology upgrade and improvement.
F.Every product has 3 guarantees of one year.and provide cost maintenance after one year.
G. if you participate in a major tender or equipment certification and need we send technical personnel to cooperate, we will actively cooperate with your work;
Company Information
our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :smc /bmc composite plastic manhole cover machine ,copper pipefitting production line,hot die forging hydraulic machine,stainless steel and carbon steel pipefitting production line ,steel door skin embossing press ,metal sheet deep drawing machine ,smc hot press machine ,abs/pc and eva luggage production line , eva and metal eyeglasses case case production line,etc
