Product Description

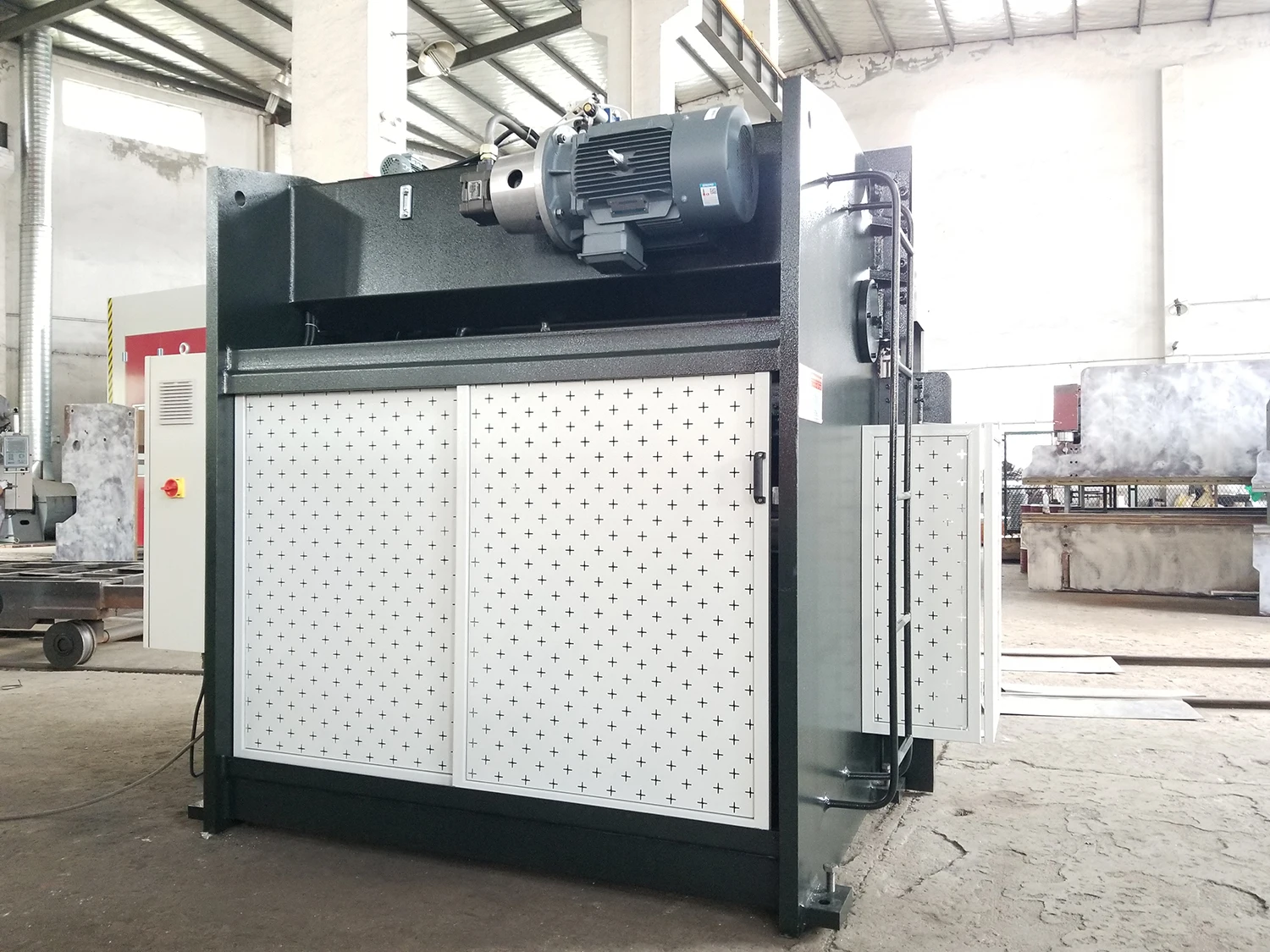

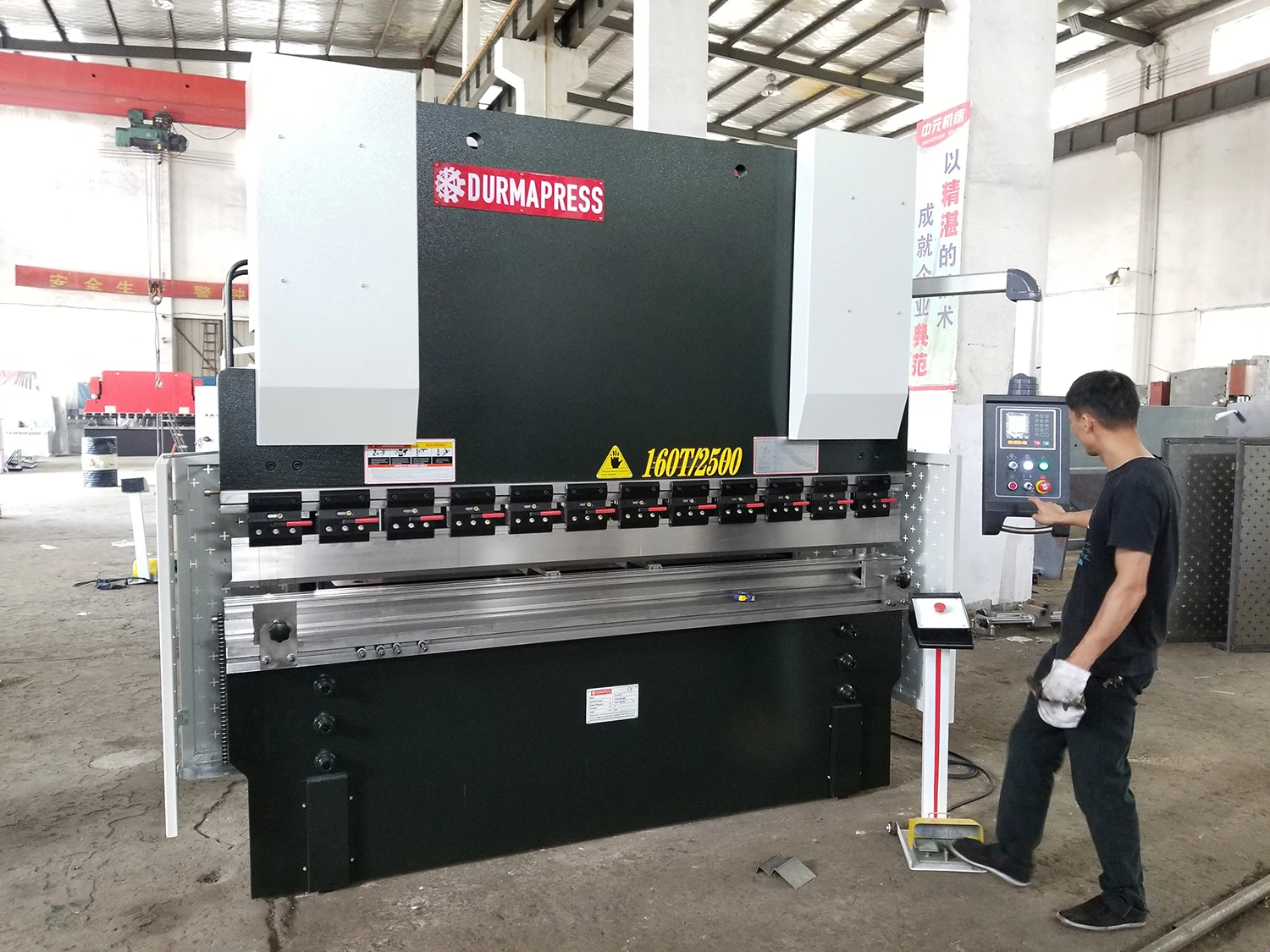

CNC Press Brake
The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Main Configuration
NC or CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation

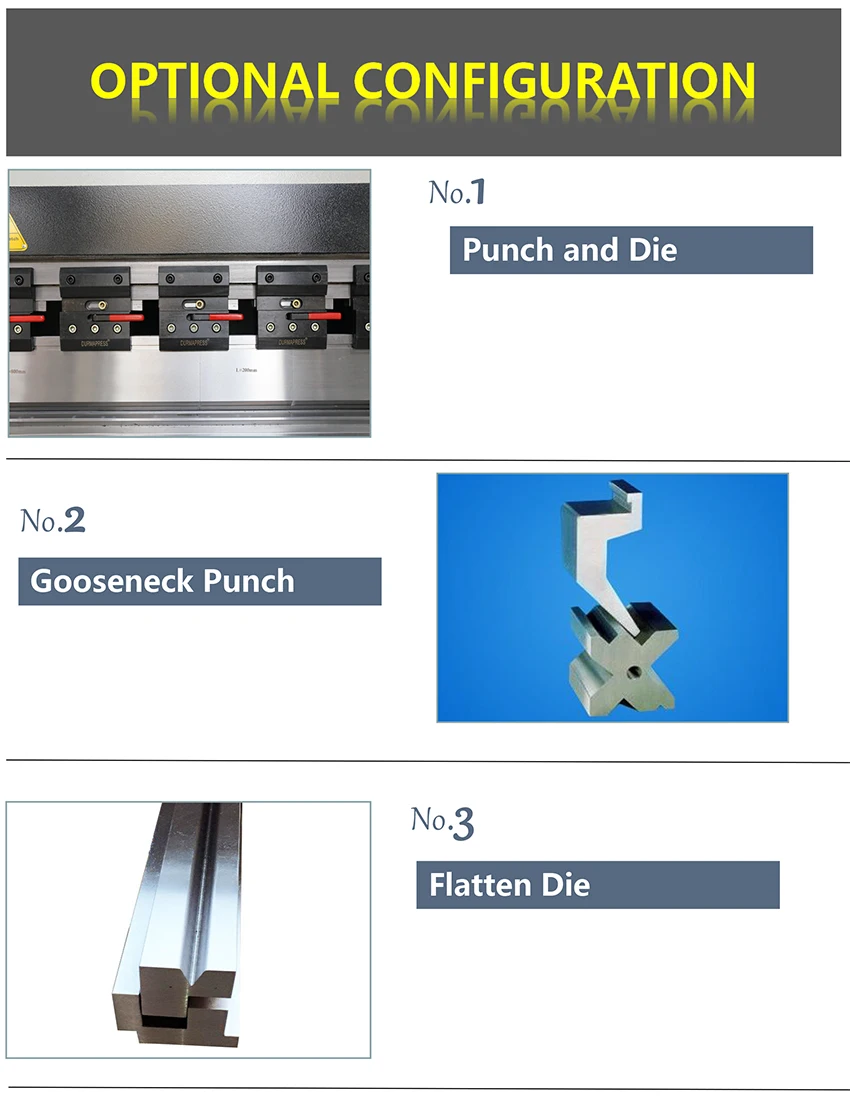

Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009
Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.

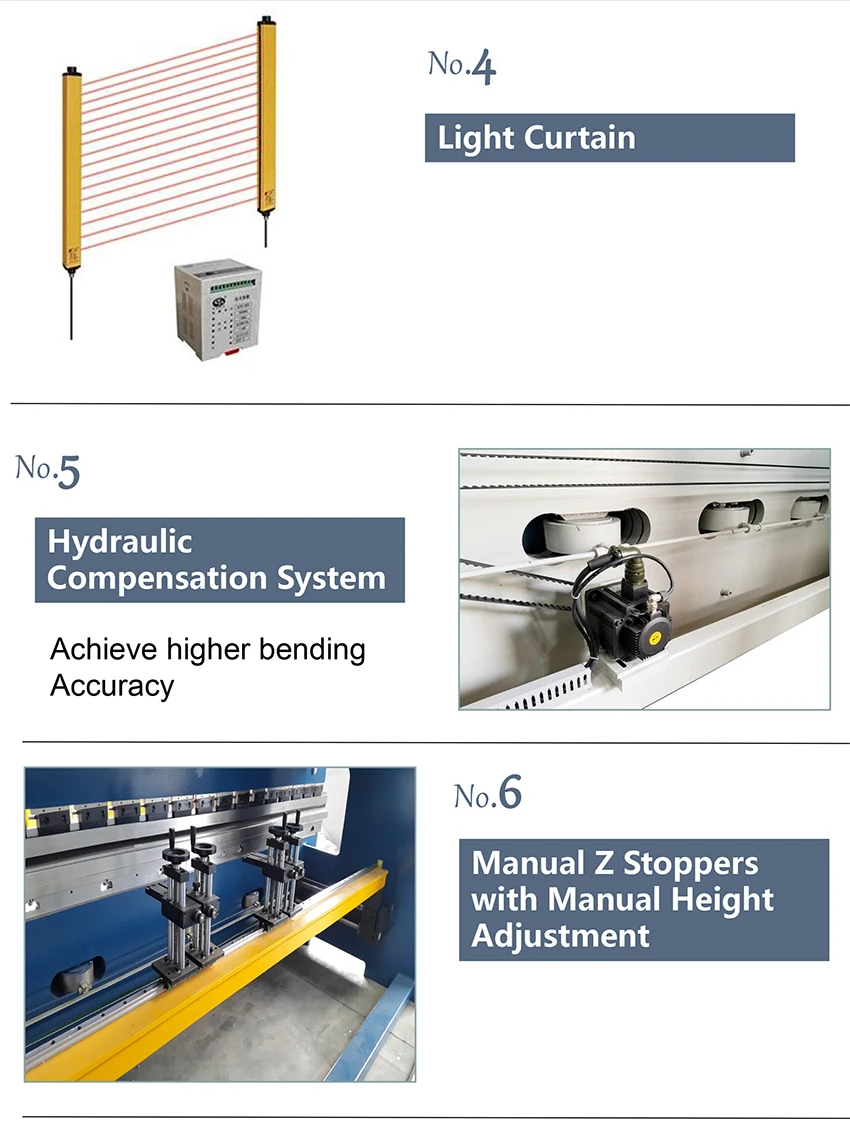

5. Worktable mechanical compensation or hydraulic compensation device is optional.

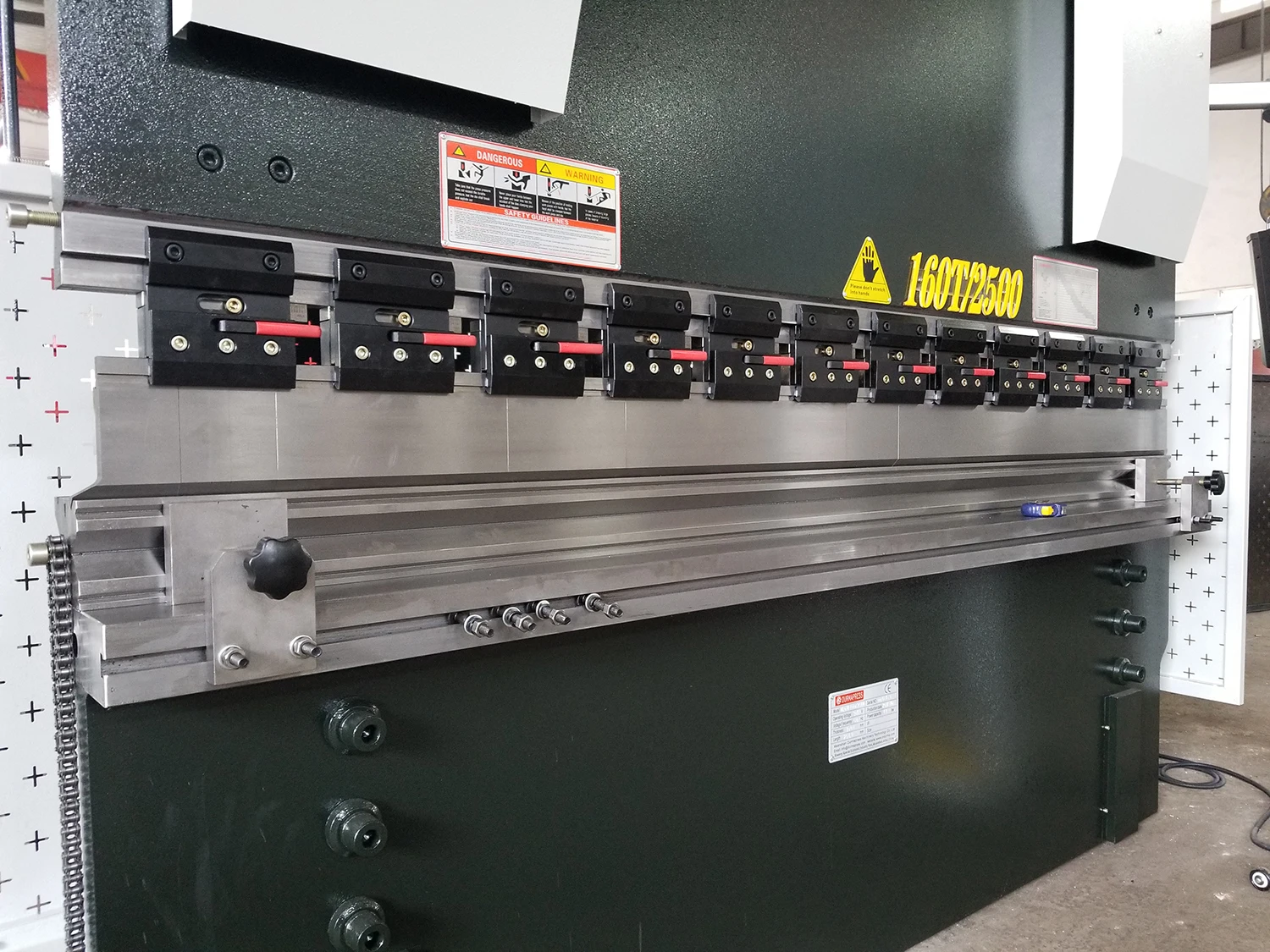

Quick clamp
Upeer die clamping tools are mechanical clamps, with safety when worker exchange dies.

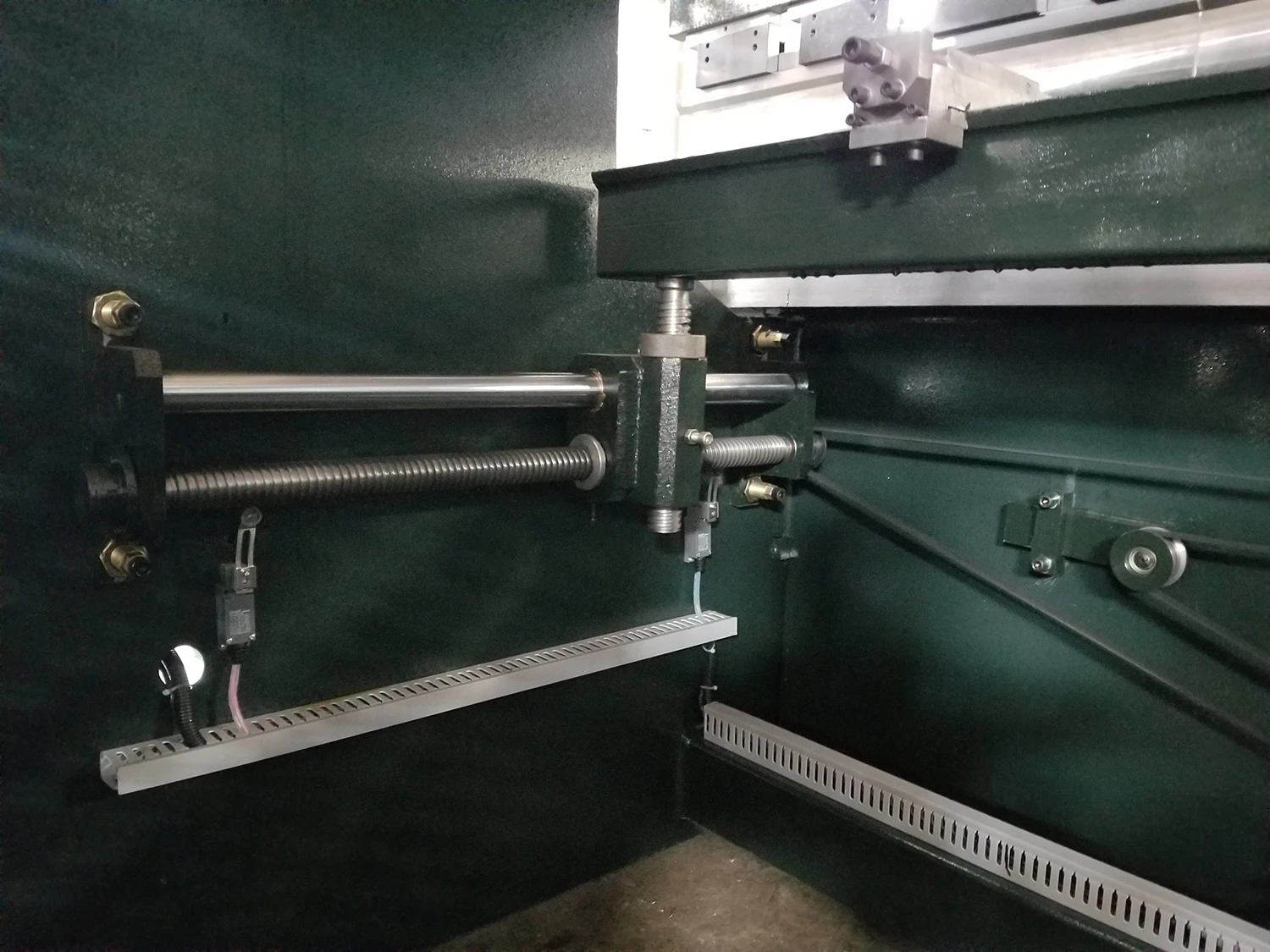

Taiwan HIWIN ball screw
High precise back gauge is equipped with fine ball screw and polished rod.

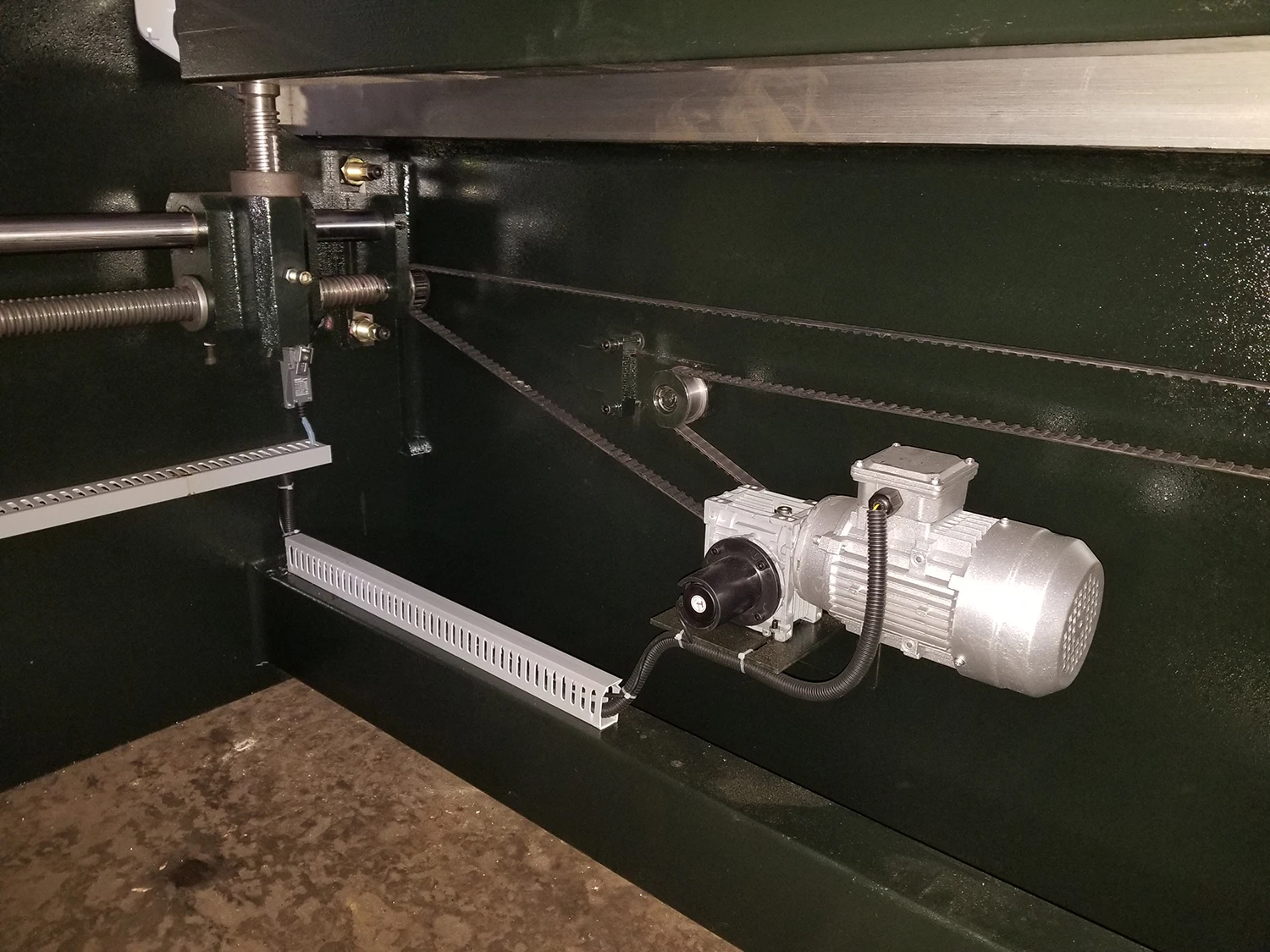

High-performance electric motor
X-axis & Y-axis adopting high-performance electric drive, Guaranteeing positioning accuracy, unique synchronours transmission mechanism design, stable and reliable.

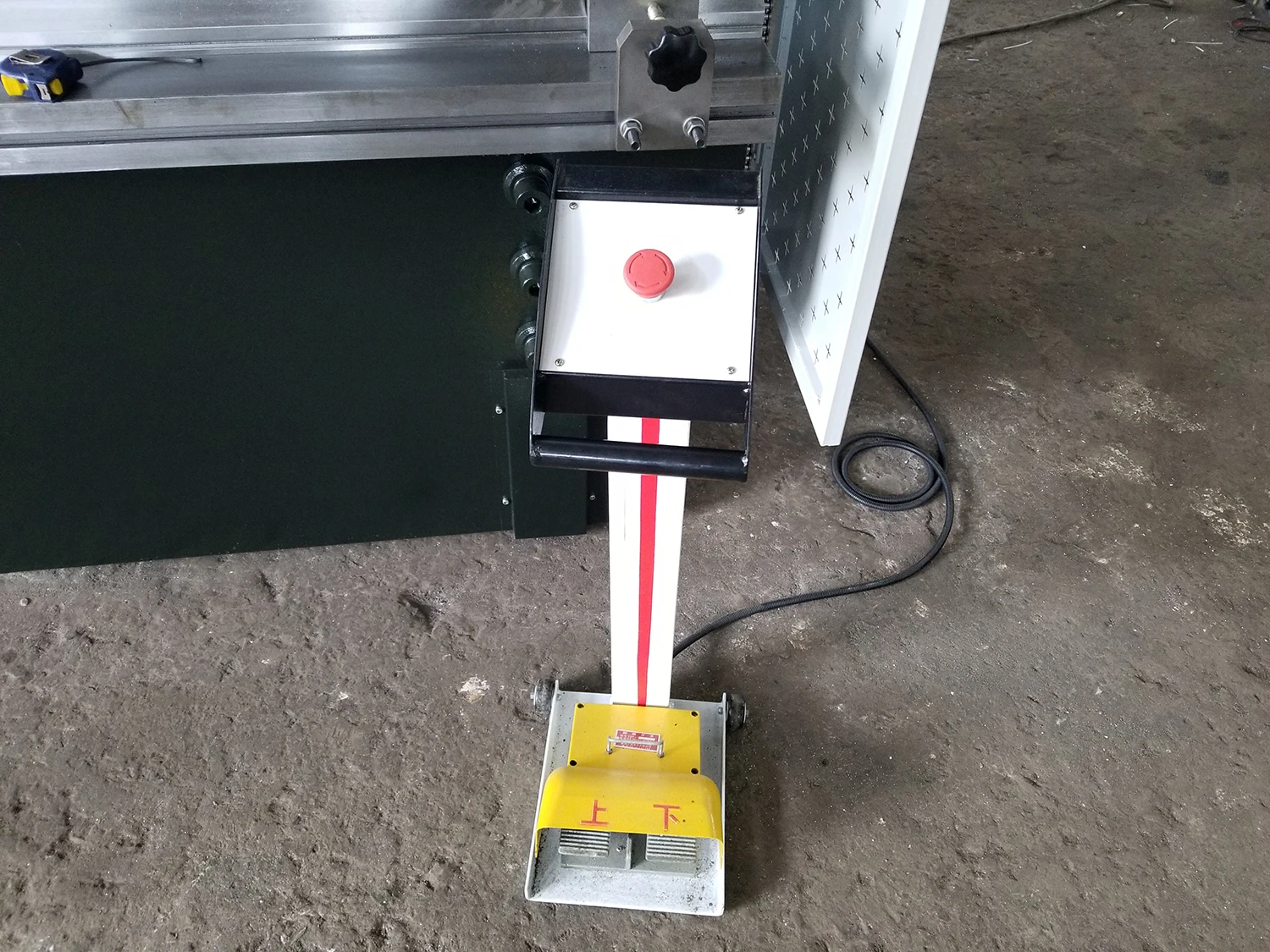

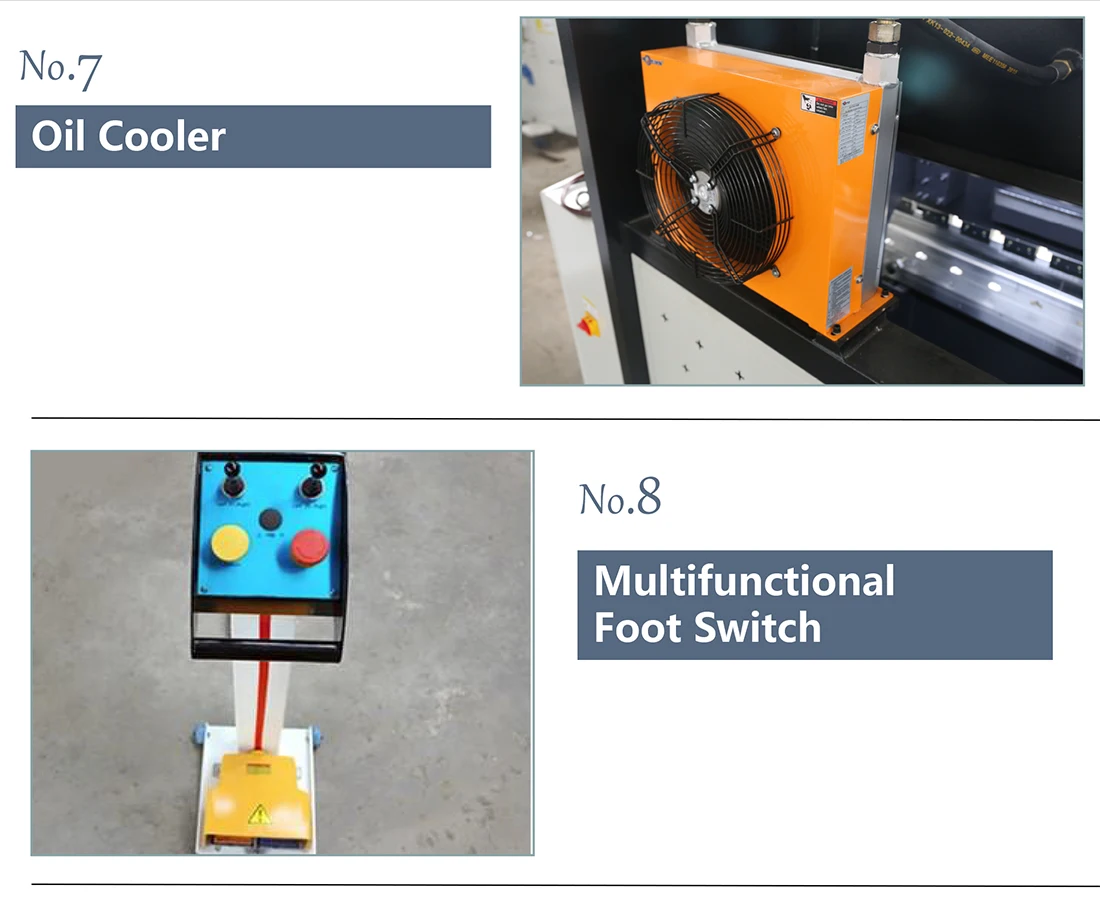

South Korea Kacon pedal switch
South Korea KACON pedal switch, enhancing the service life and operational sensivity.

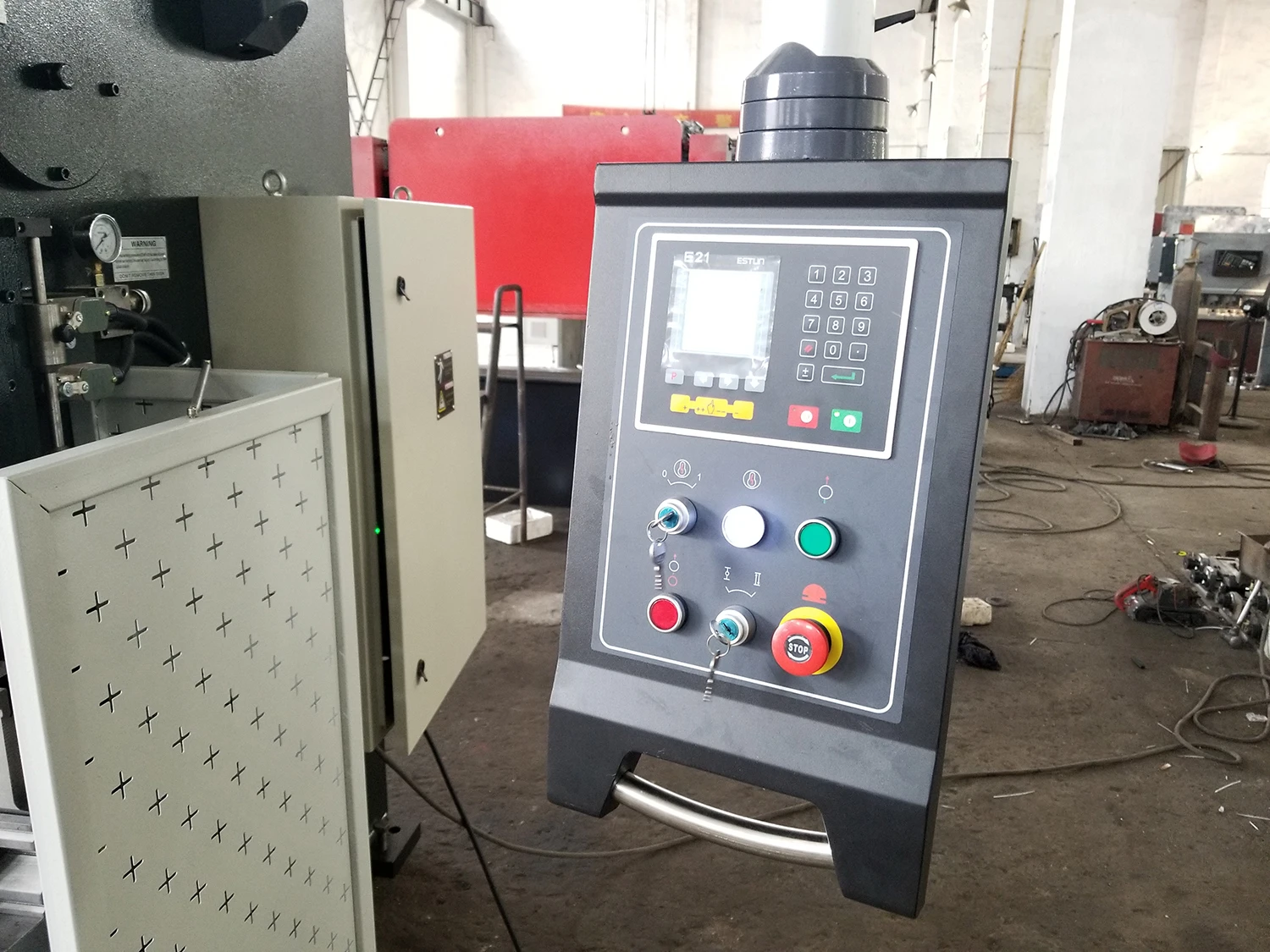

Estun E21 control system
Automatic backgauge location,easy to operating. It has 100 programs. Can achieve multi-step working.
Packing & Delivery
Our Service
Certifications
FAQ
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:You are manufacturer or trading company ?
A: We are 100% manufacturer with 17 year's manufaturer experience.
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:What about commissioning service ?
A: We can offer commissioning service , the buyer need to afford plane tickets.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
