Waterproof Two Way Radio UV 9R PLUS 10W Walkie Talkie
- Category: >>>
- Supplier: Quanzhou Kingtone Optics & Electronics Technology Co. Ltd.
Share on (62197289265):
Product Overview
Description
Waterproof Two Way Radio UV-9R PLUS 10W Walkie Talkie
baofeng UV-9R PULUS Main Features:
1) Output : 5W(H)/4W(M)/1W(L)
2) Frequency Range: 136.00-174.00 MHz / 400.00-520.00MHz

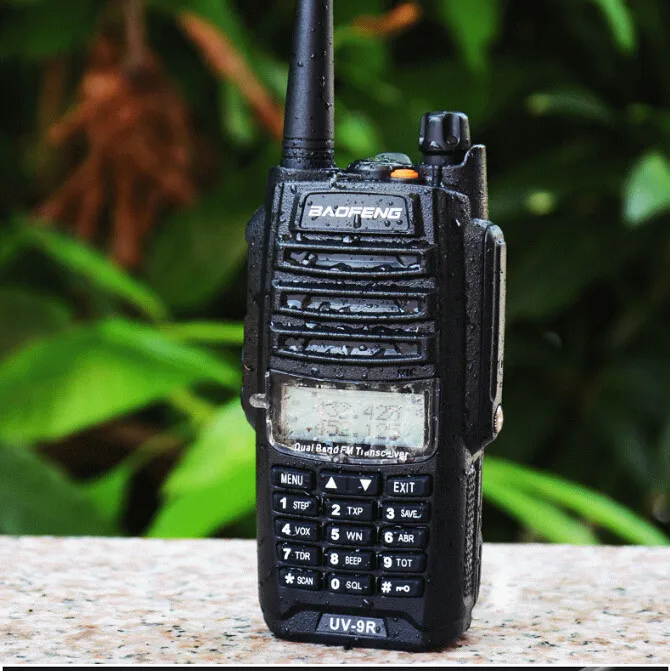

3) IP57 waterproof and dustproof (Not diving)
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
Military waterproof interphone two way radio baofeng UV-9R explosion-proof walkie talkie Marine radio walkie talkie Specification
Baofeng uv-9r policy navy handheld walkie talkie professional marine boat ship waterproof two way radio
Model | BAOFENG BF-UV-9R PLUS 10W |
Frequency Range | VHF:136-174MHz+UHF:400-520MHz |
Channel capacity | 128CH |
Output power | 8W 5W1W |
Operating Voltage | DC7.4V |
Antenna Impedance | 50ohm |
Working Temperature | -20°C—+60°C |
Mode of operation | Simplex or semi-duplex |
Frequency stability | 2.5ppm |
Frequency Spacing | 2.5/5/6.25/10/12.5/20/25kHz |
Battery capacity | 1800mAh |
Color | Black |

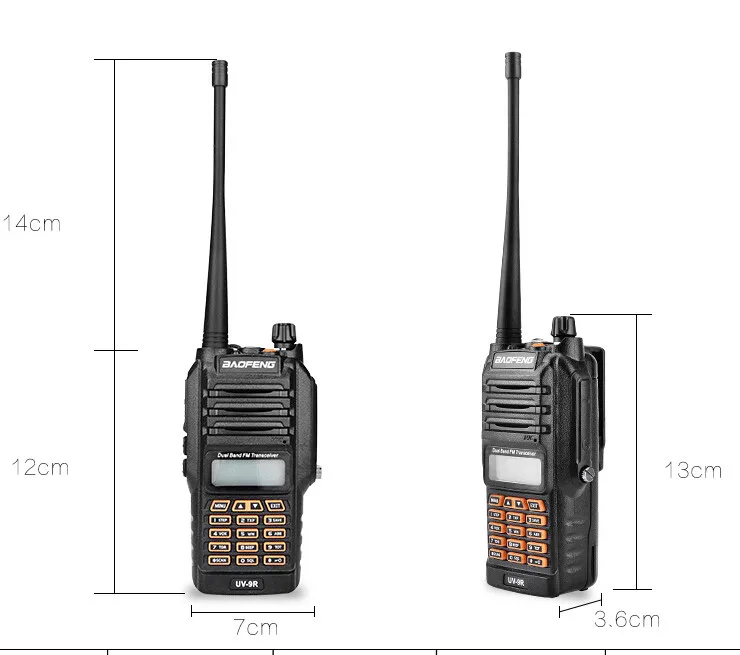

Dimension(Exclude antenna) | 110x58x32mm |
Weight(Include Battery) | 260g |
Feature | |
CTCSS/DCS | 50 CTCSS and 104DCS codes |
Dual band, Dual display, Dual standby | Yes |
IP 57 Waterproof and dustproof | Yes |
High power/mid/low(5W/3W/1W)selection | Yes |
Up to 128 Memory channels | Yes |
Cross band reception/transmission | Yes |
Battery Saving | Yes |
VOX(voice operated transmission) | Yes |
Wide/Narrow band selection | Yes |
Tone end of transmission | Yes |
Auto-Back light | Yes |
Dual band standby | Yes |
Time-out timer(TOT) | Yes |
Voice prompt(English /Chinese) | Yes |
DTMF emergency alarm | Yes |
ANI code PTT-ID | Yes |
Frequency reverse | Yes |
Auto keypad lock | Yes |
Busy channel lock function | Yes |
Emergency SOS sound and light alarm | Yes |
PC software or Manual program | Yes |
Priory scanning Function | Yes |
Commercial FM radio receiver(65Mhz-108MHz) | Yes |
Relay forwarding confirmed(1750Hz) | Yes |
Low Battery warning | Yes |
Display illumination and programmable keyboard | Yes |
Specification | |
Type of modulation | FM |
Emission class | 16k¢F3E/11¢F3E(W/N) |
Maximum deviation | <=±5kHz/<=±2.5kHz(W/N) |
Spurious emission | <-60dB |
Receiver sensitivity | 0.2µW(At 12dB SINAD) |
Inter modulation | 60dB |
Audio output | 1W |
Spurious Radiation | >=65dB |
Consumption in standby | 380mA |
Consumption in transmission | <-1.4A |
Product Uses
1. Using rechargeable walkie-talkie for the first time, please charge for 16 hours
2.Turn off your computer before removing the battery
3. Please do not use hand to pick up the antenna, hold the antenna will affect the effective wireless intercom call range
4. Use the walkie-talkie, you should keep it vertical distance of 5.0 to 7.0 cm, and keep your face
5. Please try to use while driving handsfree speaker and the closing words
6. Keep your intercom televisions, computer monitors and other screen to maintain a distance greater than 10cm, to avoid being magnetized
7. The interphone Do things together with other metal-containing storage
8. Walkie-talkies may interfere with some hearing aids, with your hearing aid manufacturer to discuss alternatives
9. Try to place in the medical walkie-talkie off, so as not to affect the use of medical equipment
10. Do not use in airports and on aircraft. If so, prohibited driving the car to the side of the road and then
11. In potentially explosive areas must remain shut down, unless it is dedicated intercom dangerous areas (for example, Factory Mutual, CAS, or UL certified)
12. To avoid electromagnetic interference / compatibility conflicts, in some cases posted notices require you to turn off the intercom, please observe
