High quality 22inch IR touch screen waterproof touch display

Share on:

Price in USD:Details


Product Overview


Product Description

High quality 22inch ir touch screen waterproof touch display

Product characteristics


1. light-resistant, sunshine from any angle does not affect touch control.

2. IP65 class waterproof and dustproof, which can be used in outdoor and industrial environment

3. Real10-point touch, touch experience is not affected by object occlusion

4. Hardware design of industrial control level, working normally at - 20 C - 60 C

5. Strong anti-jamming ability, anti-static performance of industrial ESD

6. Strong compatibility, drive-free support for multiple operating systems

7. Support gesture function, customize output protocol, interface and application development

8. Provide self-developed touch screen configuration software and remote assistance tools



Standard Size22"
Border Width24mm(Standard)
Thickness8.3mm(3mm Glass)
Installation        Embedded,Plug-In(optional plug-in accessory)
Touch MediumOpacity object
SensorInfrared Ray
Luminousness100%(No glass), Up to 95%(Tempered glass)
Working LifeunLimited
Touch Pressure          Zero Pressure


Output Resolution4096 x 4096
Touch Precision<2mm(Centre area),<3mm(Edge area)
Smallest Touch Objects>4mm
Touch Depth<3mm
Output TypeAbsolute Value Of Coordinate
CalibrateNot Require Recalibration
Response Speed3-10ms
Points RecognitionMore than 10mm between two points
Power RequirementDC 5V±5%,150±20mA
Consumption<2W,Typical 0.7W(DC5V Power)
Power TypeUSB Power,PS/2 Power(RS232 Interface Product)
InterfaceUSB 2.0 Full Speed, RS232 (9600/38400)


WaterProof       Support customized IP65 product
HighlightIncandescent light (220V,100W) height more than 400mm,Sunlight 130000Lux
TemperatureOperating: -20℃ ~ 60℃            Storage: -30℃ ~ 85℃
HumidityOperating:10%-90% RH,40℃    Storage: 10%-90% RH,40℃


Touch Points10 Points ,max
ScanAuto Scan after power on
Event DetectionTouch Start, Hold, End
Upgraded           Upgraded with USB and RS232 interface
DriverWithout any driver(USB Product),RS232 product supply driver
Touch EventsVirtual Mouse(Click,Double-Click,Drag,Right Button),Windows7/8/10 Touch Event
OS Supportwindows xp,windows 7/8/10. Linux, Mac OS X, Android,Chrome OS
Sleep Modesynchronism sleep, asynchronous sleep

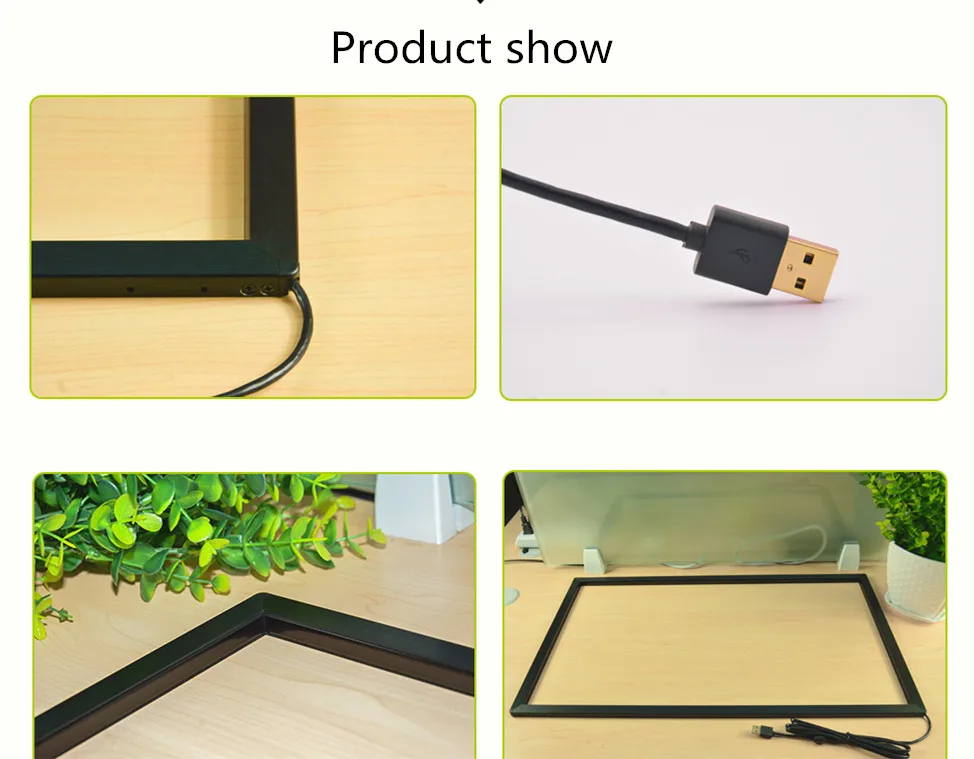

Detailed Images





Packaging & Shipping


  One piece touch screen without glass(4 sticks in one cylinder)             More than 5 pieces touch screen will be packed in carton
