Product Overview

Description


capacitor 50 cbb65 run sh capacitor 400v for ac motor / air conditioner(Column,Aluminum case,Explosion-proofed)

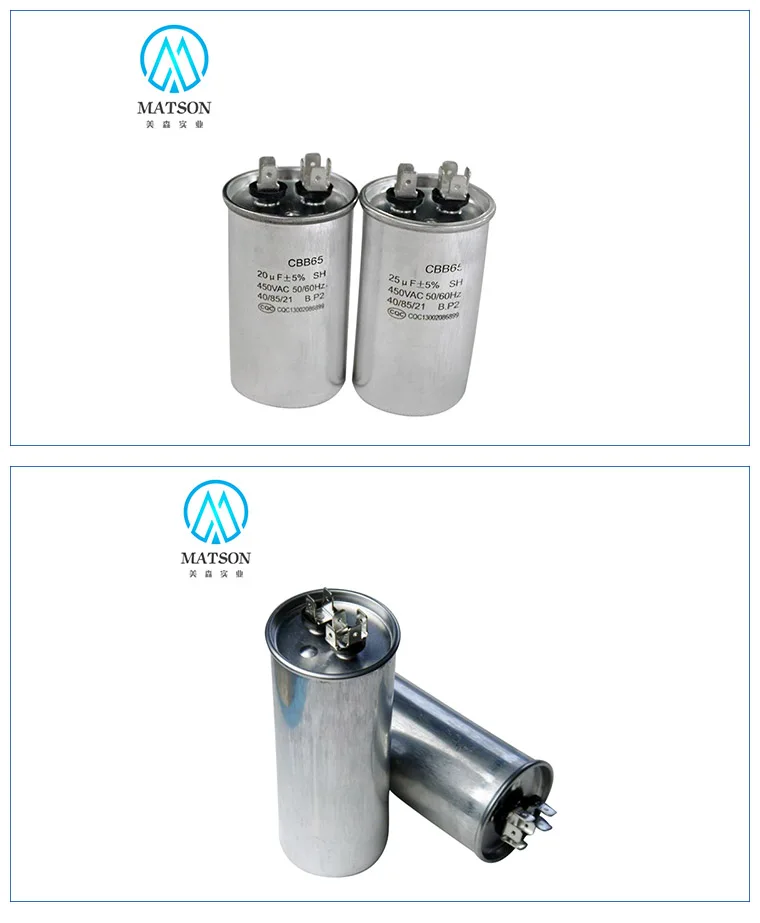

Product Picture:-1.jpg

Outline Drawing:








Features:


Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.


1.Self-healing property


2.High stability and reliability


3.Safer with Explosion-proofed design




 Product Specifications:















































Reference standardsGB/T 3667.1(IEC60252-1)
Climatic category40/70/21, 40/85/21
Class of operationClass B(10000h)    Class C(3000h)
Class of safety protectionS2/S1
Voltage range250VAC,370VAC,440VA,450VAC
Capacitance range2-100uf
Capacitance tolerance±5%,±10%,±15%
Dissipation factor20*10-4(100Hz,2020°C)
Test voltage terminal to terminal Utt2 Un for 2 seconds
Test voltage terminal to case Utc(2Un+1000)VAC or 2000VAC-50Hz for 60 seconds
Insulation Resistance≥3000s(1000Hz, 20°C,1min)




Product Size:






















































































































Production specificationsTerminalSize
CBB65-450VAC 5HF-9μF2*4 or 2*2Φ40*60
CBB65-450VAC-10μF2*4 or 2*2Φ40*60
CBB65-450VAC-12.5μF2*4 or 2*2Φ40*70
CBB65-450VAC-15μF2*4 or 2*2Φ45*70
CBB65-450VAC-20μF2*4 or 2*2Φ50*75
CBB65-450VAC-25μF2*4 or 2*2Φ50*85
CBB65-450VAC-30μF2*4 or 2*2Φ50*100
CBB65-450VAC-35μF2*4 or 2*2Φ50*100
CBB65-450VAC-40μF2*4 or 2*2Φ50*100
CBB65-450VAC-45μF2*4 or 2*2Φ50*100
CBB65-450VAC-50μF2*4 or 2*2Φ50*125
CBB65-450VAC-55u F2*4 or 2*2Φ50*125
CBB65-450VAC-60μF2*4 or 2*2Φ50*125
CBB65-450VAC-65μF2*4 or 2*2Φ55*125
CBB65-450VAC-70μF2*4 or 2*2Φ55*125
CBB65-450VAC-80μF2*4 or 2*2Φ60*125
CBB65-450VAC-90u F2*4 or 2*2Φ60*125
CBB65-450VAC-100μF2*4 or 2*2Φ63.5*125
CBB65-660VAC-20μF2*4 or 4*4 or 2*2Φ50*100
CBB65-660VAC-25μF2*4 or 4*4 or 2*2Φ50*100
CBB65-660VAC-60μF2*4 or 4*4 or 2*2Φ63.5*150
We can customize CBB65 capacitor according to your requirement






Packing Details : carton


Delivery Details : 20 days after getting payment_03.jpg-2.jpg
