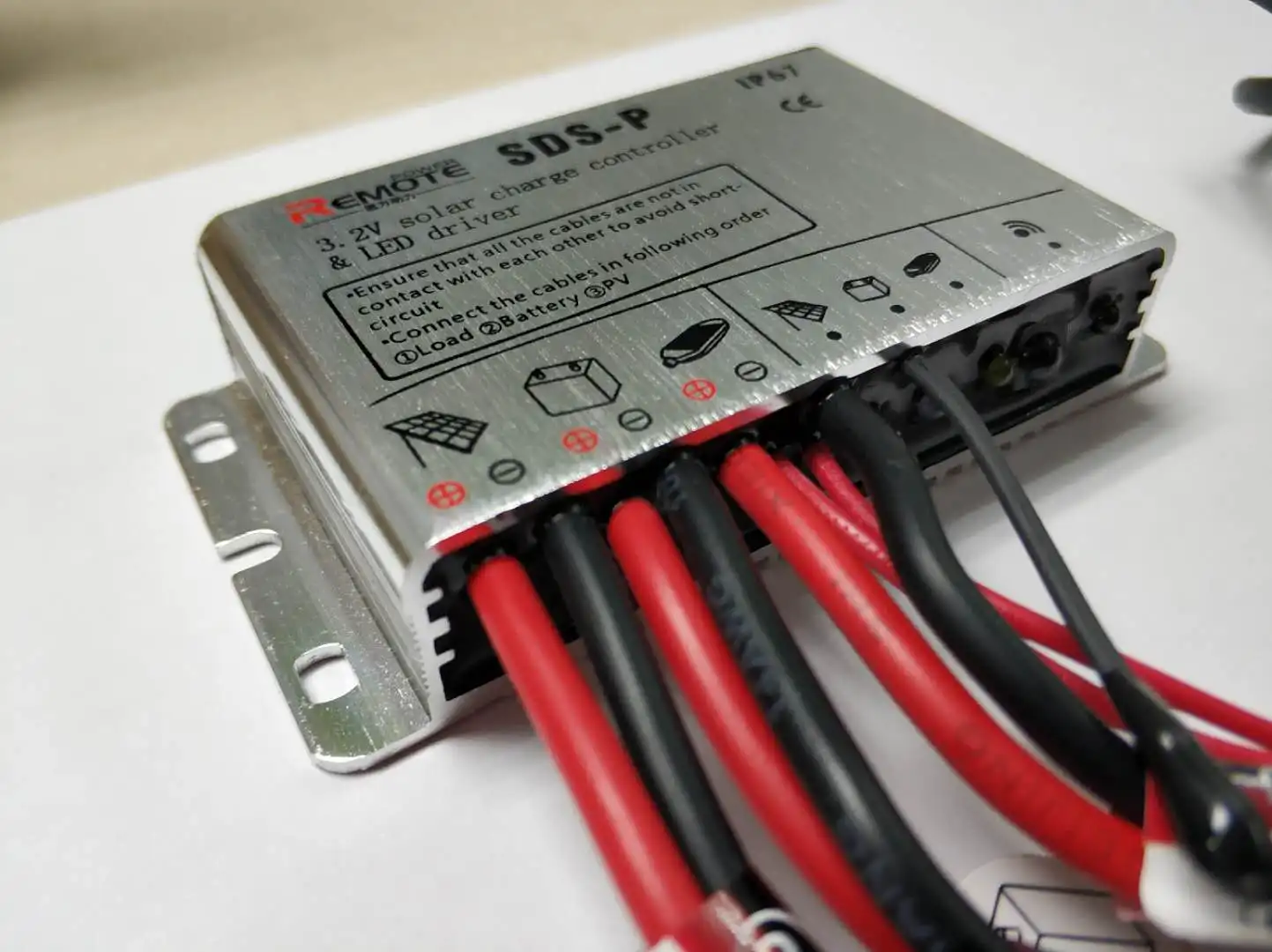

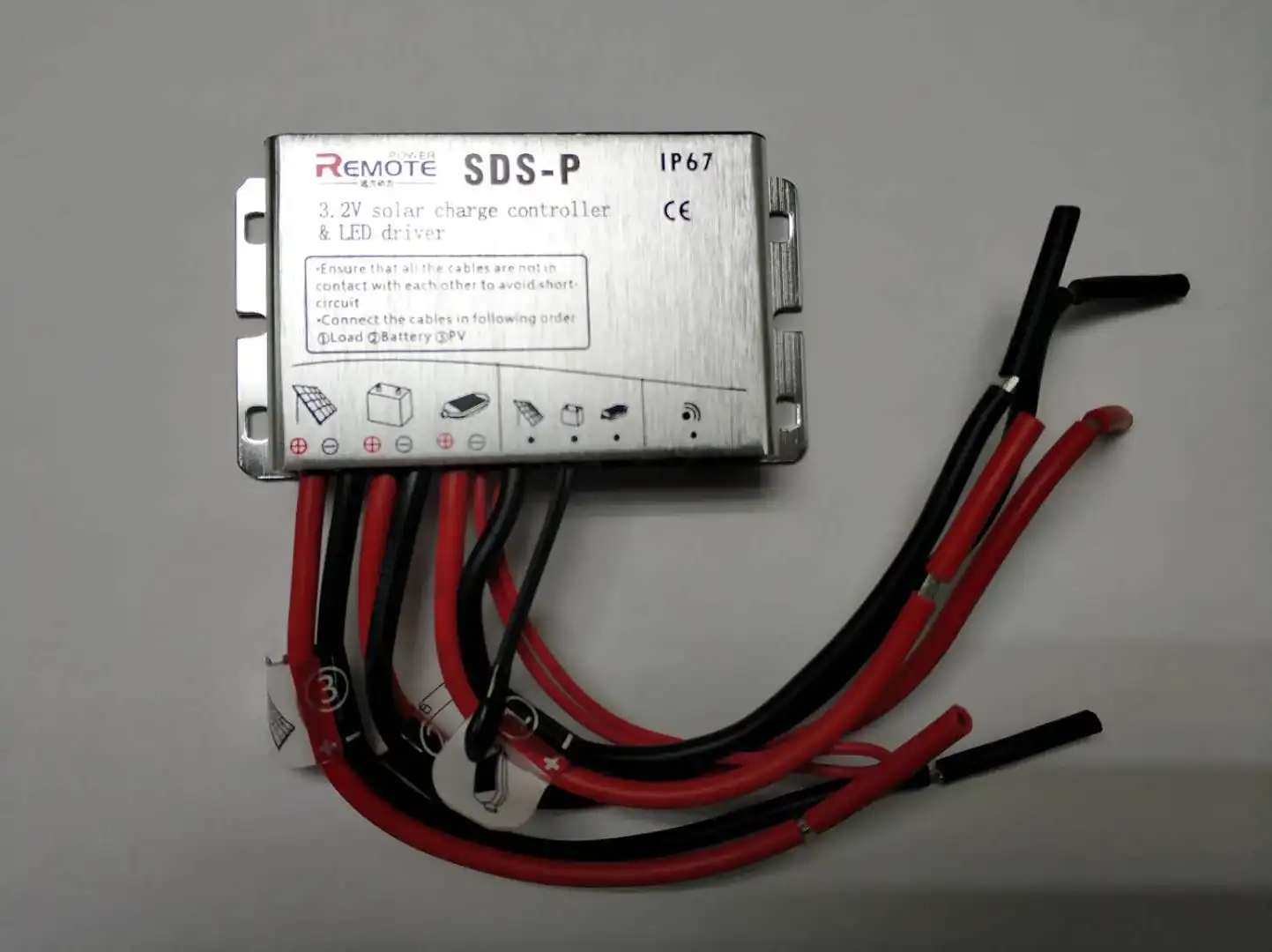

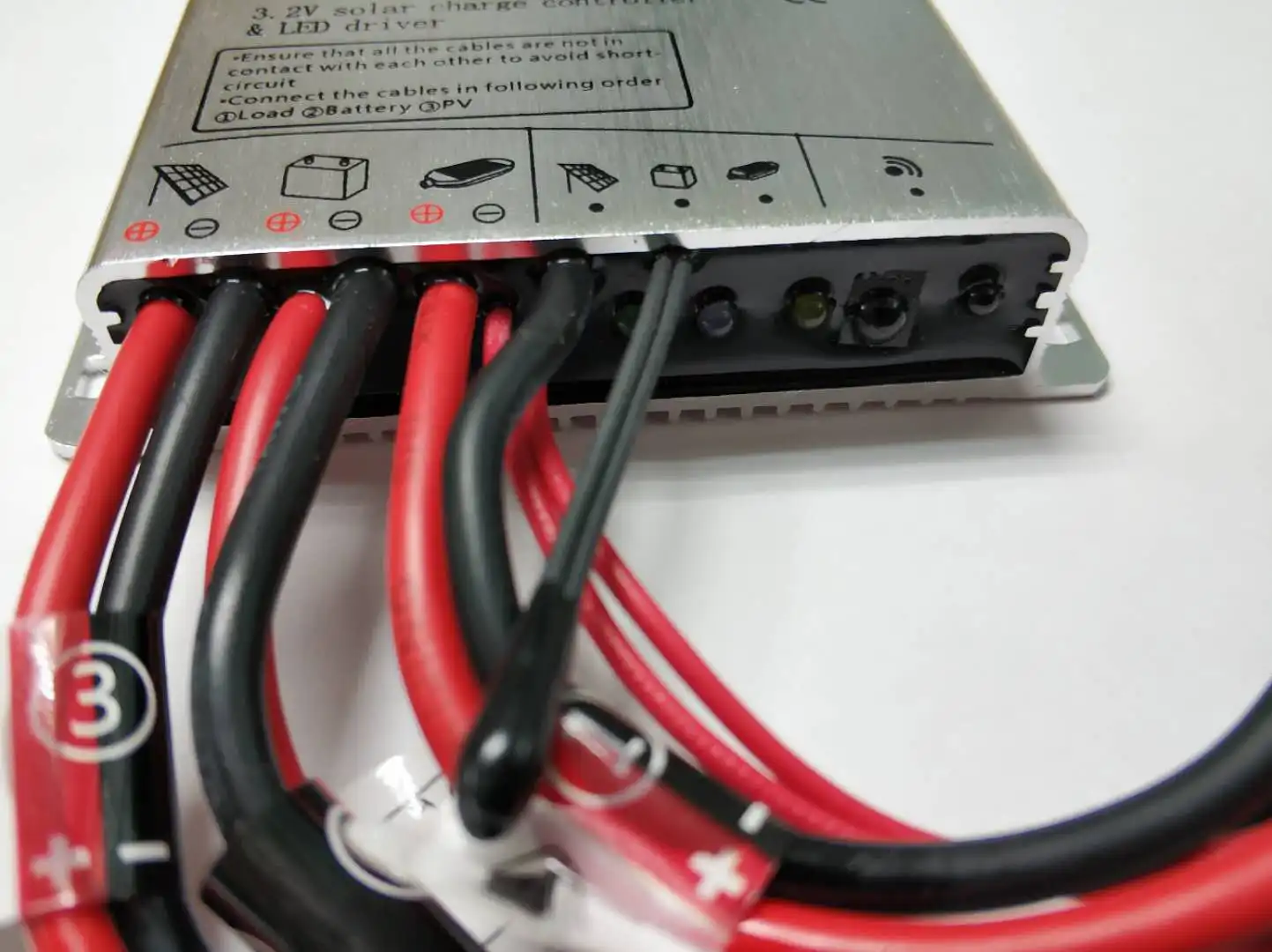

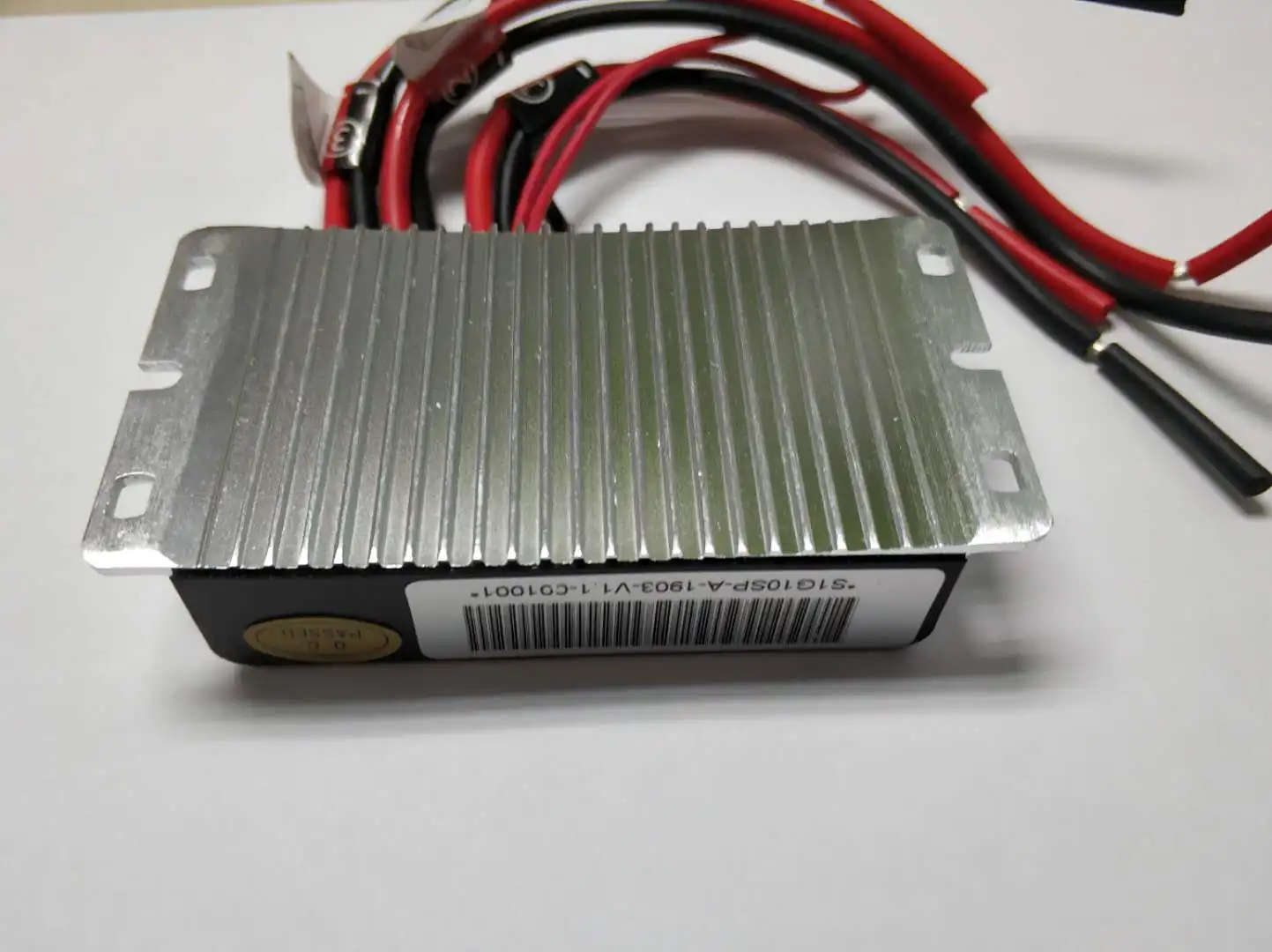

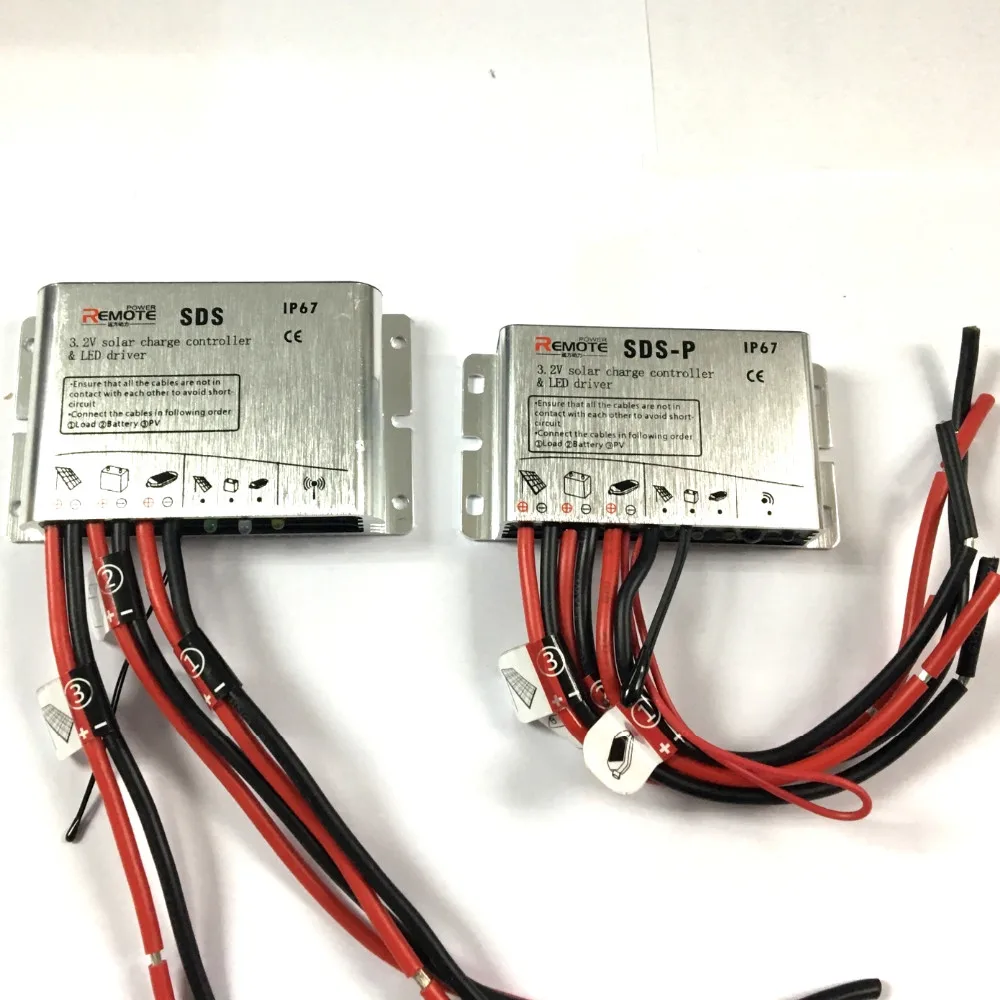

SDS series solar controller is suitable for lithium battery,with low voltage system,and the voltage can be 2.5V at lowest.SDS solar controller is built in led driver,powered by solar energy,combines solar battery charging/discharging management function and LEDlight source constant-current driving me chanism.It is widel yused for solar street lamps and solar courtyard lighting system. Multiple operation modes are provided including automatic mode, light-control mode, and manual mode. A test mode is also available for engineering installation. The built-in smart mode provides a number of automatic power derating curve choices as well as extendable external controls(InfraredMotionsensor,remotecommunication).

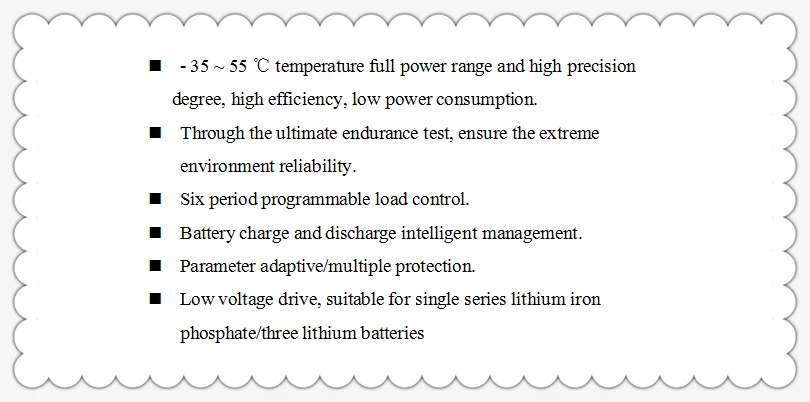

Main features
Waterproof 20W 30W solar charger controller for solar street lights
Product Parameter
Name
Low voltage solar charge controllers with Built-in LED Driver
Low voltage solar charge controllers
Model
SDS-20W
SDS-P10A
Remote Control
Wireless
infrared
RC Distace
>30m
12m
Charging ways
PWM
Type of Battery
Li-NiCoMn, LiFePO4
Battery Strings
Single string or Double strings
Battery voltage
2.5~11V
Max Charging Current
15A
Discharging way
Booster constant current
PWM current limiting
Max Output Current
2.1A
10A
Max Output Power
20W
30W
Working Temperature
-35~55℃
Self-consumption
≤17mA(3V)
Dimensions(L*W*H)
92.5×53×18.6mm
46×88×18.5mm
Certifications
Company Information

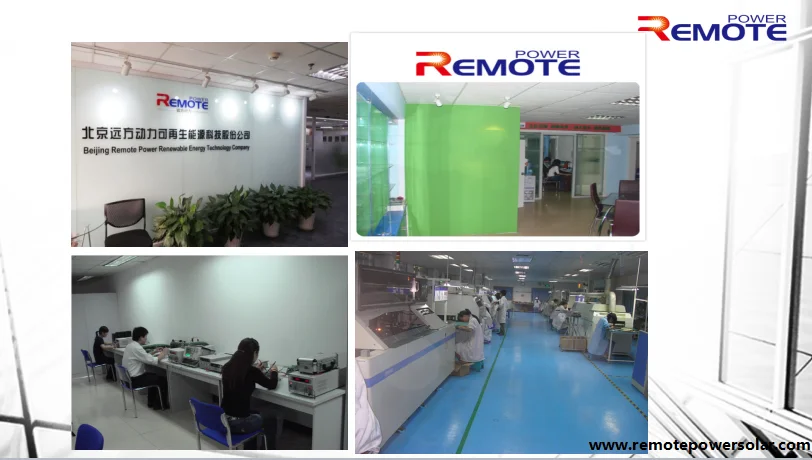

Beijing Remote Power Renewable Energy Technology company , is one of the largest manufacturers in solar industry for 15 years.Our company main products are solar charge controller, all in one solar street LED lights,Lithium battery pack, inverter and solar home system. Owing to the advantages of strict quality control, innovative design and advanced testing facility.Our reliable products are very popular worldwide;and we have got good reputation from all over the world.
FAQ
Q1. MOQ?
A: 1pcs.
Q2. Delivery time?
A:It depends.Usually 3 days less than 10 pcs,7days less than 1000pcs.Negotiate more than 1000 pcs
Q3. how to pay?
A: We accept TT/western union/visa/LC/Paypal.
Q4. Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty for our products.
Q5. How to proceed an order?
A: Firstly let us know your requirements or applications.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
