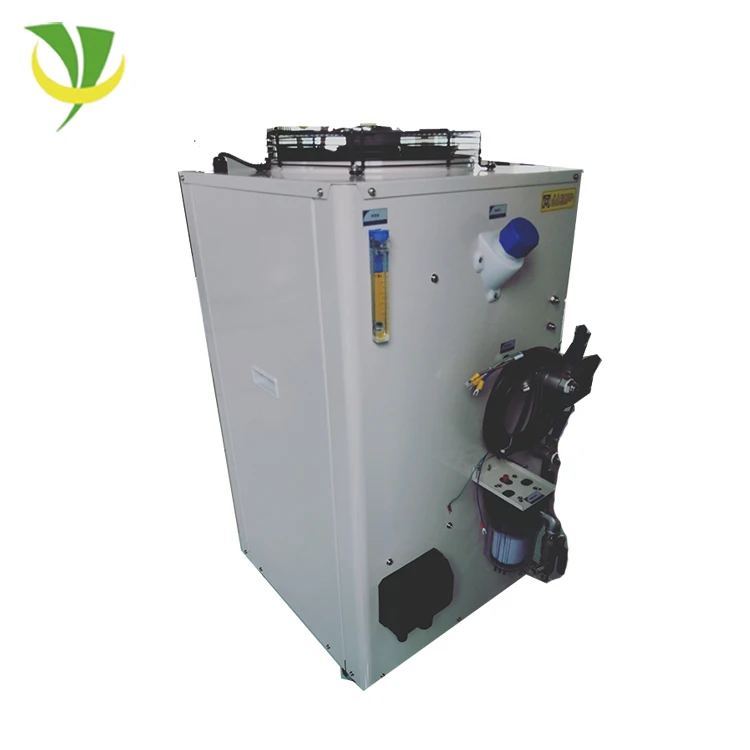

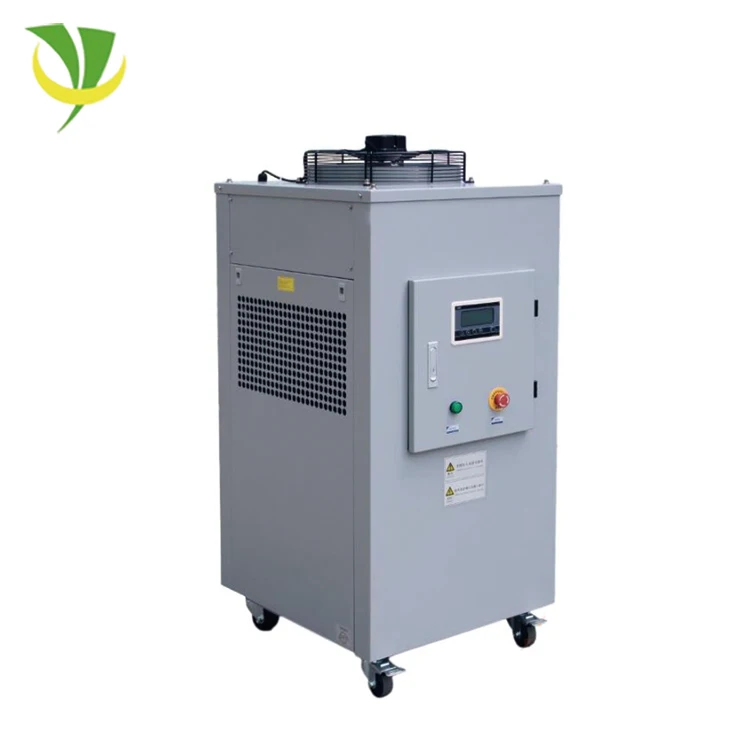

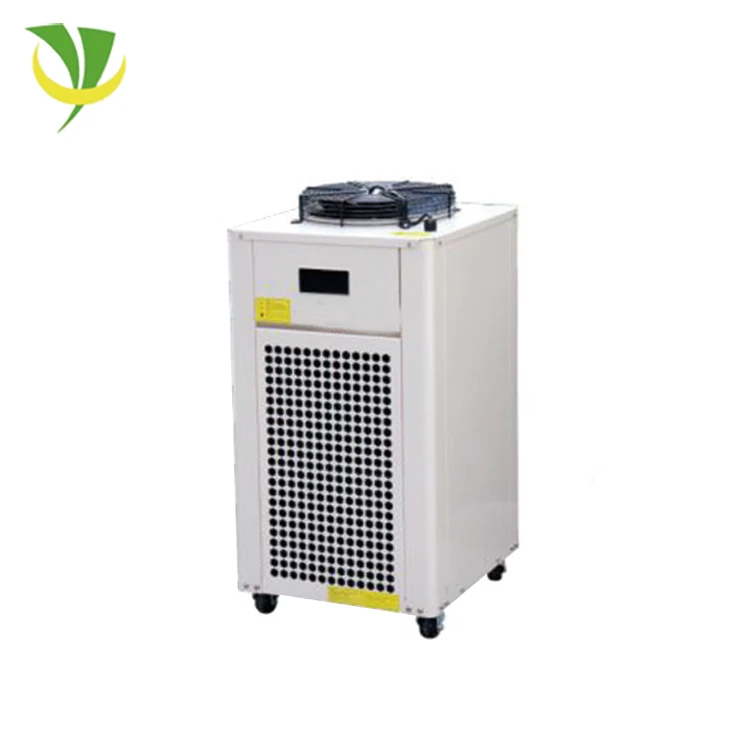

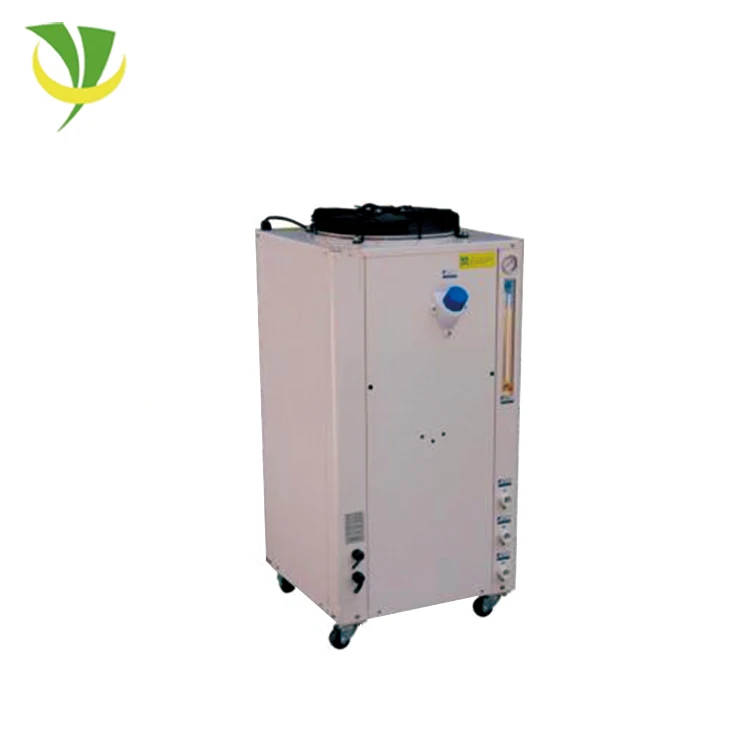

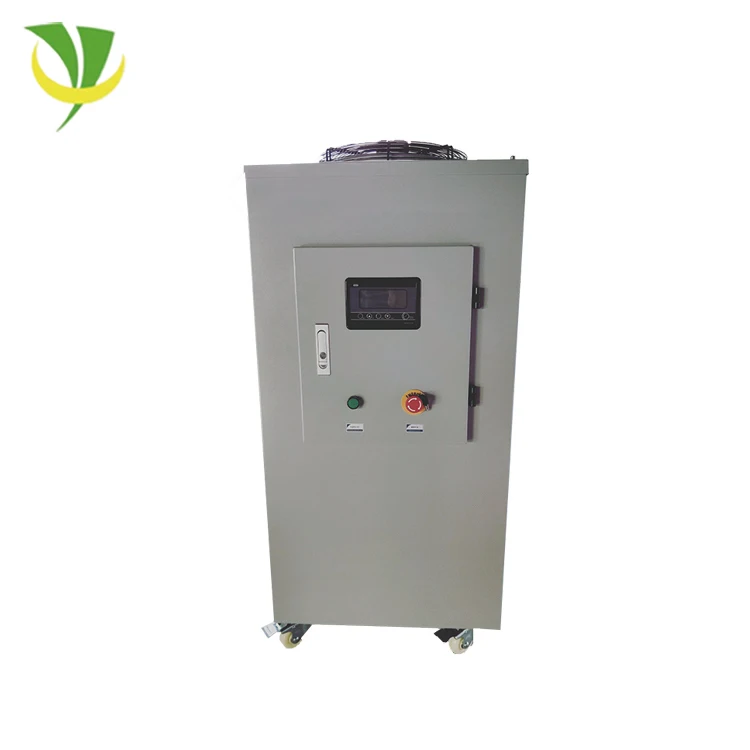

New Design Chiller System Industrial Water Cooling 43 W Industrial Water Cooler Refrigeration water chiller cooling
- Category: >>>
- Supplier: Shenzhen Syochi Electronics Co. Ltd.
Share on (62197733301):
Product Overview
Description
New Design Chiller System Industrial Water Cooling 43 W Industrial Water Cooler Refrigeration System chiller cooling
Specifications
| MODEL | DIC005ASL-LA2 | |
| Voltage | 220V | |
| Frequency | 50Hz | |
| Control mode | A | LCD |
| Refrigerant | R22 | |
| Nominal horsepower of compressor | HP | 1/2" |
| Rated operating current of the whole machine | A | 3.2 |
| Rated exhaust air capacity | m³/h | 600 |
| Rated heat discharge | m³/h | 2200 |
| Rated power | W | 36 |
| power | W | 85 |
| Rated head | m | 7 |
| Rated flow | L/min | 17 |
| Pure water storage | L | 4.1 |
| environment temperature | ℃ | ≤40 |
| cold water temperature | ℃ | 8~30 |
| Flow switch action value | 2.0L/min | |
| Chilled water inlet and outlet | Rp | 1/2" |
| Outlet | Rp | 1/2" |
| Noise | dB(A) | 50 |
| Dimension(L×W×H) | mm | 330×450×620 |
| N.W | kg | 43 |
| Refrigeration capacity | W | 1500 |
| Btu/Hr | 5160 | |
| Kcal/Hr | 1290 |
