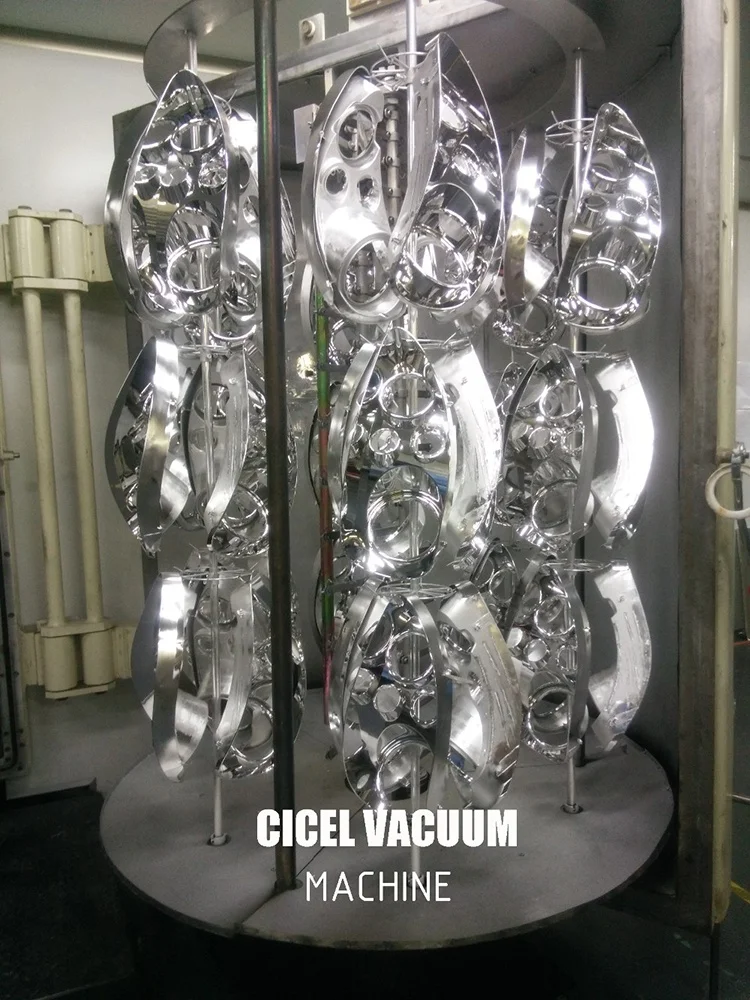

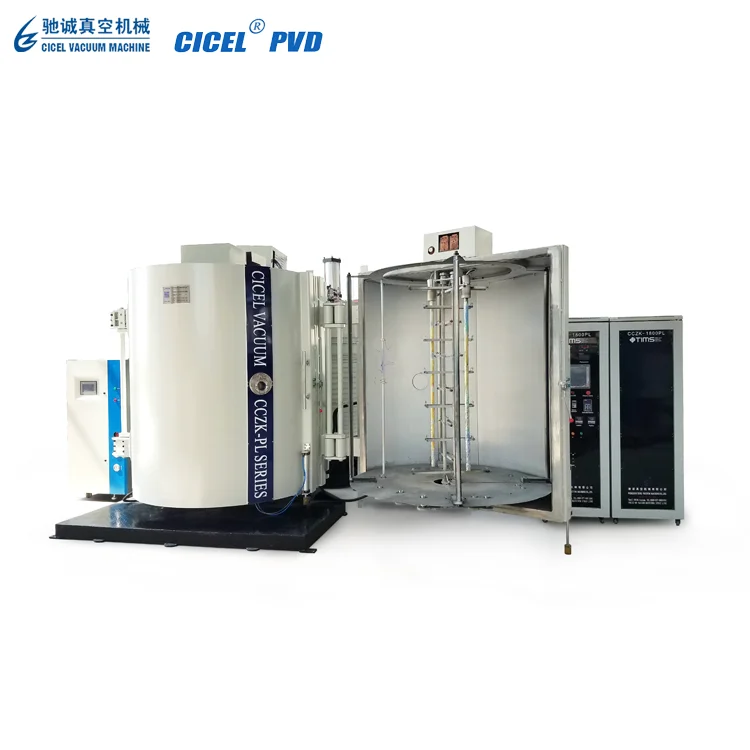

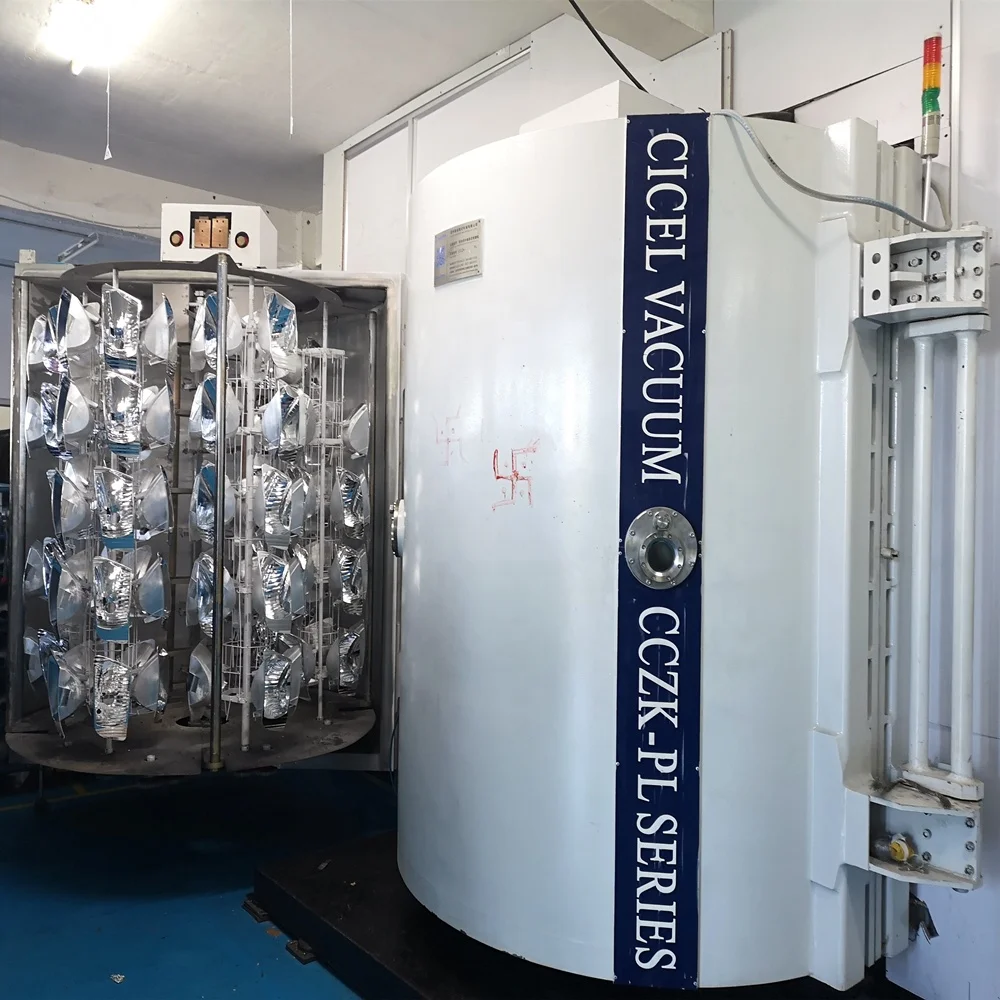

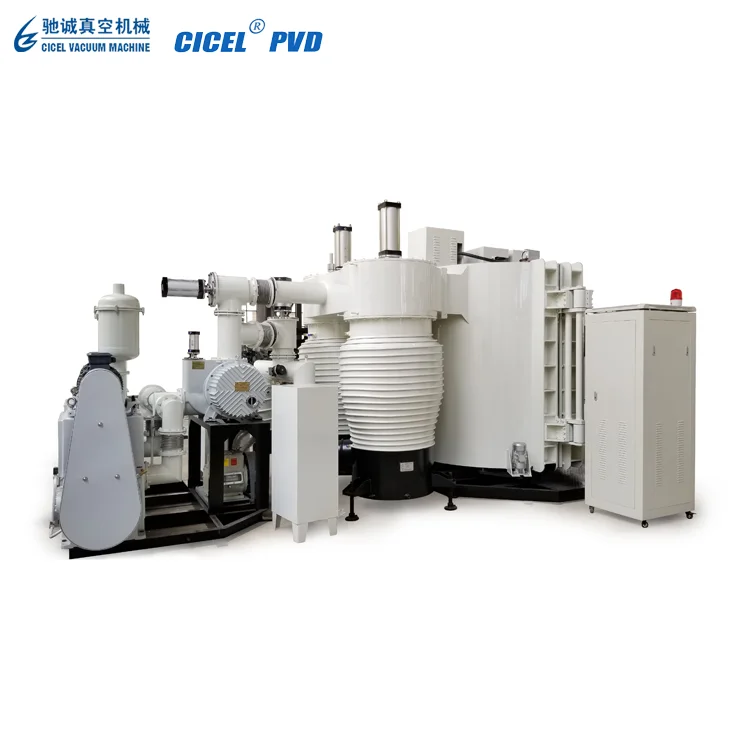

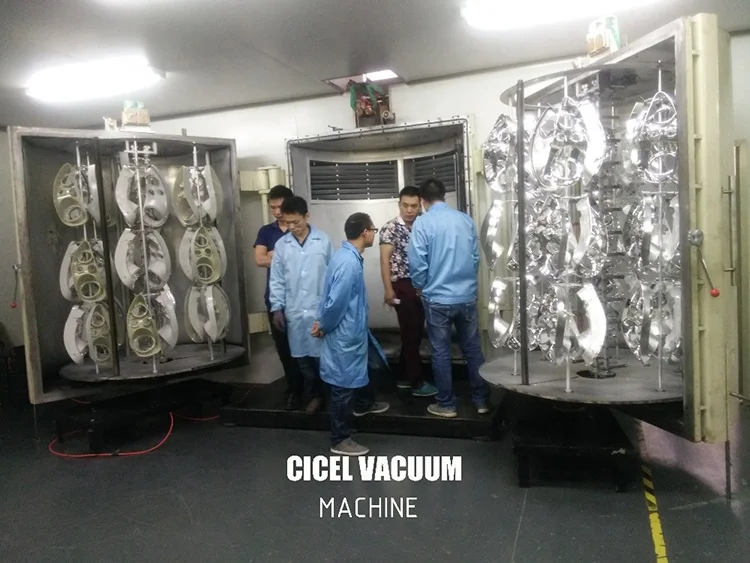

CICEL Car Headlights Reflector Aluminum PVD Vacuum Chrome Coating Machine

configuration

Model

CCZK-1200-PL

CCZK-1400-PL

CCZK-1800-PL

Customized

Size is available

Chamber size(mm)

D1200*H1500mm

D1400*H1800mm

D1800*H2000mm

Customized

Vacuum system

Diffusion pump/Molecular pump + Roots pump + Rotary pump + Holding pump + Cryogenic pump(optional)

Customized

Evaporation power

15KW

20KW

30KW

Customized

Evaporation source

26sets

36sets

52sets

Customized

MF middle frequency ion cleaning system

5KW

10KW

15KW

Customized

HMDSO system

(Silicone oil spraying sys)

CICEL 7^th Generation HMDSO SYS

CICEL 7^thGeneration HMDSO SYS

CICEL 7^th Generation HMDSO SYS

Customized

Control system

PLC+HMI Full automatic + Remote control system ( optional)

Customized

Ultimate vacuum

5.0*10^-4pa

5.0*10^-4pa

5.0*10^-4pa

Customized

Total power

42.5KW

63.5KW

101KW

Customized

Coating Cycle time

6 to 10mins one cycle ( Only aluminum metallizing )

Around 13mins one cycle ( aluminum metallizing & Slicone oil protective film process)

Customized

Delivery container size

1set 20GP

1set 40GP

1set 40HQ

Customized

Machine installing time

5days(1engineer)

7days(1engineer)

7days(2engineers)

Customized
