AVMATRIX 6 Channel Live Production Video Switcher Mixer with Recorder VS0605
- Category: >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (62197889180):
Product Overview
Description
Brief Introduction

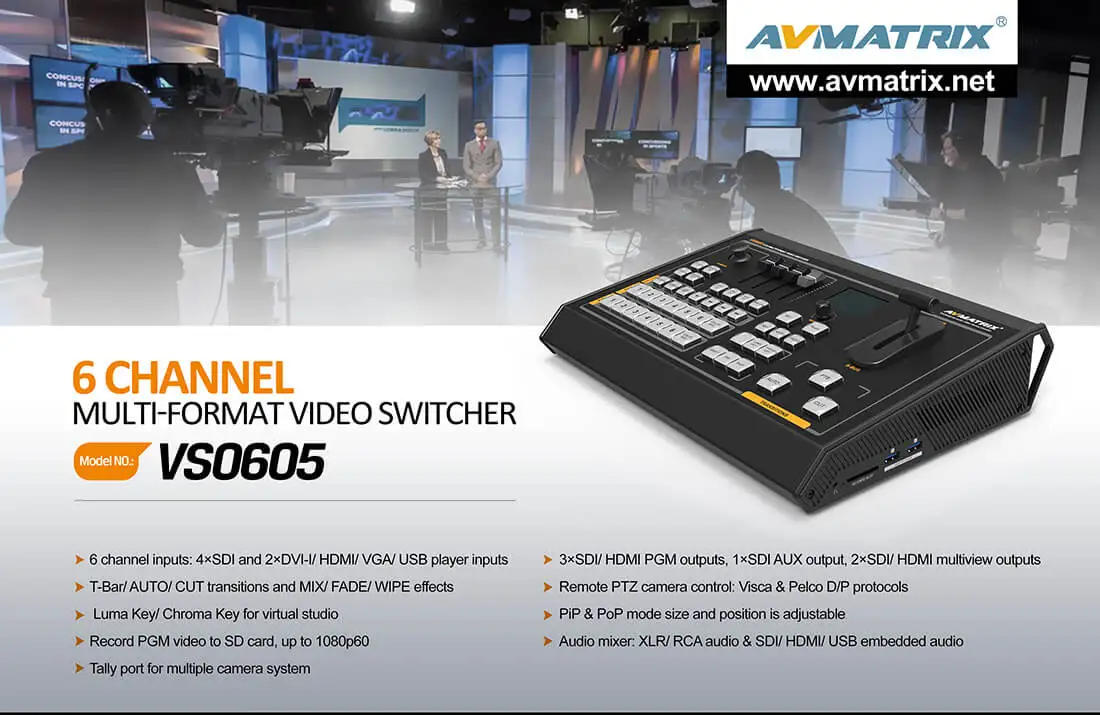

VS0605
6 Channel Portable Video Switcher Mixer with Recorder
Main Features
1) 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB
2) 3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out
3) Input format auto-detected and PGM/AUX output format selectable
4) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
5) Luma Key/ Chroma Key for virtual studio
6) PIP/POP window size and position adjustable
7) Record PGM video to SD card, up to 1080p60
8) Audio mixer: XLR/ RCA udio & SDI, HDMI embedded audio
1) 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB
2) 3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out
3) Input format auto-detected and PGM/AUX output format selectable
4) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
5) Luma Key/ Chroma Key for virtual studio
6) PIP/POP window size and position adjustable
7) Record PGM video to SD card, up to 1080p60
8) Audio mixer: XLR/ RCA udio & SDI, HDMI embedded audio
9) Tally port for multiple camera system
10) Remote PTZ camera control
Product Description

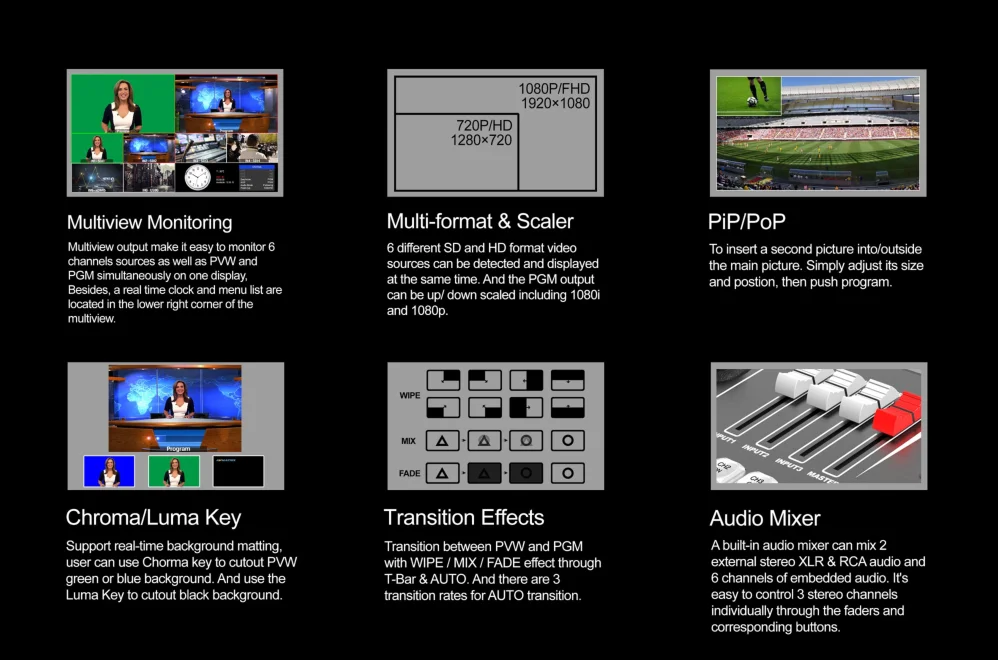

Multiview Monitoring
Multiview output make it easy to monitor 6 channels sources as well as PVW and PGM simultaneously on one display. Besides, a real time clock and menu list are located in the lower right corner of the multiview.
Multi-format & Scaler
6 different SD and HD format video sources can be detected and displayed at the same time. And the PGM output can be up/down scaled including 1080i and 1080p.
PiP/PoP
To insert a second picture into/outside the main picture. Simply adjust its size and postion, then push program.
Chroma/Luma Key
Support real-time background matting, user can use Chroma key to cutout PVW green or blue background. And use the Luma Key to cutout black background.
Transition Effects
Transtion between PVW and PGM with WIPE / MIX / FADE effect through T-Bar & AUTO. And there are 3 transition rates for AUTO transition.
Audio Mixer
A built-in audio mixer can mix 2 external stereo XLR & RCA audio and 6 channels of embedded audio. It's easy to control 3 stereo channels individually through the faders and corresponding buttons.

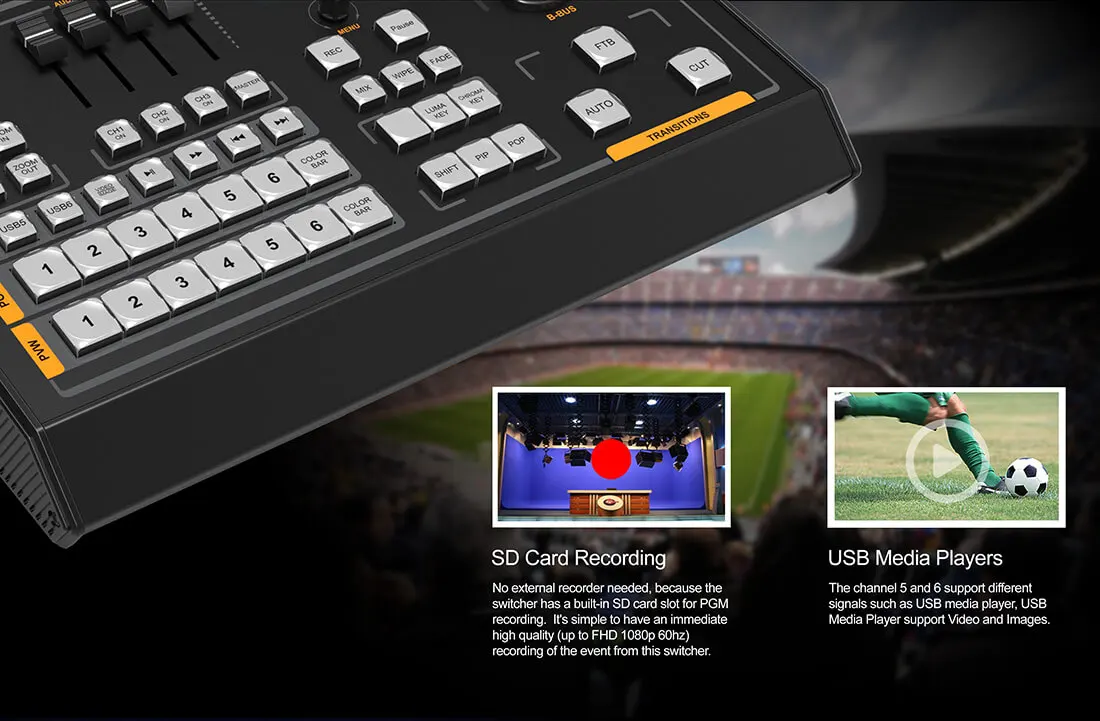

SD Card Recarding
No external recorder needed, because the switcher has a built-in SD card slot for PGM recording. It's simple to have an immediate high quality (up to FHD 1080P 60hz) recording of the event from this switcher.
USB Media Players
The channel 5 and 6 support different signals such as USB media player, USB media player supports video and images.

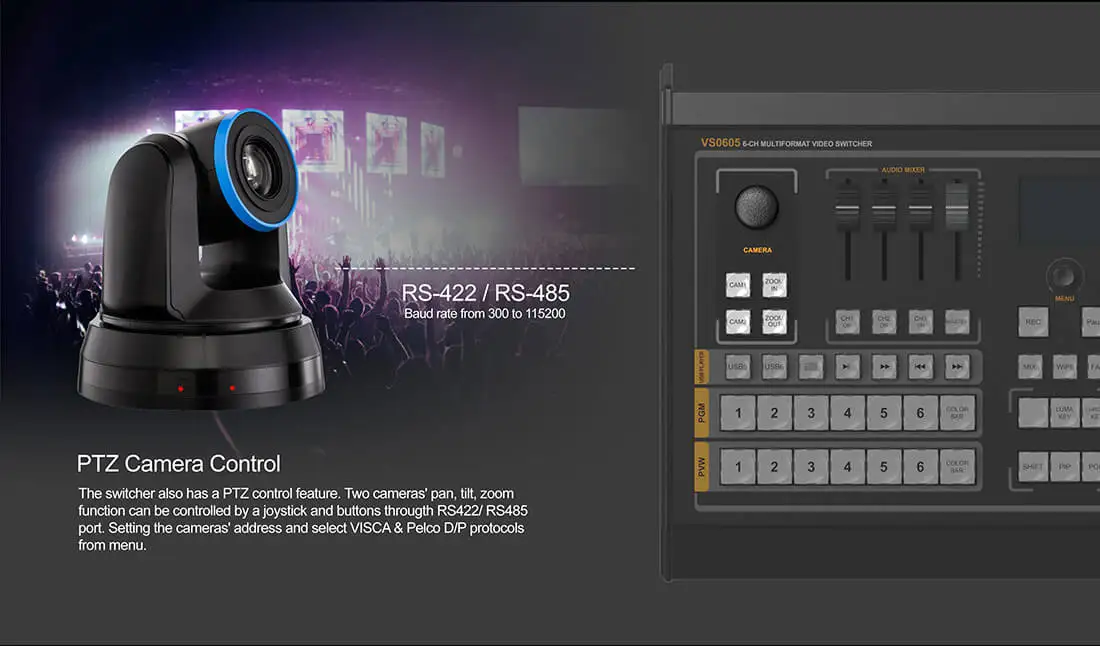

PTZ Camera Control
The switcher also has a PTZ control feature. Two cameras' pan. tilt, zoom function can be controlled by a joystick and buttons through RS422 / RS485 port. Setting the cameras' address and select VISCA & PELCO D/P protocols from menu.
Widespread Application
The portable 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on
Techniacl Parameter
CONNECTIONS | Transitions | Manual T-bar/ AUTO/ CUT |
Transition Effects | Wipe/ Mix/ Fade/ FTB / Color Bar | |
Keys & Layouts | Luma Key/ Chroma Key/ PiP/ PoP/ Multiview | |
Audio Mixer | Following/Mixing | |
Record | SD card, H.264, record for PGM up to 1080p60 | |
Video Inputs | SD/HD/3G-SDI(75Ω)×4, HDMI2.0 type-A(100Ω)×2, DVI-I(VGA-compatible)×2 | |
USB Media Player | USB type-A×2 | |
Analog Audio Inputs | XLR (balanced L/R)×1; RCA (L/R)×1 | |
LAN | RJ45x 1, Synchronize local time | |
OUTPUTS | PGM Outputs | HD/3G-SDI(75Ω)×2, HDMI type-A(100Ω)×2 |
AUX Output (PGM/PVW) | HD/3G-SDI(75Ω)×1 | |
Multiview Output | HDMI type-A×1, SD/HD/3G-SDI (75Ω)×1 | |
Analog Audio Output | RCA (L/R)×1 | |
Remote Camera Control | RS-422 (Compatible RS485)x1 | |
Tally | DB-15 | |
STANDARD | SDI Input Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC |
HDMI Input Format Support | 4K 60/50/30, 2K 60/50/30 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 | |
SDI & HDMI PGM Scaling Output | 1080p 60/50/30/25/24 1080i 60/50 | |
Multiview HDMI & SDI Output | 1080p 60 | |
SDI Compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M | |
Dimension(LWD) | 310× 180 × 70mm | |
Weight | 3.5kg | |
POWER | Power Supply | DC 12V 5A, 20W |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
Relative Humidity | 0%~90% non-condensing | |
Warranty | Warranty | 2 year limited warranty |
About AVMATRIX
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
