high accuracy color screen Ethylene C2H4 gas meter alarming function gas monitor
- Category: >>>
- Supplier: SKZ International Co. Limited
Share on (62197937101):
Product Overview
Description
Products Description
high accuracy color screen Ethylene C2H4 gas meter alarming function gas monitor
Note: our product has different measuring ranges. If you are not sure which one you use or have any questions, please send me an inquiry directly, and I will solve your doubts.
If you think it is suitable, you can also choose to place the order directly. After we receive your order, we will ship it for you
within 7-10 days or faster.
If you think it is suitable, you can also choose to place the order directly. After we receive your order, we will ship it for you
within 7-10 days or faster.

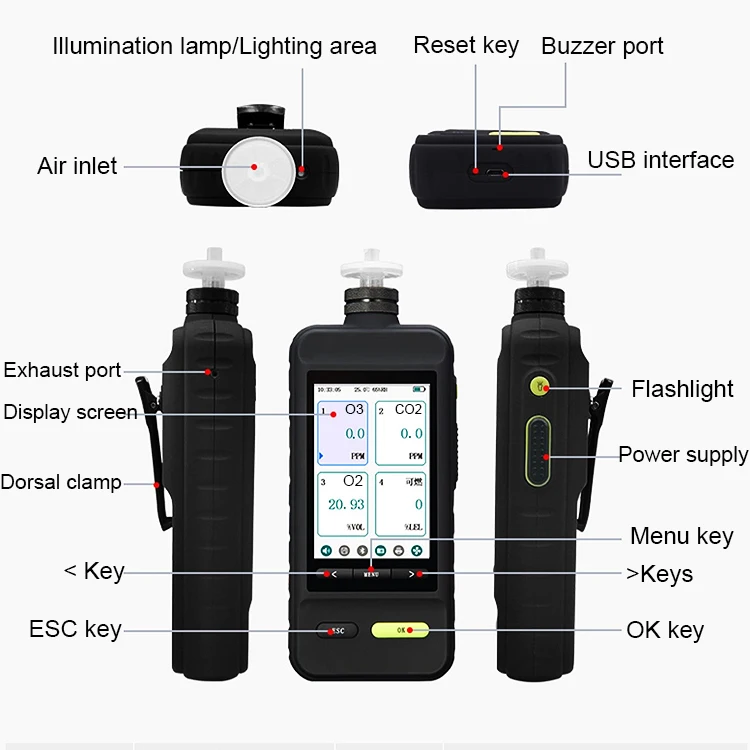

Function introduction
Specification
Gas Detected | ethene C2H4 | ||
Detection principle | Electrochemical principles | ||
Measure Range | 0-10ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm | ||
Resolution | 0.01ppm, 0.1ppm, 1ppm | ||
Sensor life | 2-3years | ||
Precision | 2%FS | ||
Sampling method | Built-in stable flow pump, flow range: 0-500 ML/Min | ||
Modular structure | Can detect up to 1-4 kinds of gases | ||
Concentration unit | ppm, mg/m3, %VOL, %LEL, can be switched by one button | ||

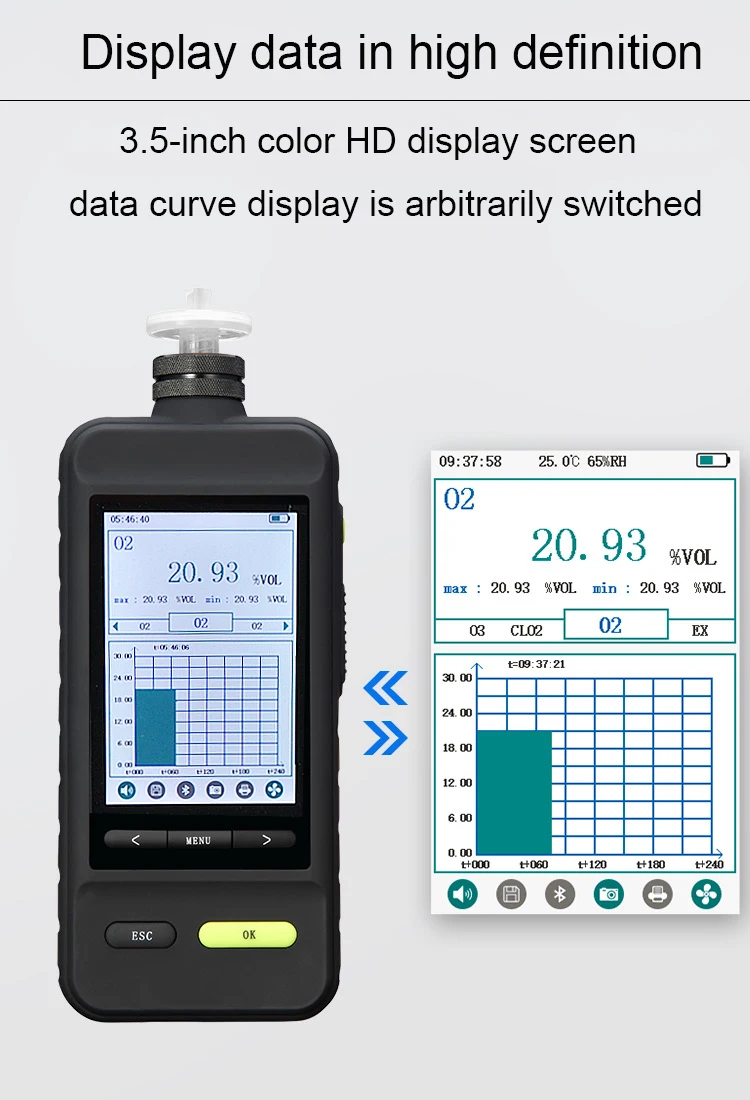

Display | 3.5-inch color display, resolution 320*480 | ||
Display mode | Multiple display modes select-able:multi-channel data mode, multi-curve mode,single channel + single curve mode | ||
Data storage | Standard 16M capacity storage function, can save upto 100000 groups of data. Can be directly connected to the computer through USB, quickly download stored data , EXCEL format | ||

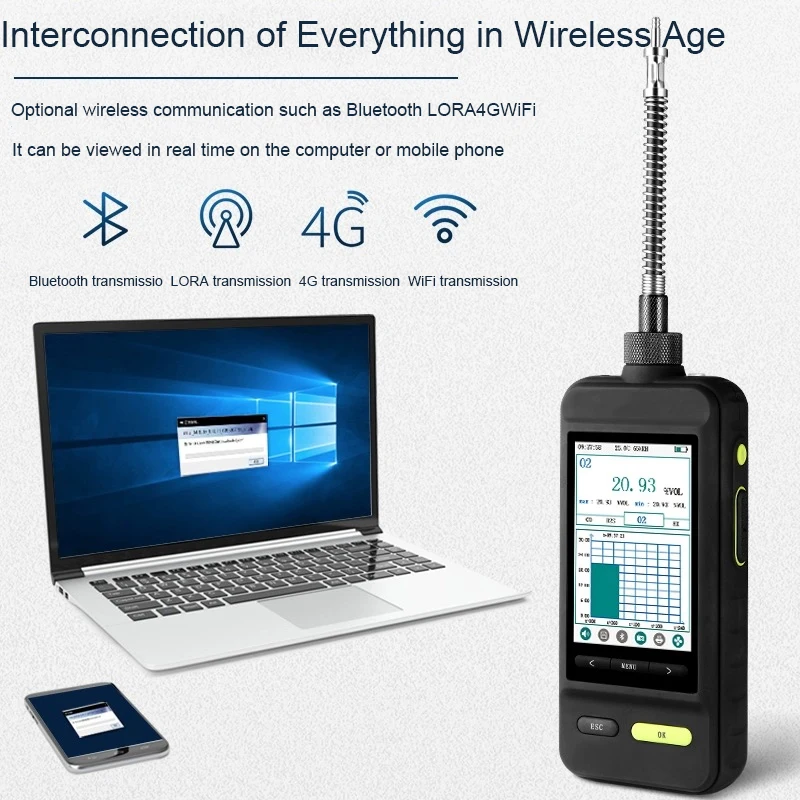

Wireless transmission | (optional) Bluetooth (with printer), ZigBee, built-in DTU wireless module (optional) | ||
Print | Built-in printer or external Bluetooth printer (optional with extra charge) | ||
Operating language | Chinese and English | ||

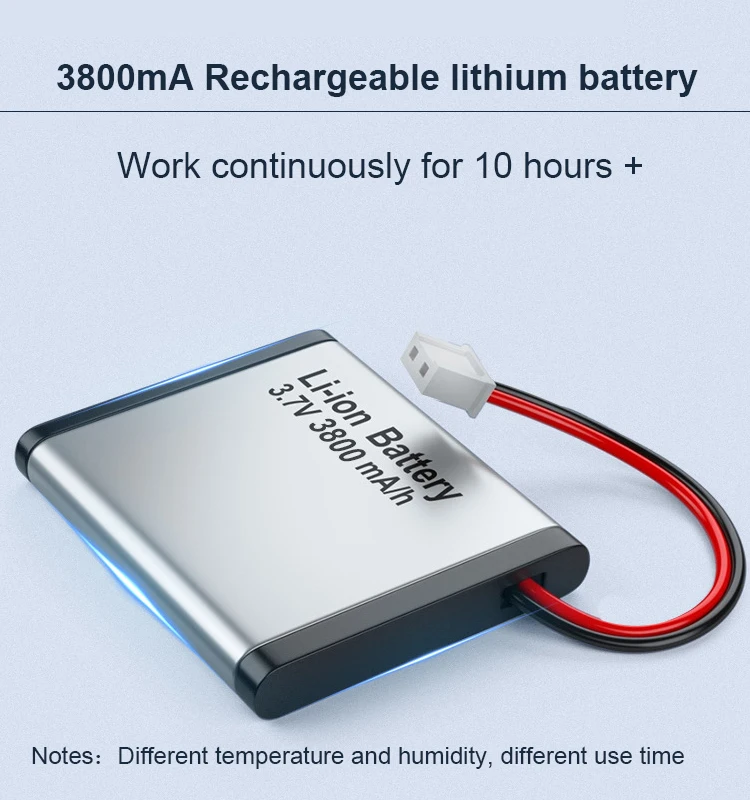

Battery capacity | 3800mA rechargeable | ||
Charging interface | USB charging interface, 5V/2A standard charger | ||
Filter device | Equipped with a multi-layer filter to efficiently filter oil, water and dust. | ||
Wireless network | Bluetooth (with print function), ZigBee, Lora+ (relay DTU), DTU (optional with extra charge) | ||
Network frequency | Lora (470M), DTU (2.4G) (optional with extra charge) | ||
Wireless trans. distance | Lora (1.6 km), DTU (unlimited) (optional with extra charge) | ||
Response Time | ≤ 8S | ||
Repeatability | ≤ ± 1% | ||
Zero shift | ≤ ± 1% (F.S / Year) | ||
Operating temperature | -20°C-50°C (optional flue gas sampling probe, up to 600°C , 1200°C smoke concentration) | ||
Working humidity | 0-95% RH (no condensation) (high humidity can be selected with filter drying device) | ||
Explosion-Proof | Exic II CT3, GC | ||
Alarm mode | Buzzer, LED and alarm status prompt on the display, fault alarm, pump abnormal alarm, battery low battery alarm, shutdown alarm, fall alarm (optional with extra charge) | ||
Dimensions | 270*75*41mm | ||
Recovery Time | ≤ 10S | ||
Linearity error | ≤ ± 1% | ||
Degree of protection | IP66 | ||
Weight | 400g | ||
Standard accessories | Manual, warranty card, power charger, carrying case, water and oil filter, data cable | ||
Optional accessories | Bluetooth printer, pressure sensor, high temperature rod, Metal extension rod, Bendable rod , Silicone hose, dry filter device, PC download software | ||

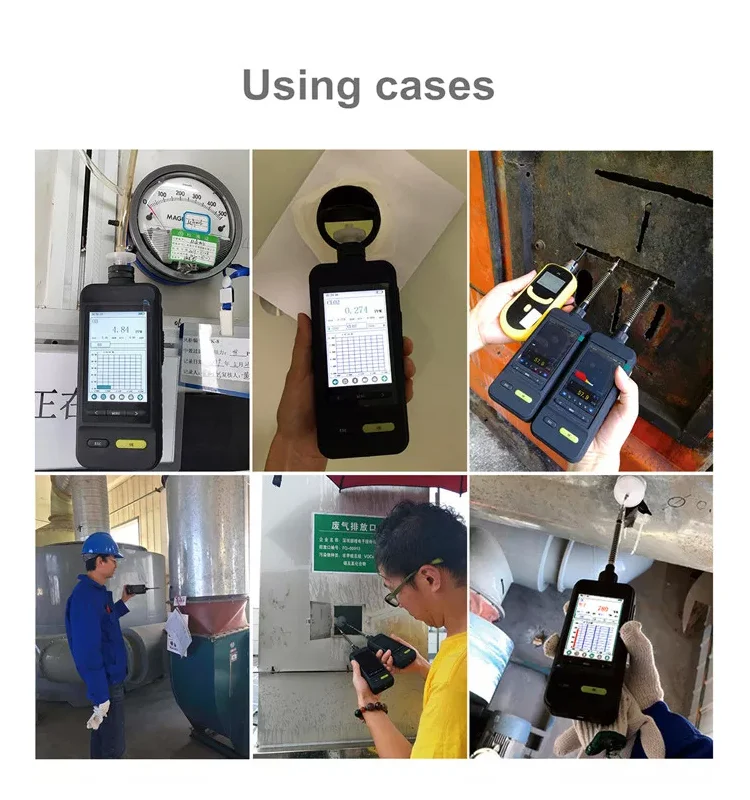

Use environment display
Petrochemical industry | Energy gas |
Laboratory testing | Industrial testing |
High temperature exhaust gas detection | Food packaging inspection |
Poisonous Explosive gas measurement | Environmental protection waste gas detection |
Gas leakage detection | Other industries |

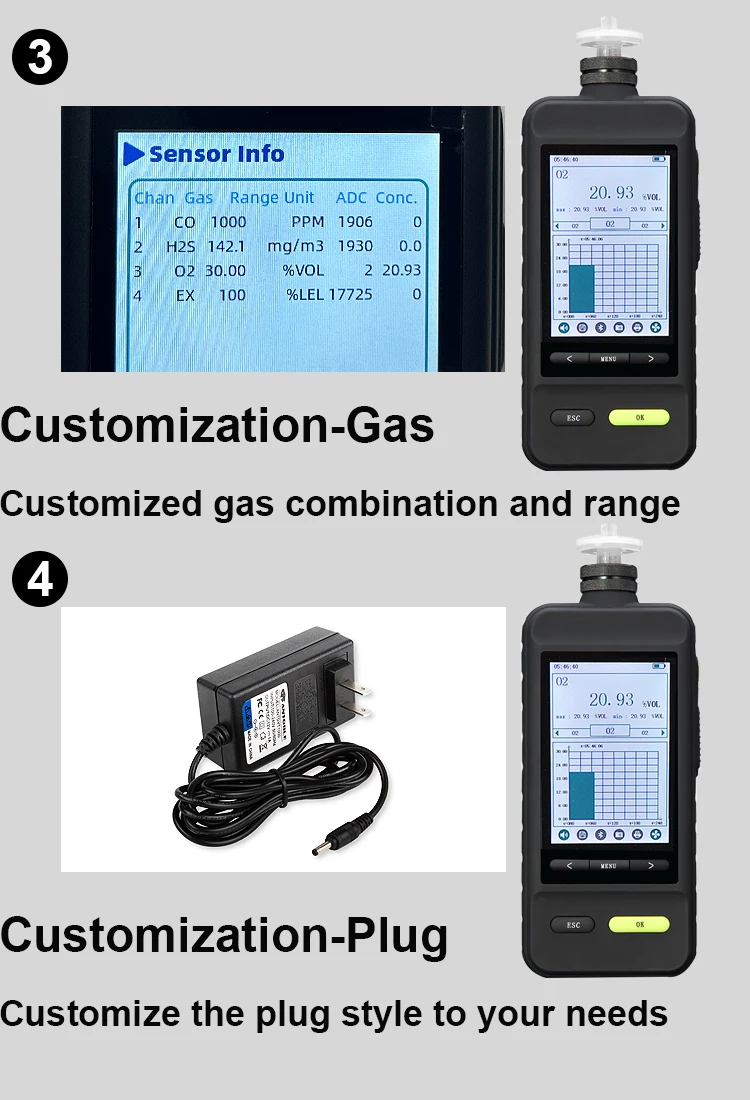

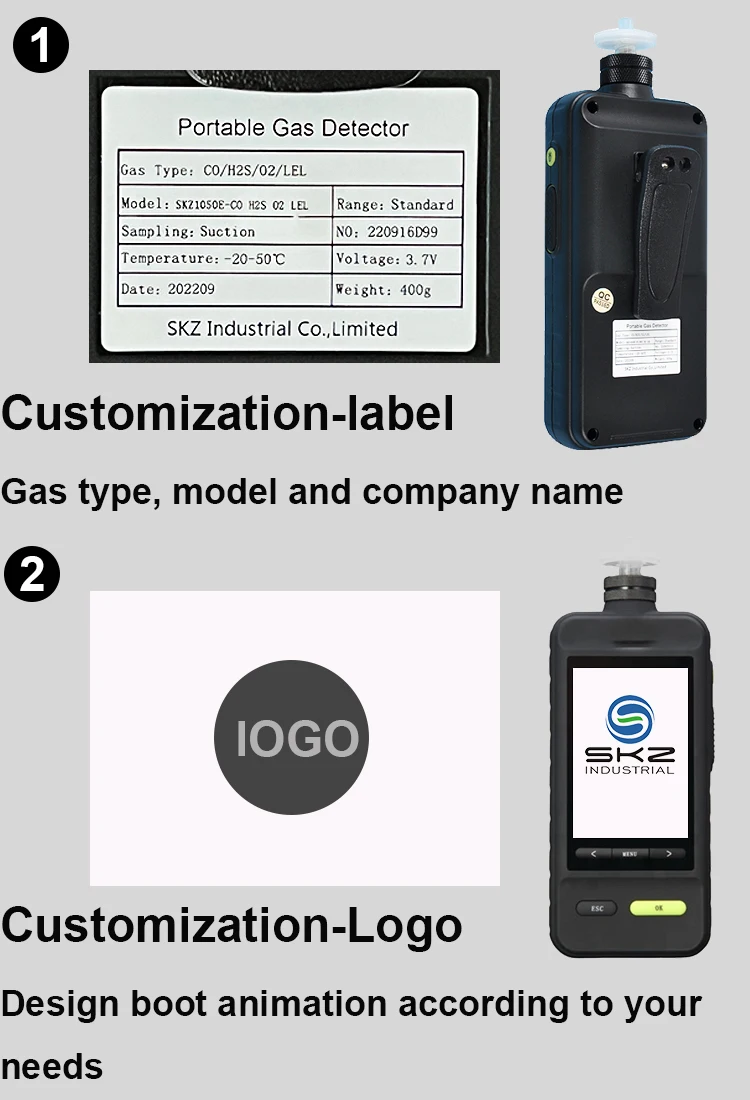

Customization requirements

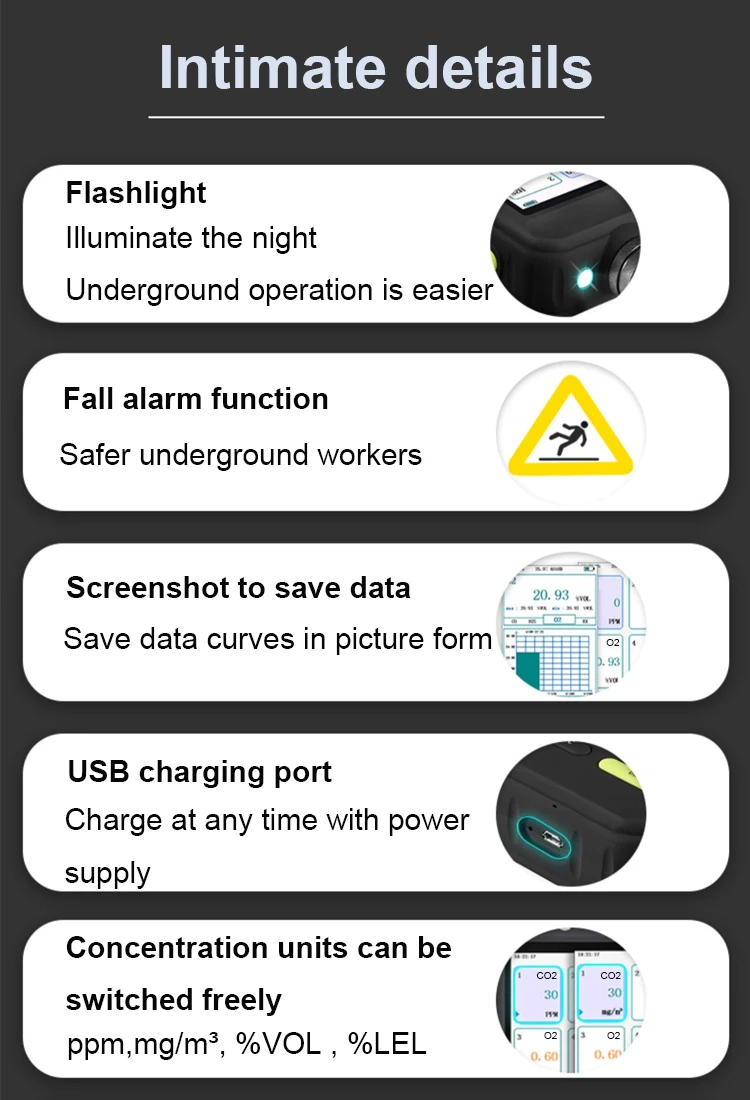

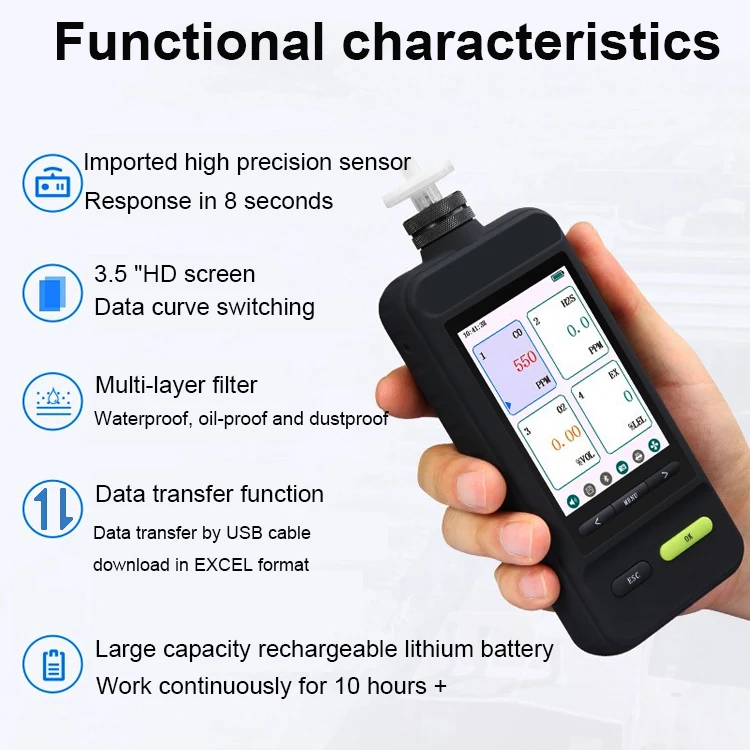

Product characteristic

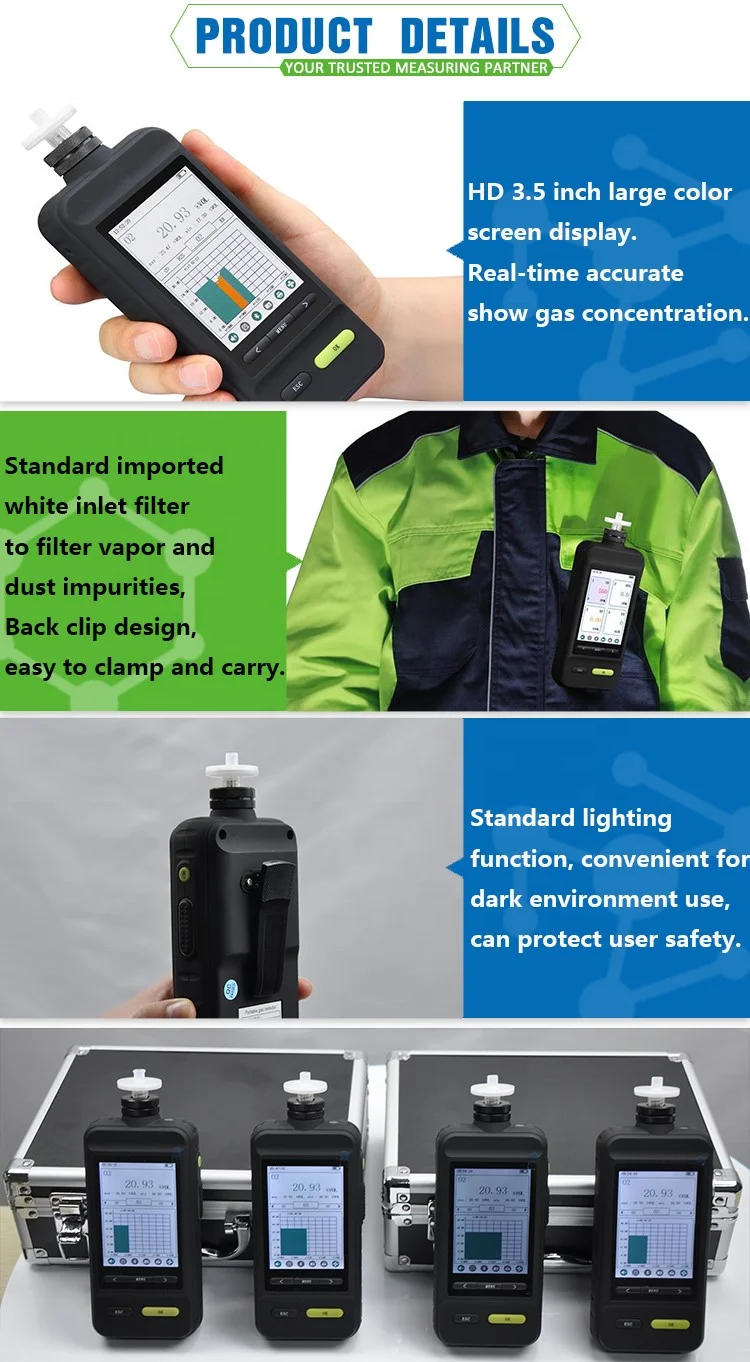

Product details
Imported high sensor and vacuum suction pump
1.10-gear adjustable flow
2.stable service life
3.low noise
4.Customize gas measuring range for different tests
3.low noise
4.Customize gas measuring range for different tests
Flexible metal probe（Selection）
1.The detection is more accurate
2.Disassemble at will
3.Double-layer pipeline
4.Spring protection
2.Disassemble at will
3.Double-layer pipeline
4.Spring protection
Our Advantages
1.Search key "Gas detector" on the homepage of Alibaba website Our product is Top 1
2.Searching for our brand name "SKZ" on the homepage of Alibaba website can directly reach our store
3.Pro + in Jinpin Chengqi merchants can better provide professional
services to customers' needs
services to customers' needs
From your ordering to signing and after-sales service, there are one-to-one customer service to give you a reminder when
delivering the whole service. Video, the information of goods arriving reminds you of 24-hour online after-sales service
delivering the whole service. Video, the information of goods arriving reminds you of 24-hour online after-sales service
Company Profile
Factory Display
Test gas type
Can test CO, H2S, O2, EX, CH4 , N2, NH3, CLO2, CL2, H2, CH2O, TVOC, VOC, CH3Br, C6H6, Odor, O3, CO2, NO, NO2, NOX, SO2, ETO, PH3, HCL, HCN, C2H4, COCL2, SF6, SiH4, F2, HF, HBr, H2O2, B2H6, GeH4, N2H4, THT, Br2, C2H2, CS2, C3H3N, C2H4, CH3OH, C2H5OH, CH4S, C2H3CL, C8H8, CHCl3, C7H8 and so on.
Contact us
FAQ
Q: Are you a factory or a trading company?
A: We are professional testing equipment manufacturer.
Q:When can I get the price?
A: Usually we quote within 12 hours after we get your enquiry
Q: What are your Delivery terms?
A: We accept EXW, FOB, CFR, CIF, CPT. You can choose the one which is most convenient or cost effective for you.
Q: What is the payement terms?
A: T/T bank transfer, L/C, western union, we suggest your side to pay online of alibaba by credit card, and trade assurance.
Q: What about the after-sale service?
A: Guarantee period is 14 months, after the warranty, we also provide life-long paid repair or service.
Q:What about the delivery date?
A:Usually we offer 1-2 weeks after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
Q: What about the transportation?
A: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, or delivery to your office
address by express courier, and we also accept to co-oper-ate with your ship agent or forwarder.
Q: What about the package?
A: Usually we offer ply-wooden cases free Fumigation, or multilayer carton boxes, inner with plastic film wrapped, or customized
foam or aluminum suitcase, we will offer package pictures for customer reference before delivery out the goods
Q: What about the M.O.Q?
A: Usually we do not have M.O.Q, we can offer even only 1 unit, while, you are welcome to order in bulk, and we are quite pleasure
to offer pleasant outstanding discount.
Q: Can you accept OEM?
A: Yes, we can accept OEM, manufacture according to your request, label you logo or offer
Neutral packing without our logo and information
Q: What about the power supply?
A: Usually we offer 220V/50HZ, and we can also convert the power supply to meet your Local power supply, kindly contact us for
confirmation
Q: Are your operation keypad, interface, software and manual in English version?
A: Yes, its operation keypad, interface, software and manual in English version, if you needother languages, kindly contact us for
confirmation
Q: Can you offer quality certification?
A: Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection
Organizations with extra charge, please contact us for confirmation.
Q: Can you do the calibration and installation before handover the goods?
A: Yes, we do installation, checking and calibration works before packed and handover the goods. Customer can do tests directly
A: We are professional testing equipment manufacturer.
Q:When can I get the price?
A: Usually we quote within 12 hours after we get your enquiry
Q: What are your Delivery terms?
A: We accept EXW, FOB, CFR, CIF, CPT. You can choose the one which is most convenient or cost effective for you.
Q: What is the payement terms?
A: T/T bank transfer, L/C, western union, we suggest your side to pay online of alibaba by credit card, and trade assurance.
Q: What about the after-sale service?
A: Guarantee period is 14 months, after the warranty, we also provide life-long paid repair or service.
Q:What about the delivery date?
A:Usually we offer 1-2 weeks after order confirmed and payment received, and we can also accept urgent order for prompt shipment.
Q: What about the transportation?
A: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, or delivery to your office
address by express courier, and we also accept to co-oper-ate with your ship agent or forwarder.
Q: What about the package?
A: Usually we offer ply-wooden cases free Fumigation, or multilayer carton boxes, inner with plastic film wrapped, or customized
foam or aluminum suitcase, we will offer package pictures for customer reference before delivery out the goods
Q: What about the M.O.Q?
A: Usually we do not have M.O.Q, we can offer even only 1 unit, while, you are welcome to order in bulk, and we are quite pleasure
to offer pleasant outstanding discount.
Q: Can you accept OEM?
A: Yes, we can accept OEM, manufacture according to your request, label you logo or offer
Neutral packing without our logo and information
Q: What about the power supply?
A: Usually we offer 220V/50HZ, and we can also convert the power supply to meet your Local power supply, kindly contact us for
confirmation
Q: Are your operation keypad, interface, software and manual in English version?
A: Yes, its operation keypad, interface, software and manual in English version, if you needother languages, kindly contact us for
confirmation
Q: Can you offer quality certification?
A: Yes, we can offer quality certification issued by our lab free of charge, or issued by third-party international inspection
Organizations with extra charge, please contact us for confirmation.
Q: Can you do the calibration and installation before handover the goods?
A: Yes, we do installation, checking and calibration works before packed and handover the goods. Customer can do tests directly
