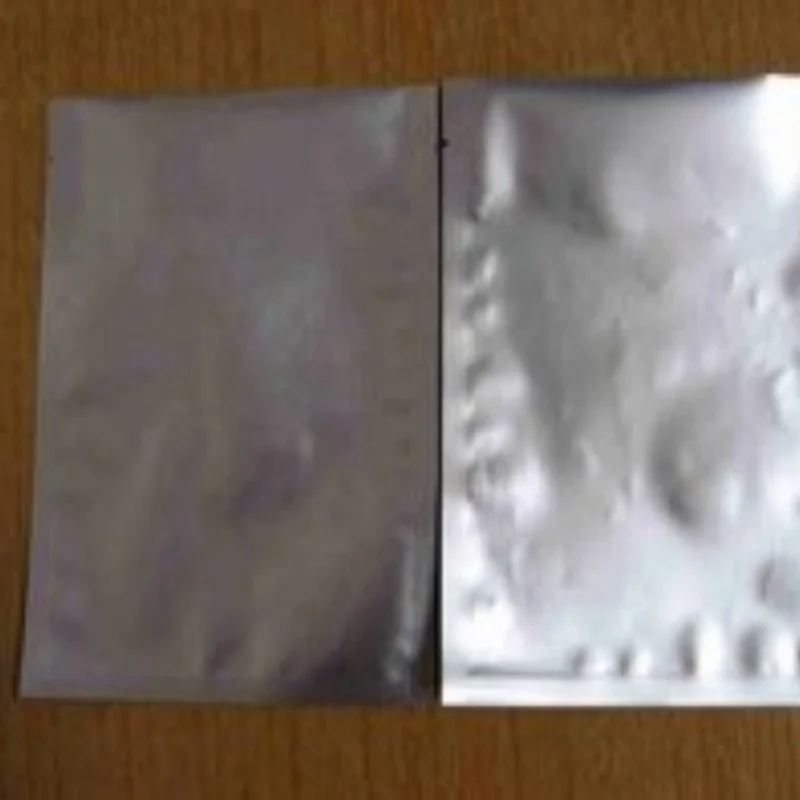

12 Micron Three Dimensional Porous Electrolytic Aluminium Foil for Lithium Battery
- Category: >>>
- Supplier: Tianjin Zhongyantiancheng Steel Trading Co. LTd
Share on (62197939604):
Product Overview
Description
Product Details
1. 1050 1060 1100 3003 8011 aluminium foil
2. Thickness:0.008-0.2mm
3.Width:10-600mm or other width as the customers' requirements.
4.Surface: mill finish; color coated; sand blasting; powder coating; oxidized; anodic oxidation; embossed; coated; enameled wire
5.Process: rolling
6.We can cut the the width from 10-200mm,We can cut the coils into 50Meter/Coil
7.Temper:O,H111,H112,H114,H12,H14,,H16,H18,H22,H24,H26,H321,H32,H34,T651,T4,T6.etc
Product Range
Aluminium Coil Material Grade we have
1)1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc
2)2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc
3)3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc
4)5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc
5)6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc
6)7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc
7)8000series aluminium alloy:8011,etc
Product Introduction
8011 is a series of aluminum plates, belonging to the 8××× series alloy aluminum plate, which is added with Al-Fe-Si element. The alloy properties of more than 1% of the total alloy elements have corresponding advantages. 8011 is commonly used to make aluminum foil, its performance is better than pure aluminum foil, it is widely used in aluminum foil, aluminum sheet is not very common.
Due to its good characteristics, the 8011 is widely used in food, beverages, cigarettes, pharmaceuticals, photographic bases, household items, etc., and is usually used as its packaging material
Due to its excellent properties, aluminum foil is widely used in food, beverages, cigarettes, pharmaceuticals, photographic bases, household daily necessities, etc., and is usually used as its packaging material; electrolytic capacitor materials; thermal insulation materials for buildings, vehicles, ships, houses, etc.; As a decorative gold and silver wire, wallpaper and various types of stationery printed matter and light industrial products, decorative trademarks. Among the above various applications, the most effective performance of the aluminum foil is as a packaging material.
Chemical Composition
Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | other | |
1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | Al99.5 | |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | 0.03 | Al99.6 | |
1070 | 0.20 | 0.25 | 0.04 | 0.03 | 0.03 | 0.04 | 0.03 | Al99.7 | |
2014 | 0.5-1.2 | 0.70 | 3.9-5.0 | 0.4-1.2 | 0.2-0.8 | 0.10 | 0.25 | 0.15 | 0.15 |
2024 | 0.50 | 0.50 | 3.8-4.9 | 0.3-0.9 | 1.2-1.8 | 0.1 | 0.25 | 0.15 | 0.15 |
3003 | 0.60 | 0.70 | 0.05-0.2 | 1.0-1.5 | 0.10 | 0.15 | |||
3004 | 0.30 | 0.70 | 0.25 | 1.0-1.5 | 0.8-1.30 | 0.25 | 0.15 | ||
3105 | 0.60 | 0.70 | 0.30 | 0.3-0.8 | 0.20 | 0.8 | 0.04 | 0.15 | |
5A05 | 0.50 | 0.50 | 0.10 | 0.3-0.6 | 4.8-5.5 | 0.2 | 0.1 | ||
5A06 | 0.40 | 0.40 | 0.10 | 0.5-0.8 | 5.8-6.8 | 0.2 | 0.02-0.1 | 0.1 | |
5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.1 | - | 0.15 |
5083 | 0.4-0.7 | 0.40 | 0.10 | 0.1-0.4 | 4.0-4.9 | 0.05-0.25 | 0.25 | 0.15 | 0.15 |
5086 | 0.40 | 0.50 | 0.10 | 0.2-0.7 | 3.5-4.5 | 0.05-0.25 | 0.25 | 0.15 | 0.15 |
5754 | 0.40 | 0.40 | 0.10 | 0.50 | 2.6-3.6 | 0.30 | 0.20 | 0.15 | 0.15 |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.10 | 0.15 |
6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 |
6005 | 0.7-1.3 | 0.50 | 0.10 | 0.4-1.0 | 0.6-1.2 | 0.25 | 0.2 | 0.10 | 0.15 |
6082 | 0.60-0.9 | 0.35 | 0.10 | 0.10 | 0.4-0.6 | 0.1 | 0.1 | 0.1 | 0.15 |
7050 | 0.12 | 0.15 | 2.0-2.6 | 0.1 | 1.9-2.6 | 0.04 | 5.7-6.7 | 0.06 | Zr0.08-0.15 |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | 0.15 |

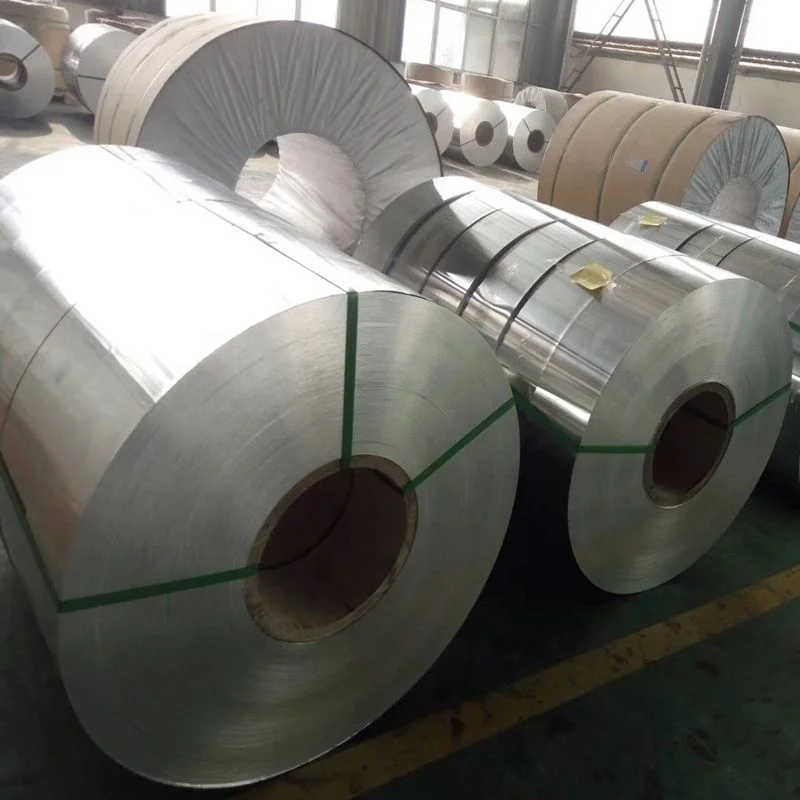

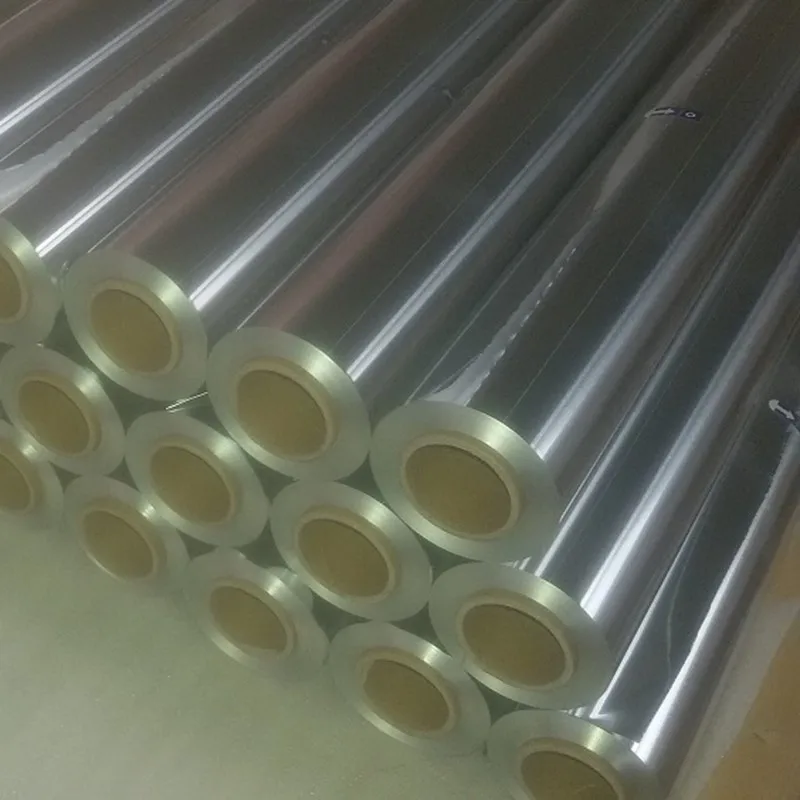

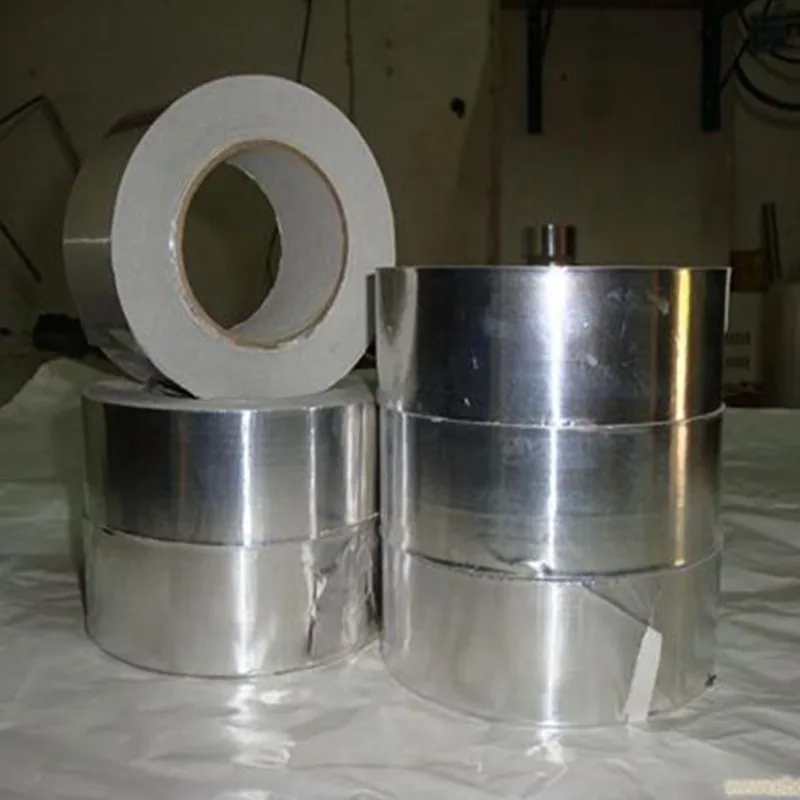

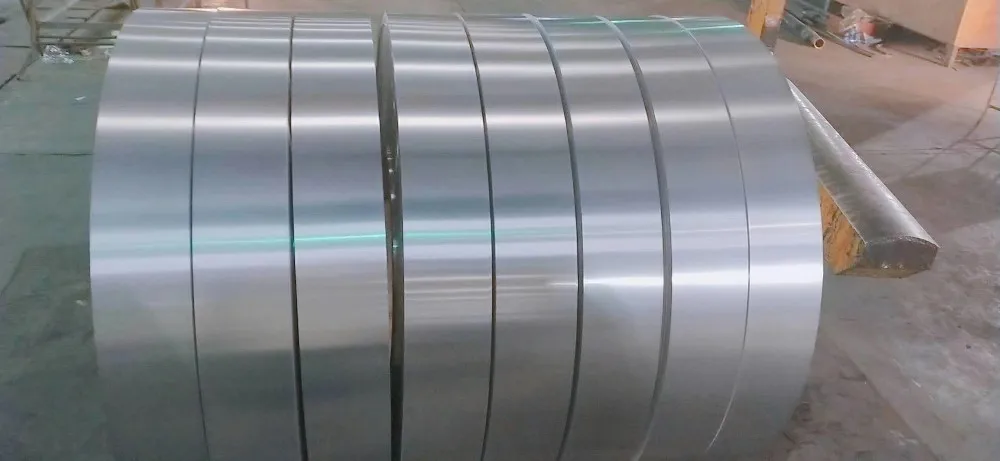

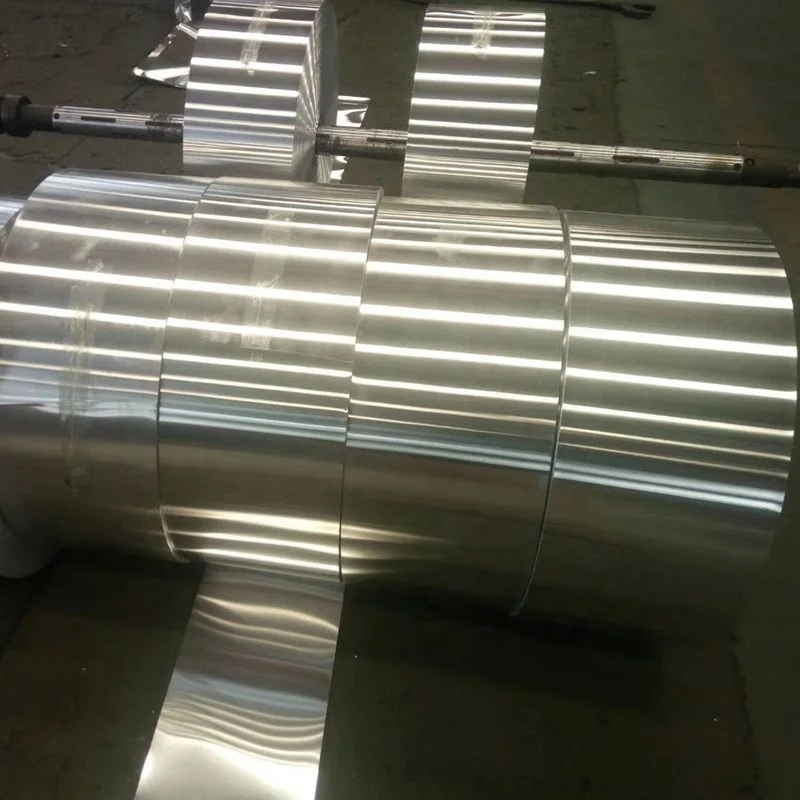

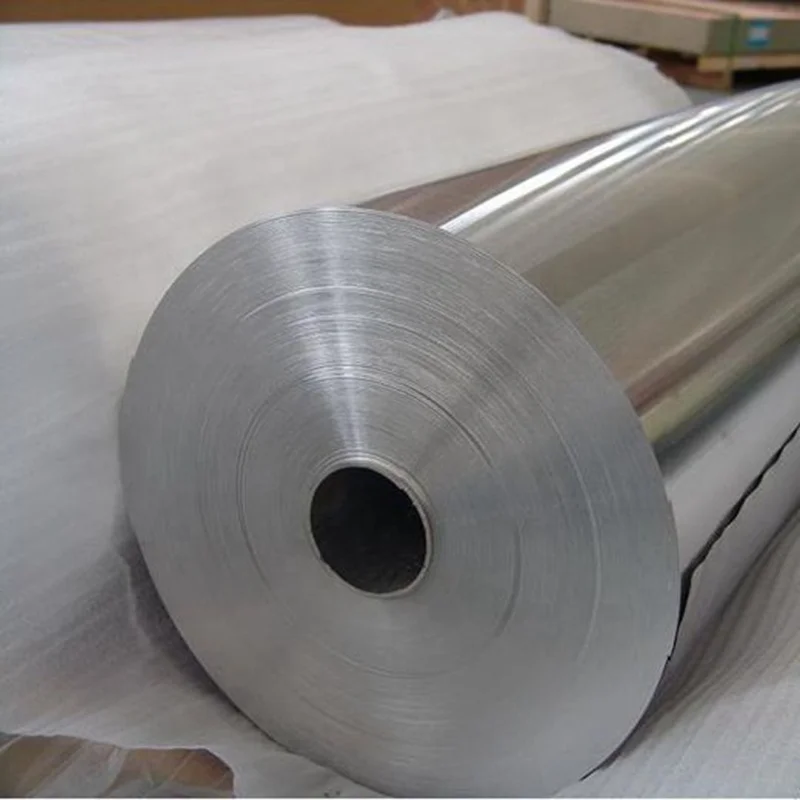

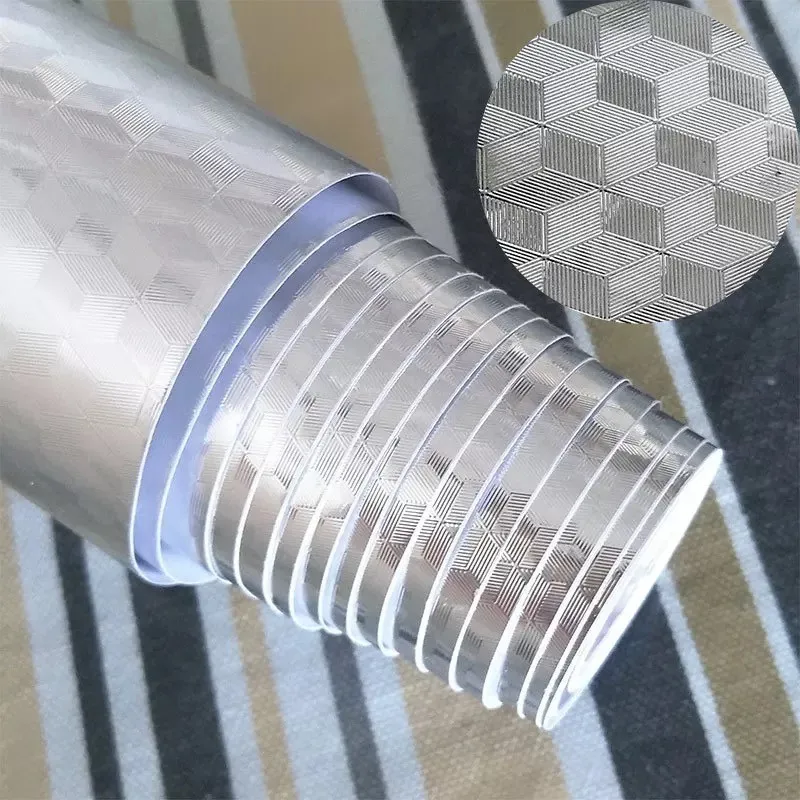

Product Details Show
Why Choose Us
Our company established in 2004.More than 10 years of development,we become the leader in north China market in metal material products.We have more than 1000 tons of perennial stock.
We have high quality products and professional services. Our products after SGS,BV,ISO certification. Our salesman has more than five years of experience.
