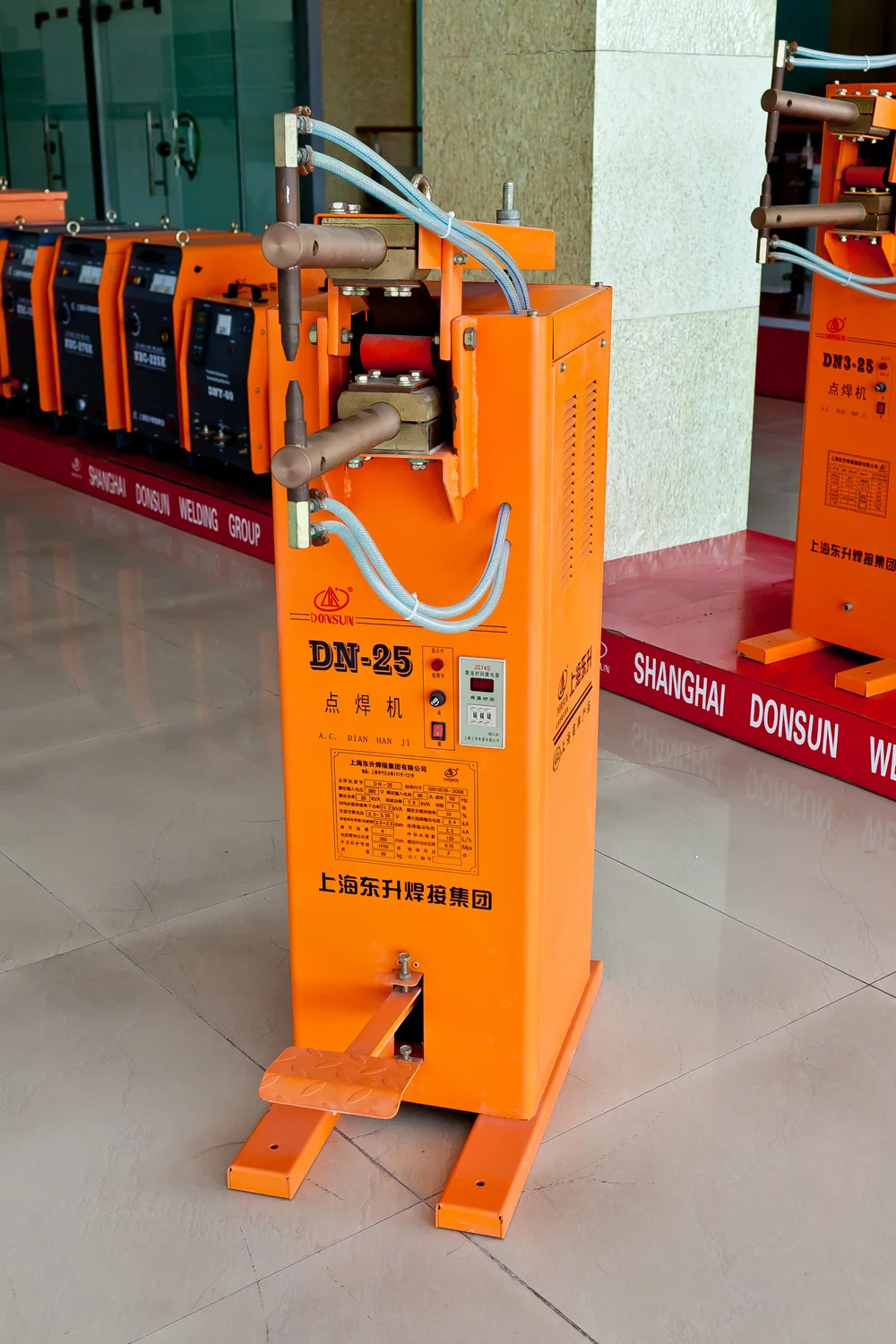

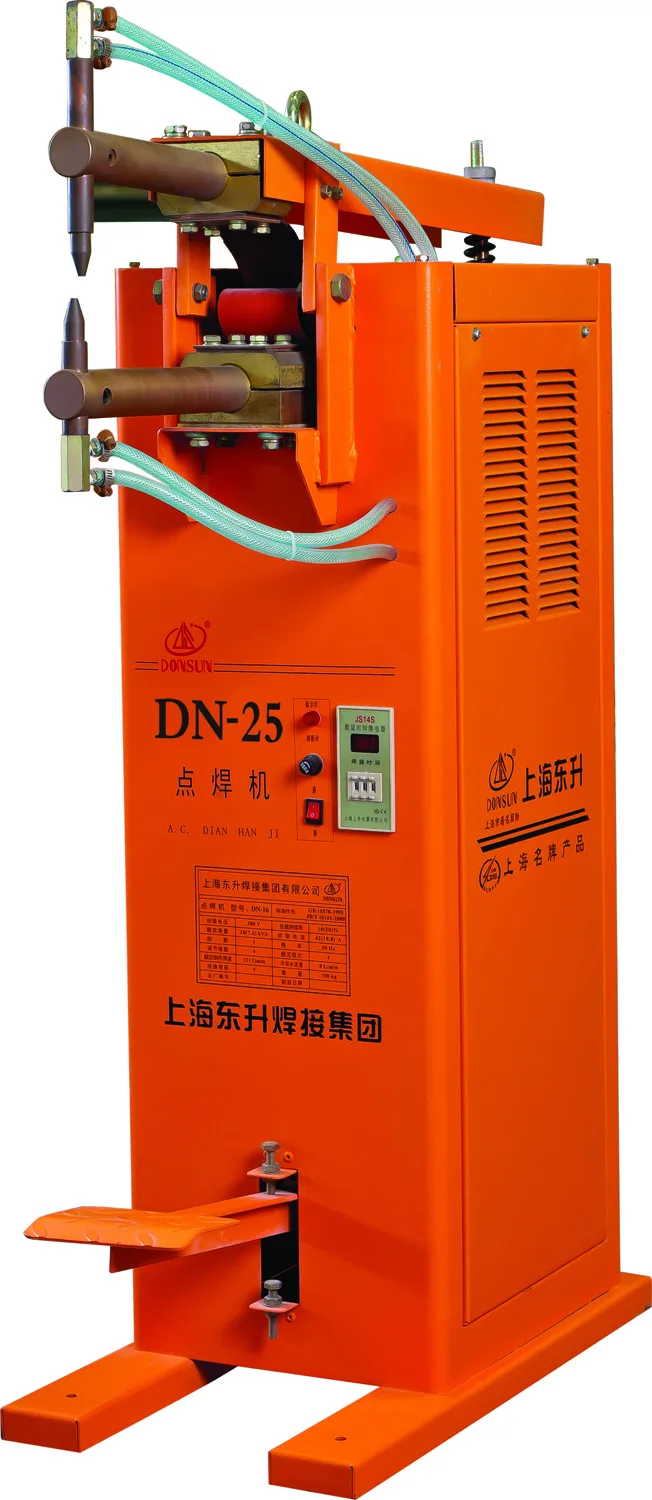

DN 25, Pedal type resistance spot welder, spotter
- Category: Spot Welders >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (62197996911):
Product Overview
Description
Product Description
Features:
Extra functions
“Hot Start”function for easier arc striking;
“Arc Force”to prevent electrode sticking to the piece;smoother welding and deeper penetration;
Built-in Anti-Sticking device to prevent overload and ease the electrode removal from the workpiece.
Weight
Extremely low weight and versatility.
Protections
Fully protected against over-voltage undervoltage and over-heat.
Generator friendly
Designed to work with diesel generators and to avoid failures due to its voltage spikes.
| Model/Parameters | DN 25 |
| power supply voltage(V) | 1Phase 380V |
| Fre.(HZ) | 50 |
| Rated Input Power (KW) | 25 |
| Rated Primary Current(A) | 66 |
| Rated Duty Cycle | 10% |
| Open Circuit Voltage(V) | 2.3~3.55 |
| Adjustable Step Number | 4 |
| Weld Time Adjust | 0~9.99s |
| Arm Extension(mm) | 280 |
| Dimensions(mm) | 117x40x85 |
| Welding Thickness(mm) | 2.5+2.5 |
| Main transformer cooling mode | air cooling |
| Electrode cooling mode | water cooling |
| Weight(KG) | 100 |
