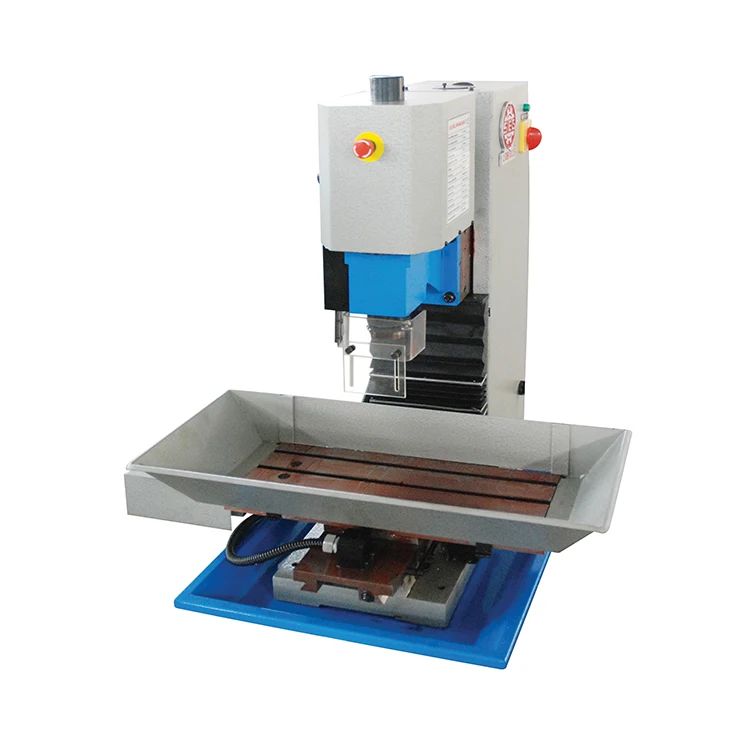

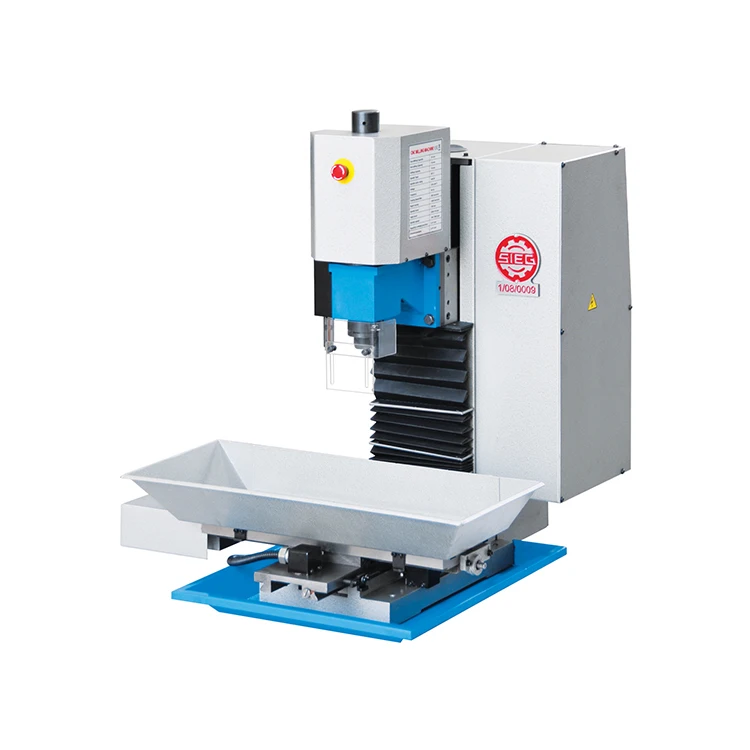

KX1S-SIEG Gluck 2019 automatic cnc milling machine for pcb with low cost

KX1S

TABLE

Table size

400×125mm



T slot (amount×width×distance)

3×8×35mm



Max. load

20kg

TRAVEL

X travel

260mm



Y travel

110mm



Z travel

180mm



Spindle nose to table

60-240mm



Spindle center to column

125mm

SPINDLE

Spindle taper

MT2



Spindle motor

500w



Spindle speed

100-7000r/min

FEED

The max moving speed

2000mm/min



The max feeding speed

500mm/min



Power of X/Y

 1.35 Nm



Power of Z

 2.2Nm

ACCURACY

Positioning accuracy

0.015mm



Repeatability accuracy

0.01mm

OTHERS

Power

230/120V



Weight(NW/GW)

280/340kg



Overall dimension

1040×860×940mm



Packing size

1170×960×1100mm



horizontal cnc milling machineOur KX1S is very popular in education market, especially in Europe and Chinese colleges and universities. There are many CNC training rooms for these machines,8~20 pcs in each room, depending on the space of classroon.Students counld practice more with these machines

Positioning accuracy:0.015mm

Repeatability accuracy:0.01mm

Weight(NW/GW):280/340kg

horizontal cnc milling machine
horizontal cnc milling machine

 KX1S-SIEG Gluck 2019 automatic educational cnc milling machine mini 4 axis

#cnc milling machine for aluminum

horizontal cnc milling machinehorizontal cnc milling machinehorizontal cnc milling machinehorizontal cnc milling machine

Related product

horizontal cnc milling machine

Company Information

horizontal cnc milling machine



      Liuzhou Gluck Imp.&Exp.Co.Ltd ,Specializing in CNC Milling Machine /CNC Lathe machine with 30 years ,We have a team of well qualified technicians and service personnel, who are well geared to produce some of the world's hottest machines. We also provide an extensive range of accessories ideally matched for use with our machines

#cnc milling machine used #4 axis cnc milling machine #cnc 5 axis milling machine #taiwan cnc milling machine

     There are many activities in every year, Such as New year's Day party,Appreciation Annual Meeting,fun sports meeting,Spring Festival Evening Show,BIRTHDAY CELEBRATION,Annual travel!!!which can enrich employee life, increase the affection between the colleague, make the job more passionate, make good products, good services to our clients......

     KX1S-SIEG Gluck 2019 automatic cnc milling machine for pcb with low cost

#cnc bed milling machine #educational cnc milling machine #cnc router milling machine #fanuc cnc milling machine #price cnc milling machine new

horizontal cnc milling machine

Packaging & Shipping

horizontal cnc milling machine

Our Services

horizontal cnc milling machine5axiscncmillingmachinemini #cncmillingmachinesmall #cncmilling3dmachine #cncgantrymillingmachine #minicncmillingmachinewegstr #portablecncmillingmachine #cncmachinemilling #cnc milling machine iron #cnc milling machine with rotary table hobby #cnc milling machine wood #cnc milling machine 6090 #double head cnc milling machine #cnc milling machine bed type

Why chosse us ?

1) 2 hours online reply in working daytime

2) 12 hours quote confirm

3) 30-45 workdays of delivery

4) 100% quality strictly checked

5) Secure logistics forwarder

6) One year warranty and life time maintenance

Our Exhibition

horizontal cnc milling machine

FAQ

Q1: Is your company a factory or trading company?
A1: We are factory and have more than 12 years production experience. And have an office in Liuzhou City,Guangxi province,China.

Q2: Where is the factory located? How can I visit there?
A2: Our factory is located in Shanghai City,China.And warmly welcome you to visit us.

Q3: Do you have CE certification?
A3: Yes, we have CE certification,machine quality is guaranteed.

Q4: What's your payment terms?
A4: Our payment term is 30% T/T in advance,70% T/T before shipment.

Q5: What is your delivery time?
A5: Machines order takes 40-45days after deposit payment received. Please inquiry sales.

Q6: What is the Control of your lathe? Can I change it to other brand?
A6: The standard control of our lathe is GSK. You also can change other controls, such as FANUC,Siemens and so on.

Q7: How can I get the quotation?
A7: You can send the inquiry on alibaba.com, or send email to us. It is better if you can tell what is your detailed requests.

Q8: What's the main products of your company?
A8: We specialized in many kinds of CNC machines, such as CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center..

Q9: How can I choose the most suitable machines ?
A9: Please tell us your requirement of the machine, or you can also send us the products drawing,our engineer can help to choose the best model for you.

Q10: If still confused. What can I do?
A10: Please feel free to contact us via Email or trade manager.



PRODUCT NAME:KX1S-SIEG Gluck 2019 automatic cnc milling machine for pcb with low cost
