Extra functions “Hot Start”function for easier arc striking; “Arc Force”to prevent electrode sticking to the piece;smoother welding and deeper penetration; Built-in Anti-Sticking device to prevent overload and ease the electrode removal from the workpiece.
Weight Extremely low weight and versatility.
Protections Fully protected against over-voltage undervoltage and over-heat.
Generator friendly Designed to work with diesel generators and to avoid failures due to its voltage spikes.
Model/Parameters

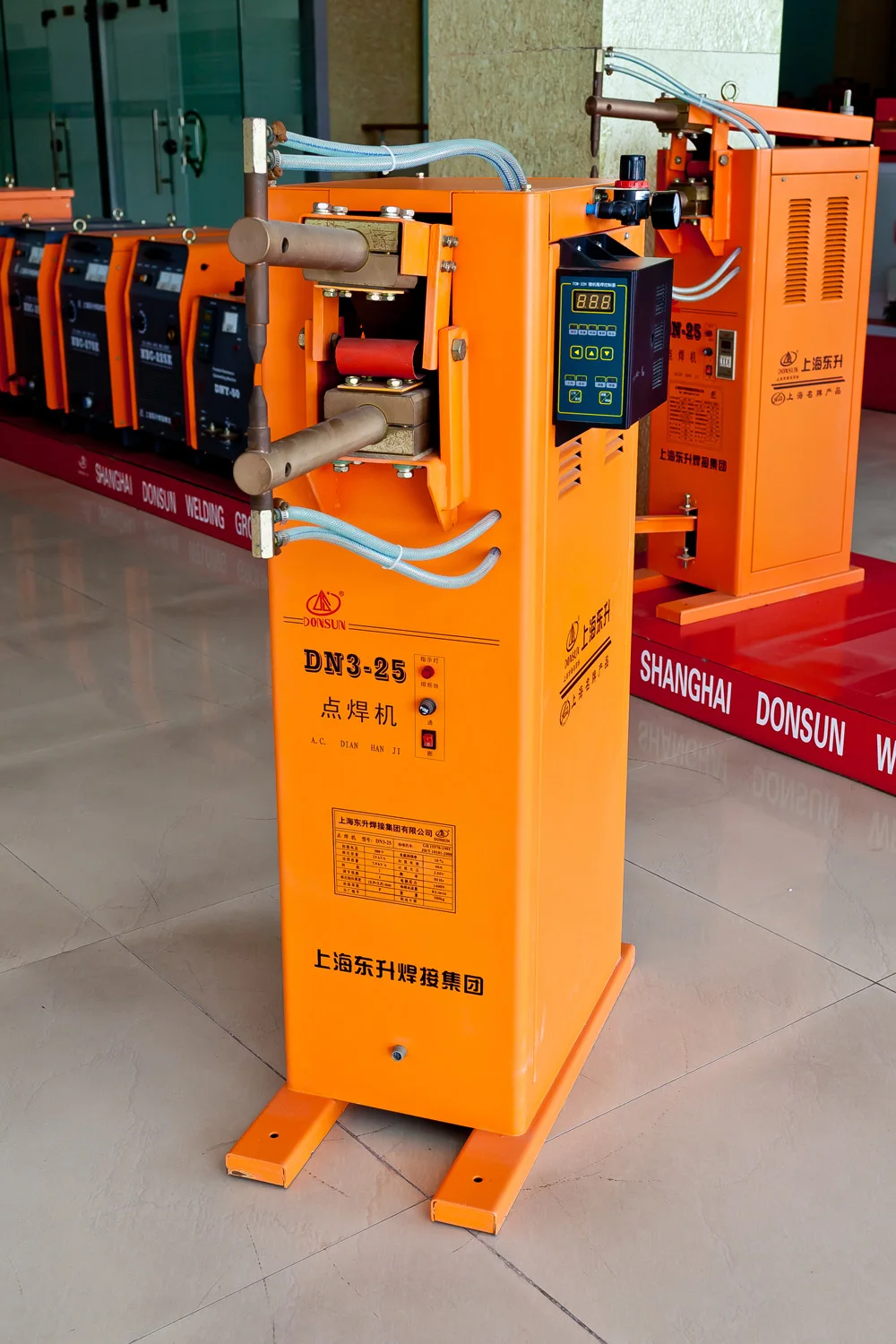

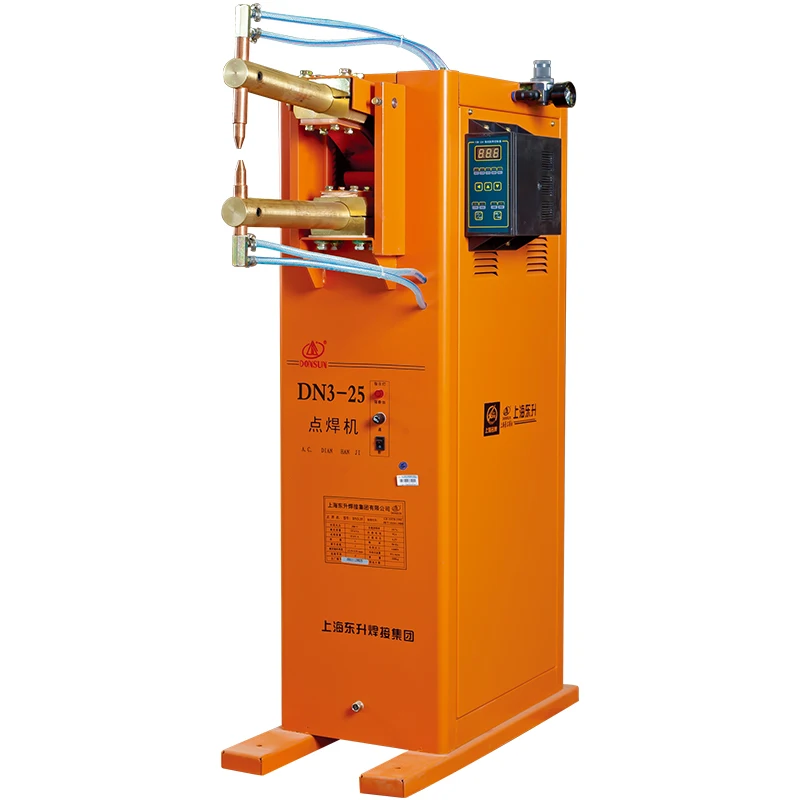

DN 25
power supply voltage(V)
1Phase 380V
Fre.(HZ)
50
Rated Input Power (KW)
25
Rated Primary Current(A)
66
Rated Duty Cycle
10%
Non-load voltage(V)
3.55
Adjusting series
1
Length of tip and run arm(mm)
280
Electrode pressure(Mpa)
1400
Dimensions(mm)
126x51x92
Welding Thickness(mm)
2.5+2.5
Controller type
TCW-32H
Cooling type
Main transformer: air cooling Electrode: water cooling
