Induction Heater Forging, forge

Product Overview

Description

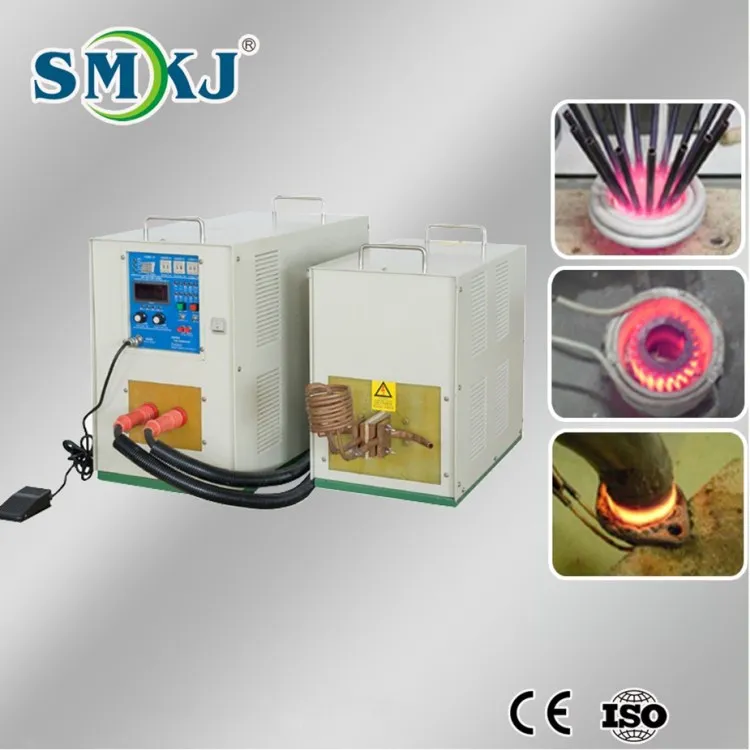

Induction Heater for Forging



Advantages:

1. All –solid –state IGBT frequency regulation, soft switch dual –resonance control and frequency automatic tracking technology

2. Energy efficient, higher power factor and power efficient

3. Broadband 30~80KHZ frequency automatic tracking adaptability

4. Working ability of consecutive 24 hours 100% full load

5. The control selection function for constant output voltage or constant current/constant power

6. Frequency , power., voltage and current full display , adjustable heating , holding time(0.1s-99.9s)



Product parameters:



Model Number	SMJRZF Series
Max. Input  power	15~60KW Max.  Input Current  24~60A
Input Voltage	Three-phase  340-420v, 50/60HZ
Oscillation Frequency	30KHz-80KHz
Request of Cooling Water	Pressure≥ 0.2~0.3Mpa, Flow Rate≥ 6~12L/min
Temperature  of Cooling Water	Water Temperature≤ 45º C







Application examples:

Metal forging through heating,etc; provided with necessary accessories.

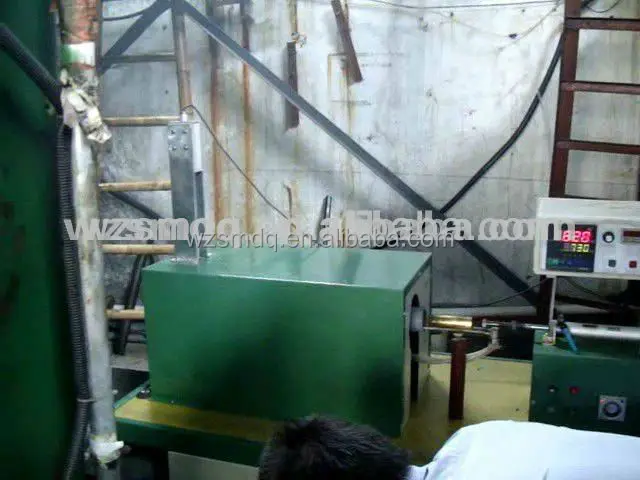

                                                                  Forging1

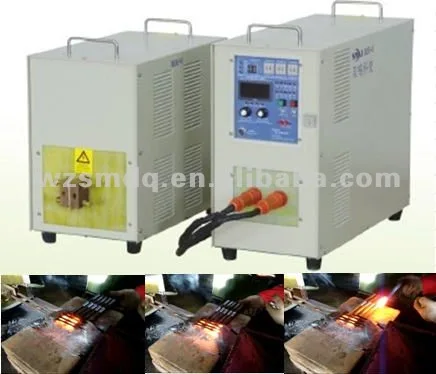

                                                                 Forging2





                                                            Other application
