Гомогенизатор с высоким сдвигом, емкость для эмульгатора майонеза, жидкое мыло, косметическая машина для смешивания крема

Share on:

Price:9 800,00 $
Price in USD:Details


Product Overview


Product Description

High shear Homogenizer mayonnaise Emulsifier tank liquid soap Cosmetic Cream Mixing Machine

Product introduction

Vacuum emulsifying machineconsists of vacuum homogeneous emulsifying machine, heating system, mixing system, vacuum system, electric lifting system, operation control cabinet, piping system. It is popular in lab to test toothpaste, high-grade skin care creams and other cream products.

Inner wall: stainless steel 316
Jacket and outer layer: stainless steel 304.
Both inner and outer are polished and handled by special light treatment.

Main parameter :

Power : 2.2kw
Electric  heating
Oblique feeding
Particle size
Working Pressure
-0.09 Mpa
Lift way
Hydraulic pressure lift
Wearing parts
One mp years spare parts.

Main Features

Mixing system: Voltage 380V, power 1.1KW, 10-120 rev / min. Monitoring with transparent filter, scraping the interlayer when mixing, frequency control.
Heating system: 2.4 kW steam heating device. Heating with temperature display, it is easy to control.
Hydraulic pressure lifting system: voltage 220V, power 1.1KW. Lifting is easy to operate, so the material can be effectively emulsified in a closed condition.
Control system: The control system is equipped with digital time relay device, so it can adjust time and speed of homogenizer based on different material. All control buttons are concentrated together.

Detailed Images

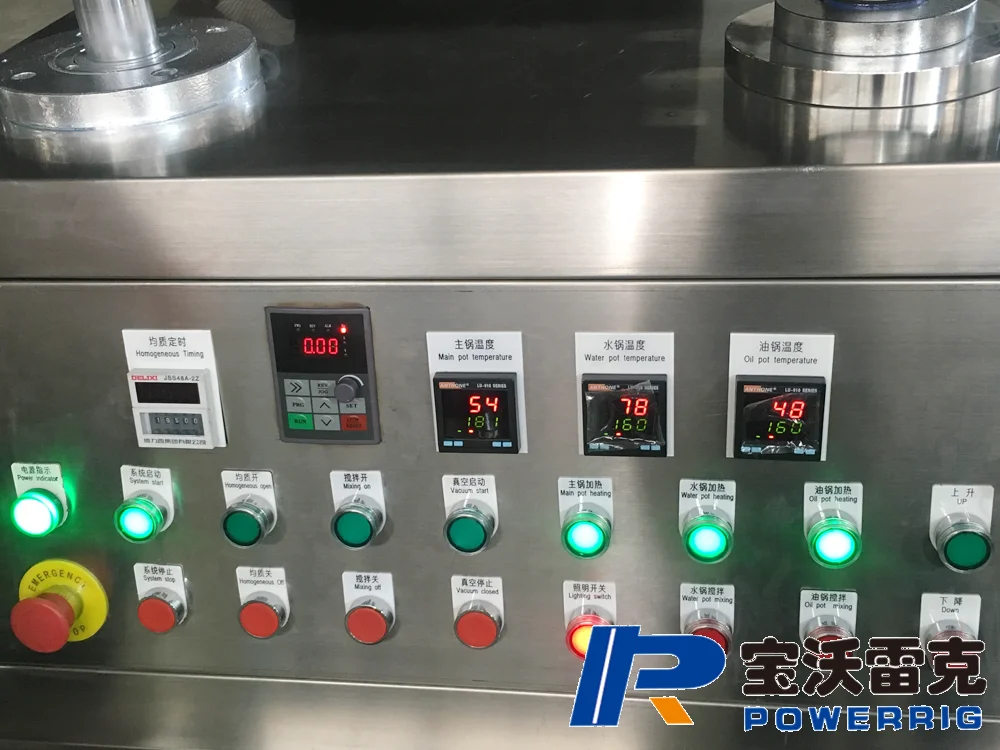

Control part


Use button control , also could according to customer requirements use PLC touch screen control .

Pot cover

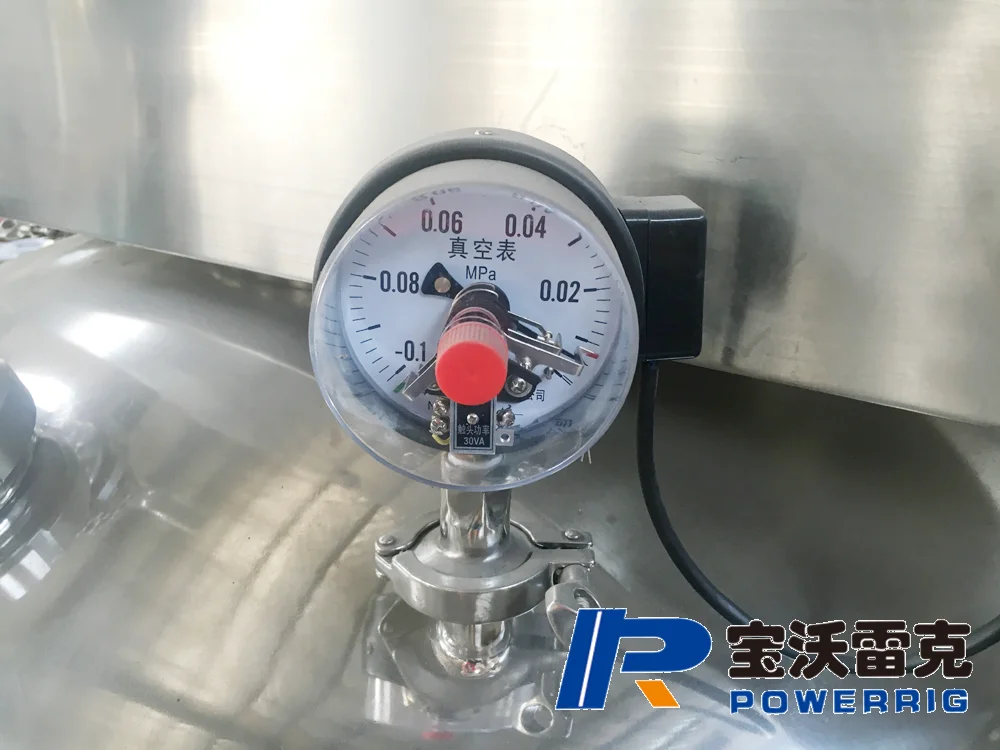

Pot cover have vacuum valve , water filling valve and vacuum pressure gage to see the pot inside whether have gas .

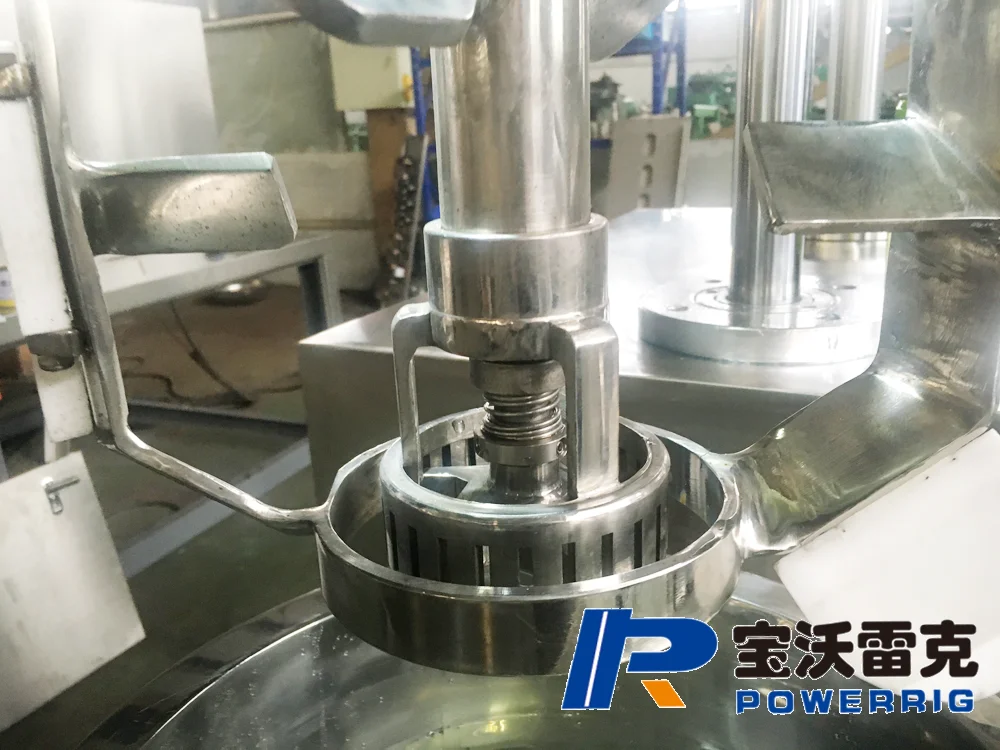

Homogenizer speed can reach 2900r/min . It could be top and bottom shearing to make the emulsify effect better .

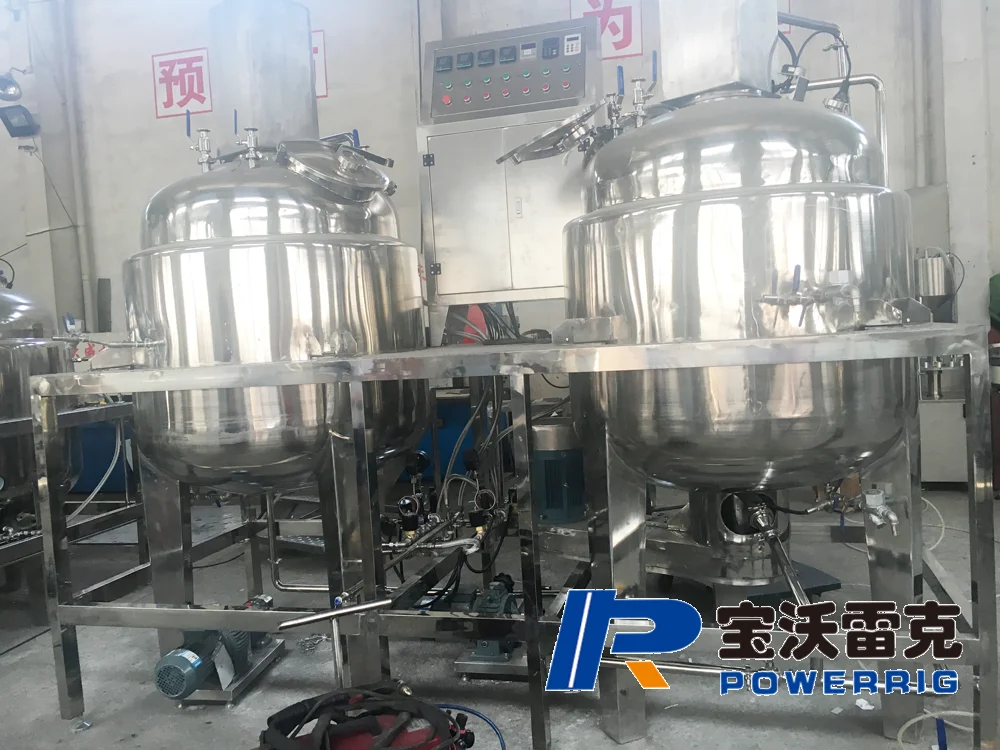

Water and oil pot

Two pot to assist the main pot to add auxiliary material.  The pot also could be heating and strring .
