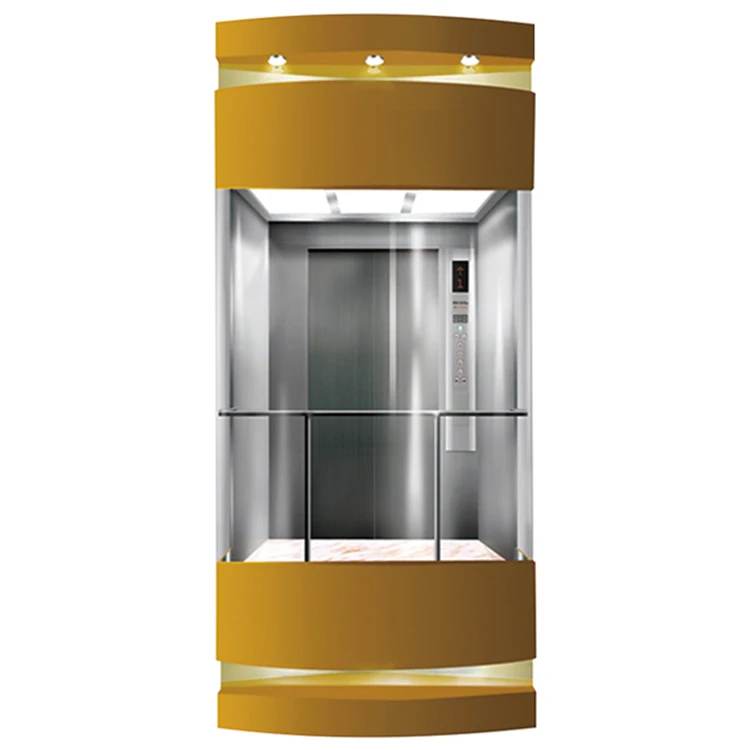

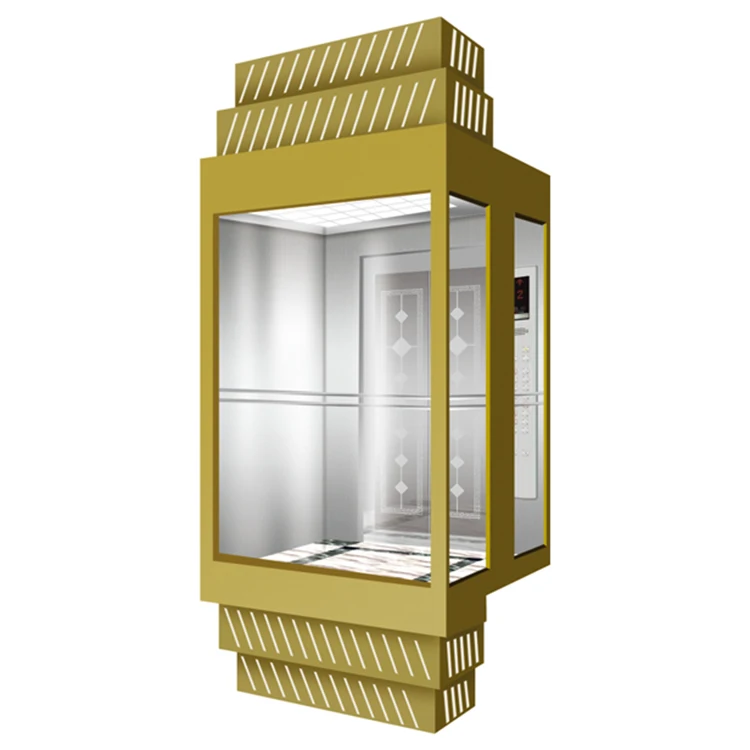

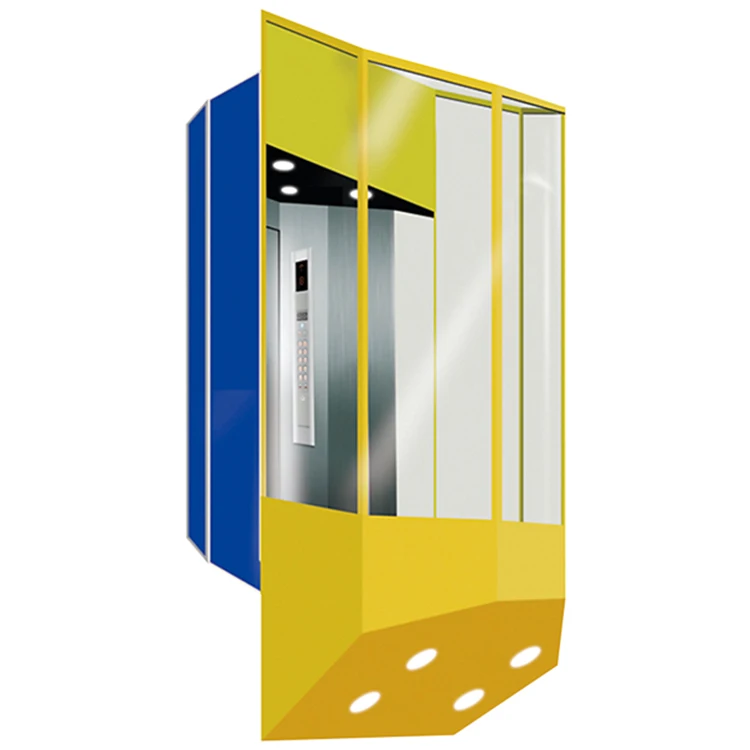

Gorgeous 360 degrees roomless residential glass panoramic observation lift
- Category: Elevators >>>
- Supplier: Lingzhi Elevator Co. Ltd.
Share on (62198280336):
Product Overview
Description
Product Description
Products Specifications
LINGZ observation elevator series applies the novel style fully computerized and modular variable frequency speed governor (WF)control technology. It combines with data network system and modular structure. It uses the most effective self-inspection program to bring about the smooth elevator running, accurate leveling. It is flexible and efficient. It adds a bright scene for modern cities. It is popularly applicable for large-size buildings such as the hotel, shopping center, office building, restaurant etc.
Car configuration
Upper/bottom canopy: hairline stainless steel/steel paint/steel plate baked enamel,white acrylic decoration hood
Observation wall: glue glass of safety clamp
Decoration roof: /hairline stainless steel frame/steel plated baked enamel/mirror stainless steel,muti-layered translucent panels and downlights
Car wall/Car door: hairline stainless steel
Handrail: hairline stainless steel tube
Car bottom: PVC
| Loading Capacity/ | Door | Door | Car | Hoistway Size (mm) | Machine Room | |||
| Passengers | Rated Speed (m/s) | Opening | Opening | Size (mm) | Size (mm) | |||
| Size (mm)(JJ×HH) | Type | (AA×BB) | (W×D×H) | |||||
| AH×BH | PP | OH | ||||||
| 450kg/ | 1 | 800×2100 | Center Opening | 1400×850 | 2000×1550 | 1500 | 4500 | 2500×3200×2500 |
| 6 Passengers | 1.5 1.75 | 1600 | ||||||
| 630kg/ | 1 | 800×2100 | Center Opening | 1400×1100 | 2000×1750 | 1500 | 4500 | 2500×3600×2500 |
| 8 Passengers | 1.5 1.75 | 1600 | ||||||
| 800kg/ | 1 | 800×2100 | Center Opening | 1400×1350 | 2000×2000 | 1500 | 4500 | 2500×3800×2600 |
| 10 Passengers | 1.5 1.75 | 1600 | ||||||
| 1000kg/ | 1 | 900×2100 | Center Opening | 1600×1400 | 2200×2150 | 1500 | 4500 | 3000×4000×2600 |
| 13 Passengers | 1.5 1.75 | 1600 | ||||||
| 1250kg/ | 1 | 1100×2100 | Center Opening | 2000×1400 | 2600×2150 | 1500 | 4500 | 4000×4500×3000 |
| 16 Passengers | 1.5 1.75 | 1600 | 4700 | |||||
| 1350kg/ | 1 | 1100×2100 | Center Opening | 2000×1500 | 2600×2250 | 1500 | 4500 | 4000×4500×3000 |
| 18 Passengers | 1.5 1.75 | 1600 | 4700 | |||||
| 1600kg/ | 1 | 1100×2100 | Center Opening | 2000×1750 | 2600×2500 | 1500 | 4500 | 4000×4500×3000 |
| 21 Passengers | 1.5 1.75 | 1600 | 4700 | |||||
| Product Function | |
| 1. VVVF driver operation/VVVF door operator | 2. Independent running |
| 3. Automatic pass without stop | 4. Automatically adjust door opening time |
| 5. Reopen with hall call | 6. Express door closing |
| 7. Car stops and door open | 8.Car arrival gong |
| 9.Command register cancel | 10. photocell protection |
| 11. Designated stop | 12. Overload holding stop |
| 13. Anti-stall timer protection | 14. Start protection control |
| 15.Inspection operation | 16. Fault self-diagnosis |
| 17. Repeated door closing | 18. Up/down over-run and final limit protection |
| 19.Down over-speed protection device | 20. upward over-speed protection device |
| 21. Micro-touch button for car call and hall call | 22. Floor and direction indicator inside car |
| 23. Floor and direction indicator | 24. Emergency car lighting |
| 25. Inching running | 26. Five way intercom |
| 27. Bell | 28. Fire emergency return |
| 29.Car ventilation,light automatic shut off | 30.Remote shut-off |
| 31.Elevator cab prevents accidental movement | |
Company Information
Packaging & Shipping
FAQ
Q1. Your strengths?
A1: our factory has been established for many years, and we have experienced professional technology, production and sales team.
Q2. How can I get your offer?
A2: please send us an inquiry from alibaba and we will reply to you within 24 hours. We would appreciate it if you could provide us with all the elevator details so that you can get our quotation as soon as possible.
Q3. How to install and maintain the elevator?
A3: we can send engineers to your country (at the customer's expense) to guide the installation and then train workers for future maintenance. But in most cases, local workers can do this work through our guidance and technical support, or you can ask the local professional elevator engineers to do this work, which can save a lot of money for our customers. Of course, you can always get the support of our factory.
