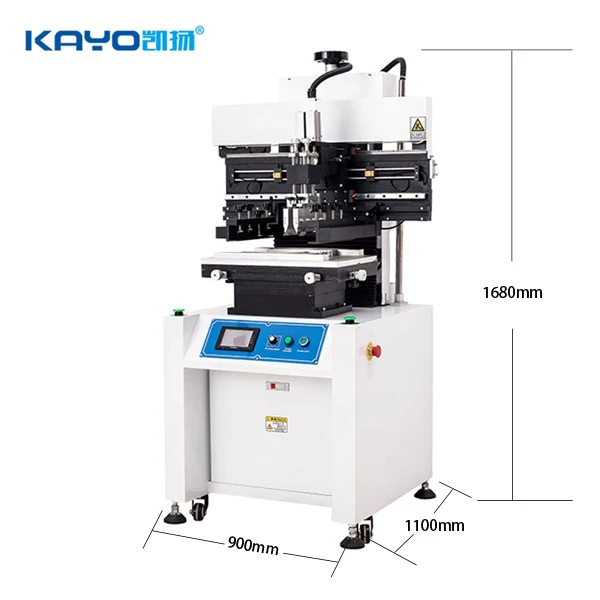

SMT PCB solder paste stencil printing machine with Low Price

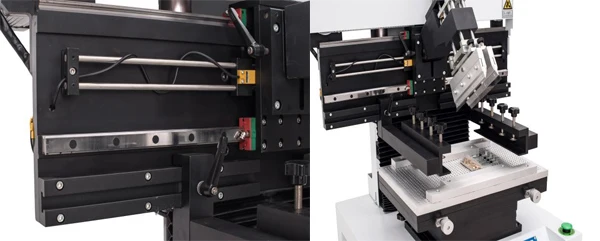

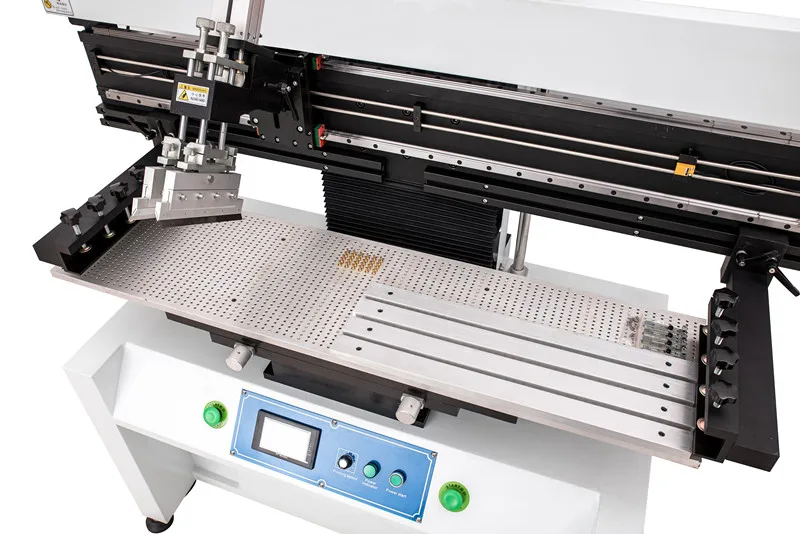

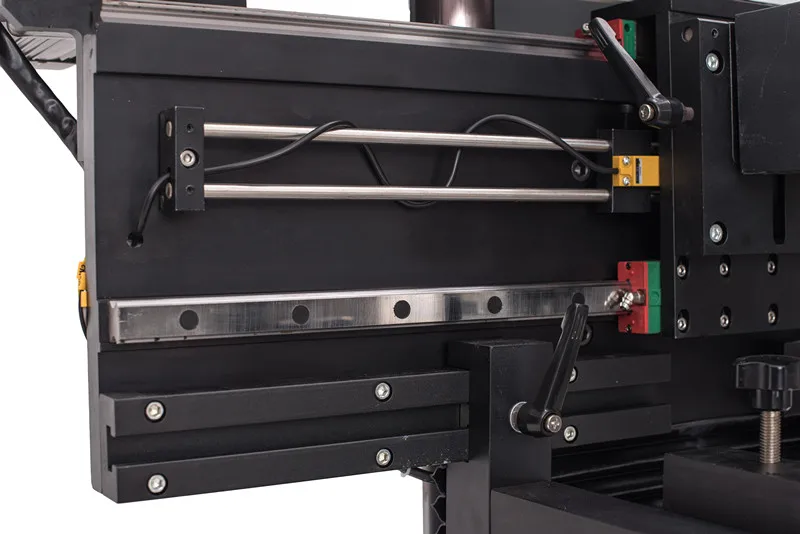

              1. HIWIN Linear Guides                                      2. Printing Table

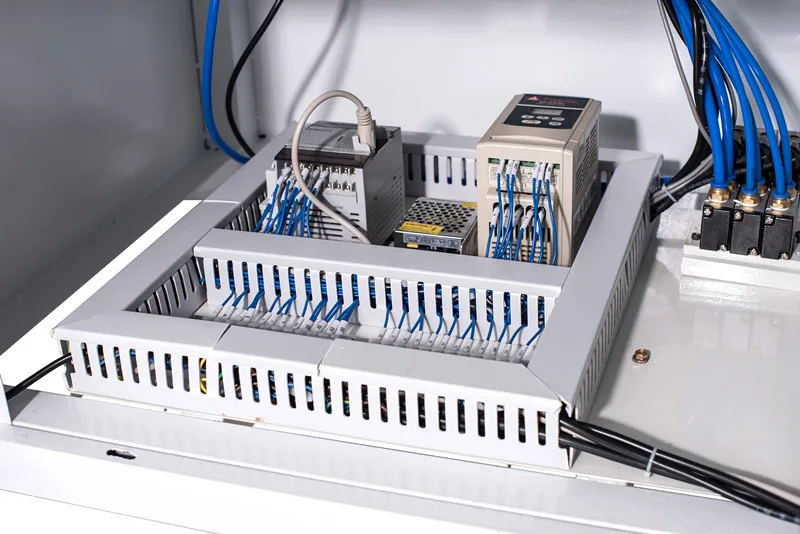

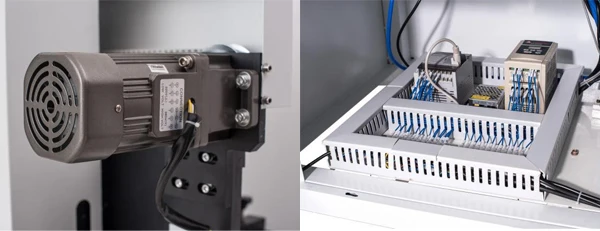

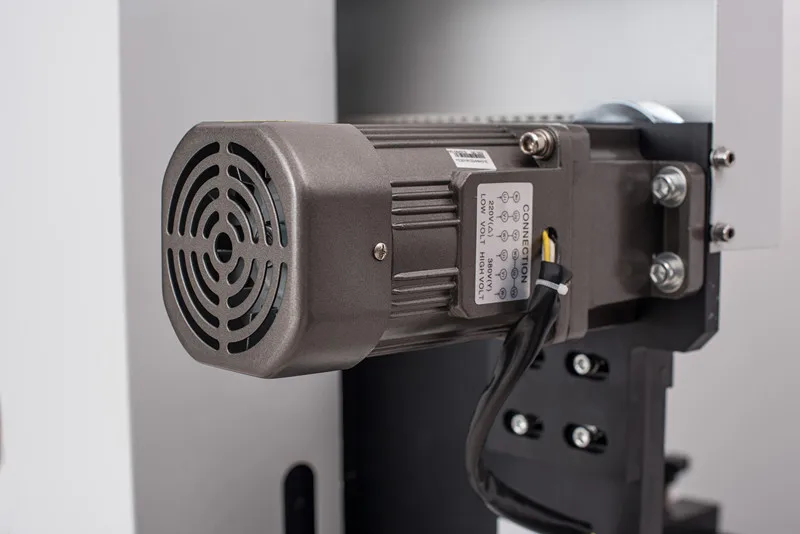

             3. Printing Motor                                                  4. Siemens Frequency Converter

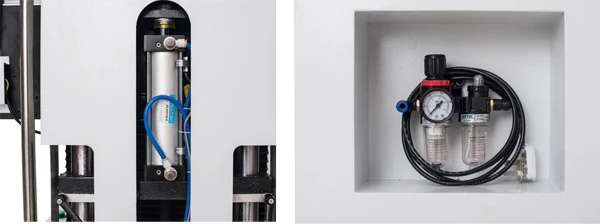

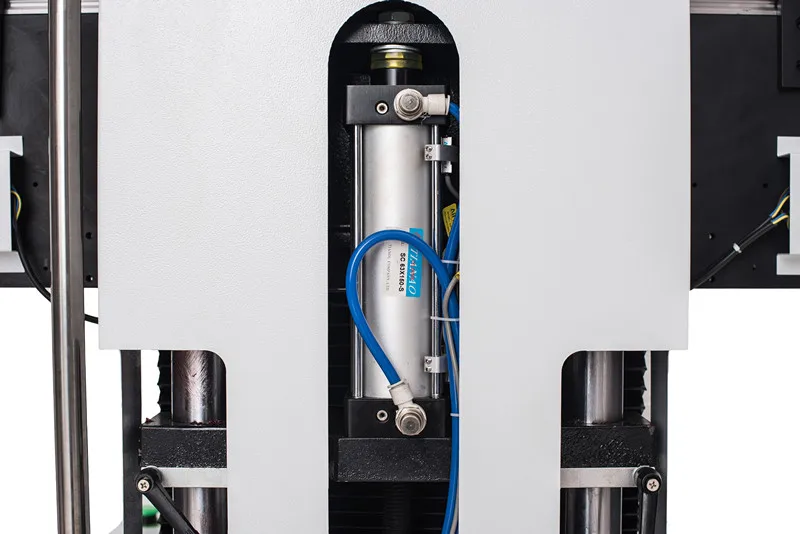

             5. Automatic Lifting Cylinder                          6. Oil and Water Separator

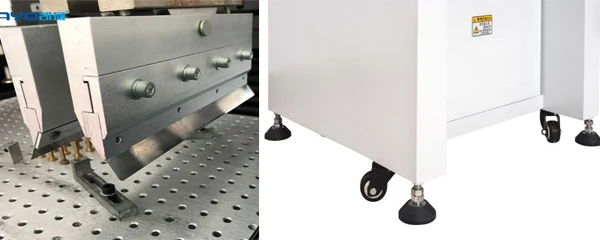

             7. Steel scraper                                          8. Fixed foot margin and mobile land wheel

1.Microcomputer control, touch screen display, menu operating interface;

2. Scraper floating (Similar to MPM automatic printer, scraper can freely float up and downand automatically adjust the distance with the steel);

3. Scraper pressure adjustable (according to the length of the different types of scraperblade, adjust the pressure to the steel);

4. Equipped with the inverter speed control system, scraper running speed is steady;

5. Using two-hand button switch operation, safe and reliable;

6. Touch screen menu can independently set the whole steel net pause time up and down;

7. PCB positioning methods include reference hole positioning, reference edge positioning, reference hole & edge positioning at the same time, template positioning, etc;

8. Touch screen with time display function, printing times count function automatically,screen protection function;

9. With scraper speed adjusment function and emergency stop safety function;

10. Printing Mode: single, double, second start (menu settings optional);

11. Printing working status: automatic / semi-automatic / jogging three printing status(menu settings optional);

12. Cast iron table, work smoothly, no jitter phenomenon.
