Industrial Stirred Tank Reactor Heaters

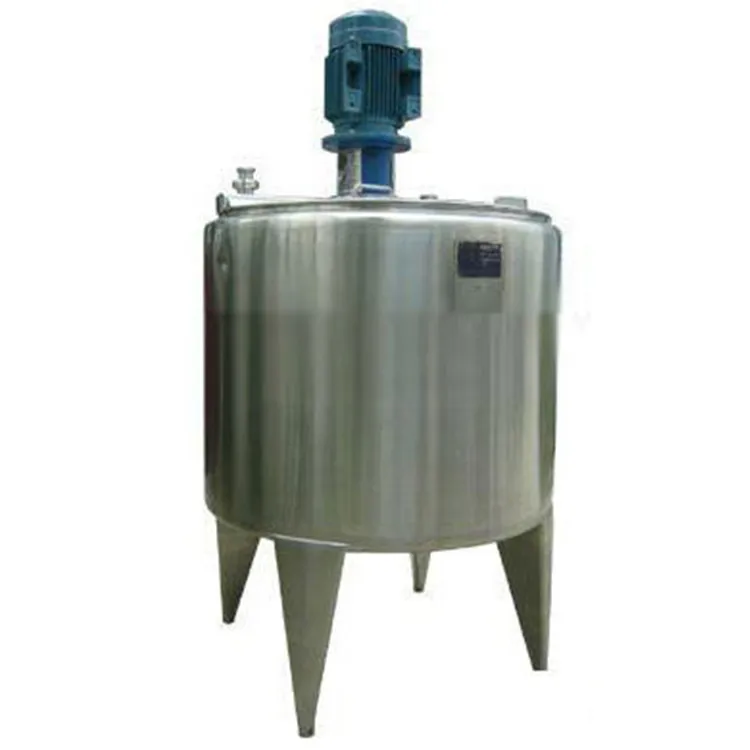

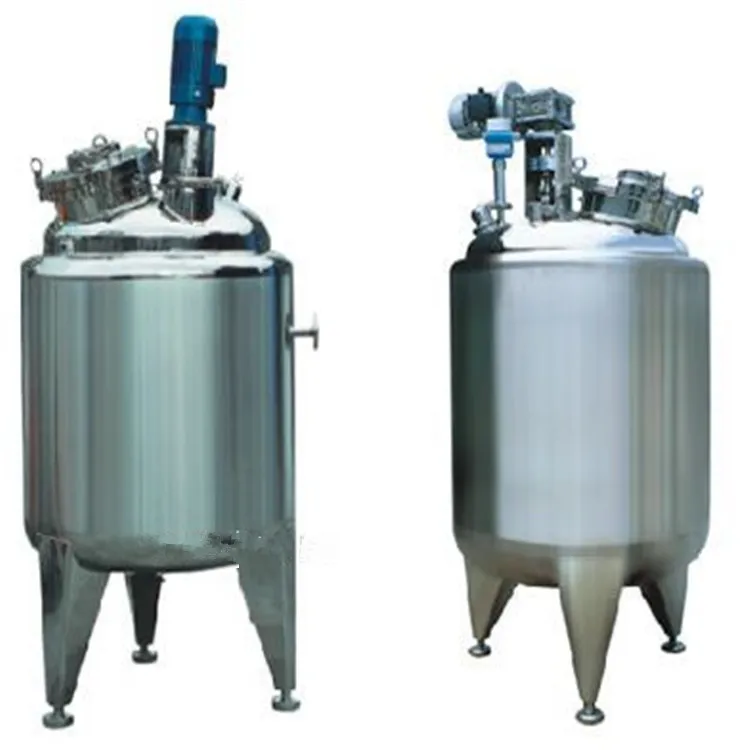

Electric mixing and heating tank is consisted of tank body, mixing part, heating part and electric control panel. The tank made up of stainless steel with jacket for heating or cooling and insulating layer for outer. There are many options for choosing the type of Jacketed heating, such as electric heatin steam heating, oil heating.
According to technological requirements, the mixing part can choose high shear, high speed dispersion or low speed anch or mixing,paddle mixing, propeller mixing and so on.

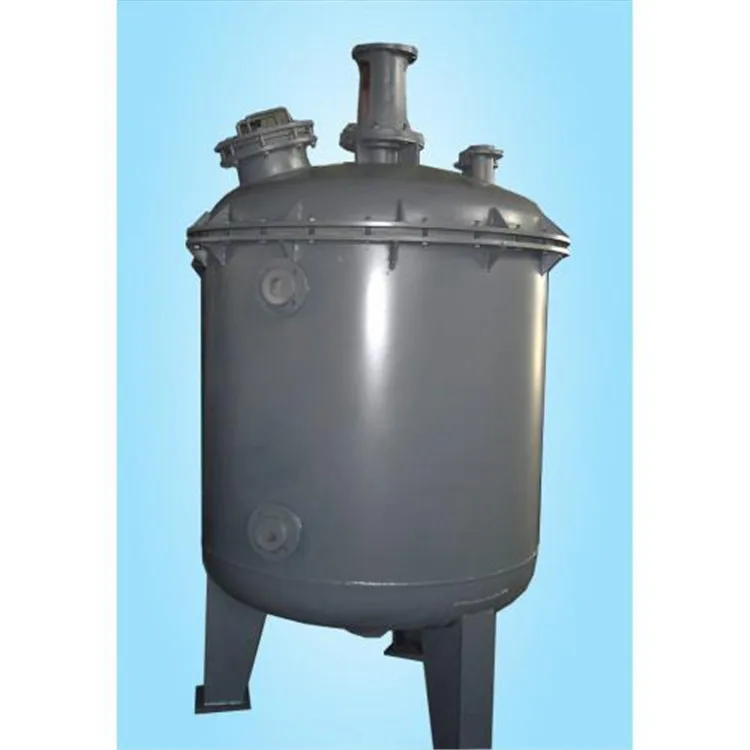

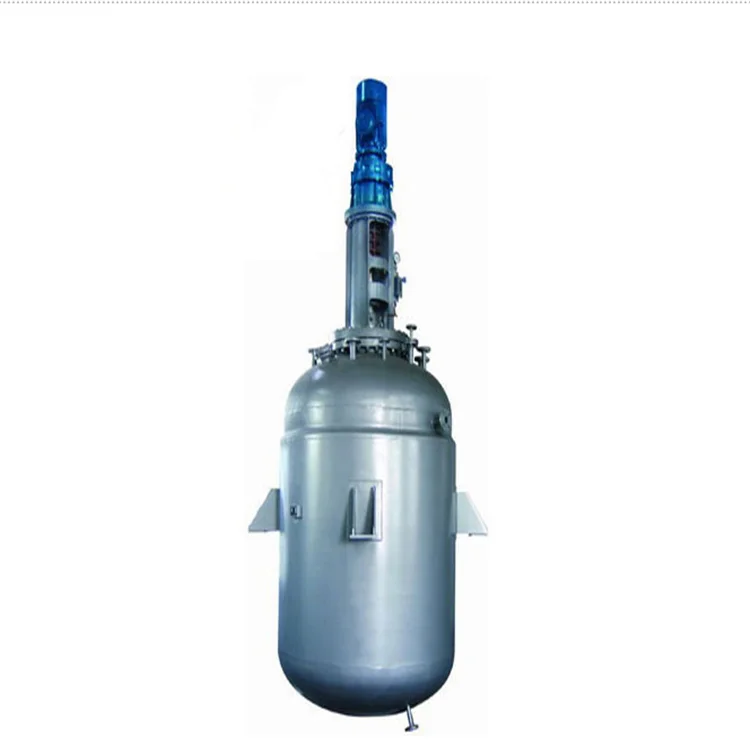

Reactor is typically used to install floor mounted legs,also can use lug support on the platform.

1.\tElectrical motor, reducer, control panel.
2.\tFeed inlet, outlet, equipped port.
3.\tQuick open manhole.
4.\tPaddle blender.
5.\tDismountable materials input pipe assembly.
6.\tVarious types of CIP cleaners (According to customer requirements ).
7.\tThermometer (According to customer requirements ).
8.\tLadder (According to customer requirements).
9.\tLiquid level meter and lever controller (According to customer requirements).
10.\tEddy-proof board.
11.\tCustomized and Non-standard products also welcomed.

12. Configuration of tank.

1.Mixing and heating uniformly to prove product quality.
2.Operating conveniently saving working time.
3.By dynamic balance testing to improve working safety.
4.No nosie to improve working environment.
5. Materials are all sanitary stainless steel.
6. Humanized structure design and easy to operate.
7. Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
