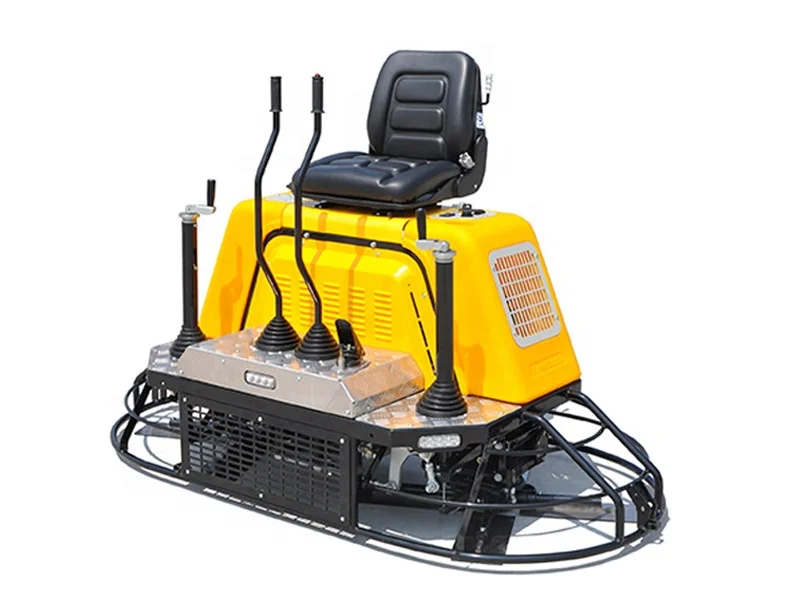

JFM245 Китай высокое качество ездить на механическом шпателе для продажи

Share on (62198563783):


Price:2 000,00 $ - 6 000,00 $

Quantity:


Product Overview

Description


Product Description

Introduction and application of product:

The power trowel, has the main structure of an engine-driven spatula rotor with a spatula on the bottom of the cross in the middle of the rotor. The tilt direction of the spatula is consistent with the rotation direction of the rotor, and the triangle belt of the cutter is rotated by the engine. When you are operating, first hit the fire and hold the control handle. Pushing two forward together is moving forward and pulling back together is to move back. Compared with artificial power trowel, it can improve the efficiency of more than 30 times times.

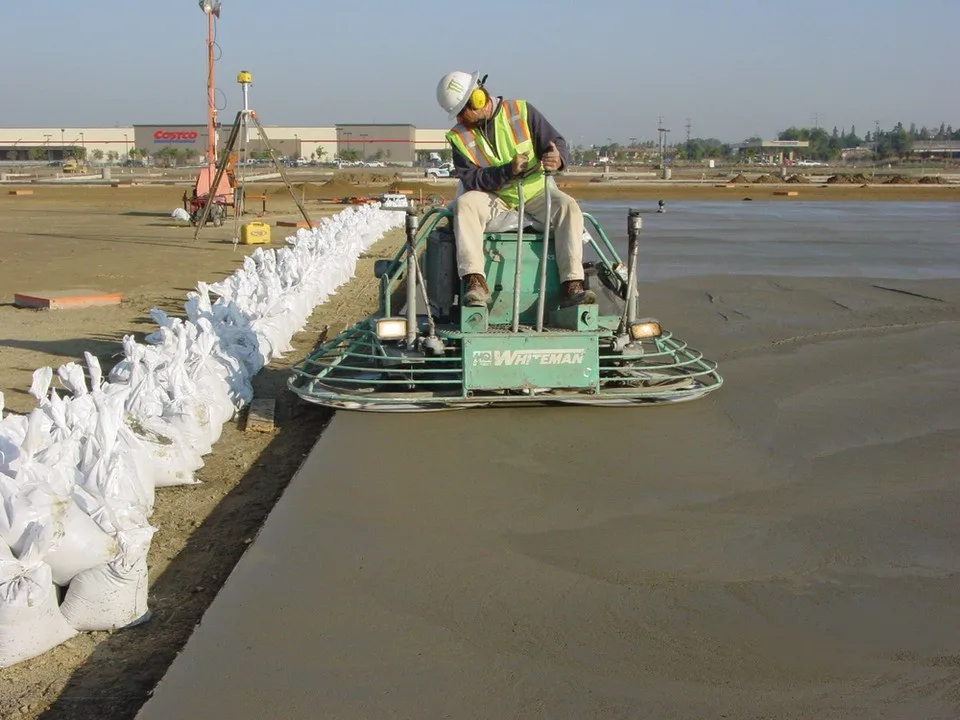

The power trowel can be widely used in high standard plant, warehouse, parking lot, Plaza, airport and frame building of the concrete surface of the slurry, flattening, wiping light. It is the preferred tool in concrete construction.

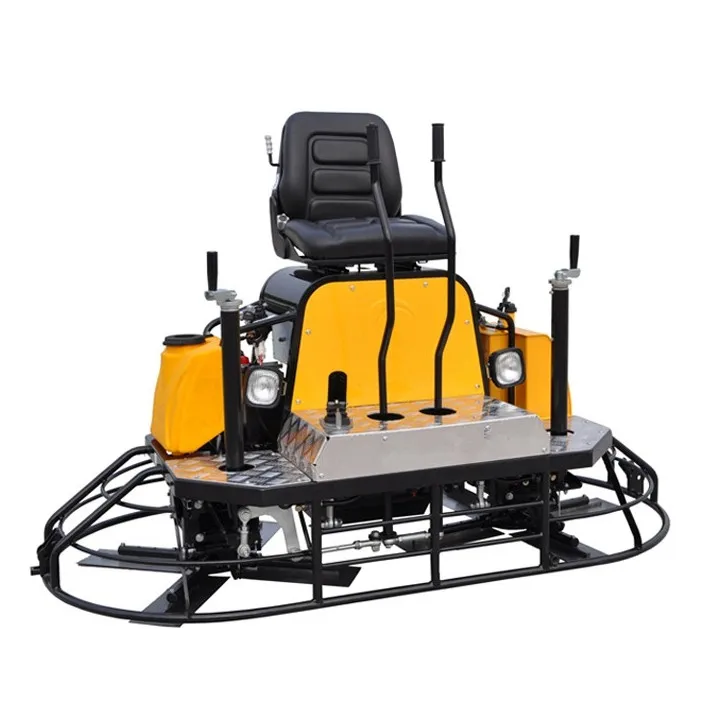

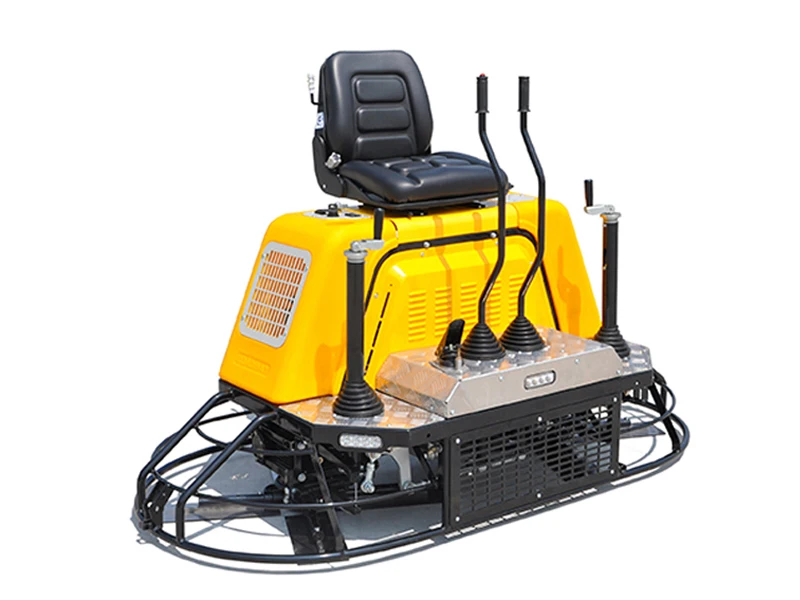

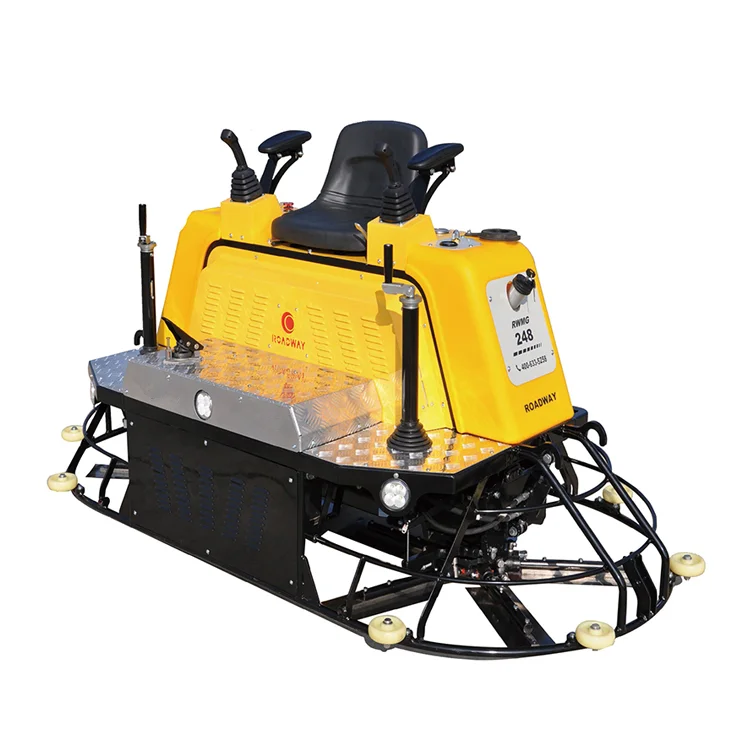

Images of power trowel:

Specification
\t
JFM245 Ride on Concret Trowel Technical Data
\t
Working
\t

\t
Power
\t
35hp/3600rpm
\t
Operationg mode
\t
ride-on
\t
Fuel tank
\t
23L
\t
Working Width
\t
96.4 inch(2450 mm)
\t
Fuel comsumption
\t
10.7L/h
\t
Working speed
\t
40-180rpm
\t
Dimension
\t

\t
Blade
\t

\t
Total length
\t
2560mm
\t
Blade quantity
\t
10
\t
Total width
\t
1300mm
\t
Blade size
\t
450*150mm
\t
Total height
\t
1450mm
\t
Fixed hole distance
\t
4.75 in
\t
Packing size
\t
2660*1400*1730mm
\t
Engine
\t

\t
Weight
\t

\t
Model
\t
Vanguard 6134
\t
Weight
\t
500kg
\t
Type
\t
Gasoline,air cooled, single cylinder
\t

\t

Related Product

JFM100


JFM168


JFM198A

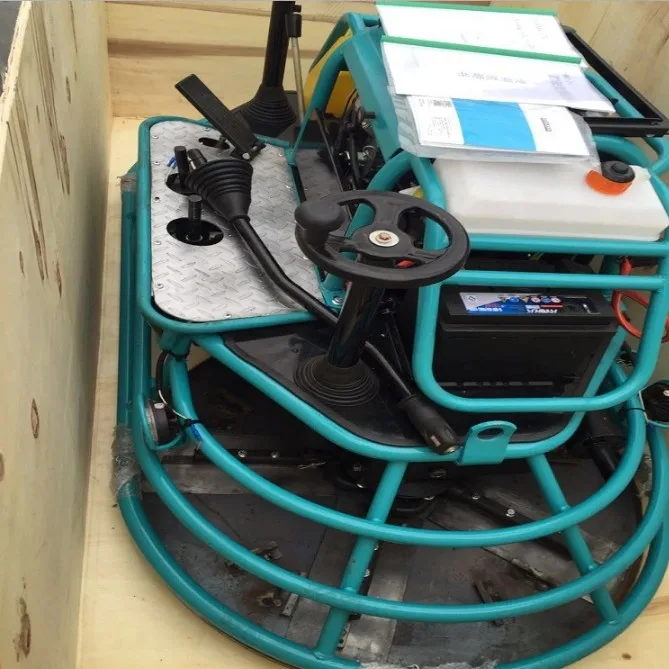

Packing & Delivery
