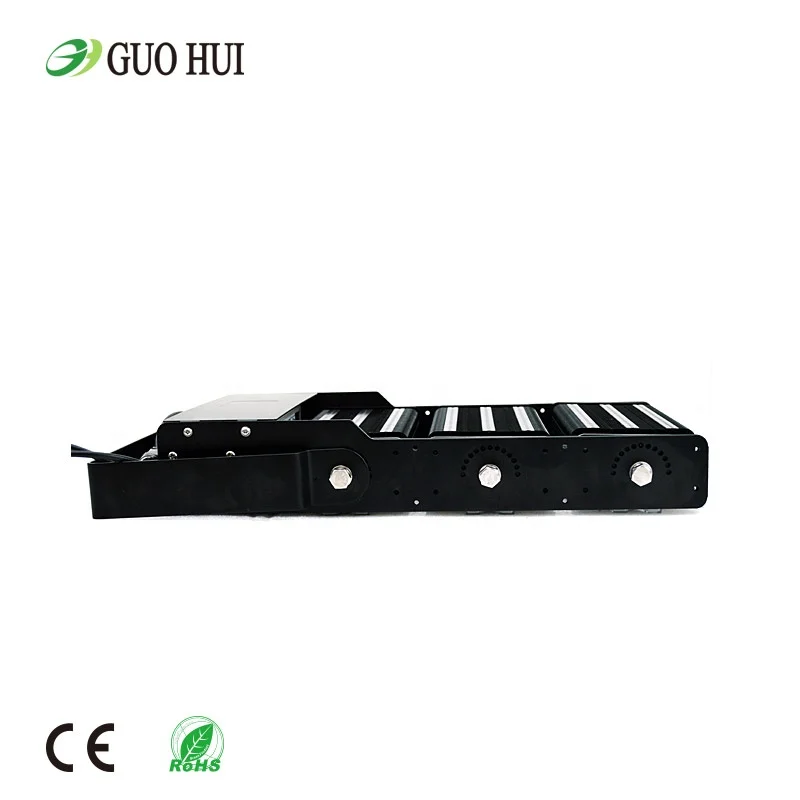

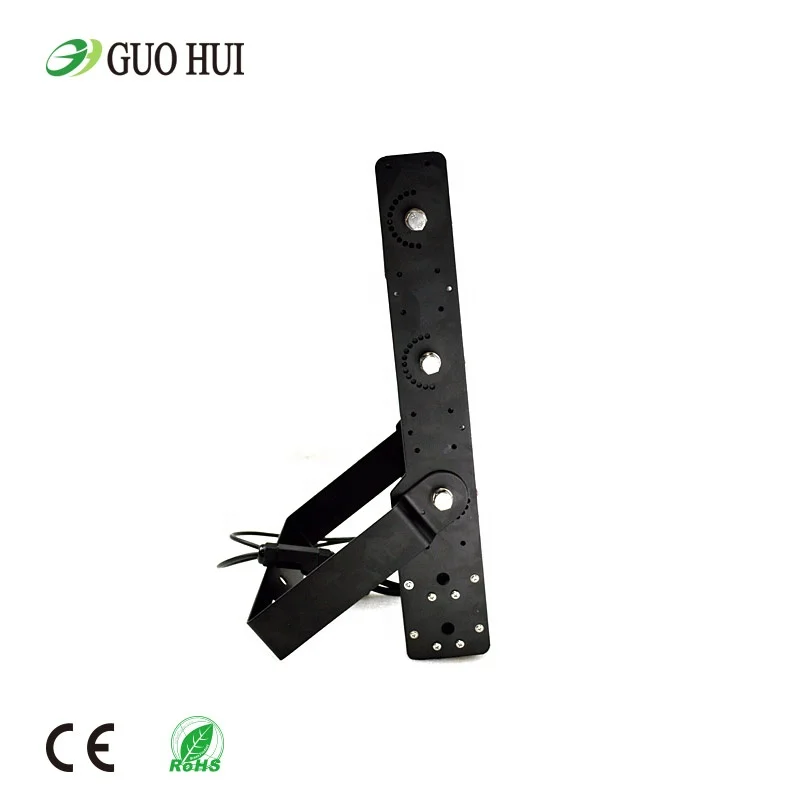

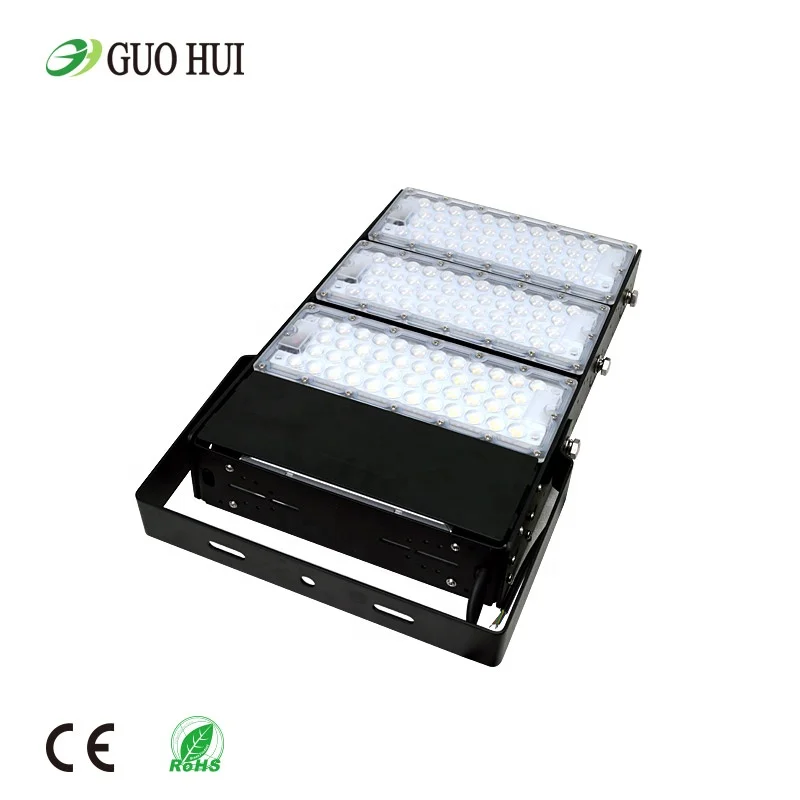

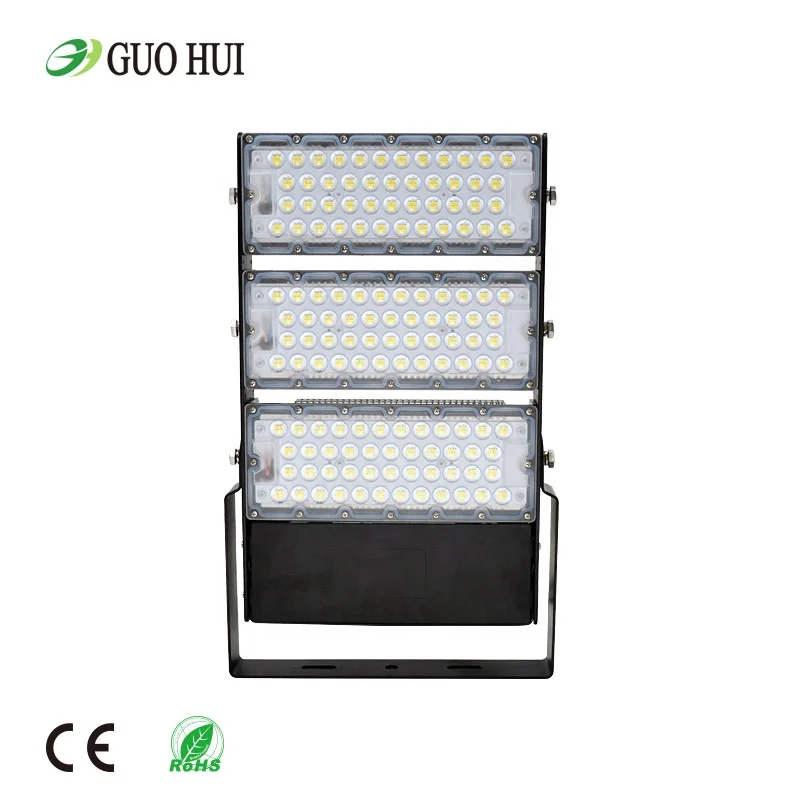

High Lumens LED Stadium Light 360W 57600Lm Sports Lamp 5000K Outdoor Arena Lighting Fixtures
- Category: >>>
- Supplier: Shenzhen Guohui Lighting Equipment Co. Ltd.
Share on (62198722281):
Product Overview
Description
Specification
High Lumens LED Stadium Light 360W 57600Lm Sports Lamp 5000K Outdoor Arena Lighting Fixtures
Item Name: | High Lumens LED Stadium Light 360W 57600Lm Sports Lamp 5000K Outdoor Arena Lighting Fixtures |
Power(W): | 360W |
Lumen Effciency: | 145-165 lm/w |
CCT: | 2700k ~ 6500K |
Ra(CRI): | 70 |
Protection: | IP67 |
Beam Angle: | 8°/20°/40°/60°/90°/140°*100° |
Lifespan(hour): | 50000 |
Certificate: | CE, RoHS |
Products Description
Product Details
1.Modules's beam angle angle can be adjuable!
2. PC cover, Beam angle :8°/20°/40°/60° /90°/140*100°
3. Import Philips LED lamp beads, Light efficiency>165LM/W;
4. Using fins 1060 pure aluminum heat , air convection design, Better heat dissipation, heat sink 0.5mm;
5. Use 304 stainless steel screws;
6. Internal wiring is waterproof, safe,
Convenient;
Super Brightness&Energy Save
Imported SMD Led chips,High lumens up to 145-165lm/w
PC len's, Different beam angle can be chossen,8/20/40/60/90/140*100 degree or without.
PC len's, Different beam angle can be chossen,8/20/40/60/90/140*100 degree or without.

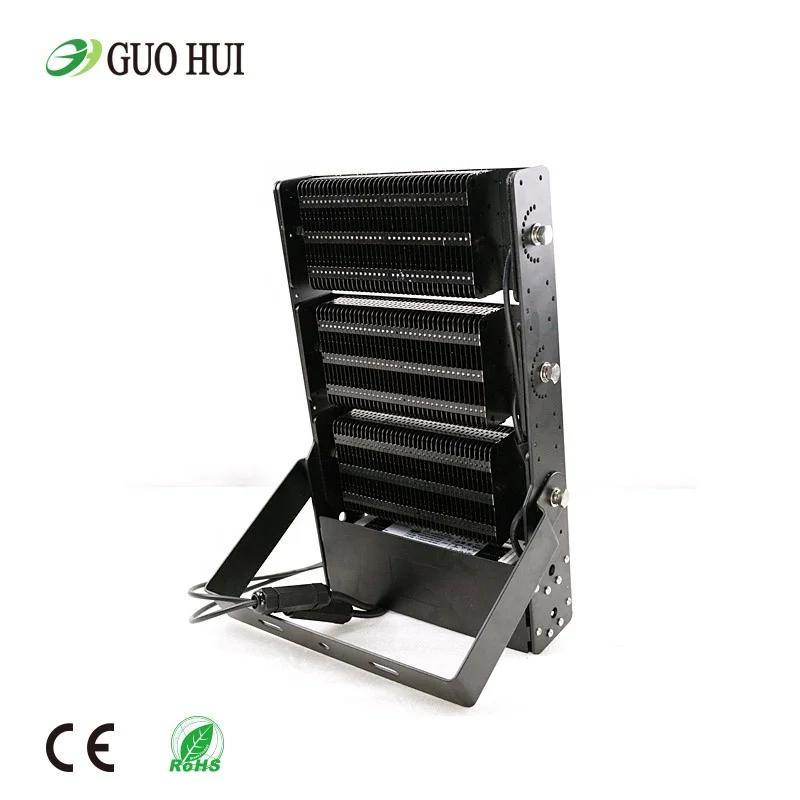

Fin type Radiator
1060 Pure Aluminum,high aluminum content and purity,high corrosion resistance and high thermal conductivity. Outstanding performance, with excellent thermal conduction effect that general aluminum alloy can not be.
IP67 fully waterproof
Product sealing is perfect .It means you don't have to worry about flooding when it works. Please note that the floodlight can not be used IN the water.LifeSpan More than 50000 hours,save your replace time and money!
Product Number | GH-TFD-360w / High Lumens LED Stadium Light 360W 57600Lm Sports Lamp 5000K Outdoor Arena Lighting Fixtures | ||||
Input Power | 360W | ||||
Led Chips | SMD 3030 552PCS | SMD 5050 138PCS | SMD5050 138PCS | ||
Light Effiency | 145LM/W | 165LM/W | 165LM/W | ||
Input Voltage | AC100-305V | Frequency | 50/60HZ | ||
Power Factory | PF>0.95 | CCT | 2700-6500k or customized | ||
Power Supply | Meanwell ELG 200W+150W*1pcs | CRI | >70 | ||
Production Sizes | 330*550*83mm | Packing Sizes | 340*560*105mm | ||
Net Weight | 10.30 KG | Gross weight | 11 KG | ||
Lamp Boady Color | Black/Silver | ||||
Power Cable | Brown L firewire | ||||
Yellow Green G ground | |||||
Blue N zero Line | |||||
Beam Angle | 8/20/40/60/90/140*100 degree | ||||
IP grade | IP67 waterproof | Material | Fin 1060 pure Aluminum | ||
Lifetime | 50000 hours | Temperature | -30-+55 degree | ||
Certificate | CE ROHS | Warranty | 5 years | ||
Installation Instructions
1. The mounting rood or mounting surface can be directly screwed through the mounting hole one the product bracket;
2. After fixing the product, you can loosen the screws on both sides of the bracket and then change the angle of the bracket, which is equivalent to adjusting the installation angle of the fixture;
3. Working environment temperature -30℃-+55℃ storage;
4. When installing the luminaire, the wiring and wiring are closed to prevent leakage;
5. When the external power cord is connected, the corresponding waterproof and water leakage measures must be taken;
6. Anti-glare design, uniform light distribution;
7. Independent power supply box design is beneficial to heat dissipation of the lamp body, reducing light decay and prolonging the service life of the light source;
8. Support light sensor installation, which can realize intelligent control of lamps and improve energy saving benefits.
Applications
Used in shiopping mall, exhibition hall, parking lot, playground,gymnasium, billboards, park, sculpture, national green lighting project, bulding facede and public corridor, stair corridor and other indoor and outdoor lighting.
FAQ
Q1. Can I have a sample order for led light? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .1pcs sample is accepted.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Can you provide the Dialux for sports field?
A: Yes, we can provide free according to customer requriments.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to put customer logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new light with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable .1pcs sample is accepted.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Can you provide the Dialux for sports field?
A: Yes, we can provide free according to customer requriments.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to put customer logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new light with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
