Laboratory Digital Display Asphalt Brookfield Rotational Viscometer for Bitumen Liquids

Laboratory Digital Display Asphalt Brookfield Rotational Viscometer for Bitumen Liquids

Category: >>>
Supplier: Xian,Zealchon,Electronic,Technology,Co.,Ltd.

Price:$2,800.00 - $3,000.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

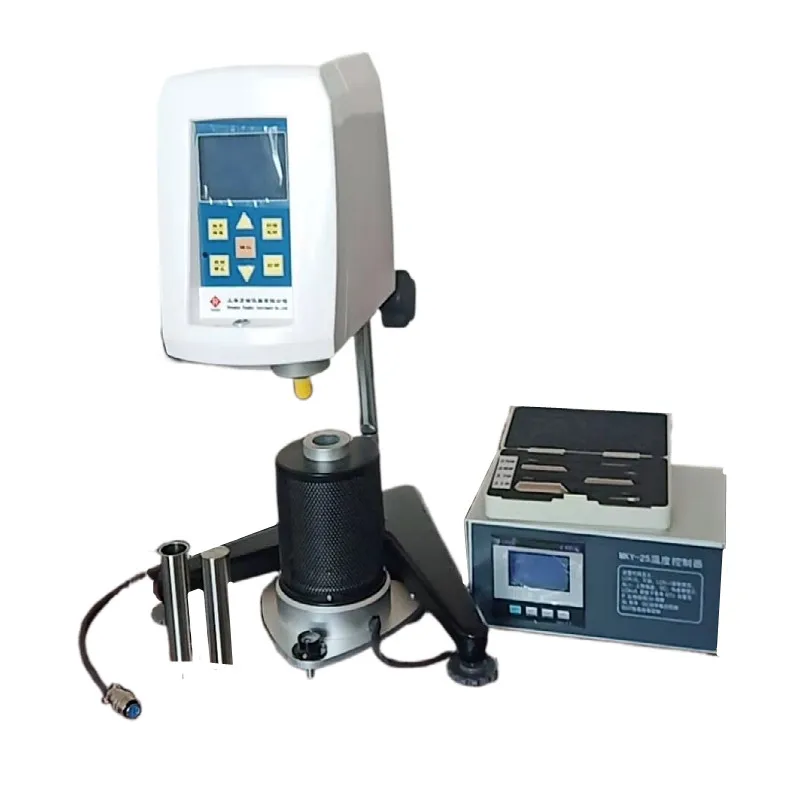

Product description.jpg Digital Viscometer for Liquids use rotary process to test the apparent viscosity of asphalt road in the temperature range above 45 °C, by milli-Pascal seconds (MPa. s). According to the measurement results, we can find out the recommended mixing and compaction construction temperatures.

Feature

According to the measurement results, we can find out the recommended mixing and compaction construction temperatures. Compared with similar products, with high accuracy, stable viscosity value display, easy to read, easy to operate, good anti-jamming performance advantages.Specially used to measrue apparent viscosity of the asphalt road. Also used to measure the viscosity of hot melt adhesive,wax,polymer and other fluids

Specification

timg (1).jpg (1).jpg

Main Technical Indicators
Parameter Names	Details
Measuring range	100mPa.s ~ 200000mPa. S
Rotor Size	27 # rotor (21 #, 28 #, 29 # rotor is optional)
Rotor Speed	5 r/ min, 10 r/ min, 20 r / min, 50 r/ min
Measuring modes	Manual, automatic
measurement error	± 3% F.S
Temperature range	RT +20 °C ~ 200 °C
Temperature accuracy	± 0.1 °C
Power supply	Voltage 220V ± 10V, frequency 50Hz ± 10Hz
Net weight	2.5 kg (not including the base form at the top)
Boudary Dimensions	105mm × 120mm × 160mm (Do not include the base)
