RH AUDIO IP Based Speaker System For Network Wall Mount Speaker

Share on (62199000682):


Price:

Quantity:


Product Overview

Description

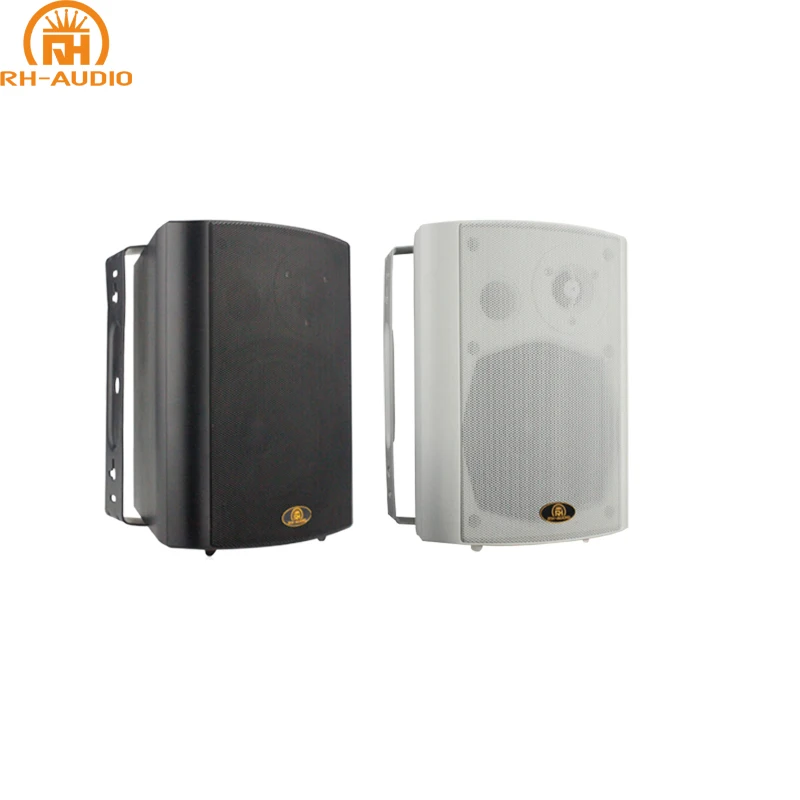

RH-AUDIO IP Based Speaker System For Network Wall Mount Speaker

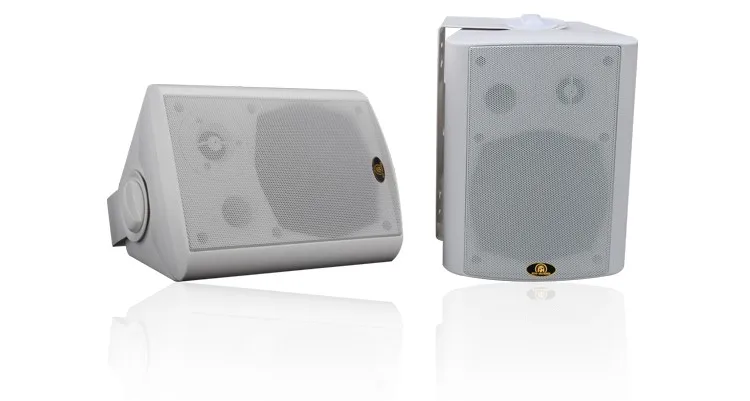

 IP RH5010 P











The  IP Based Speaker System  consists of one main active speaker & one sub passive speaker,the main active speaker "L" with built-in 2-channel "L&R"stereo amplifiers 20W*2,with Phoenix connector ready to be connected to the sub passive speaker "R".
With this IP based speaker you will enjoy a quicker and more flexible installation than traditional wired analog systems.
It’s easier than ever to install a very wide paging or intercom system using your existing Ethernet network,this speaker can be placed wherever you have a network drop without need for long speaker wire connections from a large central amplifier.





 1) Built-in Power Saving Circuitry.
 2) Integrated network decoding module with IP address.
 3) IP address reset function.
 4) Supports network volume.
 5) Built-in 2-channel digital stereo amplifier (Class D) 8Ω 20W*2.
 6) 2-way speaker units with woofer 5" + tweeter 1".
 7) With one 6.5mm MIC jack input.
 8) Unbalanced local audio input via RCA connectors.
 9) Individual volume control for audio input & microphone input.
10) 70V/100V line voltage signal input available.
11) 2.4G wireless microphone is optional.
12) “U” shaped adjustable mounting bracket is supplied.
13) Compact size (HxWxD) 242 x182 x162 mm.
14) Net weight: active speaker 2.50 kg, sub passive speaker 2.15 kg.









specification banner.jpg













































































Network Port



 Standard RJ45



Protocols Support



TCP/IP UDP IGMP (group broadcasting)



Rated Power



20W x 2 (8Ω)



Audio Format



 MP3/MP2



Sampling Rate



 8K~48KHz



Network Rate



 10Mbps



Audio Quality



 16 bits of stereo, CD tone



Output Frequency



 20Hz~16KHz



THD



 ≤0.3%



S/N



 >70dB



Working  Temperature



5℃~40



 Working  Humidity



20%~80%RH,condersation



Power Saving Mode



"AUTO”Power Saving Mode: Automatically switched on or switched off .



Consumption



 ≤50



Power Supply



~110-240V 50-60Hz



Dimesion



(HxWxD) 242 x182 x162 mm



Net Weight



Active speaker 2.50 kg + Passive speaker 2.15 kg
