Product Overview

Description


SOLAR PUMP INVERTER2

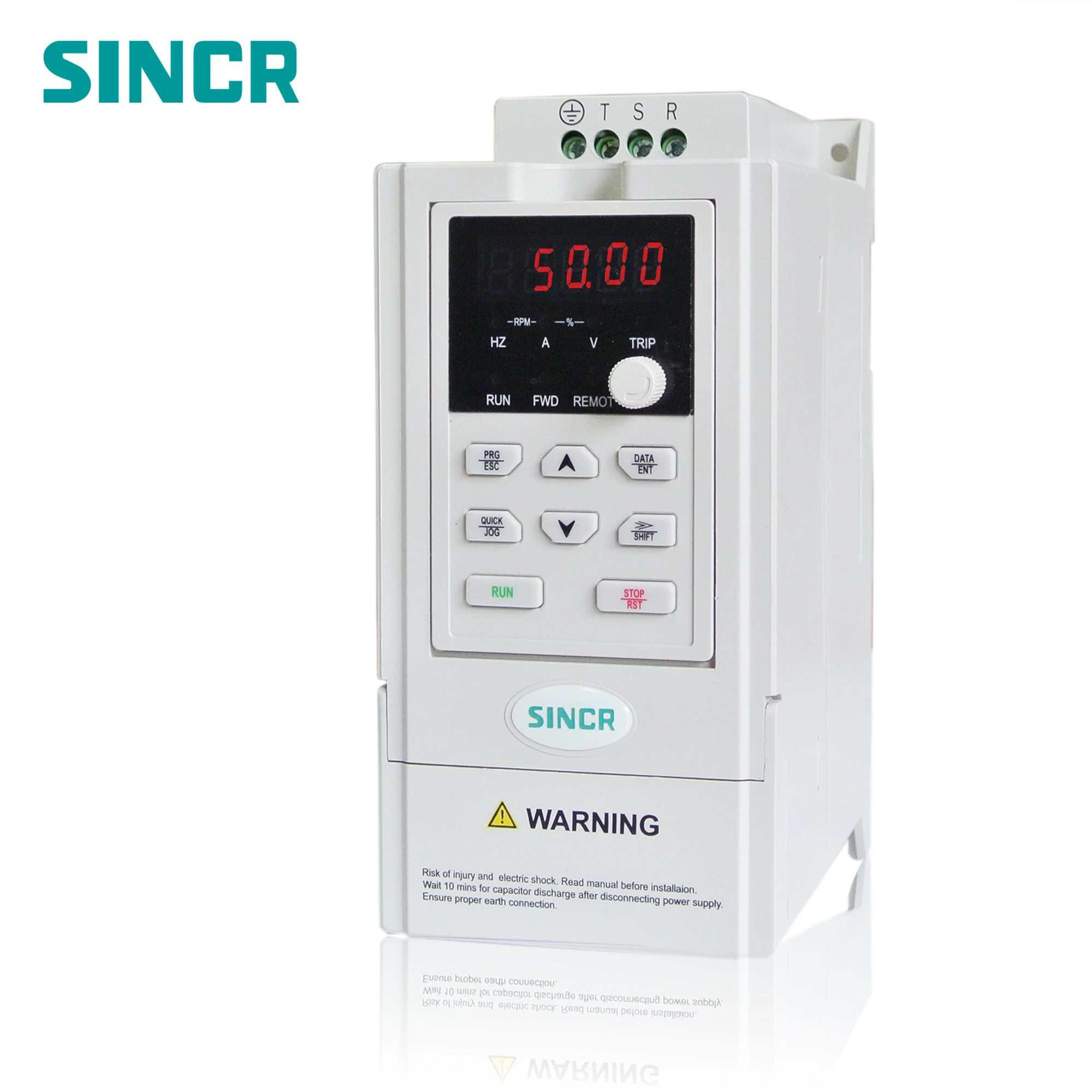

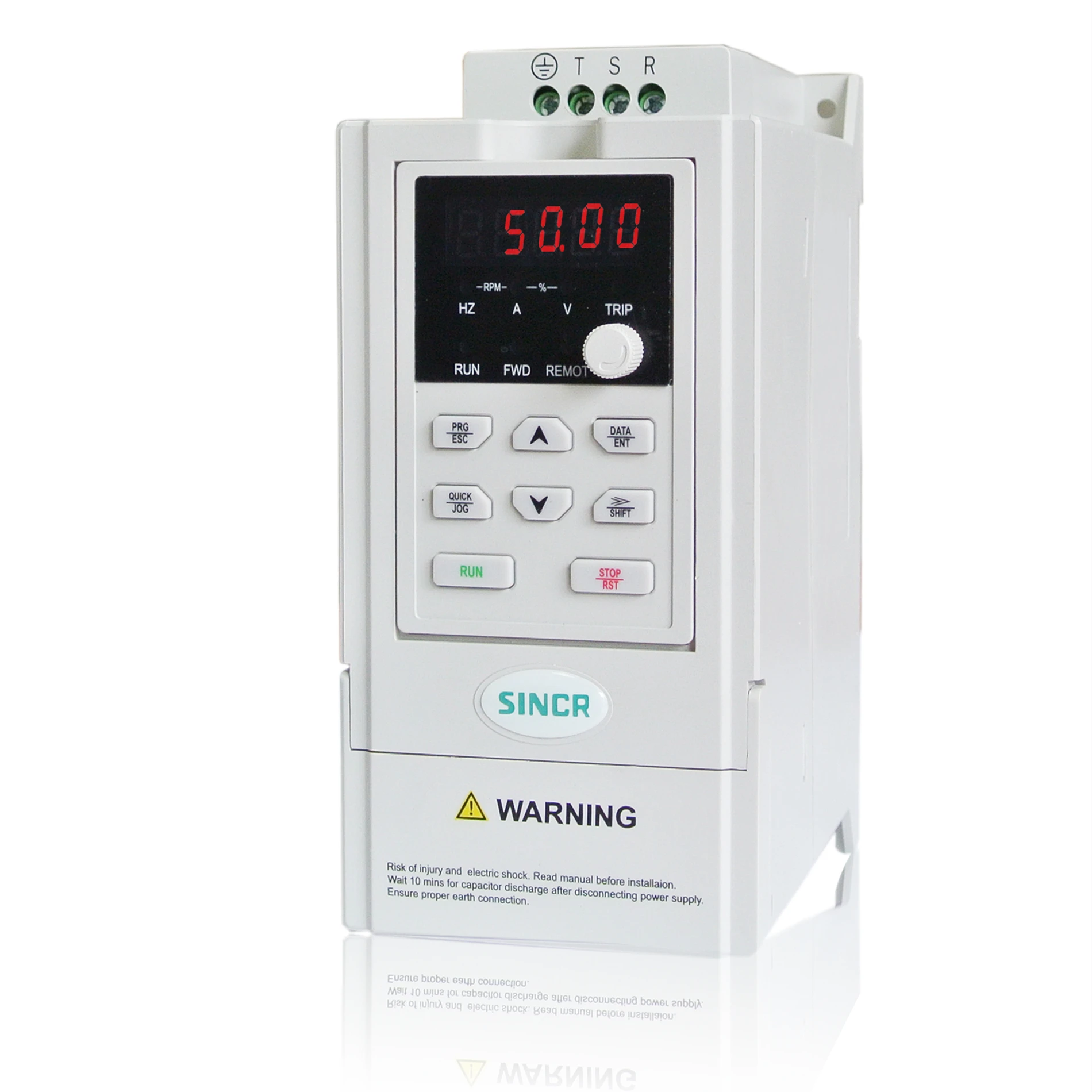

SINCR 2.2KW Solar Water Pump inverter 50Hz 60Hz Output 3 Phase 380V For AC Pumps.


Product Description

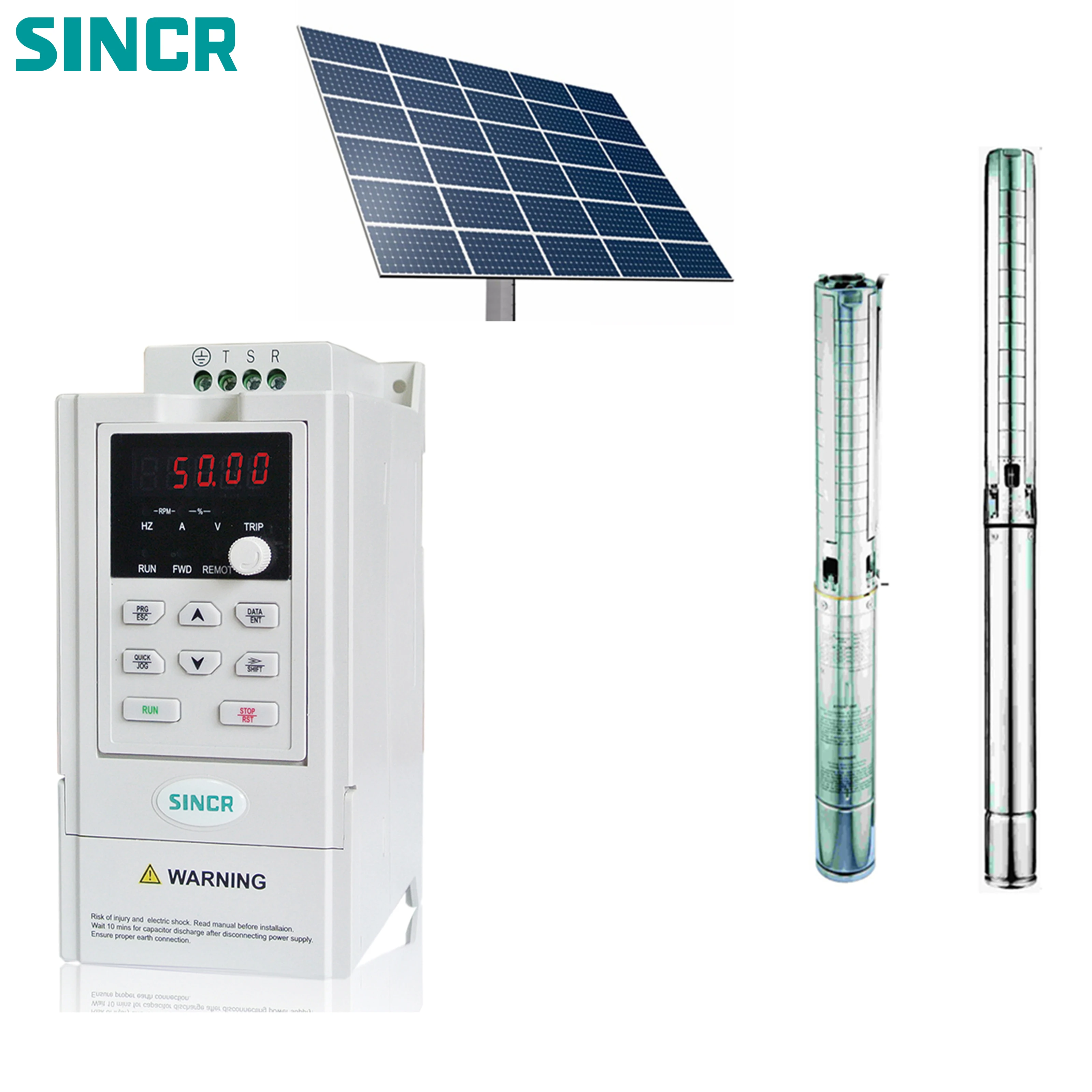

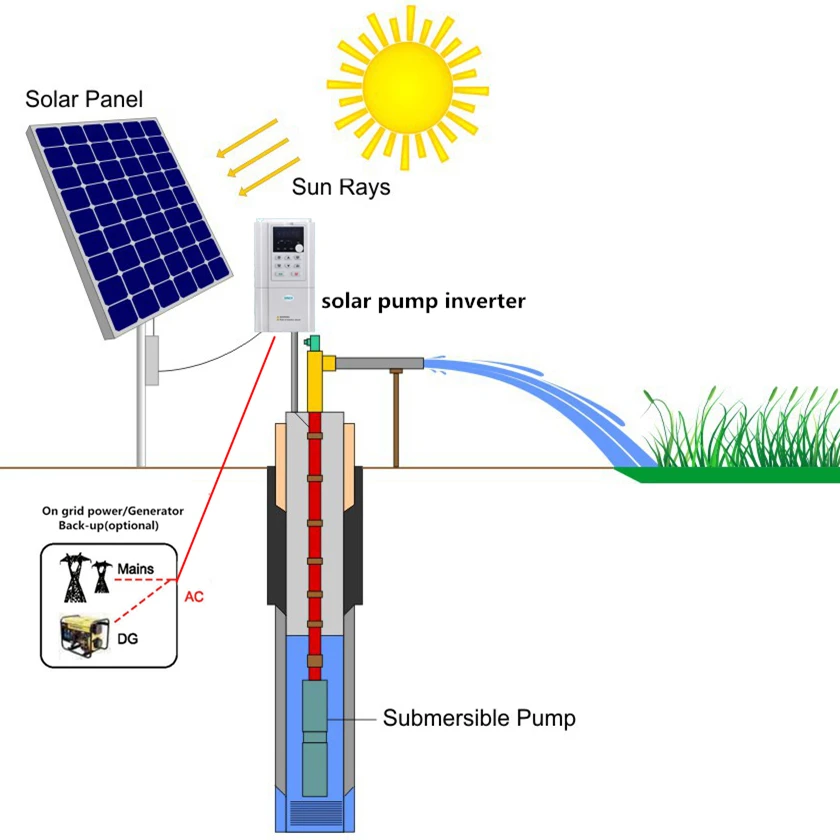

Solar pump system










Product Introduction



  • This Product is specially designed solar pump inverters.solar pump inverter transfer solar DC current to be AC to drive the water pump to work.

  • With unattended automatic operation function.No need for batteries,water storage instead of battery,easy installation,low cost and low maintenance,economical and environmental protection,zero carbon emissions.

  • widely used in solar agriculture irrigation.irrigation station renovation,domestic water suooly,desert greening,etc.area.


 (22)

 Technical Features



  • Applicabal for various motors like IM, PMSM, BLDC etc.

  • Use for single-phase 110V/220V and three-phase 220V/380V pumps.

  • Power range:0.75KW-220KW. Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.

  • Automatic shutdown and restart, fully sutomatic contro, unattended:


                       (1)Deep Well: Automatically stop when shortage of water, and automatically restart when with enough water.


                       (2)Tank: Automatically stop when full of water, and automatically restart when with shortage of water.


                       (3) Automatically sleep when sun is weak,such as sunset;automatically restart when sun is strong, such as sunrise;



  • Compatible with solar and mains power (or generator) input;

  • Optional boost module for small power solar pump inverter, to reduce the number of solar panel and reduce the system cost.

  • RS485 real-time remote monitoring system, remote control and monitoring system status.


Model Selection



  • Model Definition


SV500











  • SV500 Series solar pump inverter




































































































































































































Model No.



AC input voltage
(V)



MPPT voltage range(Vmp)



Output power
(KW)



Input current
(A)



Output current
(A)



SV500-0R7-4TB



3 Phase
380~480V AC



500~700V DC



0.75



3.4



2.5



SV500-1R5-4TB



1.5



5



3.7



SV500-2R2-4TB



2.2



5.8



5



SV500-004-4TB



4.0



10



9



SV500-5R5-4TB



5.5



15



13



SV500-7R5-4TB



7.5



20



17



SV500-011-4TB



11



26



25



SV500-015-4TB



15



35



32



SV500-018-4TB



18.5



38



37



SV500-022-4T



22



46



45



SV500-030-4T



30



62



60



SV500-037-4T



37



76



75



SV500-045-4T



45



90



90



SV500-055-4T



55



105



110



SV500-075-4T



75



140



150



SV500-090-4T



90



160



176



SV500-110-4T



110



210



210



SV500-132-4T



132



240



250



SV500-160-4T



160



290



300



SV500-185-4T



185



330



340



SV500-200-4T



200



370



380



SV500-220-4T



220



410



415



Input DC votlage range(VOC)



2S,2T:70~450V DC
4T:250~800V DC



Input Max open circuit voltage (VOC)



2S,2T:450V DC
4T:800V DC



MPPT efficiency



>99%



Over-load capacity



150%:60S;180%:10S;200%:1S



Ouput frequency



0~600HZ(Default:50/60HZ)



On grid/Generator input



Yes



Automatic switch between on grid/generator



Yes



Working temperature



-20℃~60℃;
 when >45℃ or altitude above 1000m, derating as required



Cooling Method



Fan Cooling



Communication port



Standard isolater RS-485, Modbus protocol



IP grade



Standard:IP20(can customized IP54 or IP65)



Built-in protection



shortage of water protection for deep well,full of water protection for tank, light weak sleep, light intensity wake-up, lightning protection, overvoltage protection, undervoltage protection, overcurrent protection, dry pumping protection, overload protection, phase loss protection, short circuit protection, overheat protection.














Detailed Images

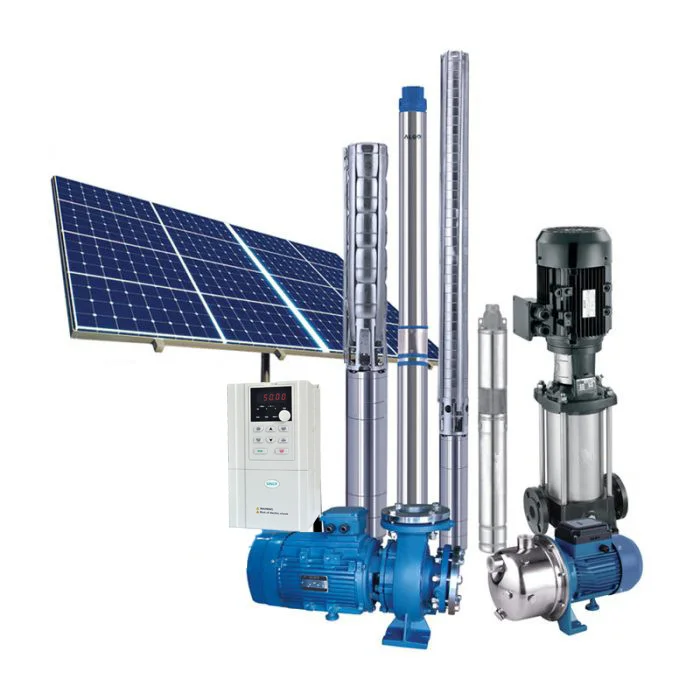

solar pump system components

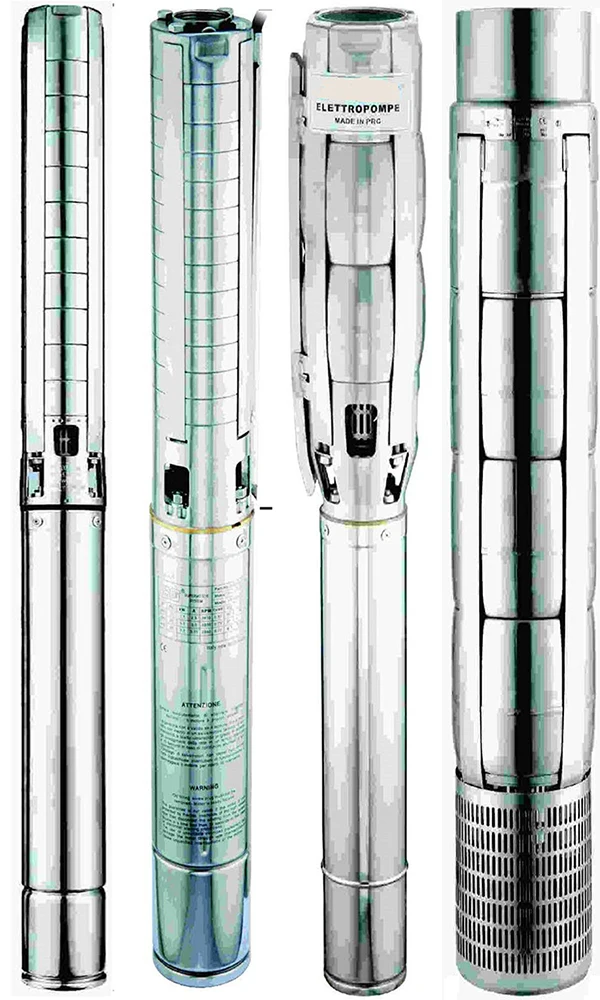

     sp3-10

    Pump:





  • Stainless steel 304, 316, iron casting, etc.

  • Stainless steel screw and rubber stator, permanent Magnet Brushless motor.



















Solar Pump Inverter:



  • Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.

  • RS485 real-time remote monitoring system, remote control and monitoring system status.


 C10 0.75-2.2KW-









 Solar panel:



  • High-efficiency monocrystalline and polycrystalline solar module with conversion efficiency up to 19.58%.

  • 10-year material process warranty,25-year line warranty.














PV Combiner Box:



  • Used to reduce the wires connection between photovoltaic module and inverter, to facilitate maintenance, reduce loss, make system safety and reliability.

  • In addition to the function of photovoltaic convergence, it also with many kinds of comprehensive function such as anti-reverse,over-current protection,overvoltage protection, lightning protection and fuse protection.etc.


Note: can be customized according to requirements.





 12.2 ()








.jpg







Accessories:



  • Various AC/DC cables for the system.

  • AC/DC breaker.

  • MC4 connector MC4 branch connector.

  • Steel wire rope and joint.

  • Water level sensor.

  • Output reactor and filter.

  • PV installation tools.

  • AC/DC multi-meter.


Note: Accoring to the installation environment and conditions, other accessories can be configured.
