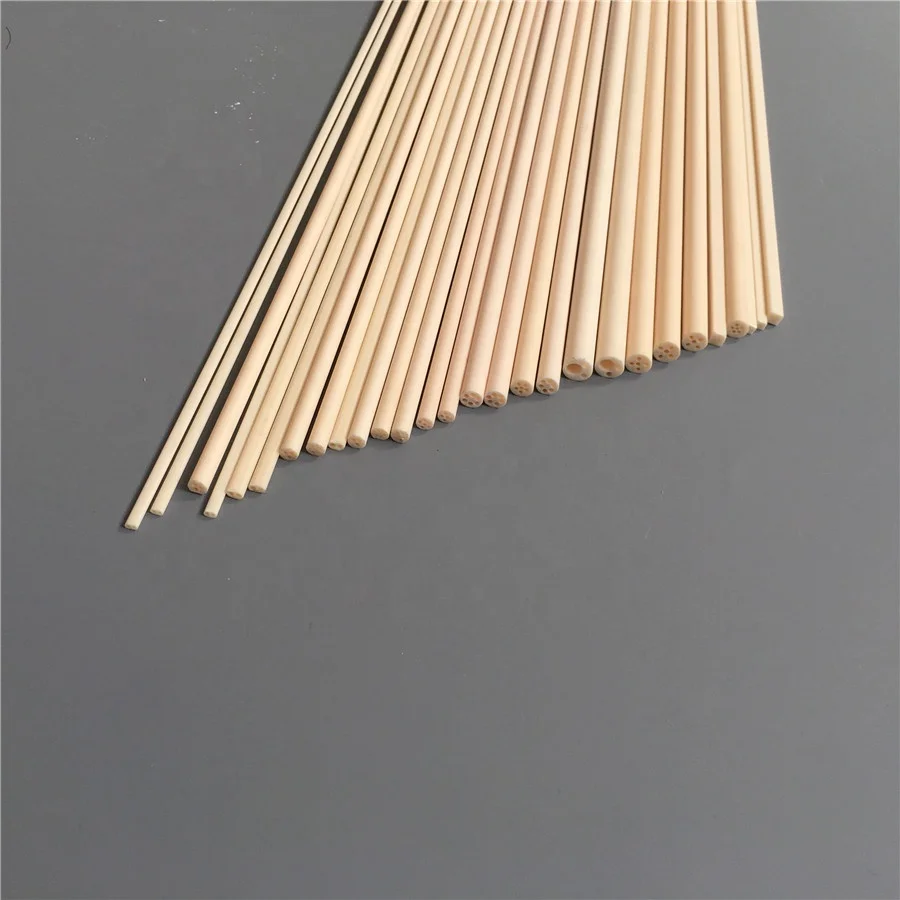

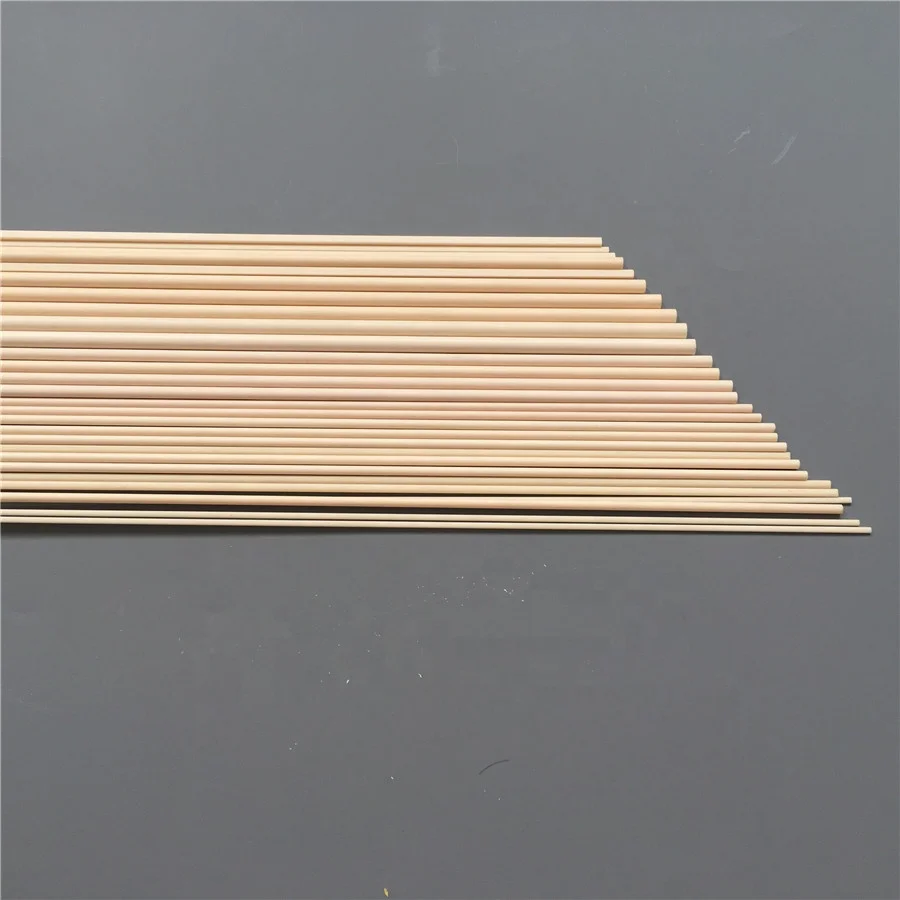

Small Thin 99 Al2O3 Alumina Ceramic Tube Rods Diameter 1mm 2mm

Product Overview

Description



Small Thin 99 Al2O3  Alumina Ceramic Tube Rods Diameter 1mm 2mm





Benefits of Alumina Ceramic Tubes Rods  :

1. Electrical Insulating

2. Thermal shock resistance

3. Wear Resistance

4. High Temperature Resistance

5. High compressive strength

6. Stable Chemical Performance

7. Corrosion Resistance





Features: Alumina ceramic is very stable in air, water vapor, hydrogen, argon, carbon monoxide and vacuum at temperatures below 1700 °C; due to the different purity of alumina when processed into a protective tube, the upper temperature limit can be different.

Alumina protection tube has high air tightness, high temperature resistance, high temperature insulation and corrosion resistance.

Instructions: When in use, the temperature-measuring component of the insulation protection is installed in the protection tube, and then the open end and the even-head are sealed with high-temperature glue. When measuring the temperature, the closed end is inserted into the temperature measurement zone, and the quenching and heat is avoided during use. In order to avoid excessive damage to the protective tube.



Dimension Table for Ceramic tubes:

Alumina Ceramic Bushing Tube
OD * ID (mm)	Type & Length	OD* ID ( mm )	Type & Length	OD* ID ( mm )	Type & Length
2*1	995AL 1500mm	10*7	95AL / 99AL /995AL 2500mm	19.05*14.3	95AL / 99AL /995AL 2500mm
3*2		11.13*7.95		20*15
4*2.5		12*8		22.23 * 15.88
5*3		12.7*8.9		23.83*17.48
6.35 * 3.96	95AL / 99AL /995AL 2500mm	14*10		25.4*19.05
7.95*4.78		15*10		26*20
8*5.5		15*11		28*22
9.53*6.35		16*12		30*23
10*6		17.48*12.7





Alumina Single Bore Tube
OD * ID (mm)	Type & Length	OD* ID ( mm )	Type & Length	OD* ID ( mm )	Type & Length
0.7* 0.3	99AL/995AL1000mm	7*4.5	95AL / 99AL /995AL 2500mm	30*25	95AL / 99AL /995AL 2500mm
0.8*0.4		8*4		40*30
0.9*0.4		9*6		50*40
1*0.5		10*4		60*50
1.1*0.6		10*7		70*60	95AL / 99AL /995AL 2000mm
1.2*0.6		12*4		80*70
1.3*0.7		12*8		90*80
1.4*0.8		14*4		100*90
1.5*0.8	95AL / 99AL /995AL 2500mm	14*10		110*100
2*1		15*11		120*110
3*2		16*12		150*140	95AL / 99AL /995AL 1500mm
4*3		18*14		200*190
5*3.5		20*15
6*4		25*19



 Properties sheet of Alumina Ceramic Tubes Rods :

Material		Alumina
Properties	Units	AL997	AL995	AL99	AL95
% Alumina	____	99.70%	99.50%	99%	95%
Colour	——	ivory	ivory	ivory	ivory & white
Permeability	——	Gas - Tight	Gas - Tight	Gas - Tight	Gas - Tight
Density	g/cm3	3.94	3.9	3.8	3.75
Straightness	____	1‰	1‰	1‰	1‰
Hardness	Mohs Scale	9	9	9	8.8
Water Absorption	____	0.2	0.2	0.2	0.2
Flexural Strength  ( Typical 20℃)	Mpa	375	370	340	304
Compressive Strength ( Typical 20℃)	Mpa	2300	2300	2210	1910
Coefficient of Thermal Expansion                              ( 25℃ to 800℃)	10-6/℃	7.6	7.6	7.6	7.6
Dielectric  Strength                                 (5mm Thickness)	AC-kv/mm	10	10	10	10
Dielectric Loss 25℃ @1MHZ	____	<0.0001	<0.0001	0.0006	0.0004
Dielectric Constant	25℃@1MHz	9.8	9.7	9.5	9.2
Volume Resistivity (20℃,300℃)	Ω .cm3	>1014                              2*1012	>1014                              2*1012	>1014                              4*1011	>1014                              2*1011
Long - Term Operating Temperature	°C	1700	1650	1600	1400
Thermal Conductivity ( 25 ℃)	W/m *K	35	35	34	20

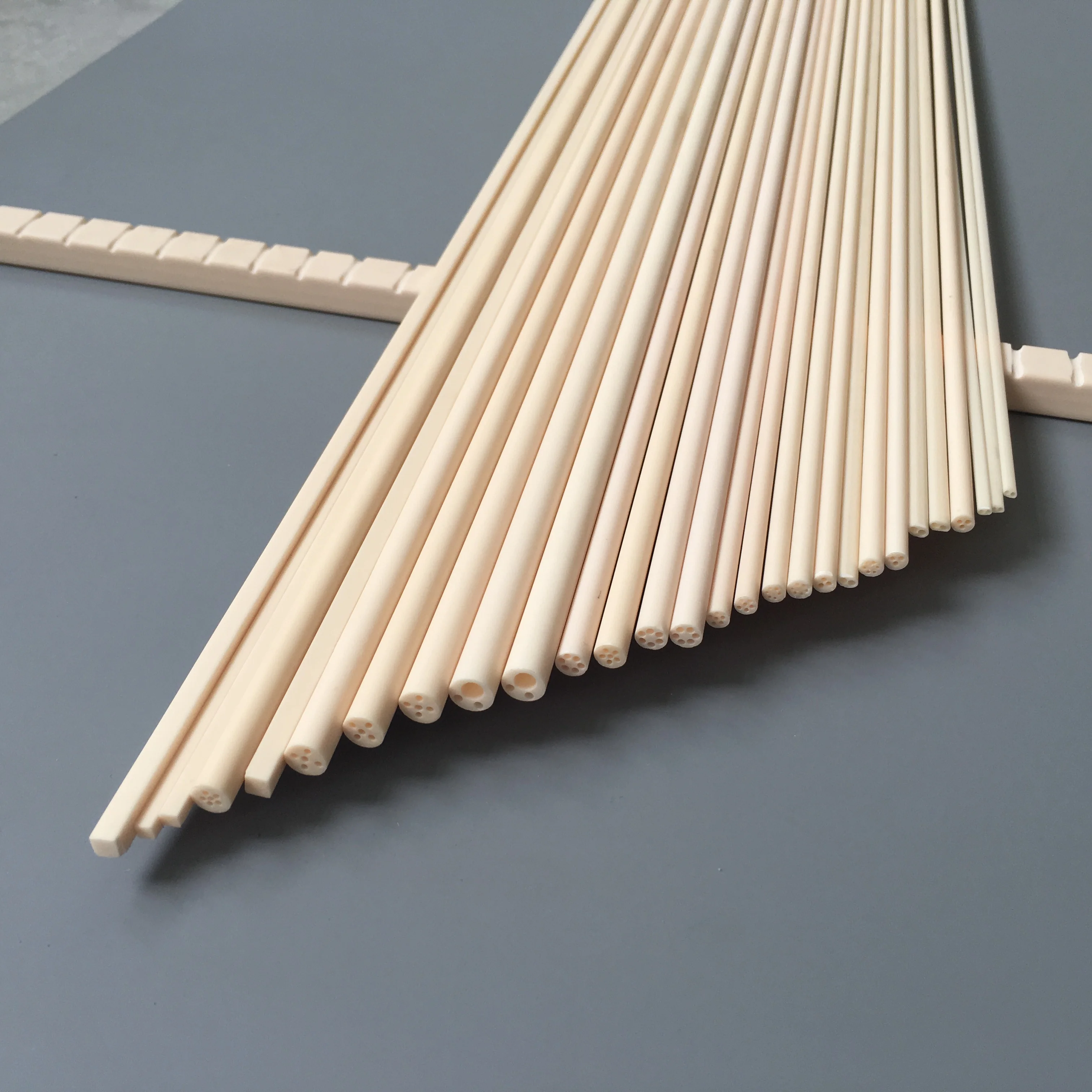

More photos of Alumina Ceramic Multi Bores Tubes Rods  :
