52V 0.58A powerline ac dc adapter POE Adapter Injector Power Supply Ethernet Adapter

 >> Specifications:

Output:

1) Data speed: 10/100M/1000M

2) Rated voltage: 52 volts direct current

3) Ripple: 480mVp-p

4) Rated power: 30W

5) Voltage tolerance: ±3.0%

6) Setup, rising time: 500ms, 50ms at full load

7) Hold up time: >5ms at full load

8) Power out pin: midspan 4,5(+)  7,8(-)

9) Rated current: 1.5amperes

10) Current range: 0~1.5A

Input:

1) Rated Voltage range: 100~240VAC

2) Frequency range: 50/60 hertz

3) Leakage current: < 0.25 mA at 250 V

4) Inrush current: < 40 A at 230 V

5) Efficiency: >82% (minimum)

6) AC current: 1.1 amperes (maximum)

Environment:

1) Working temp: 0 ~+40°C

2) Working humidity: 20 ~90% RH non-condensing

3) Storage temp & humidity: -20~+85°C, 10~95% RH

4) Vibration: EN 61131-2

Protection:

1) Protection Short circuit: YES
2) Over load protection: YES
3) Over power protection: YES

Weight & Dimension:

1) Certification: CE

2) PCB dimension: 121.5*33*58mm

3) Weight: 214g

4) Warranty Period: 24 months

5) Mounting: Desktop

6) MTBF: 50Khrs, Mil-HDBK-217F(25°C)

7) Connection: plug

Application:

routers, switches, wireless APs, network telephones, industrial network terminals or IP cameras, massager, sos telephone, fetal monitor equipment, robot

Safety & EMC:

1) Standards: design refer to EN60950

2) Withstand voltage: I/P-O/P: 1.5KVAC, 5mA, 60S

3) Isolation resistance: I/P-O/P: 100M ohms/500VDC

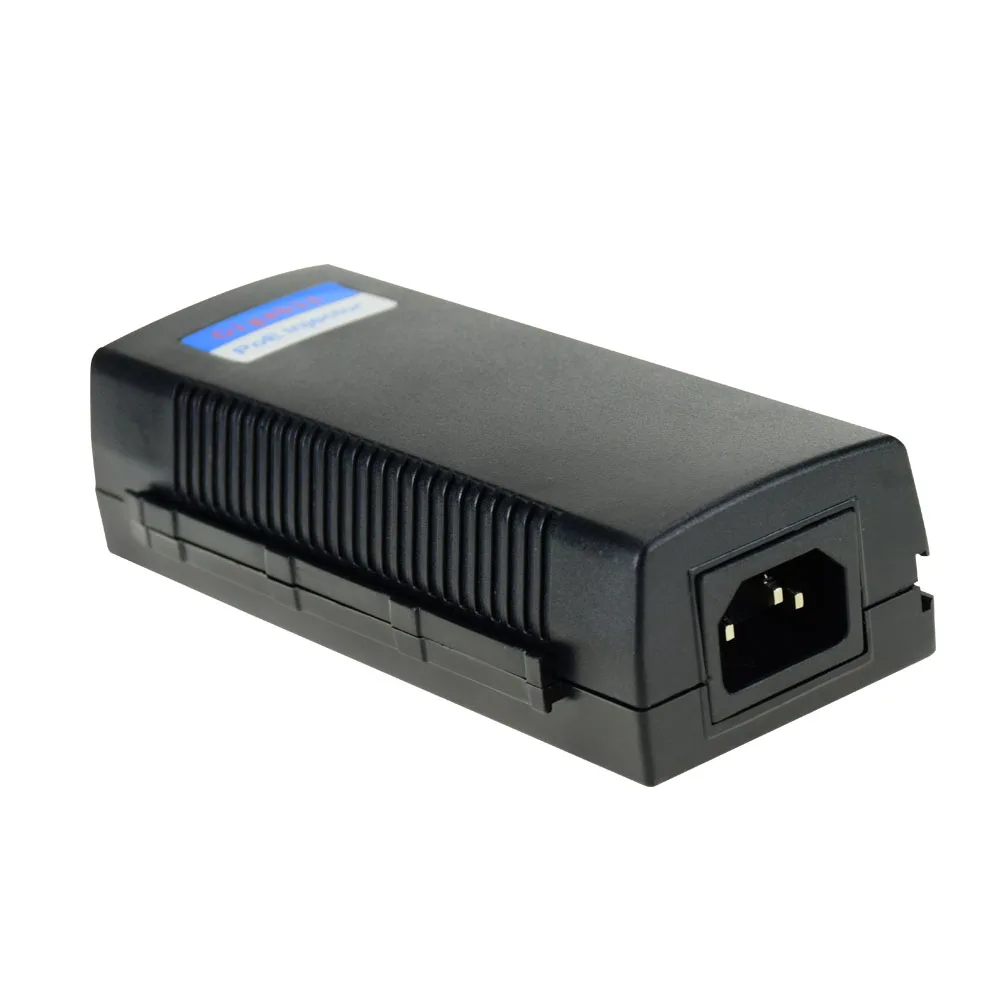

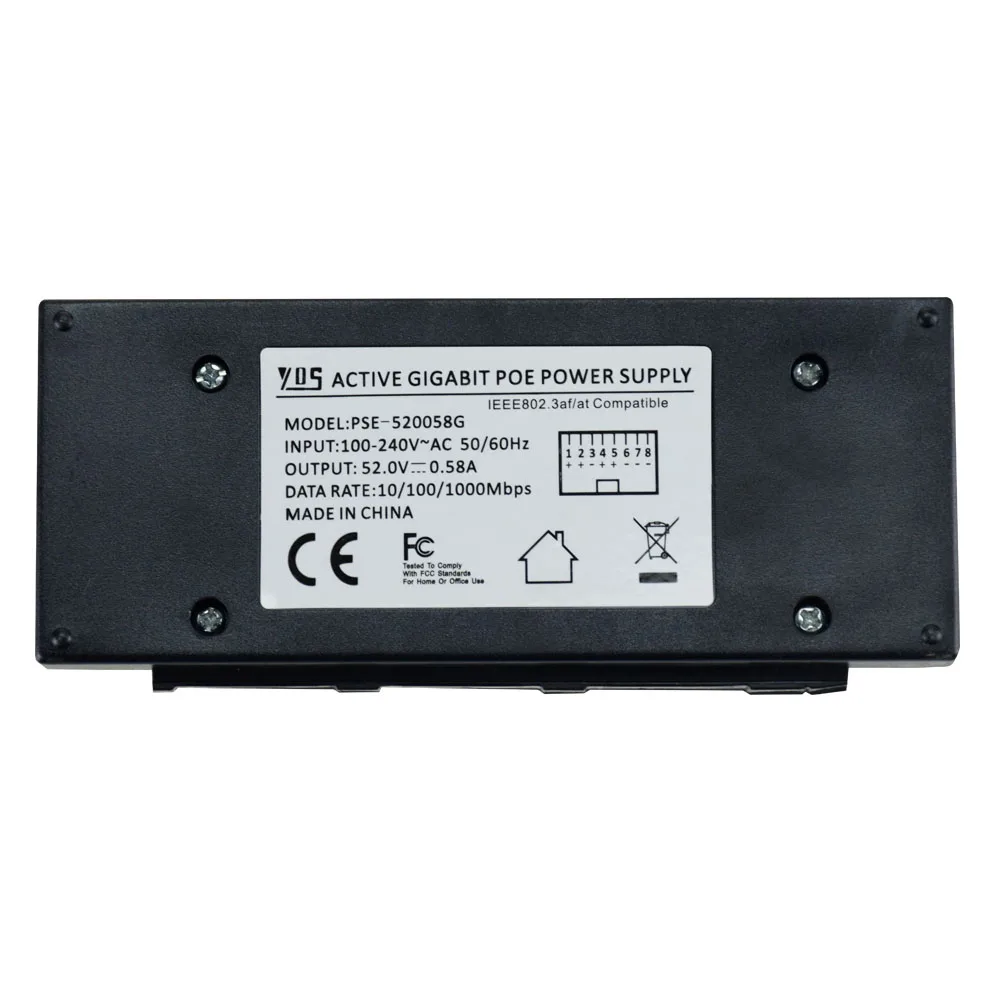

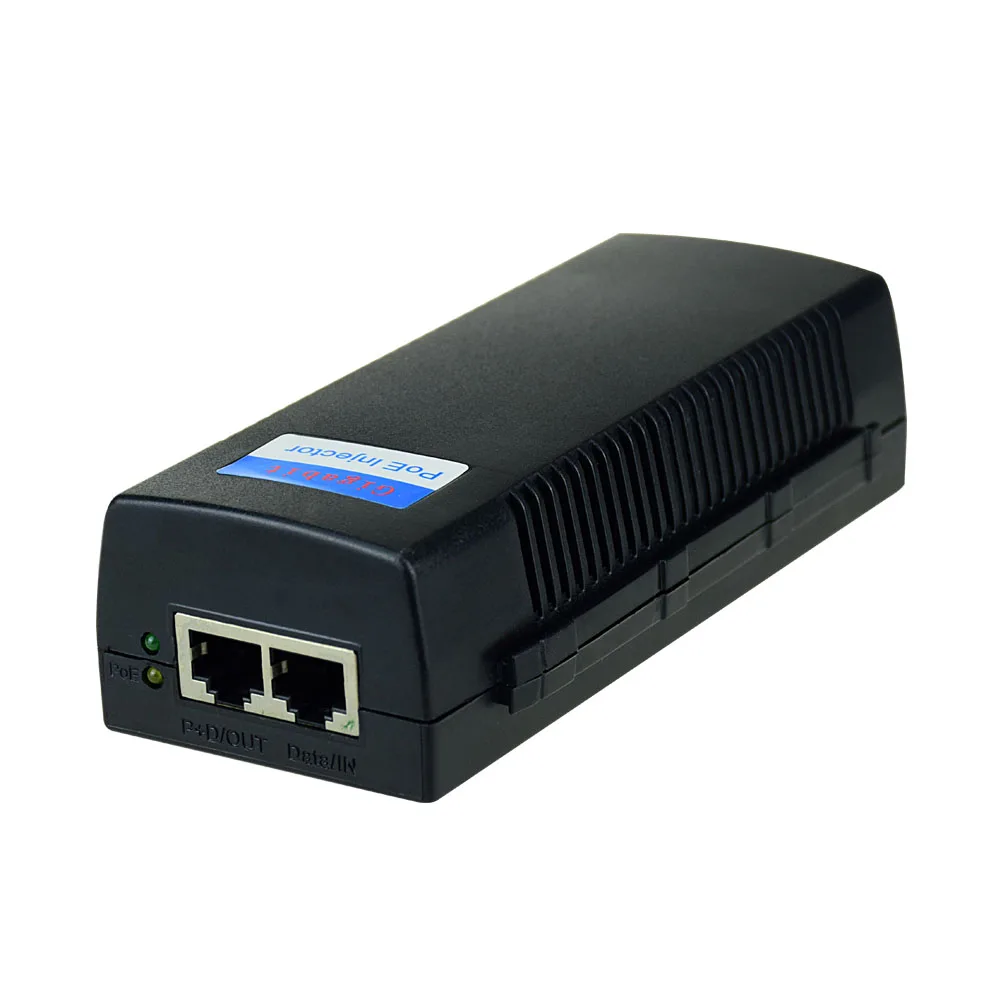

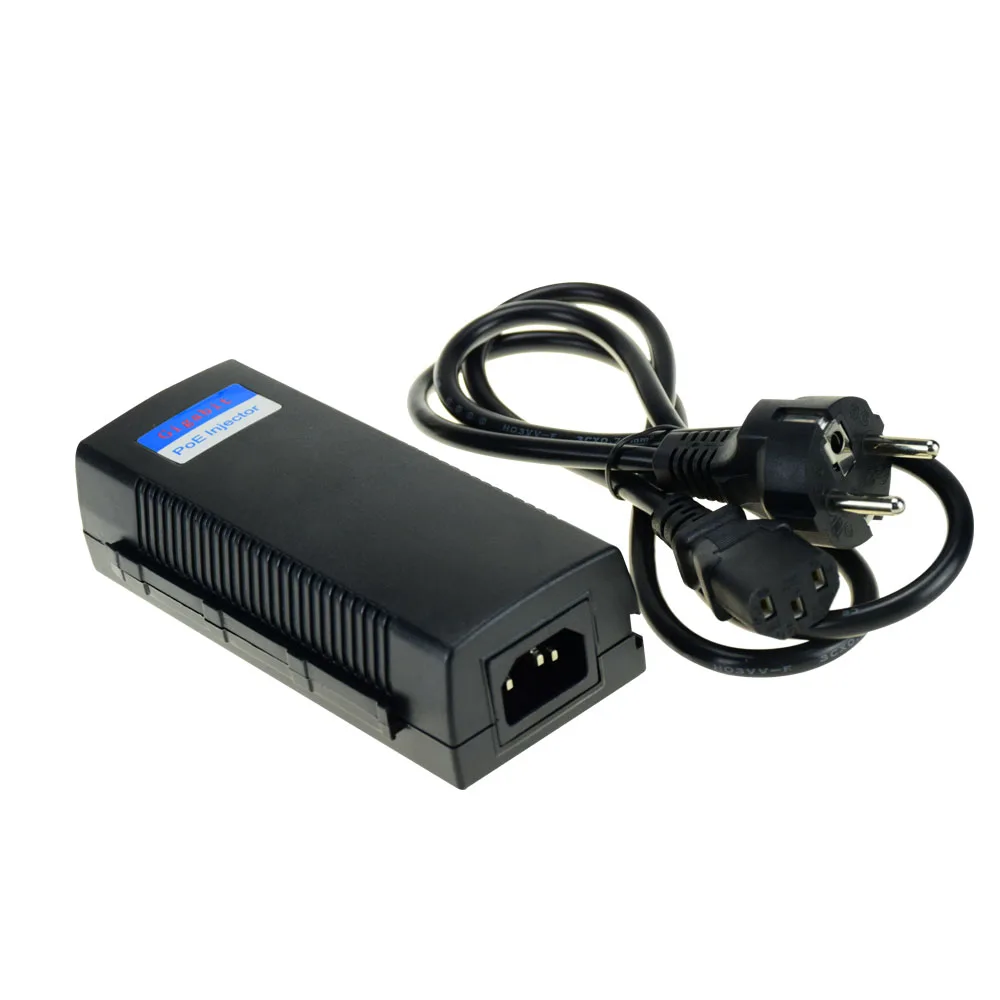

>> Product Photos:

>> Our Adavantage

♣ 1. Low  price and high reliable ;

♣ 2. AC input power suitable for the world ;

♣ 3. High efficiency and how  operation temperature ;

♣ 4. Soft-start current can reduce  the AC input impact effecticly;

♣ 5. With short-circuit and overload protection;

♣ 6. Compact size, light weight ;

♣ 7. Each product will have 100% full-load buming test for 2-3 hours ;

♣ 8. Installed with EMI filter, minmum wave;

♣ 9. Large quantity pcb board in stock , can deliver goods in short time , after we confirm the order .

  >>  Packing Photos

>> Shipping detail

>> About Us:

♦Shenzhen Yidashun Technology Co., Ltd is a professional 10 years manufacturer dedicated to the R&D , manufacture and sales of laptop adapter , wall mount adapter , universal laptop adapter ,desktop adapter, AC DC adapter, usb wall socket, switch power supply for led/ cctv/camera , USB wall socket,car charger,quick usb charger and so on .

♦ 100% burn-in test before deliver for 2-3 hours ,and the defective Rate is  0.3%-0.5% .

♦ All our high quality metal case power supply with over load , short circuit  protection ;

♦ Flexible and fast delivery, we can customize and develop new items according to customer's require !!!

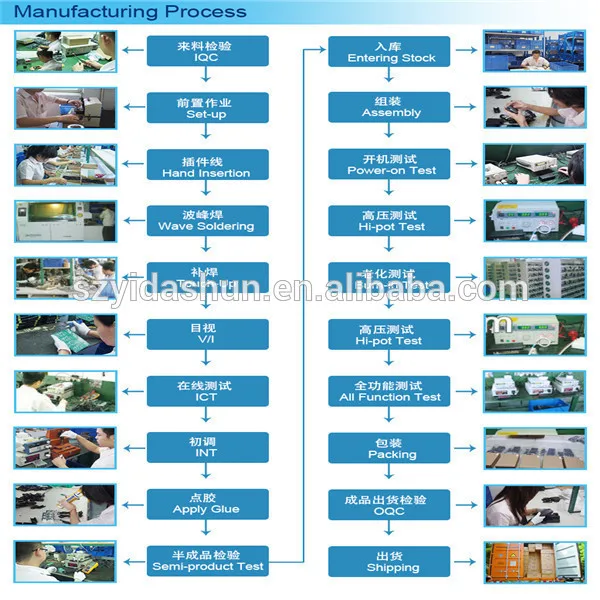

>> Workshop Photos:

 1. Q: Do you offer samples for testing?

 A : Yes , we can offer samples for testing with cost paid by buyer  , then  We  will  return sample fee at your next bulk  order .

2 . Q : Are you trading company or factory ?

A :  We are 10 years professional manufacturer  of switch power supply , led driver   .

3 . Q : How long is your warranty ?

A : We usually have 1 year warranty and 30 days guarantee .

 4 . Q : Do you have CE certificate ?

A : Yes , of course we have , besides we also have ROHS , FCC ERP CB certificate .

5 . Q : Can you customize new items according to customer's require ?

A : Yes , of course  we can , but the MOQ is 5000pcs .

6.Q : How is the delivery terms ?

A: We have fast and flexible deliver terms , bulk orders(above 5,000pcs ) usually delivery within 5 days  by air / by sea  , General small batch orders can be arranged delivery within 1-3 days  by DHL ,FEDEX , EMS , UPS  .

7. Q : Do you have burn-in test ?

A : All of our products will have 100% burn-in test  for 3-4 hours .

8 . Q : Can you do our brand labels ?

A : Yes , we can , we can do brand labels and boxes according to customer's request .

More details , pls contact shenzhen yidashun technology co.,ltd--- Ms.Jaycee Song
