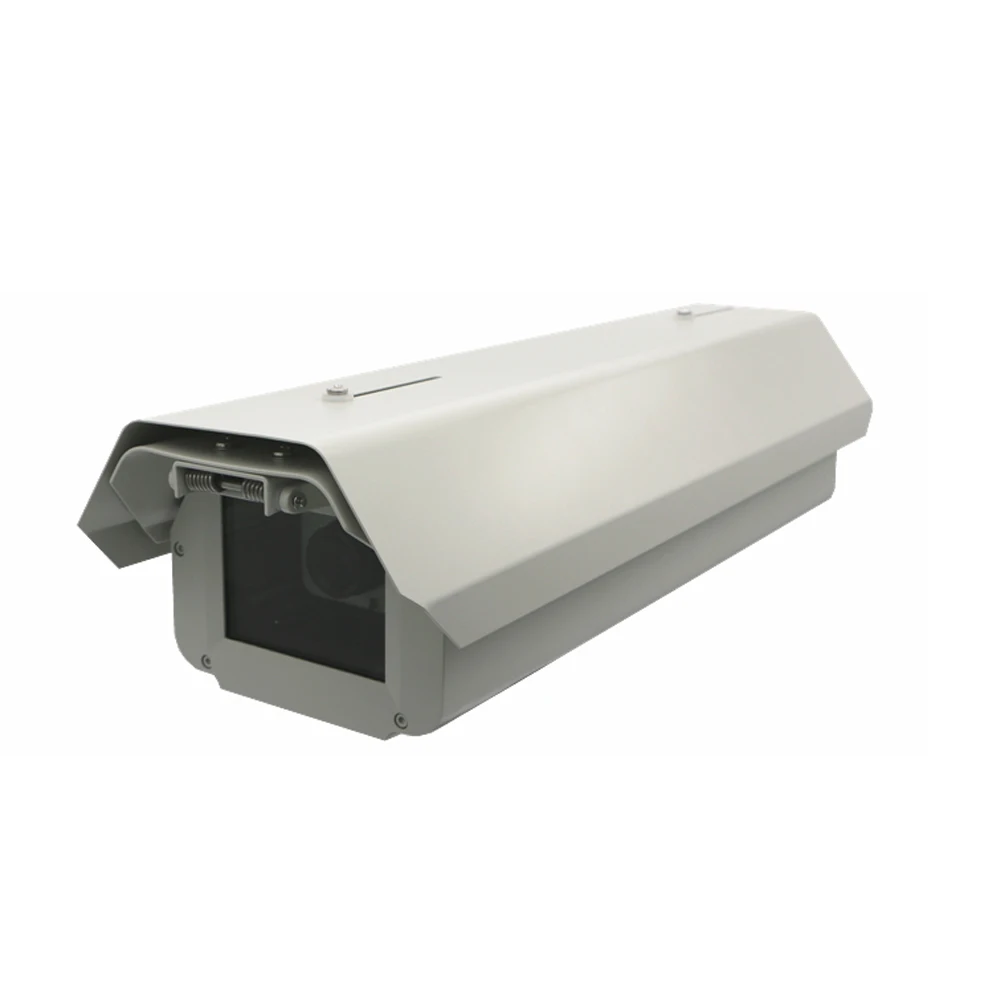

CCTV Security System Direct Factory 1080P Waterproof LPR Camera

Model

PH9015-H21A-AV-FR

Hardware

CPU

Hi3516D+ASIC chip

Sensor

1/2.8" Progressive Scan CMOS

Effective Pixels

2.1MP,1920*1080

Low

Color 0.01Lux @F1.2(ICR);B/W 0.00Lux @F1.2 (ICR)

S/N Ratio

≥50db(AGC OFF)

WDR

≥120db

Interface

Lens

Fixed pinhole lens:3.7mm

Audio Input/output

1 line input, mic input/1 audio out put

Video Output

1 analog video output

Storage Interface

Support Micro SD(TF)card, max support 128G

Internet Interface

1 RJ45 10M / 100M Ethernet

I/O Input/output

1 on-off input/1 on-off output(AC120V 1A/DC24V 1A),1 RS485

A/V Encoding

Video Encoding

H.265 Main Profile,H.264,MJPEG

Resolution

Main stream

50Hz: 25fps (1920×1080,1280×720)

60Hz: 30fps (1920×1080,1280×720)

Sub stream

720*576,1-25(30)fps;640*480,1-25(30)fps                                                                                   320*240,1-25(30)fps

Video bit rate

30Kbps~16Mbps,support CBR/VBR

Text Overlay

Channel title,date,time,bit rate, overlay position adjustable

Audio Encoding

G.711A,G.711U,G.726

Data transmission and storage

Data storage

Video,picture file

Storage System

Manual,auto(circle,timing,alarm,motion detection)

Alarm data transmission

FTP,E-mail,Browser,Management software

Support Protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

Third Party Protocol

Support ONVIF V2.41/ GB28181

IE Browser

Support IE6.0 and above, max support16 users access

Function Module

Embedded with face detection module

Phone

Support iPhone,Android

Regular specs

Working Temperature/humidity

-30℃ - +55℃/0% - 90%

Power Supply

DC12V/2A

Power consumption

5W(MAX)

Dimension

459(Length) * 150(width) *117(height)mm

Weight

2.2kg
