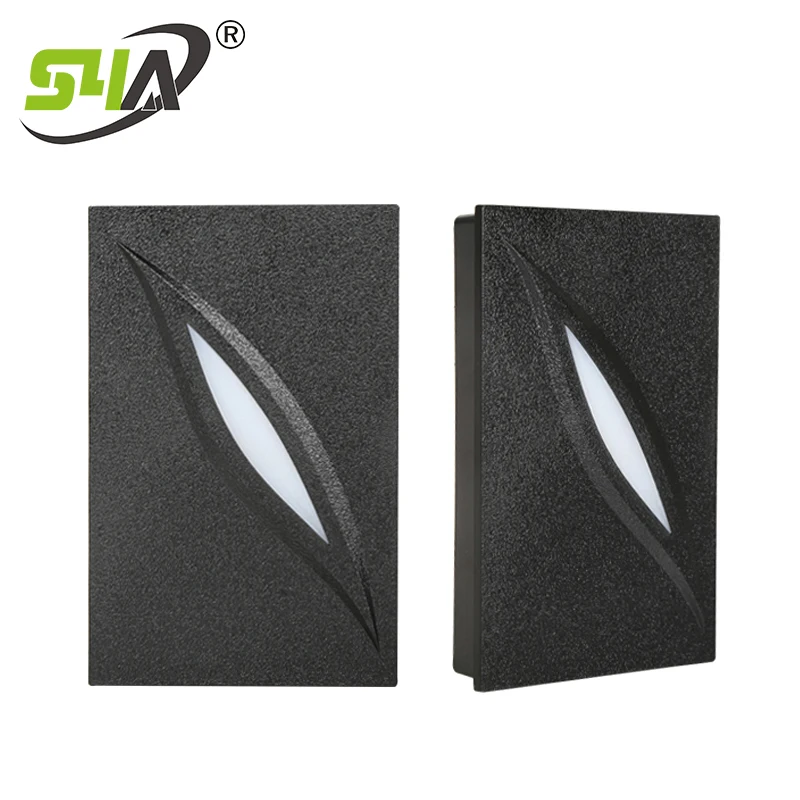

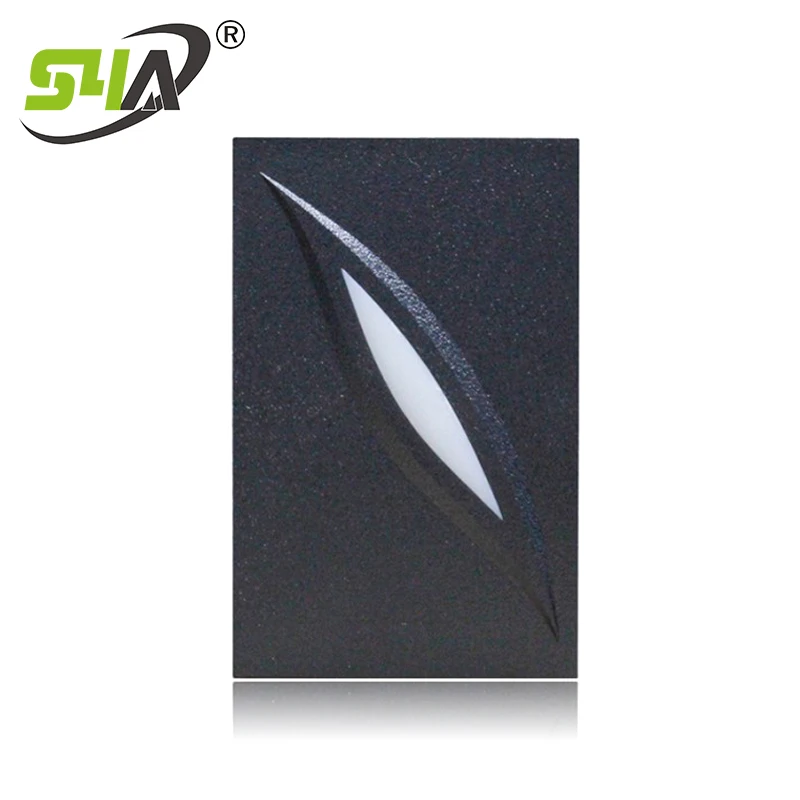

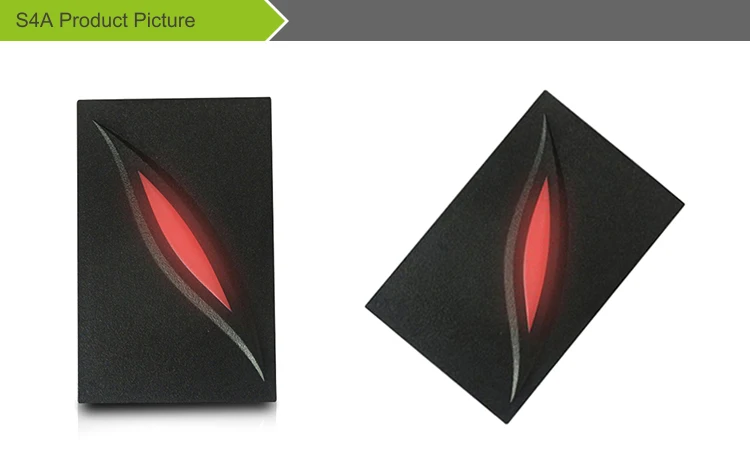

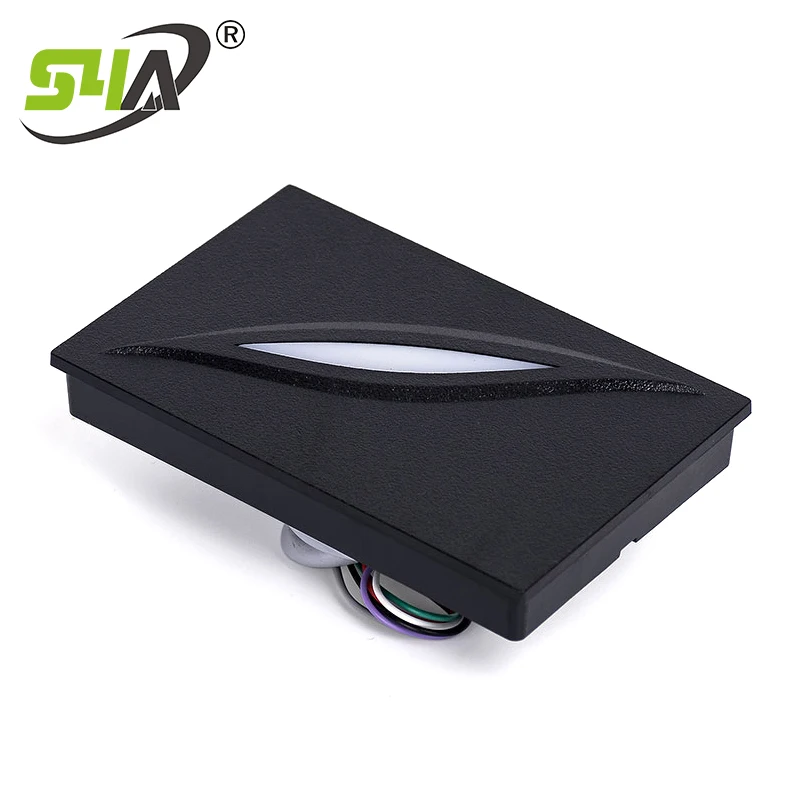

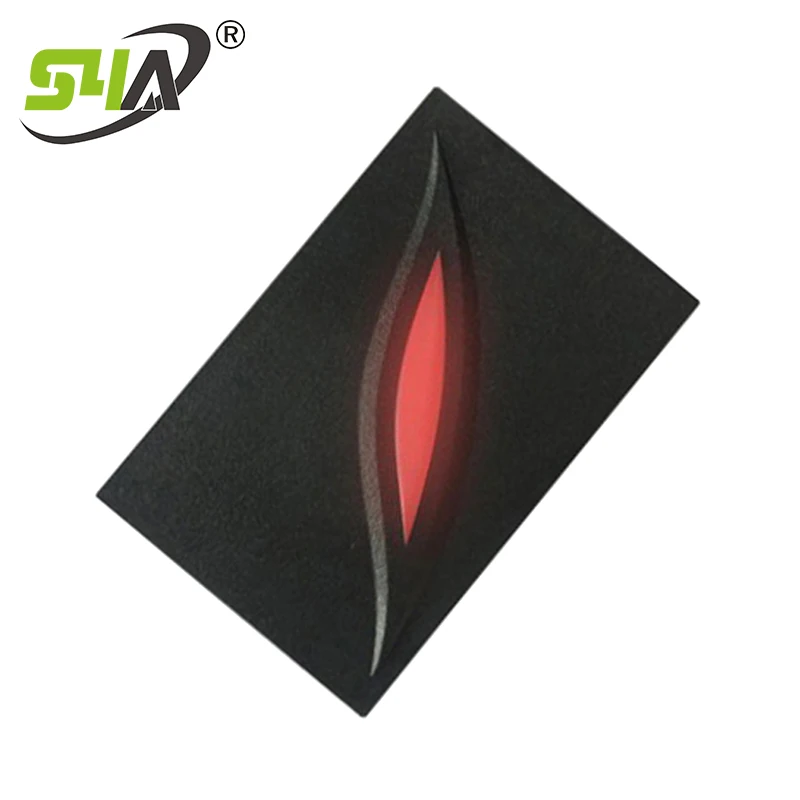

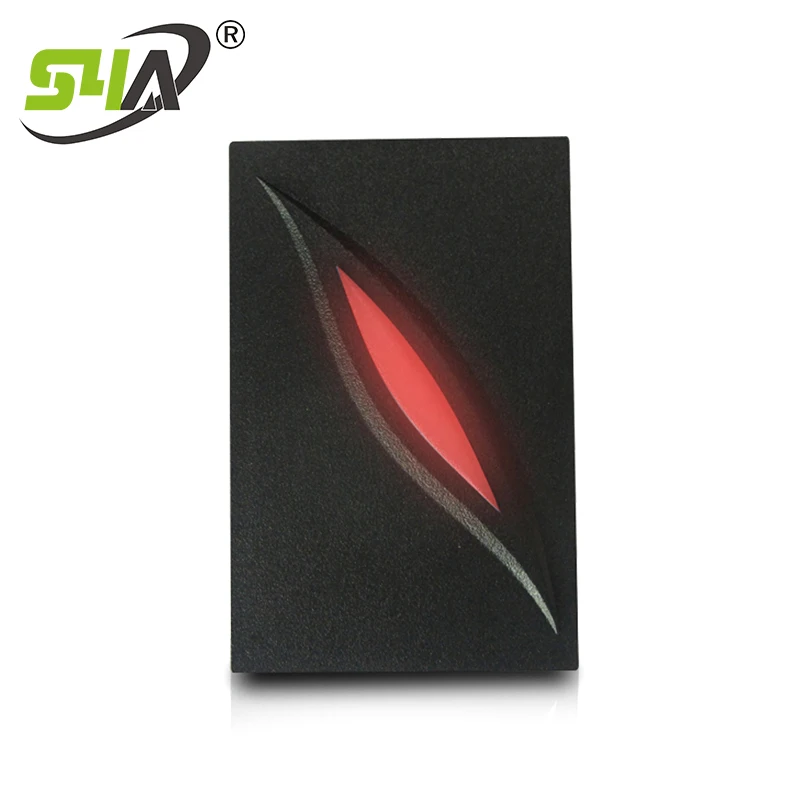

RS485 access card reader KR100

What do we need the proximity card reader?

In what case you need the proximity card reader?
Normally,if you have the network access controller,you will connect thrid party reader...reader has no relay,it is used to transfer the data.

almost all readers support wiegand26 and 34 interface and compatible with all access control panel/board.
in S4A,if you buy ACB controller,we will suggest you buying the readers too.

We connect readers to controller by : 12V GND D1 D0.

Model

KR100EM and KR100MF

Read Range

KR100EM: Up to 10CM, KR100MF:Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

LED Indicator

2 Color LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Color

Black

Material

ABS+PC with texture

Dimension(W x H x T)mm

115 X 75 X18mm

Weight

50g

Index of Protection

IP65
