Inventronics 300 Watt 320W 24V 48V 100V 200V 300V 5amp 6A 0 10V Dimmable 300W LED Driver Unit

Product Overview

Description

Inventronics 300 Watt 320W 24V 48V 100V 200V 300V 5amp 6A 0-10V Dimmable 300W LED Driver Unit

220Vac CC LED Driver         26-320W CC LED Driver     Potentiometer AOC CC        Dip-switch AOC CC              Waterproof CV

220V 0-10V PWM Timer        220V 110V Dimmable          7 Years Warranty IP67         300W+ High Power CC        DALI LED Driver

  10 Years Guarantee         380Vac+ High Voltage Input  UFO Round Shape CC       Internal Use CC Dimmable  Programmer SPD



Features:

Ultra High Efficiency (Up to 93.5%)
Full Power at Wide Output Current Range (Constant Power)

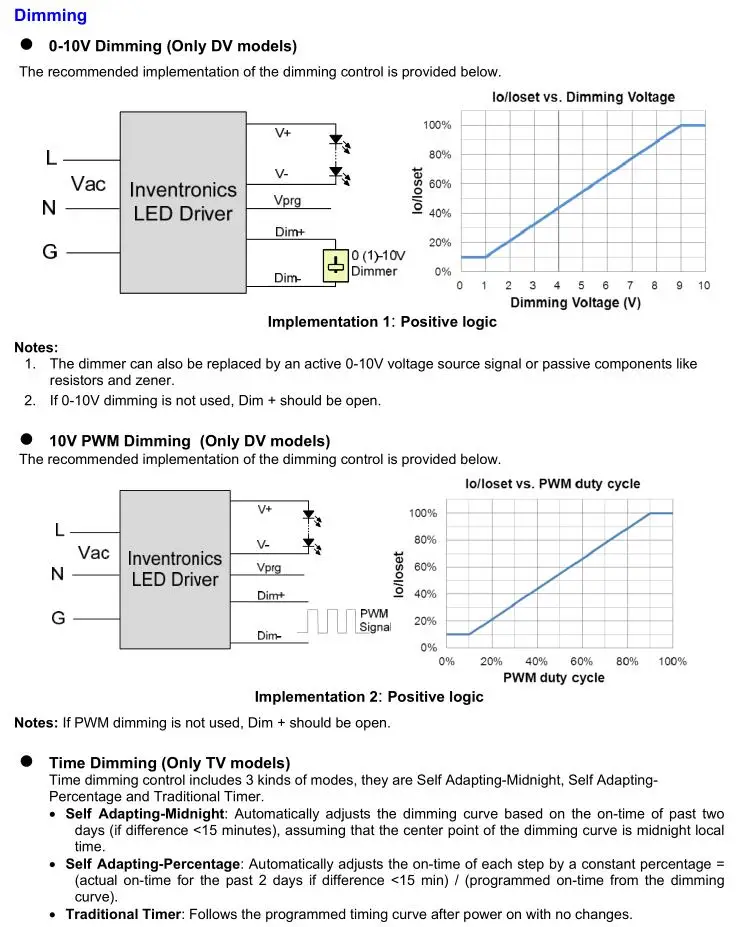

0-10V/10V PWM Dimmable
Input Surge Protection: 6kV line-line, 10kV line-earth
All-Around Protection: OVP, SCP, OTP
Waterproof (IP67)
SELV Output
Suitable for Independent Use
5 Years Warranty



Description:

The EUK-320SxxxDV(TV) series is a 320W, constant-current, programmable IP67 LED driver that operates from 90-305 Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast, aquaculture and sport. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.



Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency	Power Factor		Model Number
							120Vac	220Vac
105-1500mA	1050-1500mA	1400 mA	90 ~ 305Vac 127 ~ 250Vdc	107~305Vdc	320W	93.5%	0.99	0.96	EUK-320S150DV
154-2200mA	1540-2200mA	2100mA	90 ~ 305Vac 127 ~ 250Vdc	73~208Vdc	320W	93.5%	0.99	0.96	EUK-320S220DV
224-3200mA	2240-3200mA	2800mA	90 ~ 305Vac 127 ~ 250Vdc	50~143Vdc	320W	92.5%	0.99	0.96	EUK-320S320DV
322-4600mA	3220-4600mA	4200mA	90~305 Vac/ 127~250Vdc	35~100Vdc	320W	92.5%	0.99	0.96	EUK-320S460DV
469-6700mA	4690-6700mA	6700 mA	90~305 Vac/ 127~250Vdc	24 ~ 68Vdc	320W	92.5%	0.99	0.96	EUK-320S670DV



Click here to get the latest price and more suitable drivers.

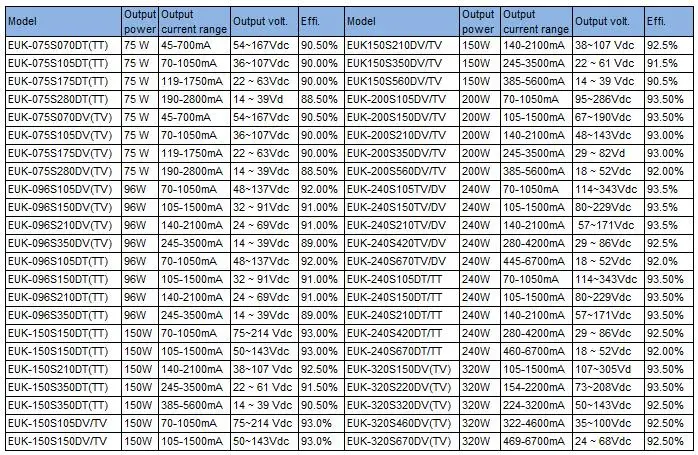

More EUK Dimmable LED Driver Models:

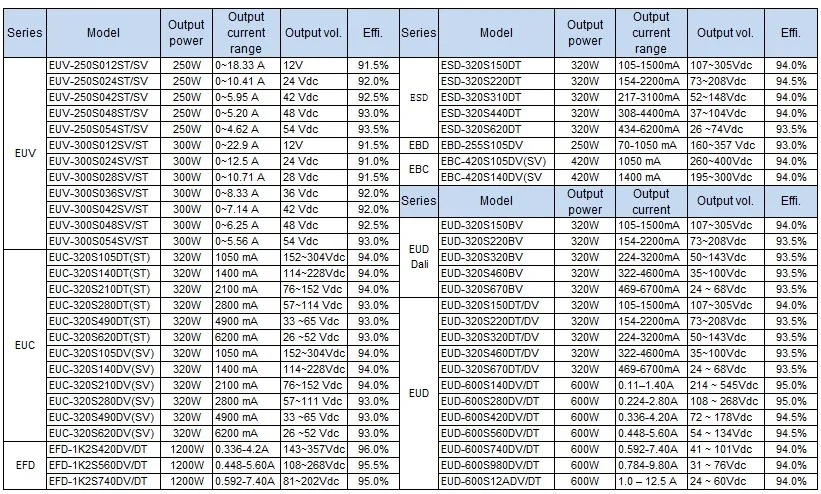

More Driver Models Over 250W:



See What Other Customers Say About Chela's Service:





(For more details, please contact Chela Chen for the datasheet.)





EUG-075SxxxDV                EUG-096SxxxDV                   EUG-150SxxxDV                EUG-200SxxxDV               EUG-240SxxxDV

EUG-075SxxxDT                EUG-096SxxxDT                  EUG-150SxxxDT                EUG-200SxxxDT                 EUG-240SxxxDT
