automatic corrugated fin tank forming welding machine for transformer making

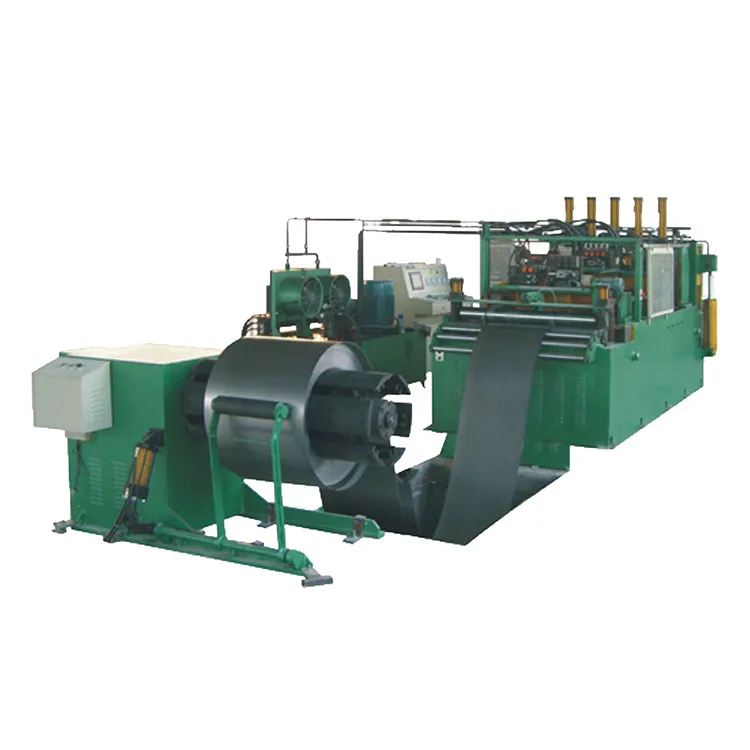

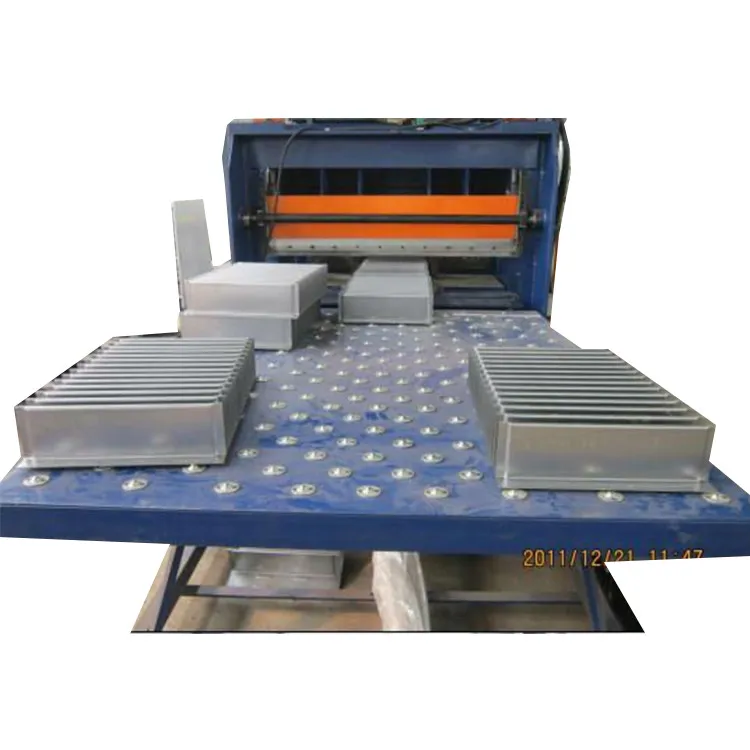

BW1600 -Corrugated Band Former

1.Main Technical Parameters

Remarks: all of the technical parameters as below deviation as no more than 0.2%

(1) Steel Plate Width                        B  300 ~1600mm

(2) Steel plate thickness                     S  1.0 ~1.5mm

(3) Corrugation height                     H  50~400mm

(4) Corrugation pitch                       t  ≥40mm

(5) Net clearance between corrugations                 e  6mm

(6) Number of corrugation band sets                     n  1~4

(7) Corrugation band length                     L  ≤2000mm

(8)  Folding height                     C  15~300mm

(9) Length of box board tips(front gap)           a  ≥40mm

(10) Length of box board tips(rear gap)          b  ≥40mm

(11) Total power of motors                    W  35Kw

(12)   Total weight                  25500Kg

(13)  Floor space                    13000×7100mm

(14)   Equipment running frequency                  50Hz

            (15)   voltage                        380V,three phase

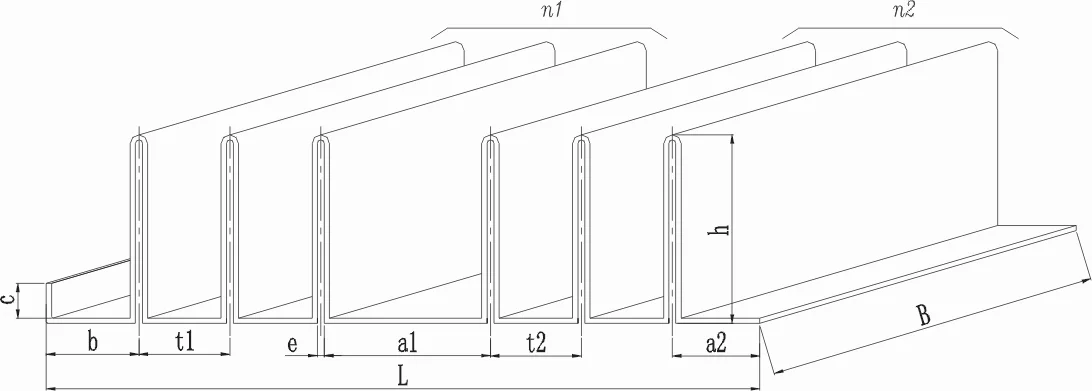

2.Drawing: Corrugated Band

3.Electrical and electronic control element supplier list

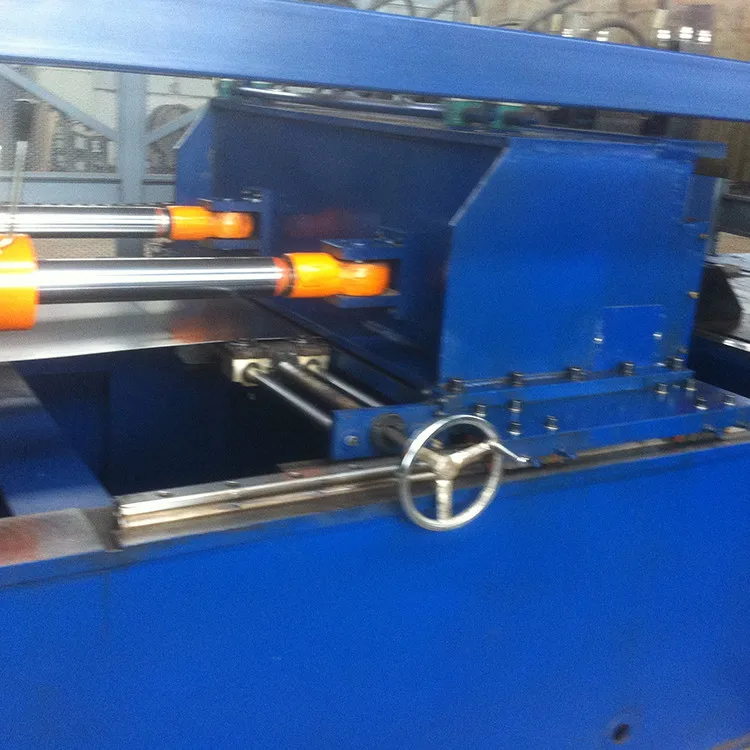

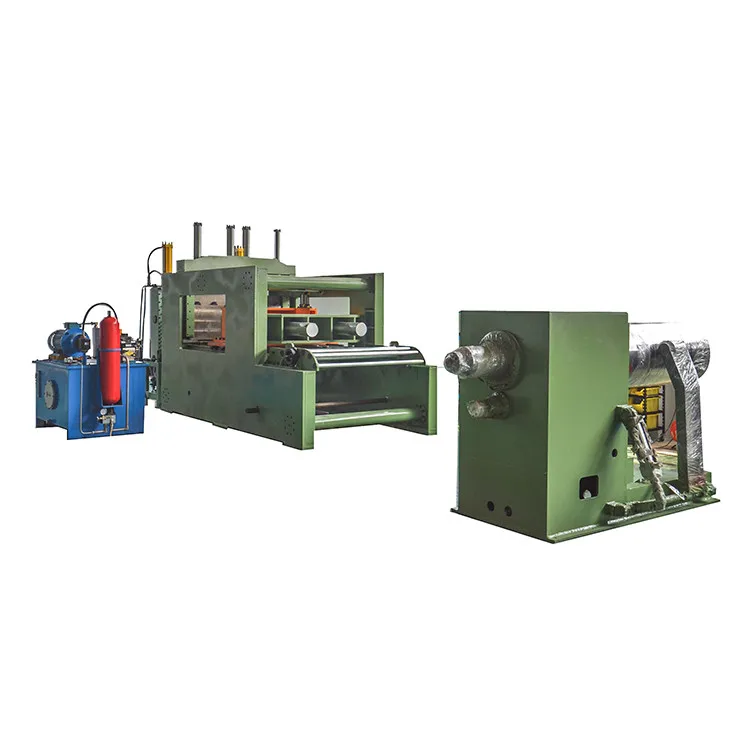

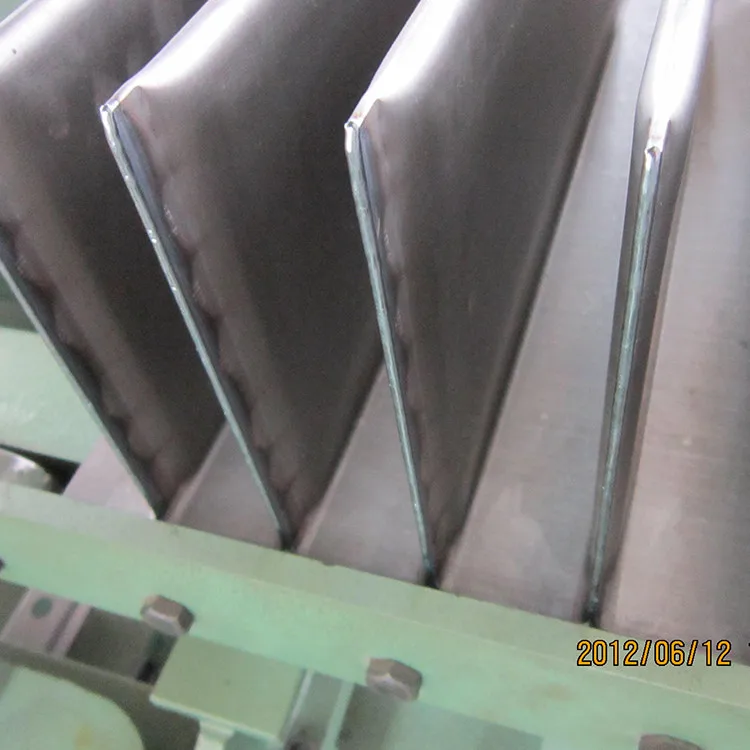

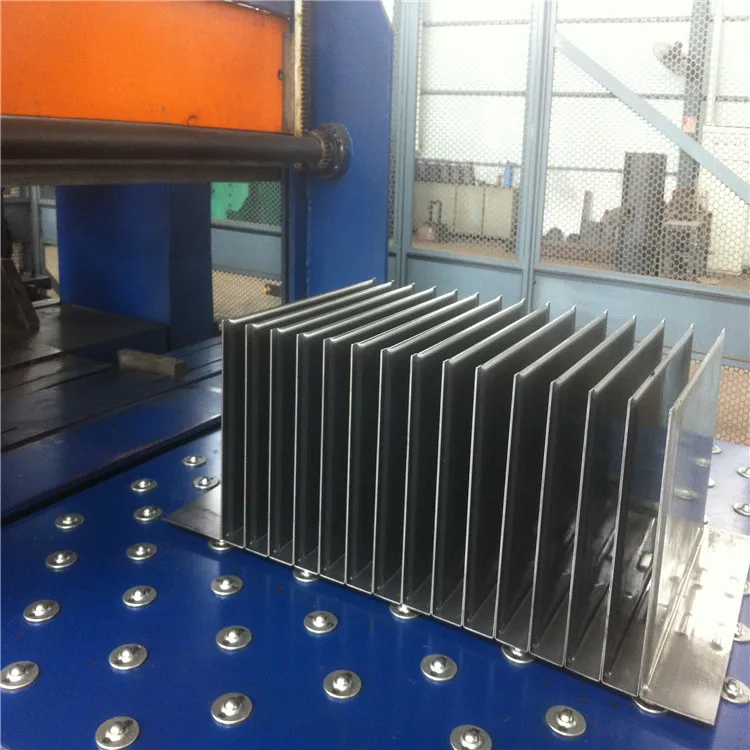

4.Detailed photos
