MSL06B HD dental surgical microscope with camera/digital microscope with LCD screen

NO

Equipment

Specifications

QTY

1

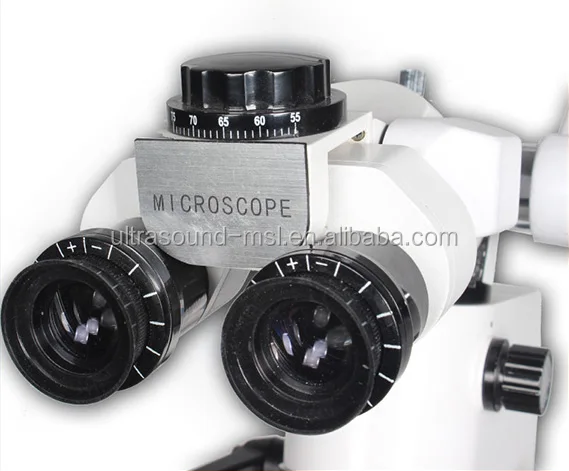

binocular tube

The adjustable binocular tube with 0-180°optics hinges angle

1

2

binocular tube foci

F=170mm

1

3

Binocular tube rotating disc type adjuster of PD

The range: 50mm ~ 80mm

1

4

The diameter of vision filed

66mm~10.4mm

1

5

Eyepiece magnification

12.5X/18B

1

6

Adjustable range of vision degree

±6D

1

7

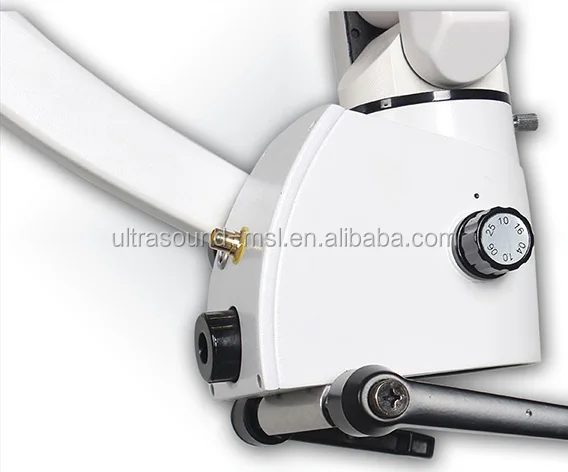

Five step drum wheels magnification zoom system

Magnification:3.4x,5.1x,8.3x,13.5x,20.5x

1

8

With fine-tuning apochromatic Large objective

Large objective working distance:250mm Adjustable range: 20mm

1

9

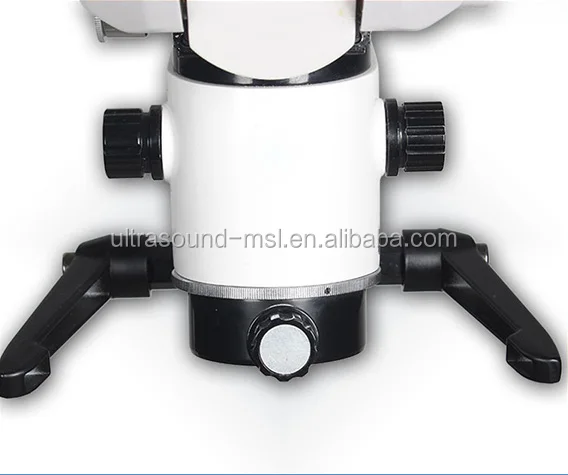

Adjustable double handlebar

1

10

LED illuminance

Object plane illuminace(F=250)

The max illuminance ≥30000lx~60000lx, adjustable brightness, with automatic power-off switch

1

11

Diameter of illuminating (F250)

light

spot

85mm

1

12

Filter adjuster

Yellow and green filter, heat filter

1

13

Movable floor stand frame

Including base, column, big cross arm(510mm),small cross arm(620mm) and so on. The spread length of total arm:1350mm,height:1750mm, The range of up-down≥350mm

1

14

120°balancing arm with damping

Freely rotate to any position with damping

1

15

(optional parts)

(1)

CCD1/2 inch optics interface

1

(2)

Digital camera interface camera

and

SLR

1

(3)

Video camera interface camera

and

video

1

(4)

Beam splitter

5:5 or 2:8

1

(5)

Built-in SD and HD video

1

(6)

Wireless video

1

(7)

Wireless remote control photograph

1

(8)

Image Acquisition box

1

(9)

Display

1

(10)

Large zoom objective:200mm~320mm

1

(11)

30° elongation pad

1
