Price:$4,600.00 - $5,000.00

Quantity:


Product Overview

Description





  • Precision ground.

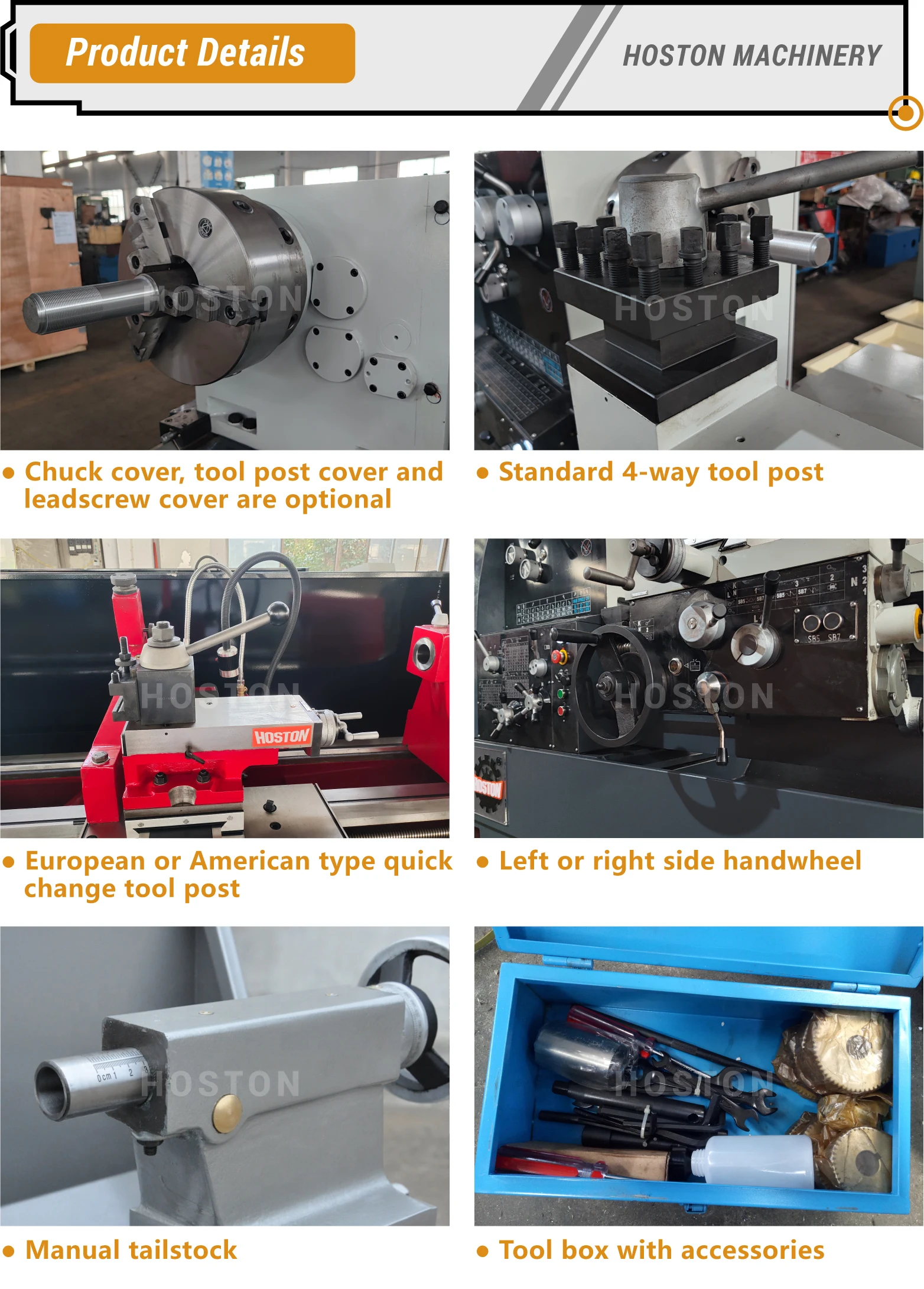

  • Clutched head stock.

  • CE-conformity.

  • Safety torque Limiting device for lead screw.

  • Safety overload clutch for feedrod.

  • Rapid traverse (optional).

  • Main spindle supported at 2 points with precision taper roller bearings.

  • 3000-4000mm Lathe with follow chip cuard.























































































































































MODEL



C6260Y

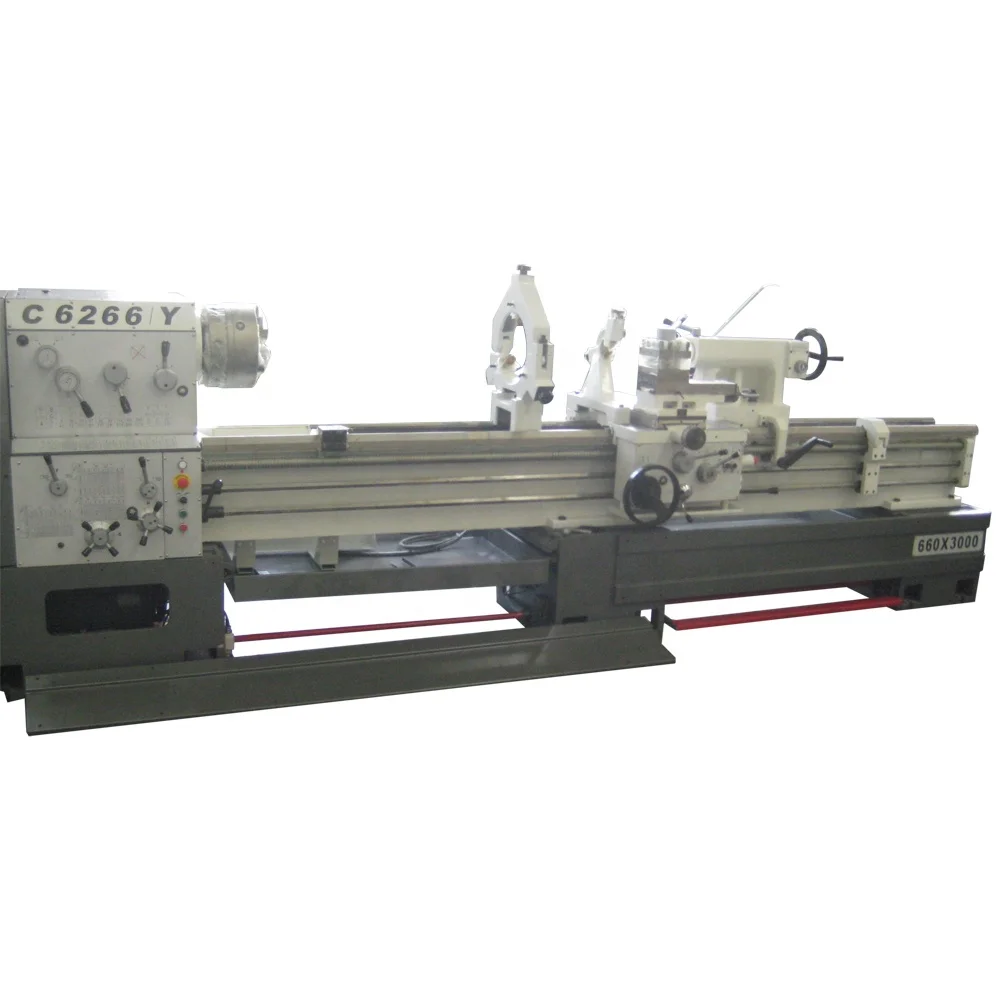

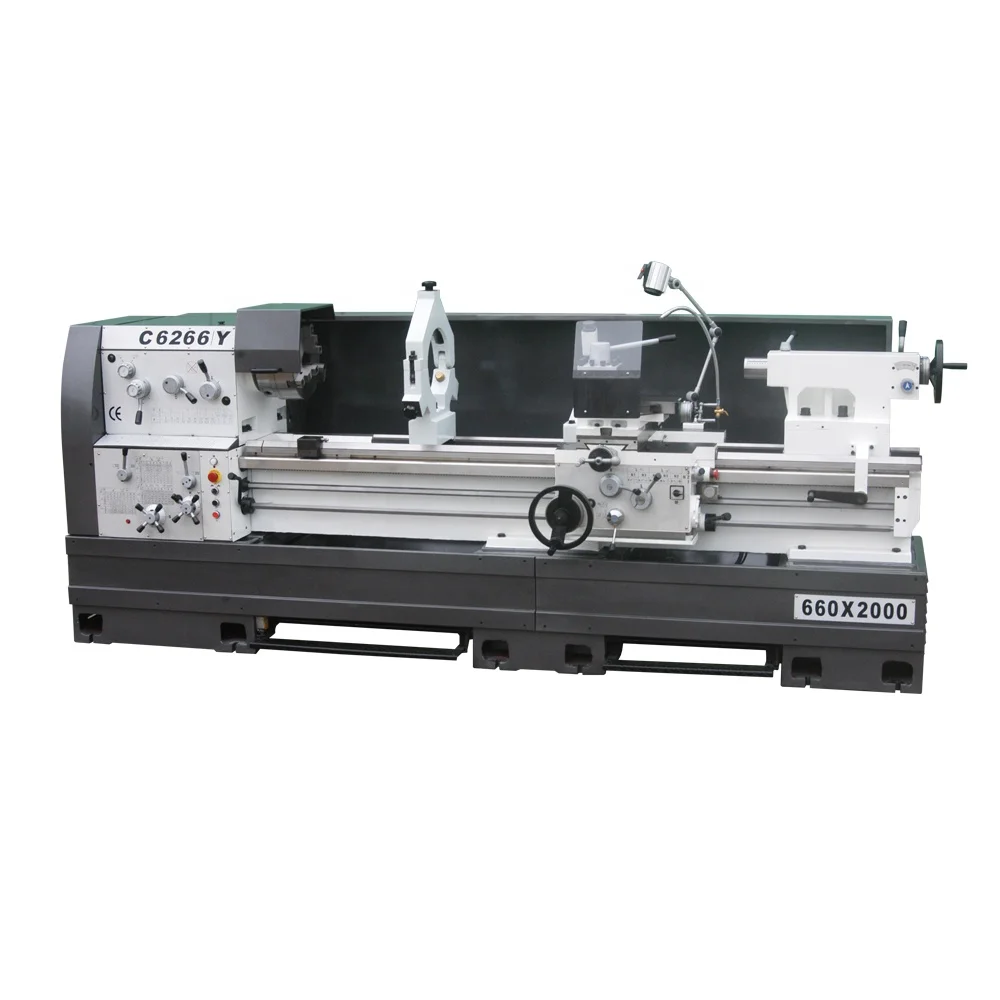

C6266Y

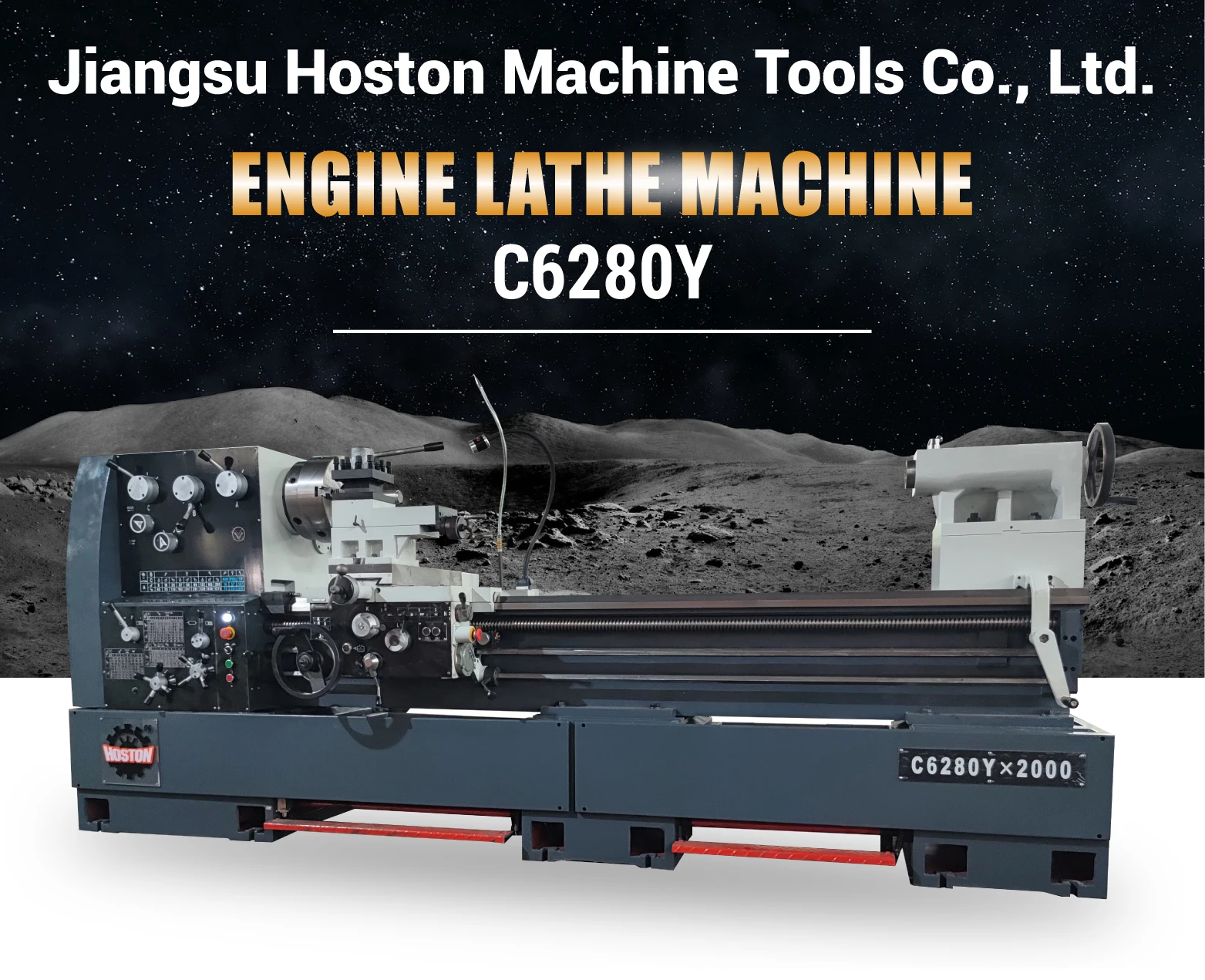

C6280Y



C62100Y



CAPACITIES



Max swing over bed



600mm (23 3/5")



660mm (26")



800mm (31 1/2")



1000mm (39 1/3")



Max swing over slide



375mm(14 3/4" )



435mm(17 1/8")



545mm(21 2/5")



745mm(29 1/3")



Workpiece cutting length



1000mm, 1500mm, 2000mm. 3000mm.4000mm



Max swing over gap



800mm(31 1/2")



860mm(33 4/5")



1000mm (39")



1200mm(47 1/4")



Effective length of gap



280mm (11")



Bed width



400mm (15 7/10")



HEADST0CK



Spindle hole



103mm(4 1/16")/ 130mm(5 1/8")



Spindle nose



IS0-D11



Spindle taper



Metric 115mm / 140mm (1:20)



Spindle speeds (number)



9-1275 rpm (18 steps)/ 9-938 rpm (12 steps)



FEEDS



Metric threads range (kinds)



0. 5-112mm (72 kinds)



Inch threads range (kinds)



1/4-56inch (72 kinds)



Module threads range (kinds)



0. 5-7m π(36 kinds)



Pitch threads range (kinds)



4-56D.P (36 kinds)



Longitudinal feeds range (kinds)



0.073-4.066mm/rev (0.0028-0.16 inch/rev) (54 kinds)



Cross feeds range (kinds)



0.036-2.033mm/rev (0.0014-0.08 inch/rev) (54 kinds)



Rapid traverse speed



5m/min (16.4 ft/min)



Leadscrew size: diameter/ pitch



40mm/12mm or 40mm 1/2"






CARRIAGE



Cross slide travel



325mm (12 4/5")



Compound rest travel



110mm (4 1/3")



Cross-section size of tool shank



32mm X 32mm



TAILSTOCK



Taper of tailstock sleeve



MT6



Diameter of tailstock sleeve



90mm (3 1/2")



Travel of tailstock sleeve



150mm (5 7/8")



MOTOR



Main motor power



7. 5kw or 11kw



Cooling bump motor



0.125kw



Rapid motor



0.12kw



Center Distance


Packing size(L*W*H)






1000mm 2820X1300X2100mm(111X51X82. 5inch)


1500mm 3320X1300X2100mm(130X51X 82. 5inch)


2000mm 3820X1300X2100mm(150X51X82. 5inch)


3000mm 4820X1300X2100mm(189X51X82. 5inch)


4000mm 5820X1300X2100mm(229X51X82. 5inch)



Center Distance


Net weight / gross weight (Kgs)



1000mm 2900/3500kg 3000/3600kg 3150/3750kg   3450/4050kg


1500mm 3150/3750kg 3250/3850kg 3400/4000kg  3700/4300kg


2000mm 3400/4050kg 3500/4150kg 3650/4300kg  3950/4600kg


3000mm 3800/4450kg 3900/4550kg 4050/4700kg   4350/5000kg


4000mm 4200/4850kg 4300/4950kg 4450/5100kg  4750/5400kg
