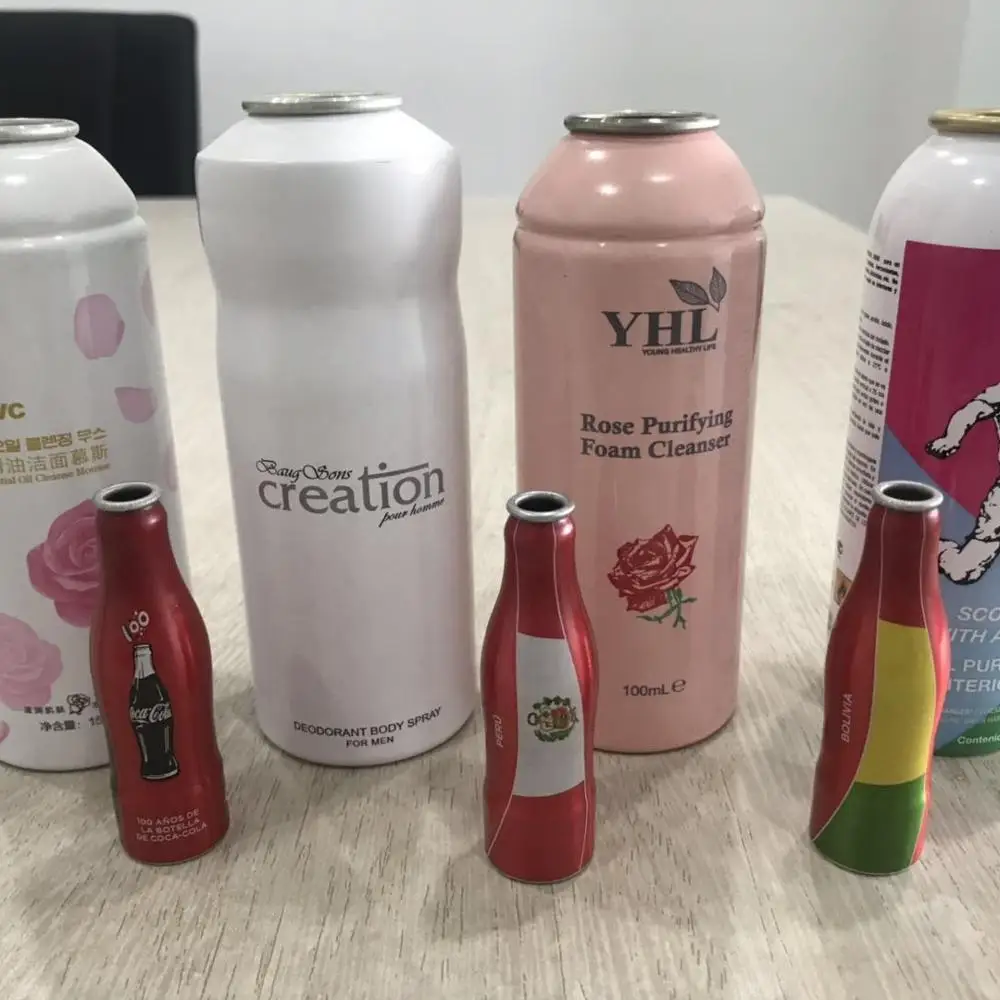

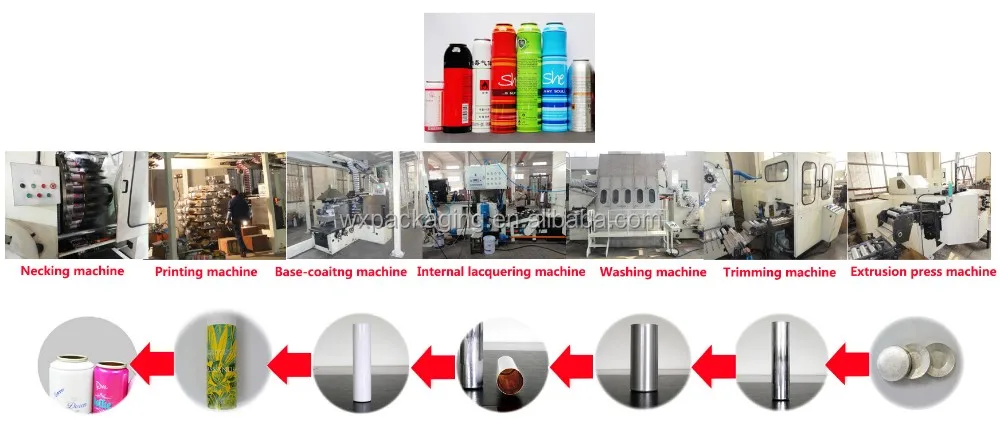

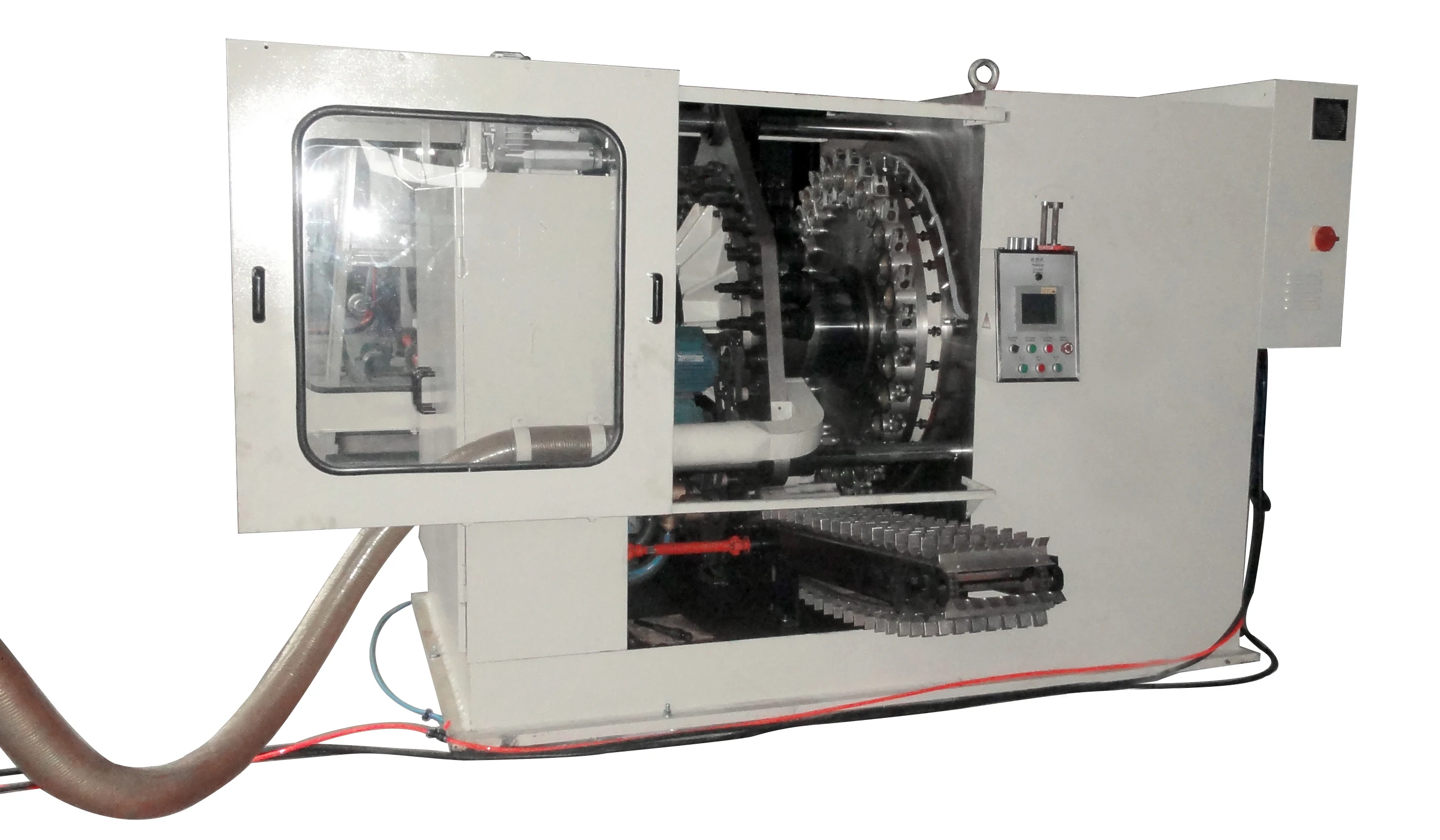

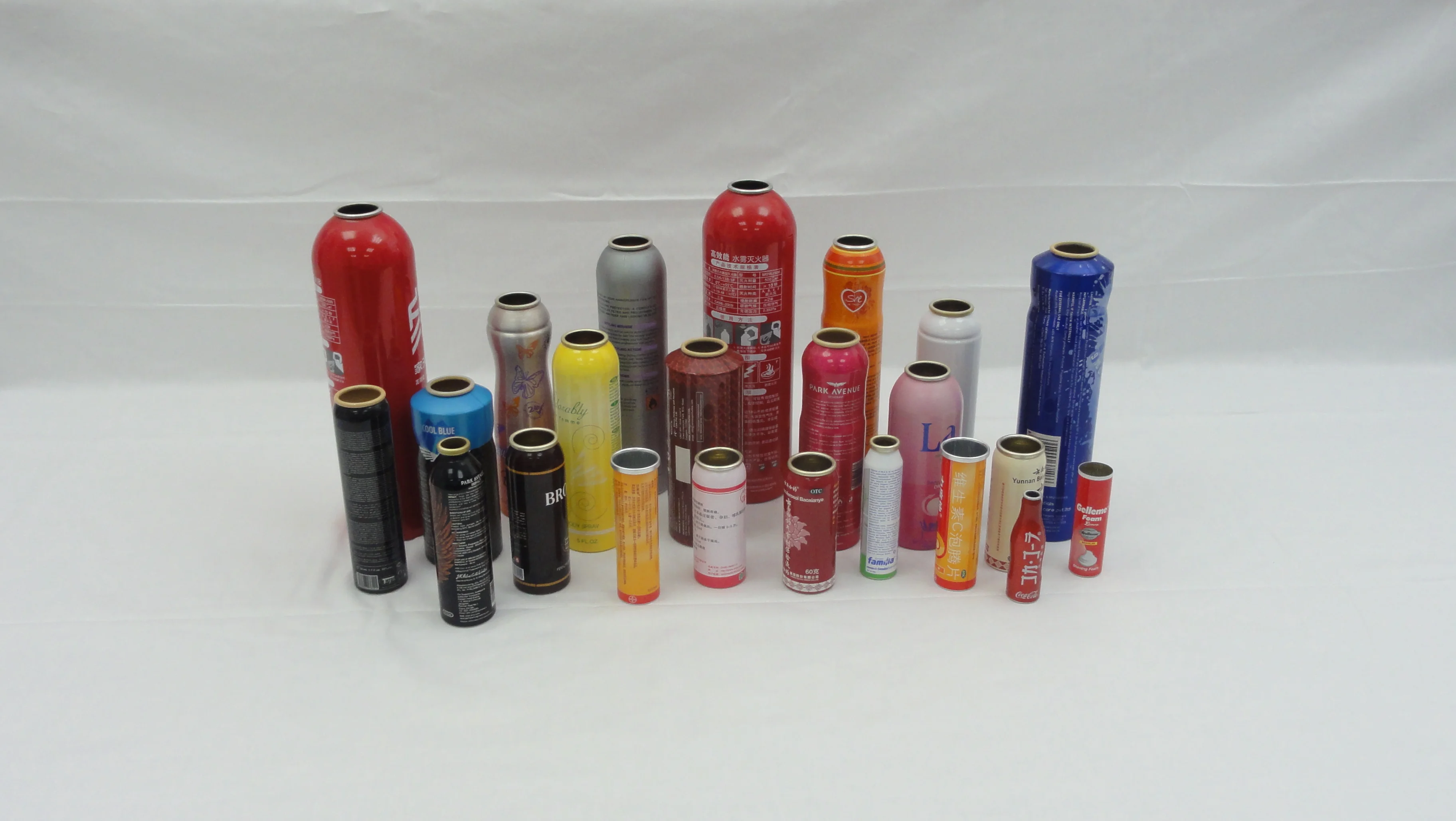

XR14E can necking machine it is suitable for products like aluminum and hard aluminum to form the shoulder profile and curl. Cans are fed in to the can holding chuck of the machine by conveyer. The working cycle includes bottom pressing, progressive neck and shoulder formation face milling, curling, cleaning and transmitting. The machine has 30 stations. It can work alone or form automatic aluminum can production line by connecting with other machines.
SPECIFICATIONS FOR NECKING MACHINE
Can diameter range
φ35mm-φ53mm
Can length Range
≤230mm
Total Power
7.5KW
Intake pressure
≥0.4MPa
Dimensions
4210*2880*2160mm
Weight
about 9200KG
Production speed
≤120cans/min
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

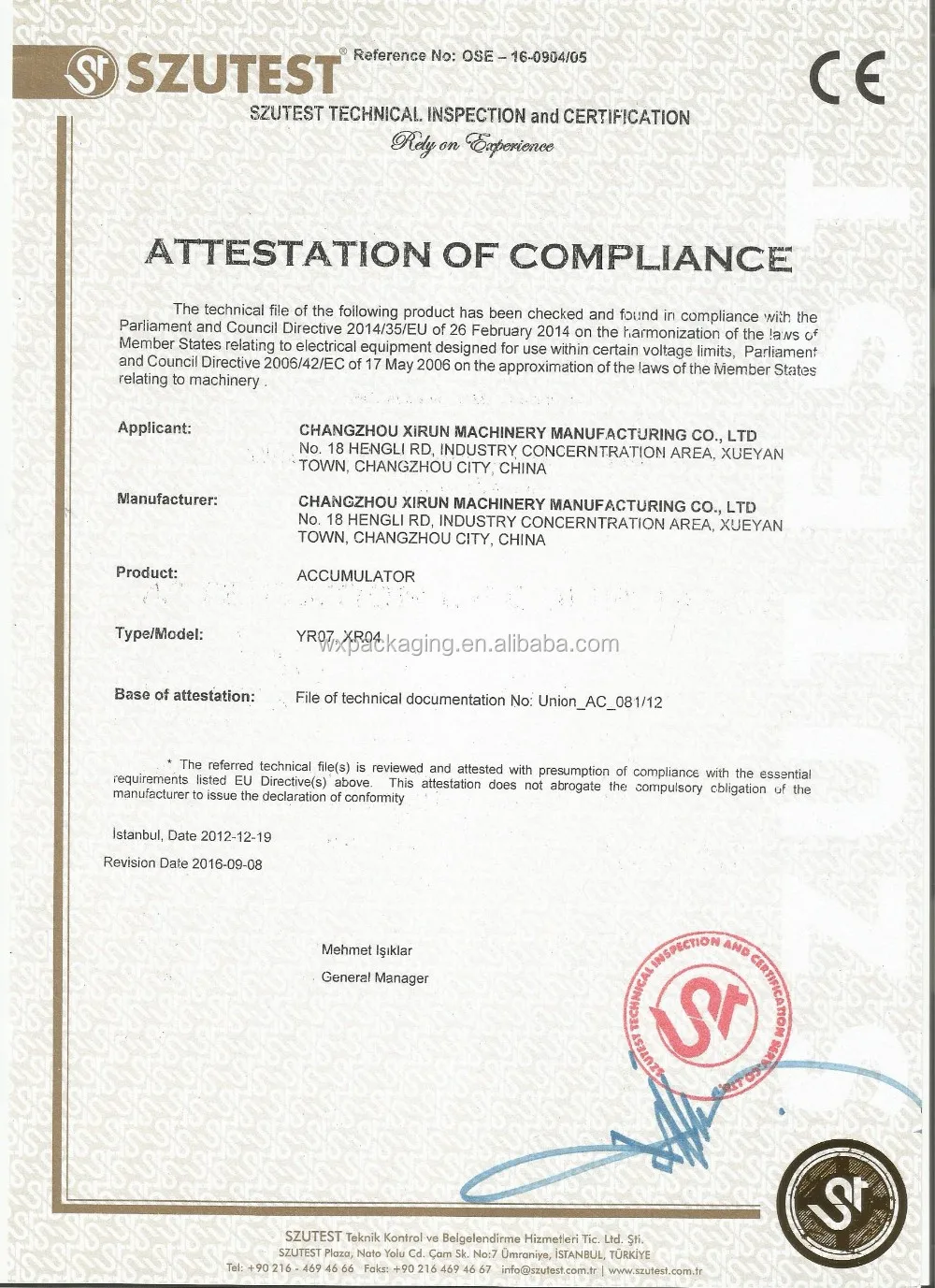

Certifications

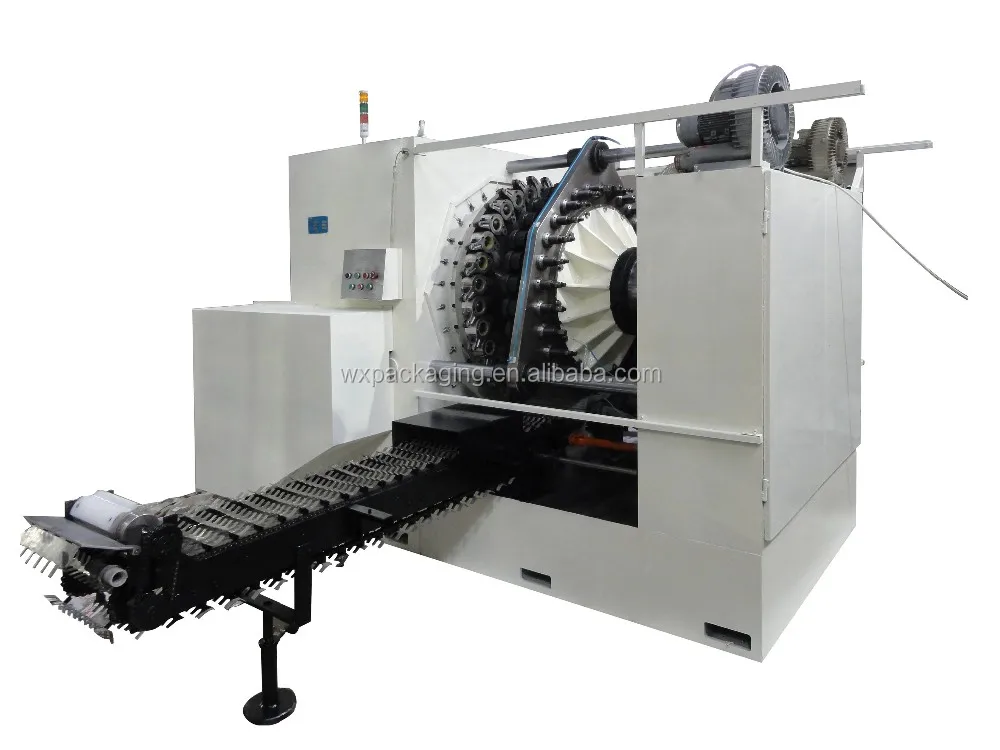

Detailed Images
Main Features

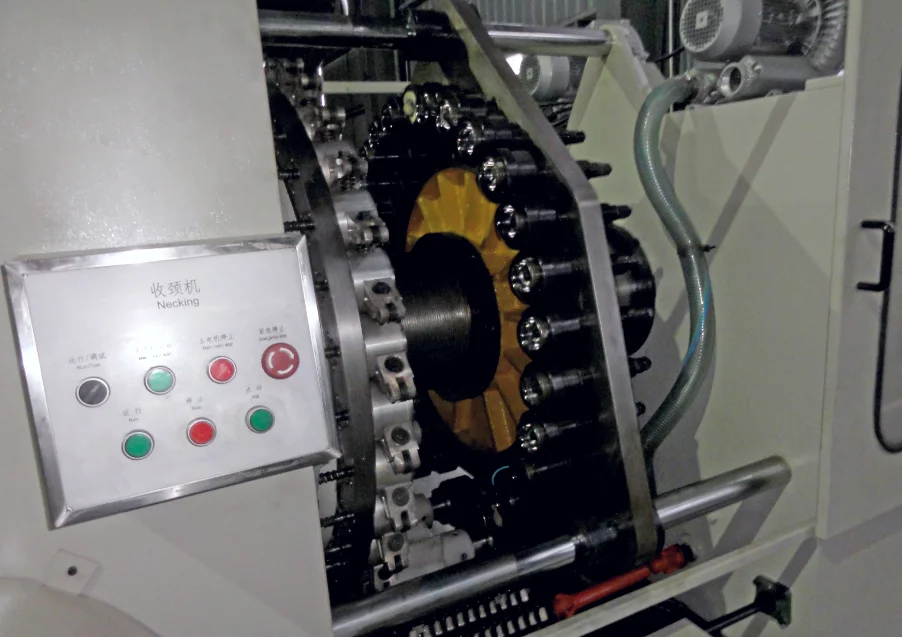

The machine is fully automatic. It can realize automatic procedures like letting cans in and out and rotating process. If cans are not pushed out completely, the machine would stop automatically. PLC and Ferguson indexer control the frequency and speed.
Main Features
Each necking station has detecting switches. If cans are not pushed out completely, the machine would stop automatically to prevent can crashing against other units. If the oil pressure is not enough, the machine cannot be turned on.
