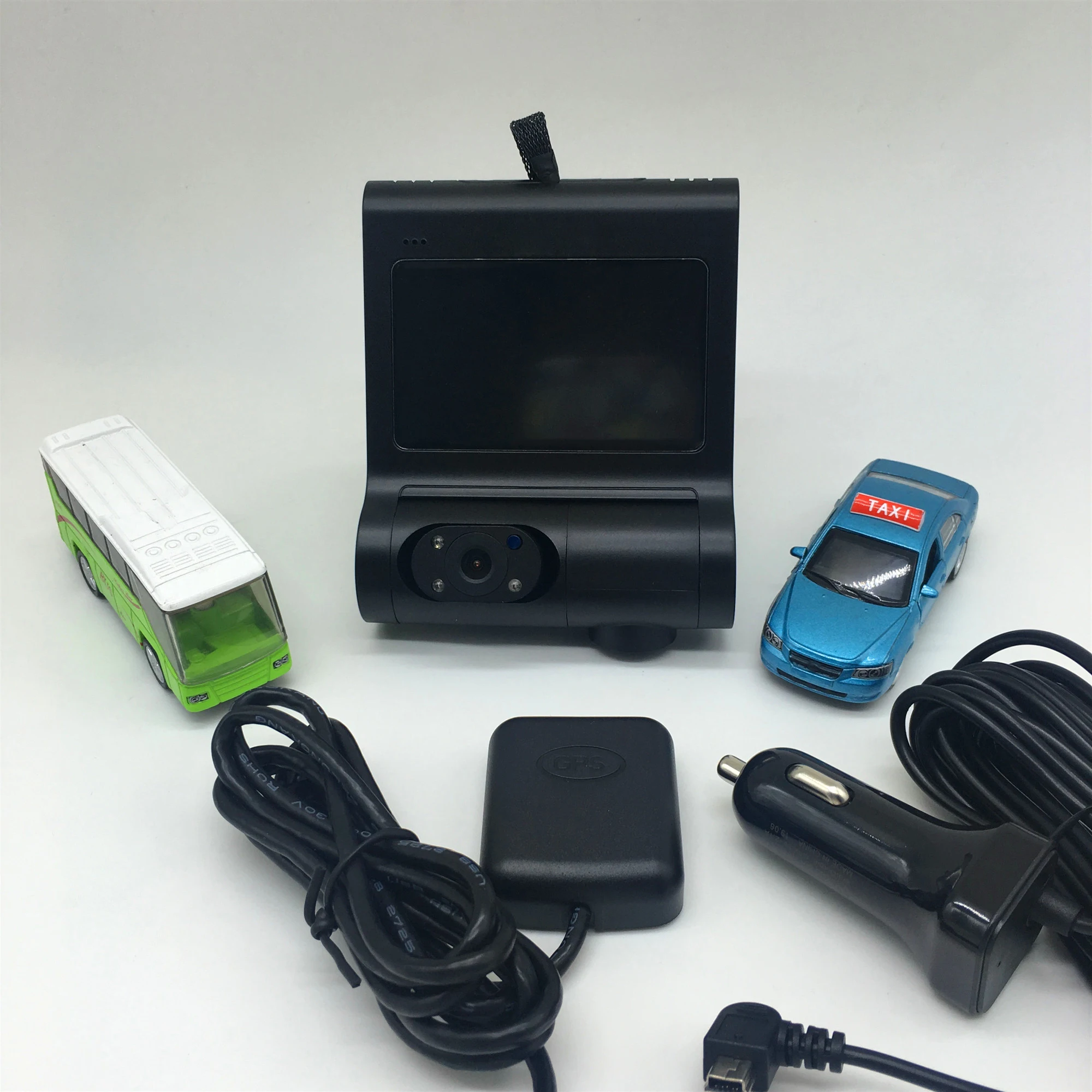

OEM original driver security device driver fatigue alarm system with wifi and gps hd dual lens 1080P dash cam
YX08 is an advanced All-in-one AI device , integrate Driver Fatigue monitor system , 4G WI-FI sharing, GPS realtime positioning , HD Dual camera Technology...AI depth algorithm for driver realtime monitoring, include dangerous driving behavior ,like smoking/calling or distraction driving. Vehicle-mounted 4G WI-FI realize GPS positioning , Dual DVR for recording the traffic condition forward car and behind the car...A new version of automotive smart security products will bring you a quality driving experience.
Product Description

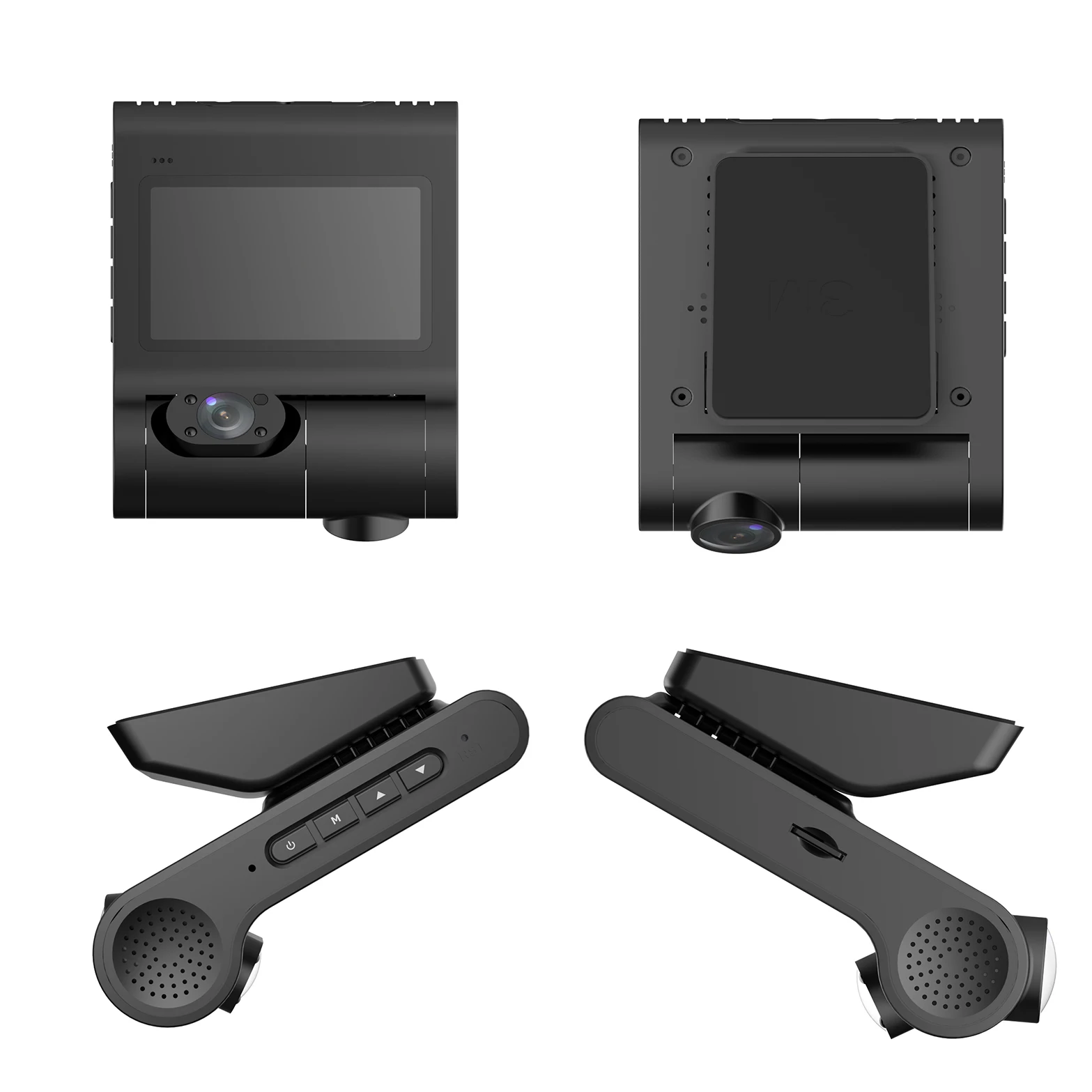

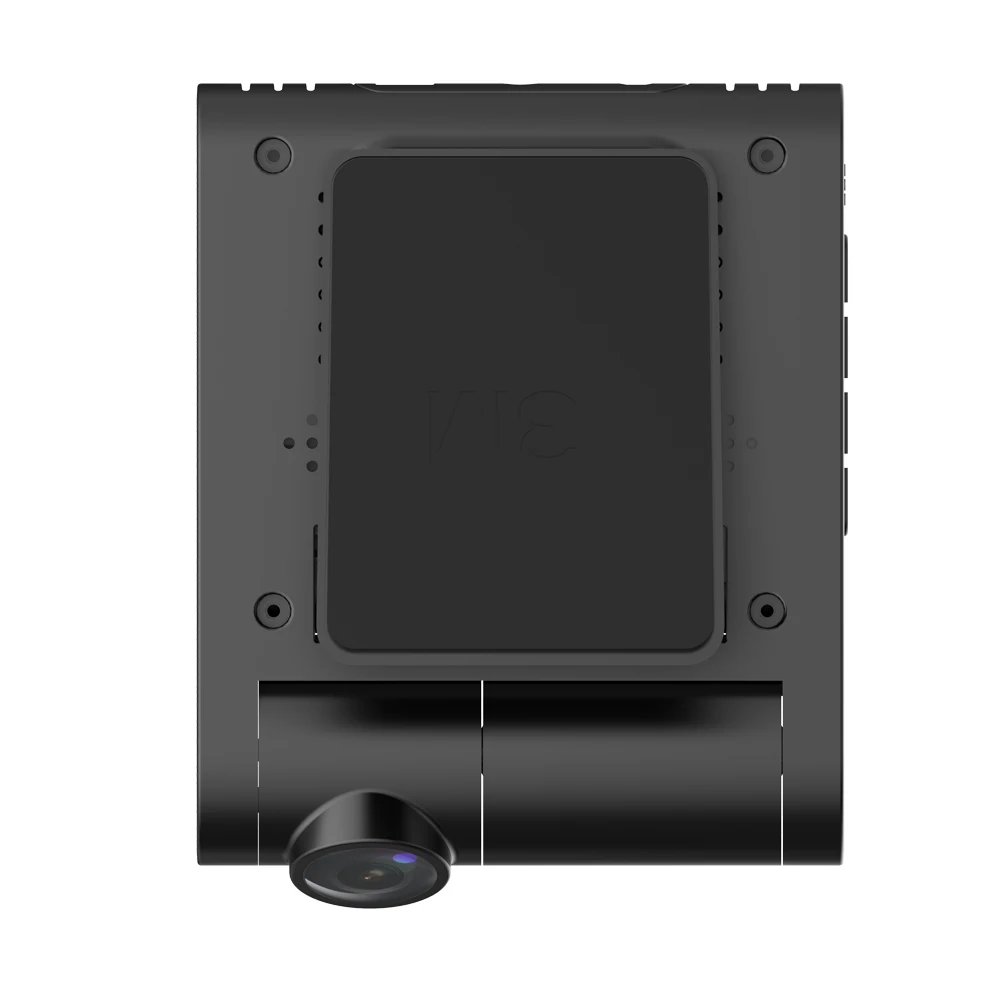

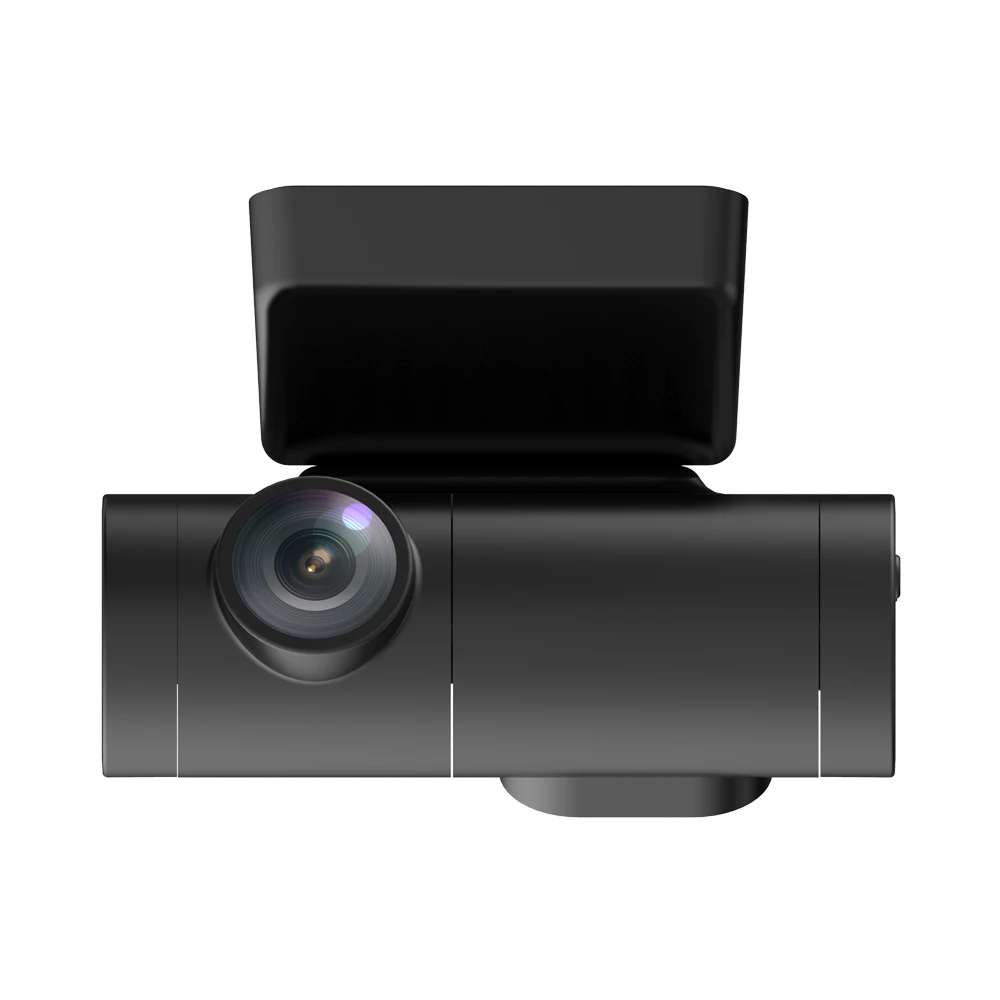

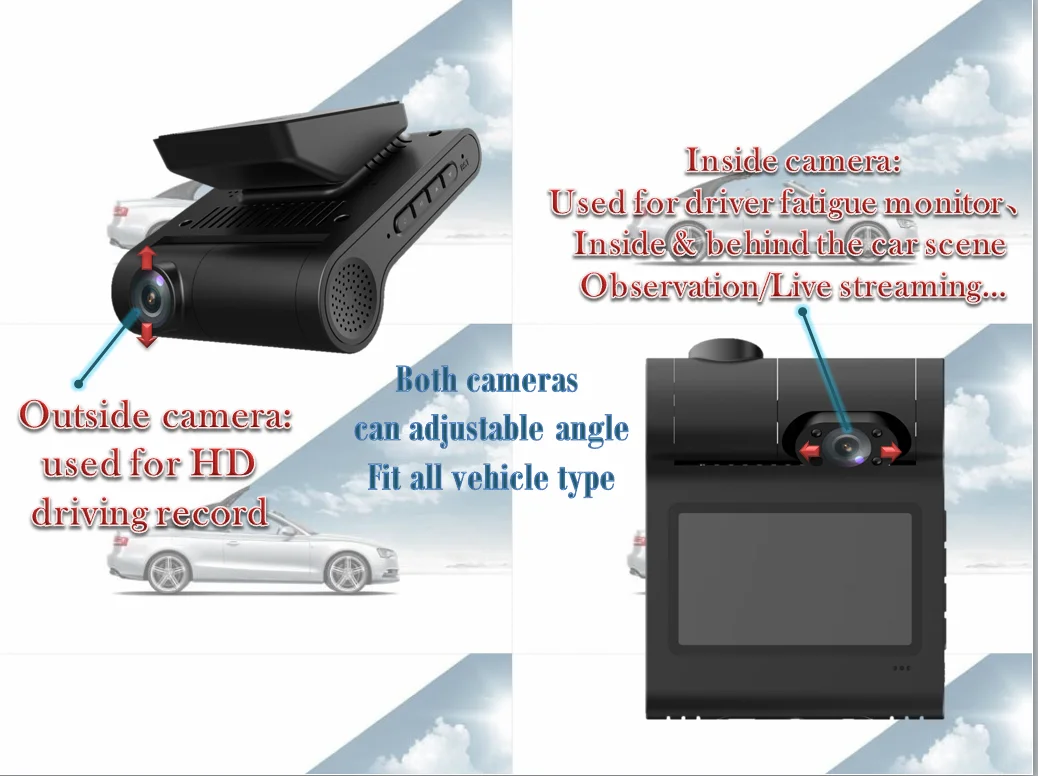

•Device appearance
•Product Functions

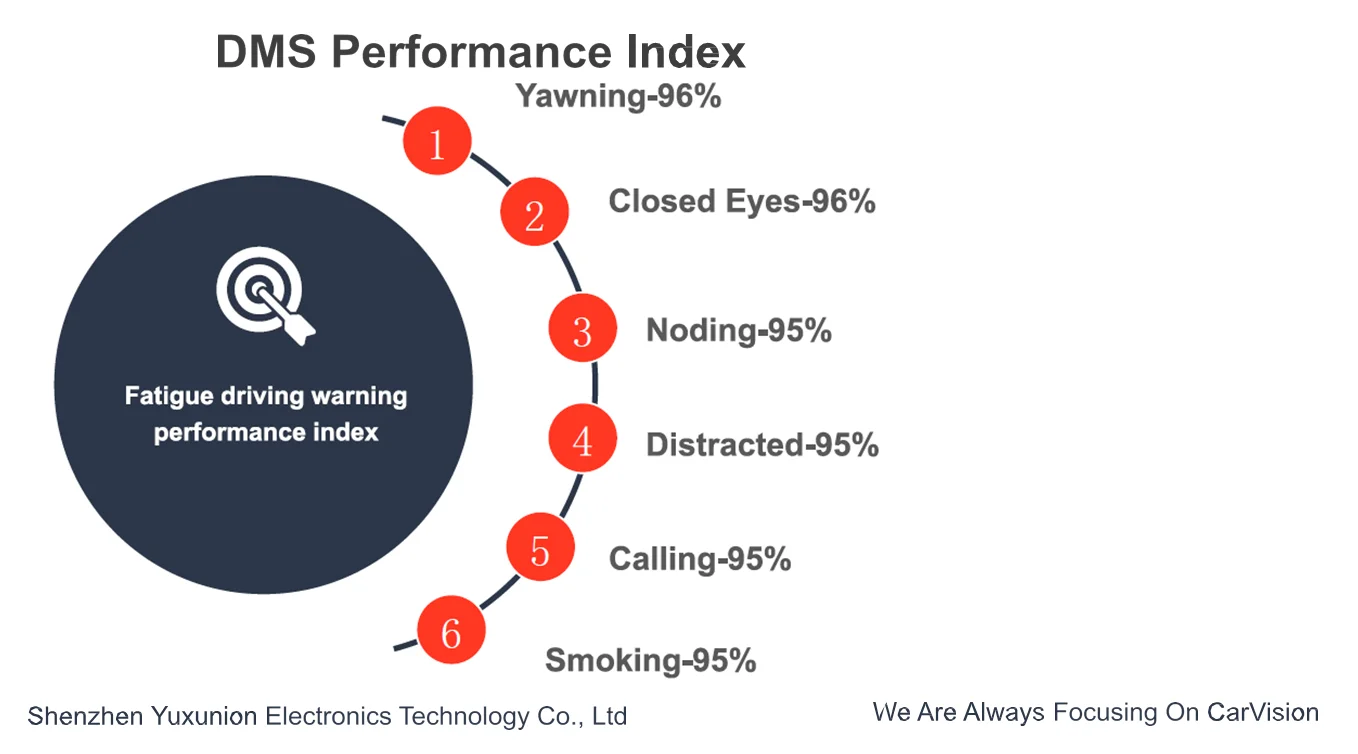

1)Fatigue driving warning
Through facial detection, the DSM detects driver's eyes are abnormally keeping closed and
then warning. The warnings are divide into different levels according to vehicle speed. The
warning way is voice warning.2)Distraction warning
Through facial detection, the DSM detects driver's head turns around and then warning. The
warnings are divide into different levels according to vehicle speed. The warning way is voice
warning.3)Smoking warning
Through gesture detection, the DSM detects driver is smoking and then warning.
The warnings are divide into different levels according to vehicle speed. The warning way is voice warning.
4)Calling warning
Through gesture detection, the DSM detects driver's calling and then warning. The warnings
are divide into different levels according to vehicle speed. The warning way is voice warning.
5)Driver abnormal warning
The DSM detects the driver is abnormal (like can't detect facial features over 3 seconds) and
then warning. The warning way is voice warning.
6)4G WI-FI sharing (optional)
Support 4G SIM card , Live video with wifi sharing. For platform monitoring, Get driver information in real time.
•Specification
| Type/specification | YX08 |
| Specification | |
| CPU | SGKS8611 |
| Internal storage | 2GBit |
| Screen | 3’’ IPS MIPI 320*640 |

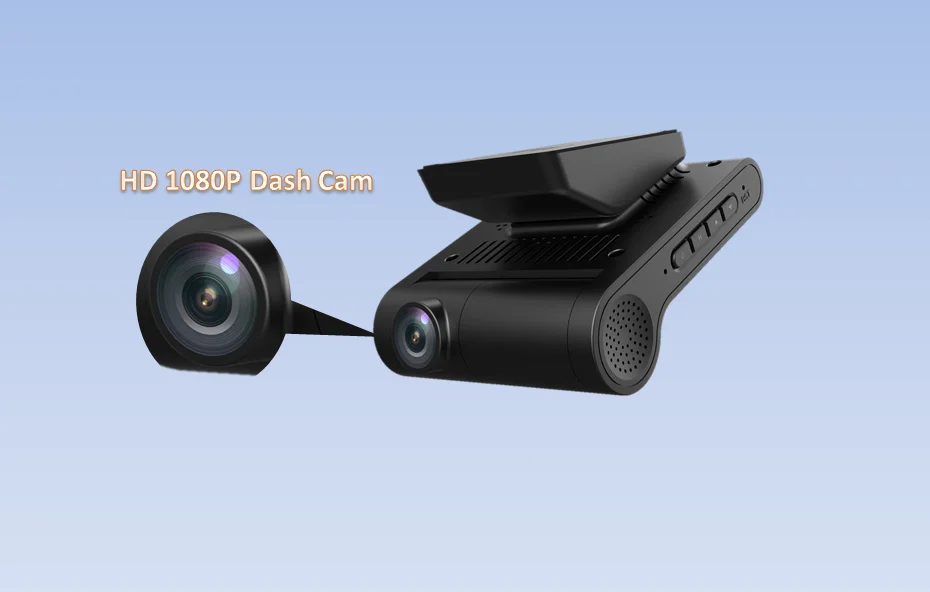

| Front camera | JXF22(1080P),MIPI,4 glass,F2.0,140° |
| Center camera | USB Camera,640X480,4 glass,F2.0,120° |
| Coding/code rate | H.264 8Mbps |
| G-sensor | SC7A20 |
| RTC/Battery | Shared lithium battery, 290mA |
| WIFI(optional) | IRRTL8189ES,2.4GWIFI, support AP |
| GPS | External 2.5mm headphone jack, support AGPS, UART |
| AUDIO | 1 output, 8ohm, 0.75W |
| Microphone | 1 output, -40db±3db |
| Power interface | Mini USB 2.0 Port |
| TF card | Max support 128GB/C10 |
| Button | 4 physical buttons, adaptive based on software features |
| Working voltage | DC 5V |
| Rated current | <1.2A |
| Standby average current | <3mA |
| Storage temperature | -30℃ ~ +85℃ |
•Features of Driver monitor system
1.APP calibration,easy to installion .
2.Fatigue driving & Distraction driving warning .
3.Driver bad behavior warning.
4.Real-time GPS tracking.
5.Double DVR record ,Greater security.
6.Vehicle-mounted WI-FI network sharing, Enjoy quality driving experience.
More intelligent function click on detail

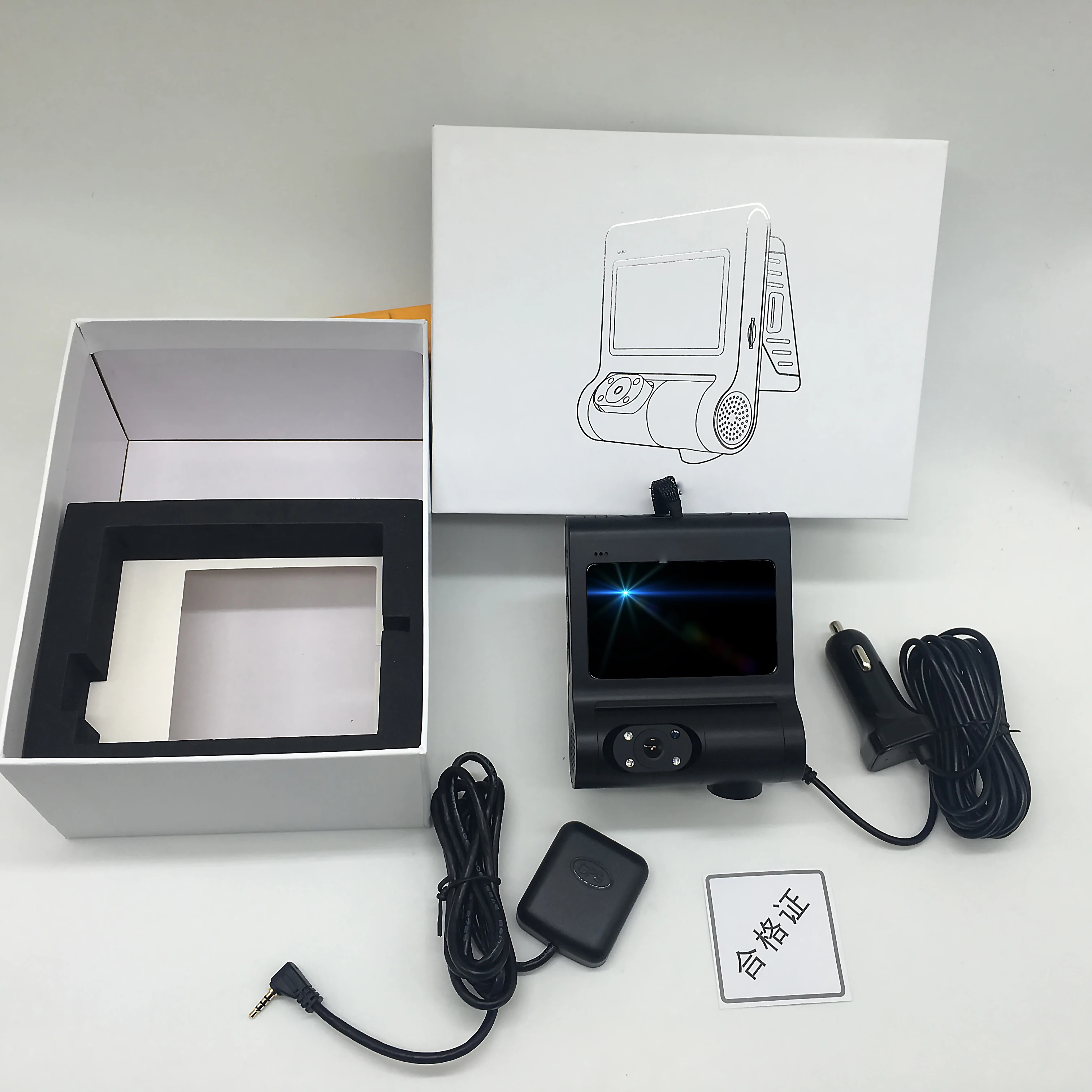

Packaging & Shipping
Our Services
1.We solemnly promise our products with 100% high-quality and 100% superior service.
2.Strict producing process, aging test and QC to make sure high quality production.
3.OEM & ODM are welcomed.
4.All passed systematic production standard in waterproof, shockproof, temperature resistance, humidity resistance, high definition.
5.24 hours standby after-sales team.
Company Information
FAQ
1.What's your MOQ?
- 1 set will be deal.
2.What is your terms of packing?
-Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
3.Do you have product certisfication?
-Yes,we have CE FCC IS9001:2008 certisfication.
4.What's your delivery time?
-The sample order will be whin 7 days,the regular order depends on quantity and our inventory.
5. What is your sample policy?
-We can supply the sample if we have ready parts in stock, sample cost and courier cost are not free.
4.Dose your product has user manual?
-yes,we have user manual.
3. Would you support OEM & ODM service?
- Yes, definitely. We welcome OEM & ODM to join .
2.What about your payment?
-More than $1000,we suggest our customers to use T/T, less than $1000,Paypal,Western Union are OK.
6.Where's your target market?
-Our target market is Asia countries.
5. Your market competitiveness?
- At present, our products are absolutely superior in terms of function, quality and price.
Whatever you have any quesions , please feel free to contact us,we will do our best to help you!
Fill in message and click on the "Send",we will give you the best service!
We are very expecting to cooperate with you!!!
