Aimix ALYQ60 mobile type hot selling continuous asphalt mixing plant ciber asphalt plant

Product Overview

Description

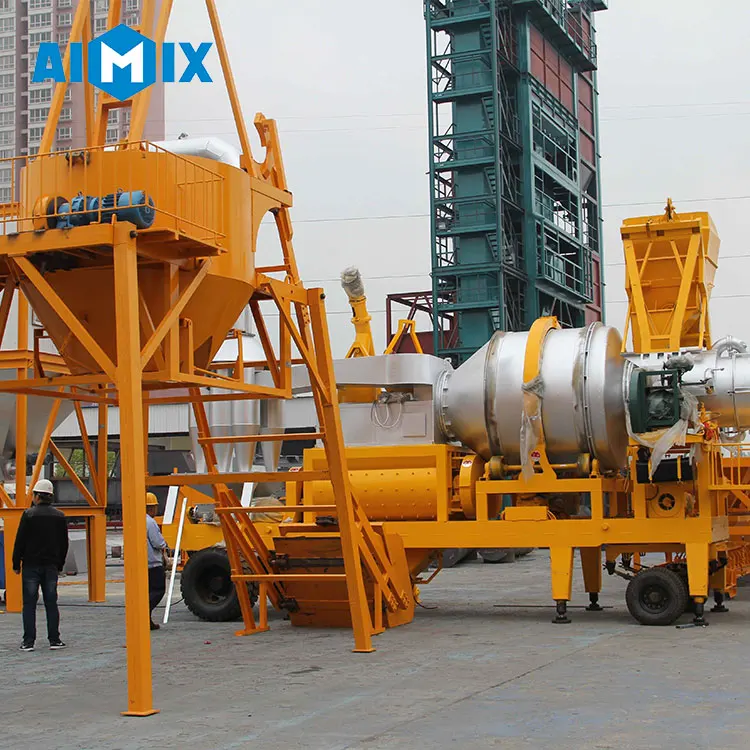

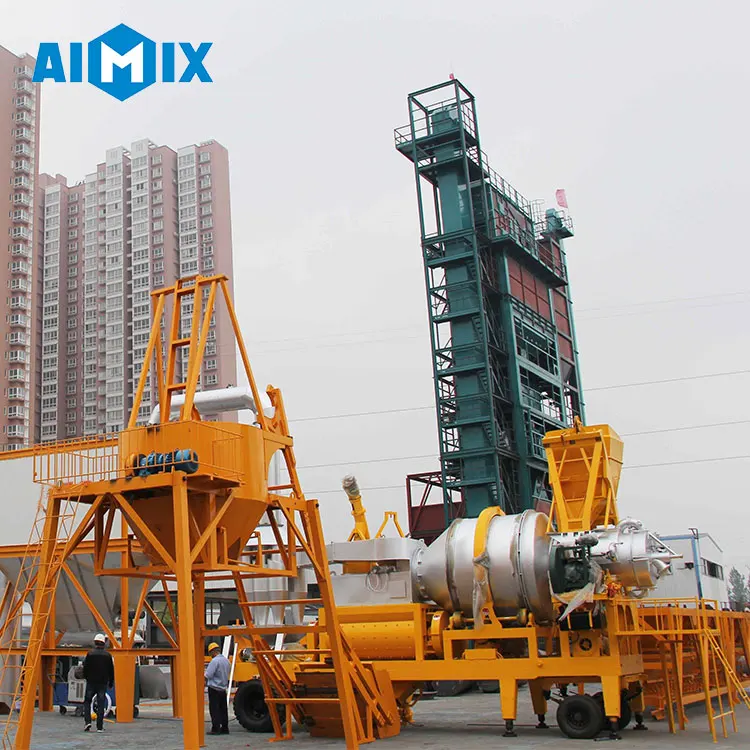

Aimix ALYQ60 mobile type hot selling continuous asphalt mixing plant ciber asphalt plant

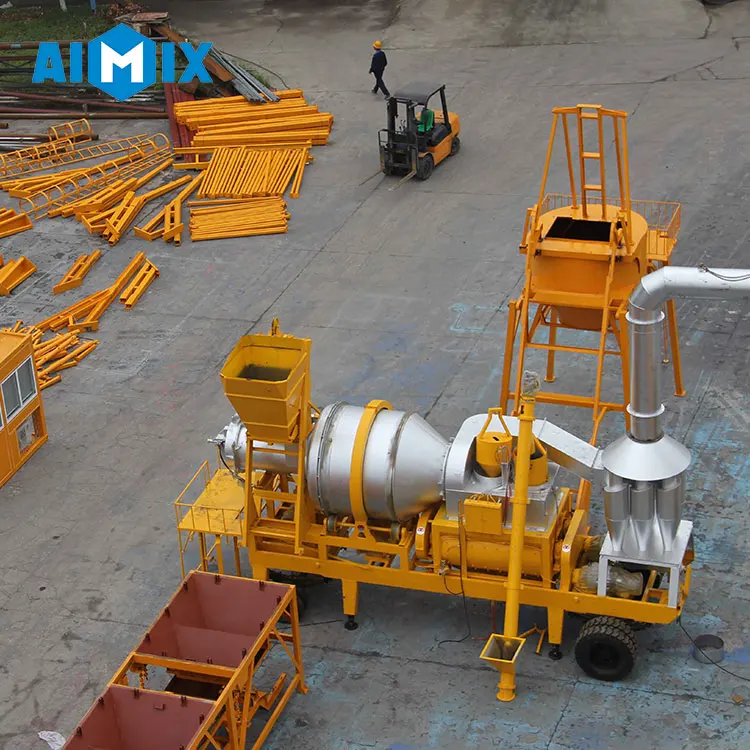

ALYQ Mobile Compulsory Asphalt Mixing Plant adopts intermittent drying cylinder, with double compulsory shaft mixer mainframe can be trailed to walk, it occupied less area, while short installation period, easy for operation and maintenance, stability, automation, high standardization, besides, the finished goods are high quality, excellent technology, the Mobile Compulsory Asphalt Mixing Plant is suitable for high-grade road asphalt paving and

maintenance.



Parameter of ALYQ60 Mobile Asphalt Mixing Plant

Model		ALYQ-10	ALYQ-15	ALYQ-20	ALYQ-30		ALYQ-40	ALYQ-60	ALYQ-80
capacity		10t/h	15t/h	20t/h	30t/h		40t/h	60t/h	80t/h
Total power	Fuel oil	41.5kw	54kw	63.5kw	104.5kw		125kw	157.5kw	200kw
	Fuel coal	57.5kw	75kw	86.5kw	127.5kw		169kw	205kw	276kw
Aggregate batcher		2.3m3*3	2.3m3*3	2.3m3*3	5m3*3		5m3*3	5m3*3	5m3*3
Finished asphalt storage bin		2t	5t	5t	9t		9t	9t	20t
Asphalt temperature		120-180℃
Fuel consumption		Fuel oil:5.5-7.5kg/t:				Fuel coal: 13-15kg/t

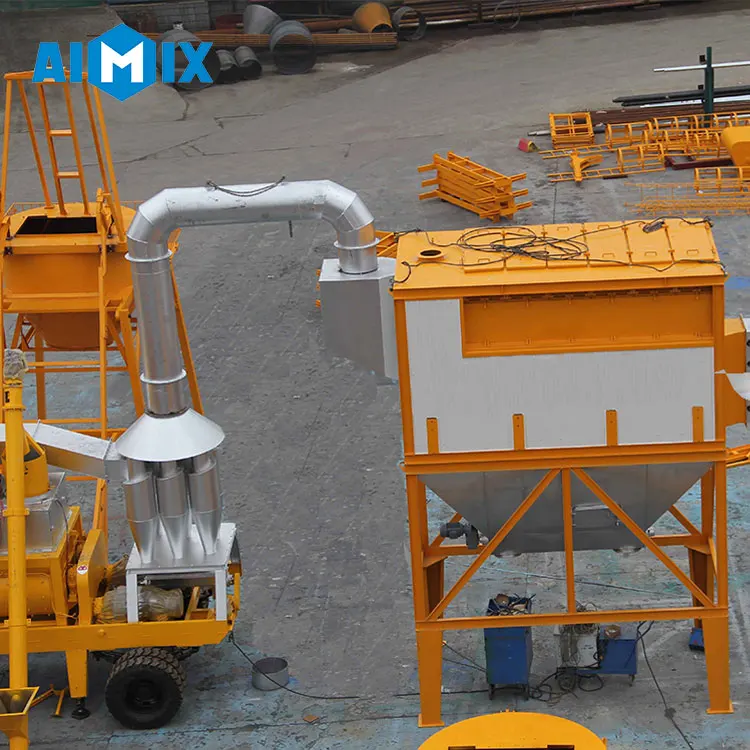

Optional components		Water dust collector, Baghouse dust collector, control room, bitumen heating tank



Advantages:



1.Integrated design of drying drum and horizontal twin-shaft mixer, more even mixing and better asphalt.

2.Accurate weighing and stable quality.

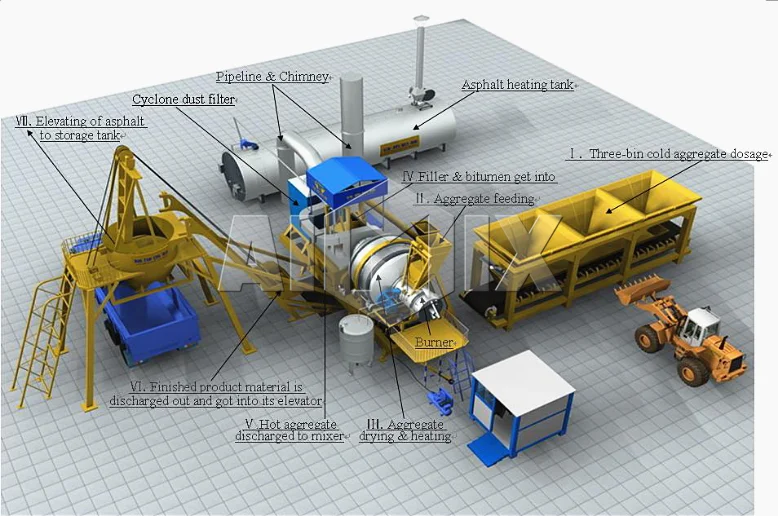

3.Simple structure, easy operation, drying while drum rotate in counter clockwise direction(from burner), discharginf while drem rotates in clockwise direction(fron burner), and the wind are swirled in the center of the drum.

4.PLC control, touch screen, suto/manual switchable;

5. Towing chassis of easy transport and installation;

6.Burner is available for coal and oil, at client's option.

7.stable and reliable, easy for maintenance.

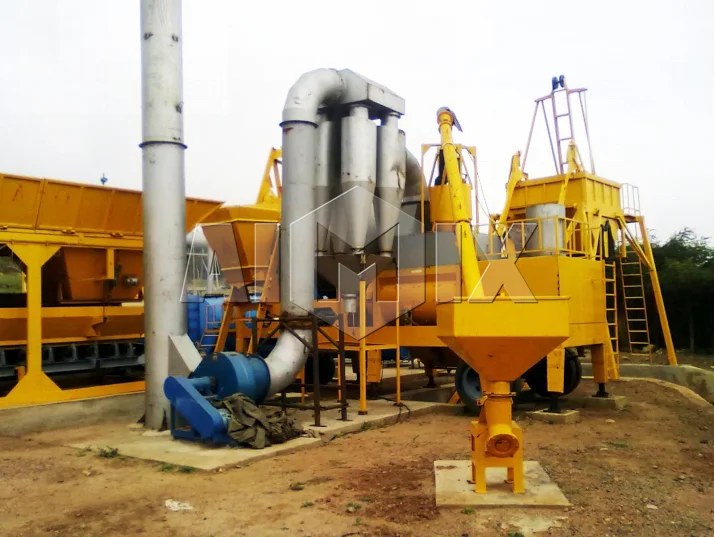

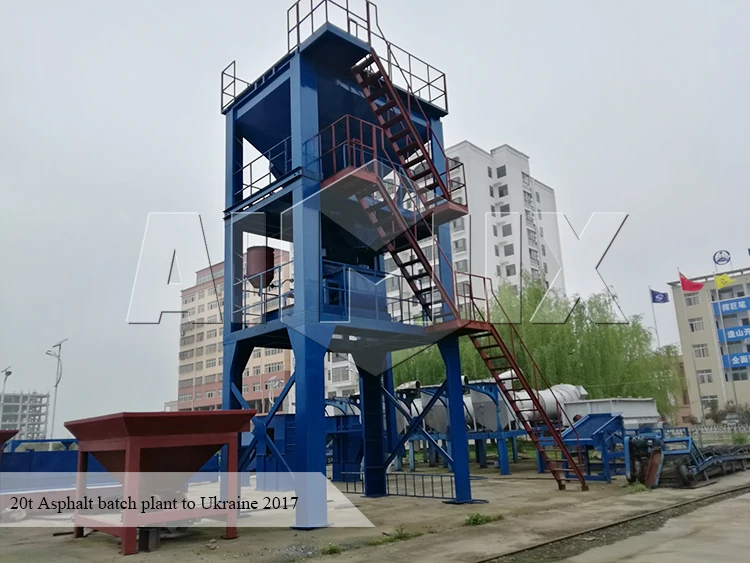

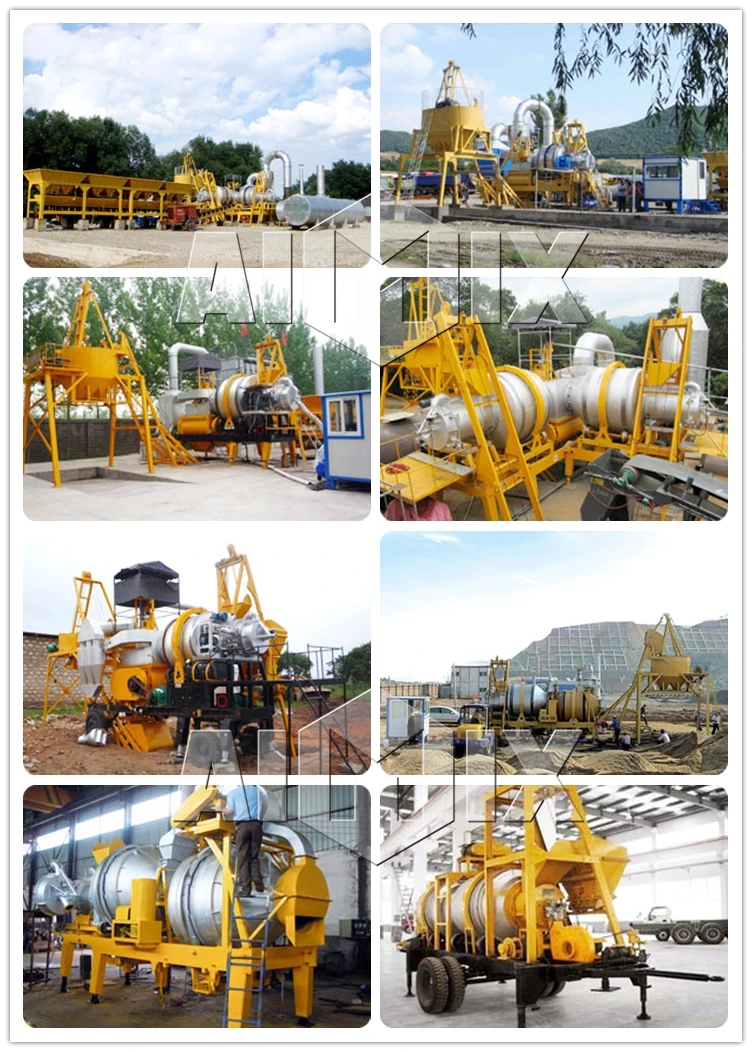

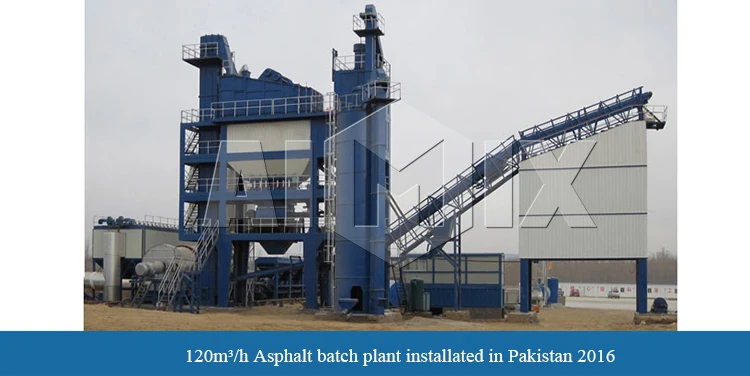

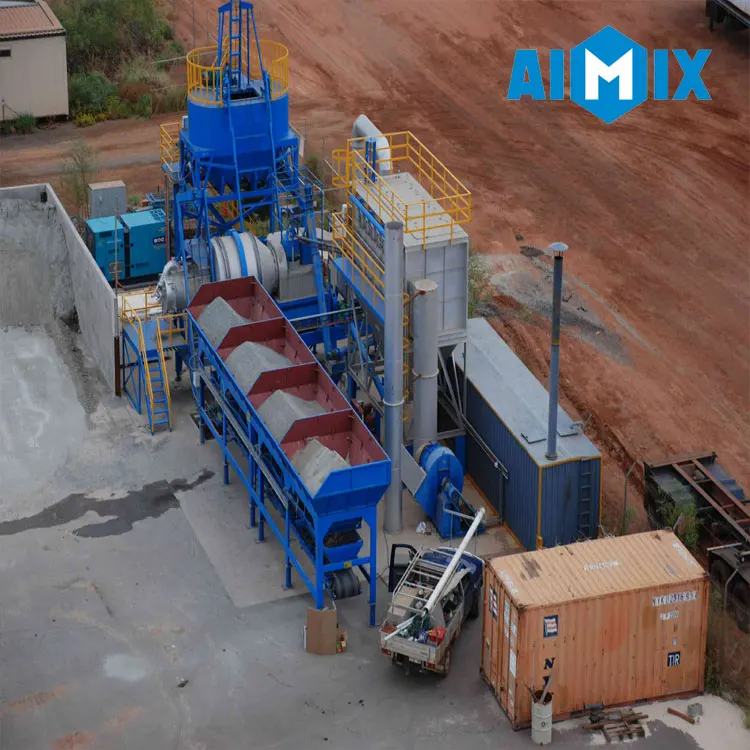

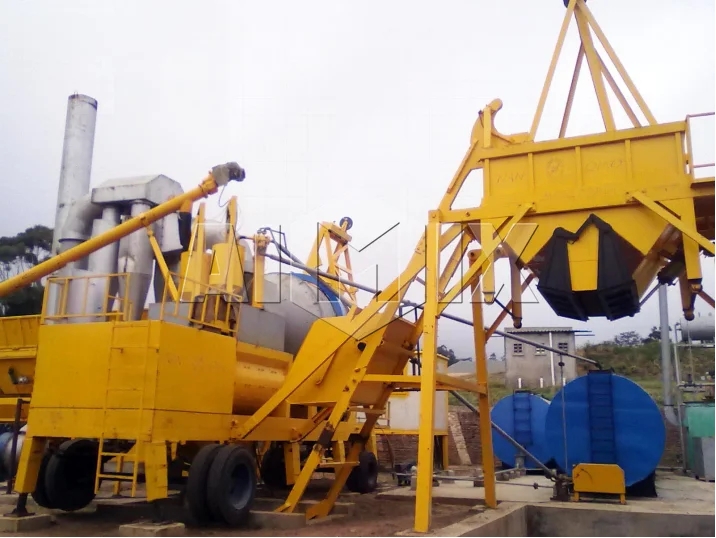

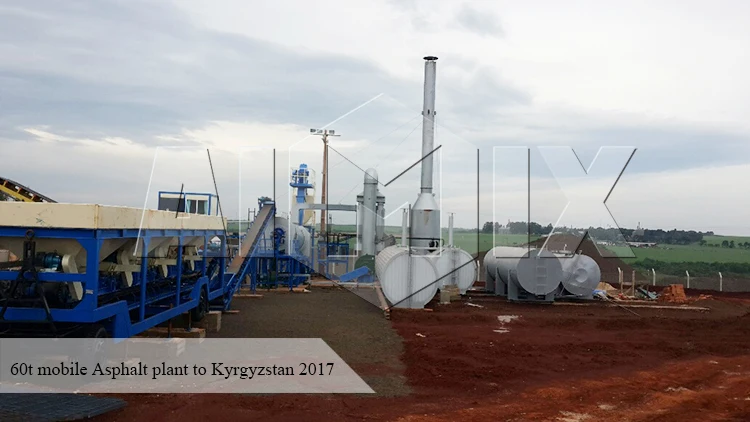

Case:
