Geo Well Logging Winch system with automatic wireline pulling and winding

Product Overview

Description

Geo Well Logging Winch system with automatic wireline

pulling and winding













Instruction:

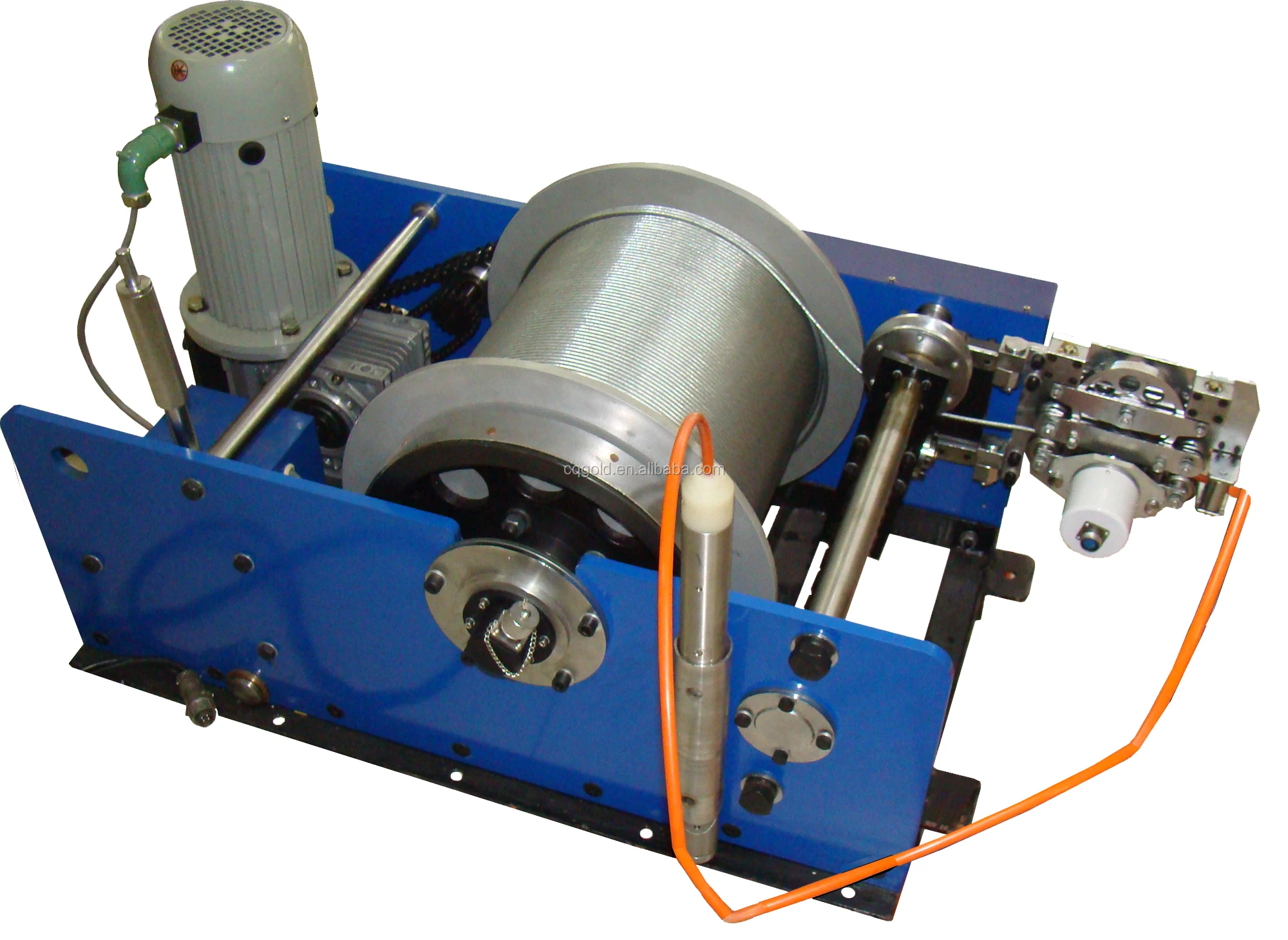

Geophysical Well Logging Winch is mainly applied in the measurement of petroleum wells (vertical, directional, cluster), by lifting and lowering measurement instruments to obtain the gradient, location and depth of the wells. This Geophysical Well Logging Winch is driven by the electromagnetic governor motor, transferring torque to the drum through sprockets, equipping with speed controller to control the rotary speed of the drum. The deep logging winch is ideal equipment for logging petroleum wells.



Description

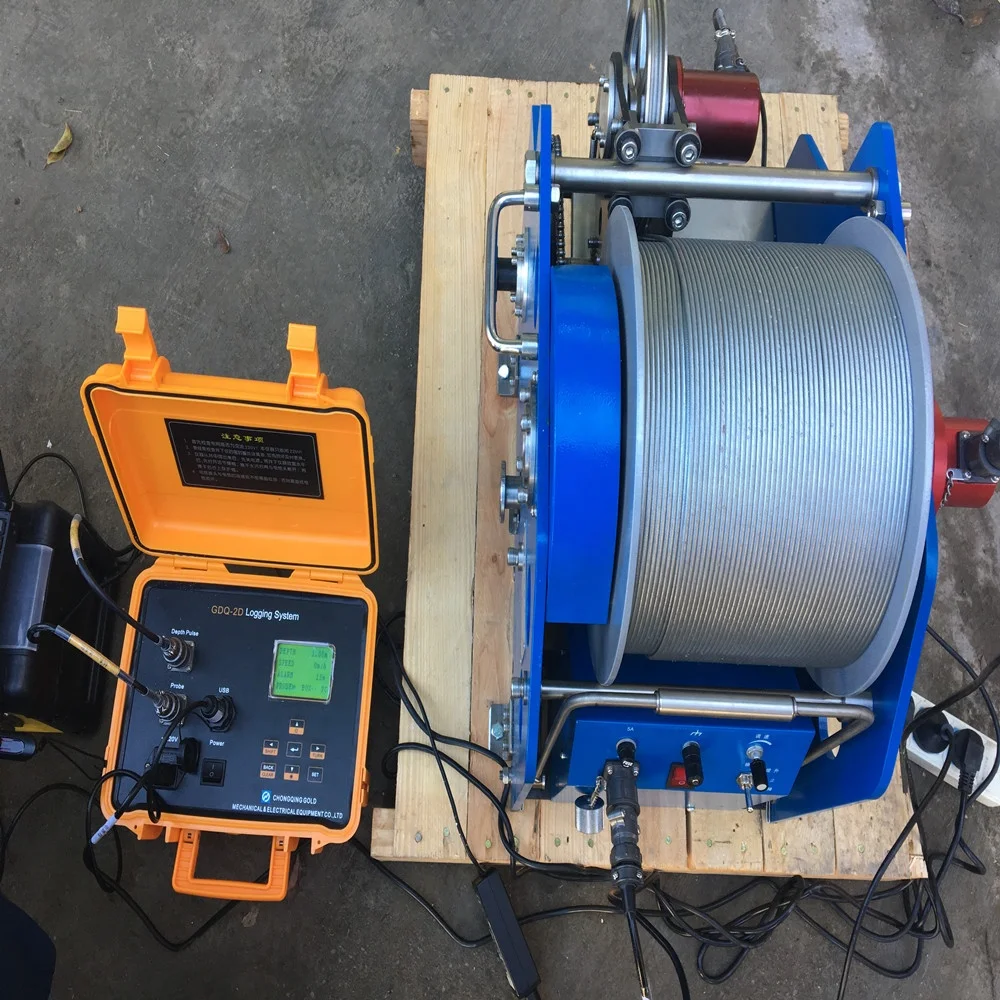

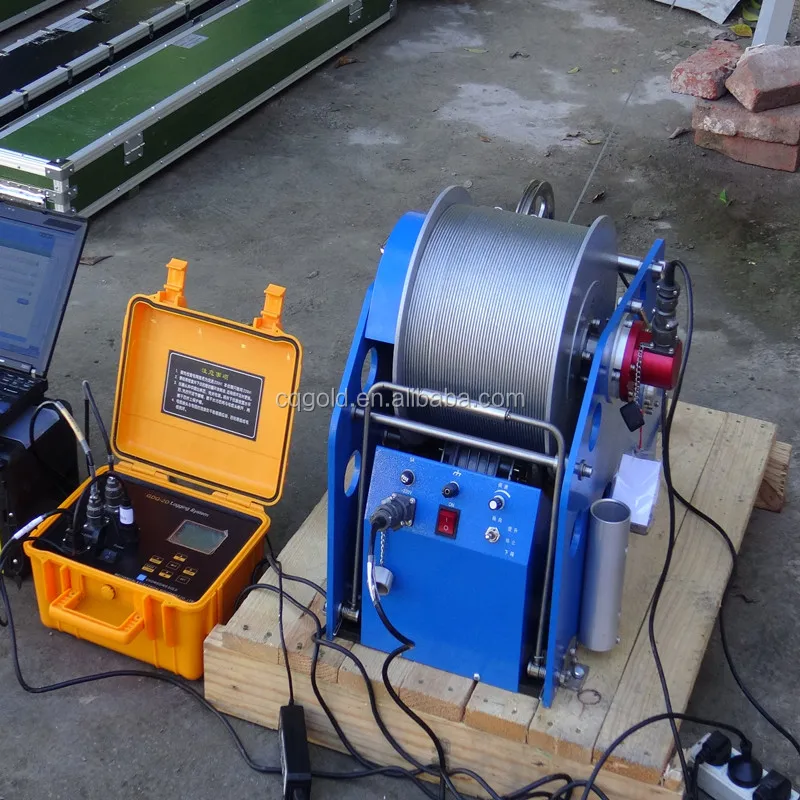

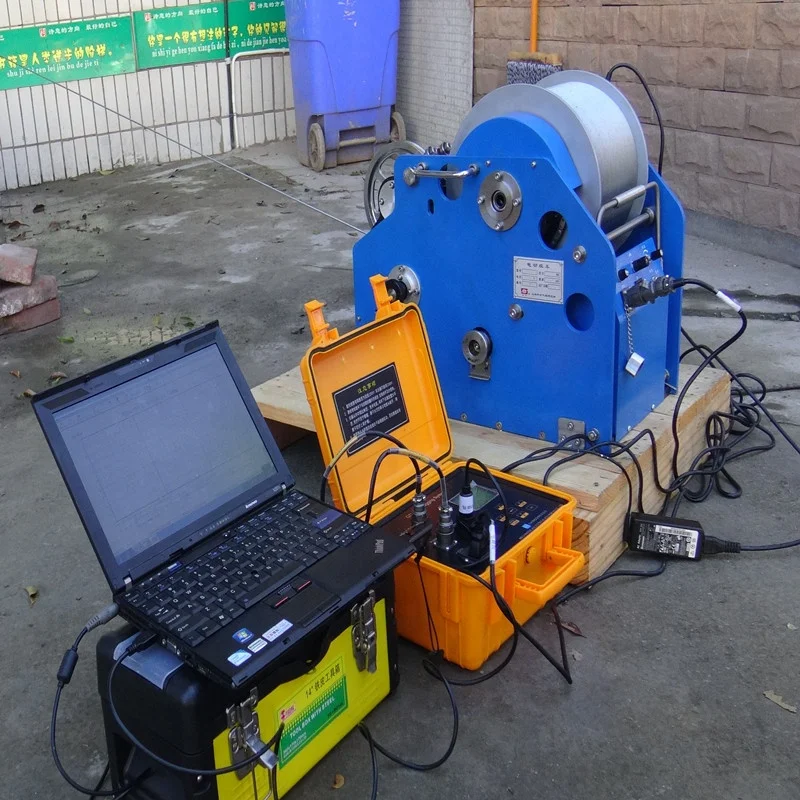

GDJ series Geophysical Well Logging Winch is a special equipment for geophysical exploration and geological survey. It is mainly used with GDQ-2D integrated digital logging equipment and can also be used with other logging equipment. Most GDJ series winches are anti-magnetic design, stepless speed adjustment and automatic cable arrangement. The performance can be applied to various geological prospecting areas. GDJ series well logging winch adopts frequency conversion motor, dc motor, ac asynchronous motor as power source, and has a wide range of speed regulation, smooth variable speed, convenient operation, simple maintenance and so on. This logging winch can be used in geophysical prospecting and geological survey work on the land, sea, plateau (which is less than 5,500 meters above sea level) and other environments on the earth.

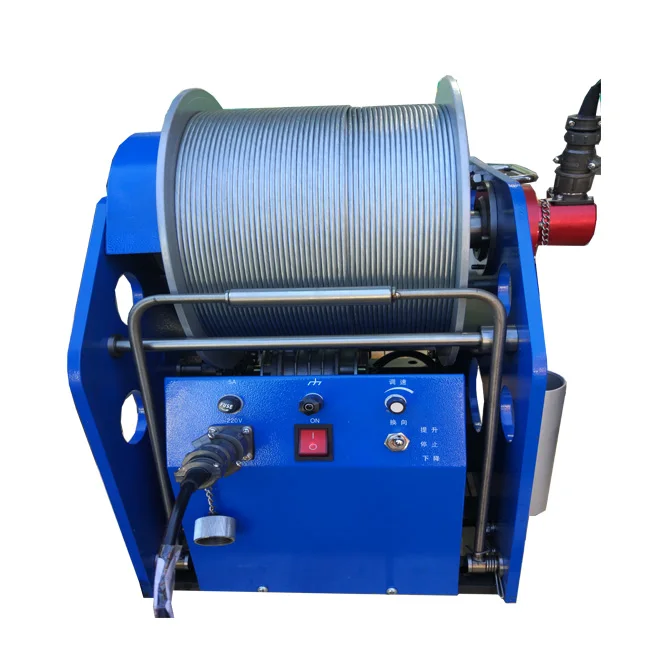

Geo Well Logging Winch system

1. Cable length measurement: automatic measurement

2. Photoelectric pulse generator: SG9208, 1800P/R for each transfer pulse

3. Transmission device: JLH0710

4. Self-locking brake and manual brake

5. Class of electrical motor insulation: Grade F;Shell protection level : IP56

6. Use of the environment:  less than 5500 meters, ambient temperature  - 20 ℃ ~ + 45 ℃, relative humidity 99% or less;Power: 220V current 5A
