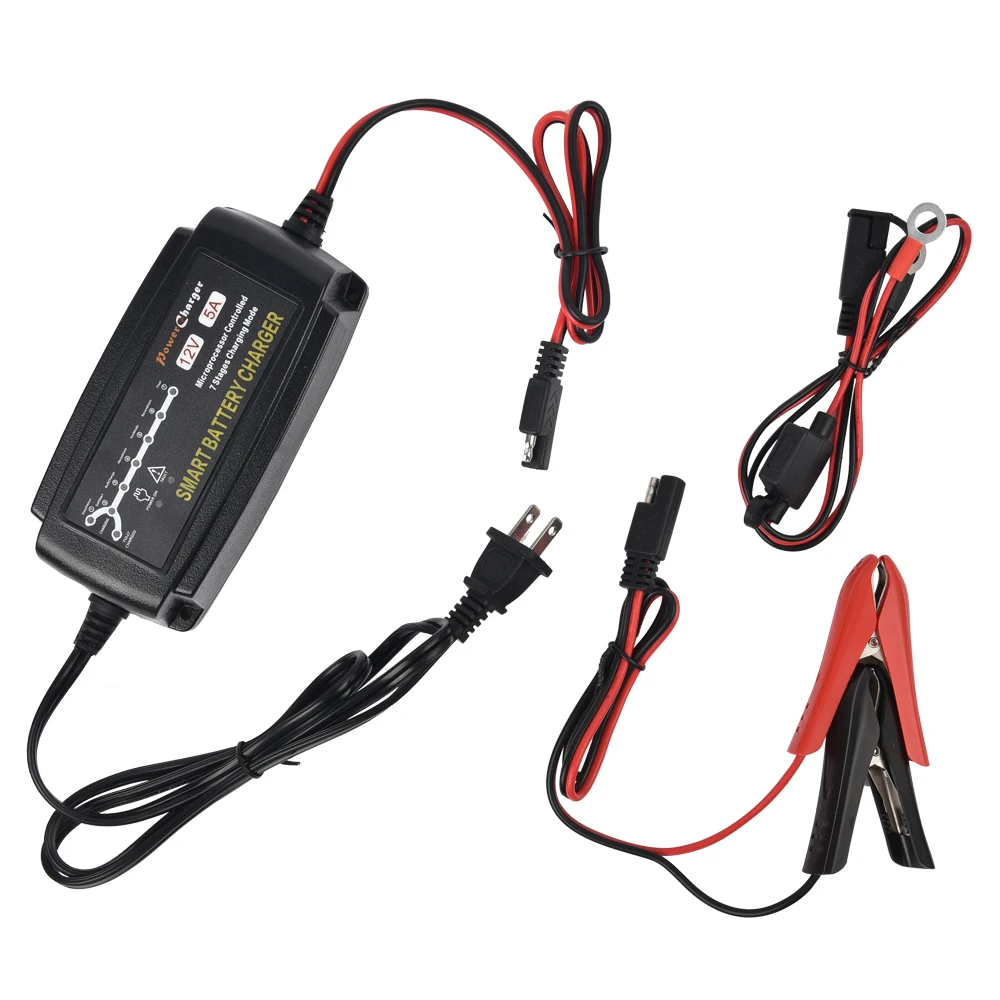

12V Lead Acid battery charger motorcycle 7 stages auto 12 volt battery charger
- Category: >>>
- Supplier: Shenzhen Everpower Electronics Co. Ltd.
Share on (62199681975):
Product Overview
Description
Products Description
FEATURE:
1.AC100-240V input for worldwide used with wall mount plug US,EU,UK,AU
2.Perfect for charging all 12V SLA/VRLA/GEL/AGM/WET battery
3.Fully automatic 4 stages charging process by MCU controlled
4.2Leds indicator for battery charging 50%,100%,An independent failure indicator
5Maintaining the deep cycle battery
6.Protections:Short circuit/OVP/OCP/Overload/Polarity reversed ，
7.100% full load and burn-in test
8.High efficiency,long life and high reliability
9.2 years warranty

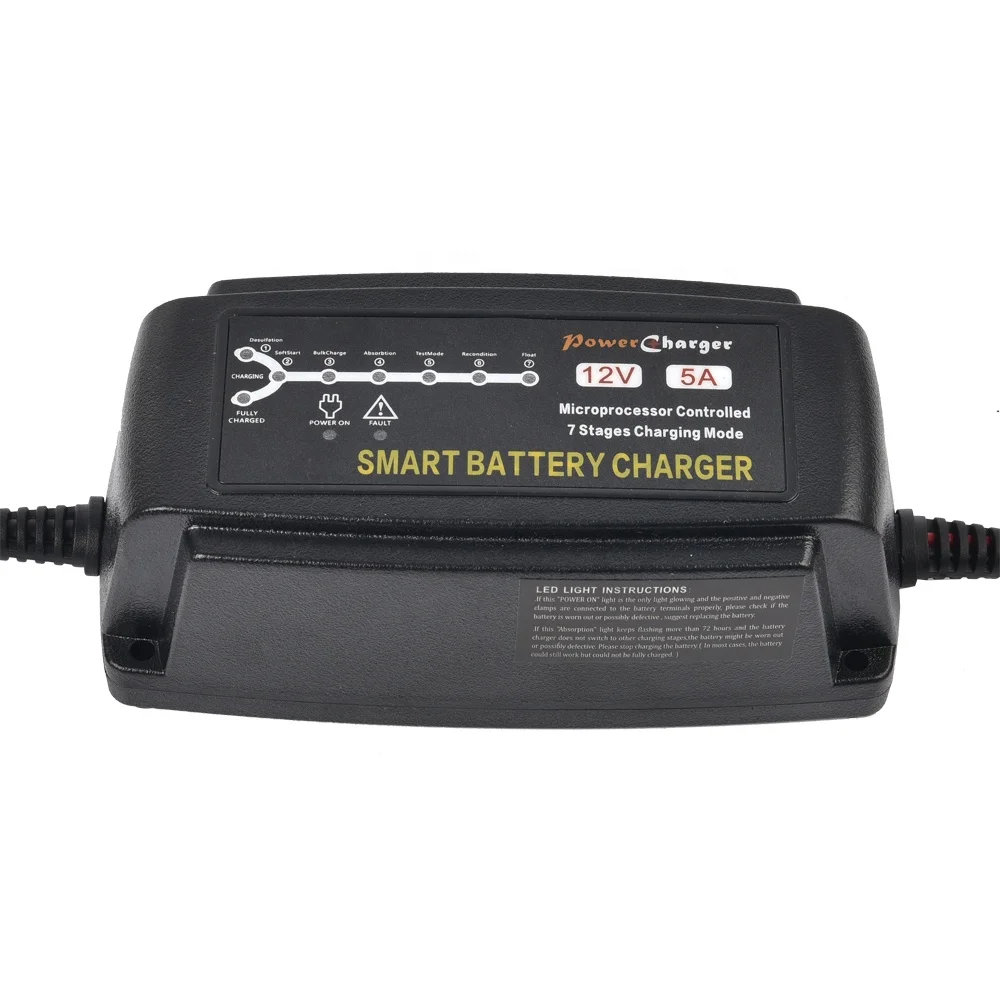

INDICATOR:
2LEDs indicate battery charging 50%,100%
ONE LED:6 Volt POWER ON
ONE LED:12 Volt POWER ON
ONE LED: FAULT
Applications
1.SLA/GEL/AGM VRLA/WET battery 12V 7~40AH
2.Car,Marine,motorcycle,electric vehicle，electric tools, emergency light, R/C toys,field detection instrument ,portable electronics devices

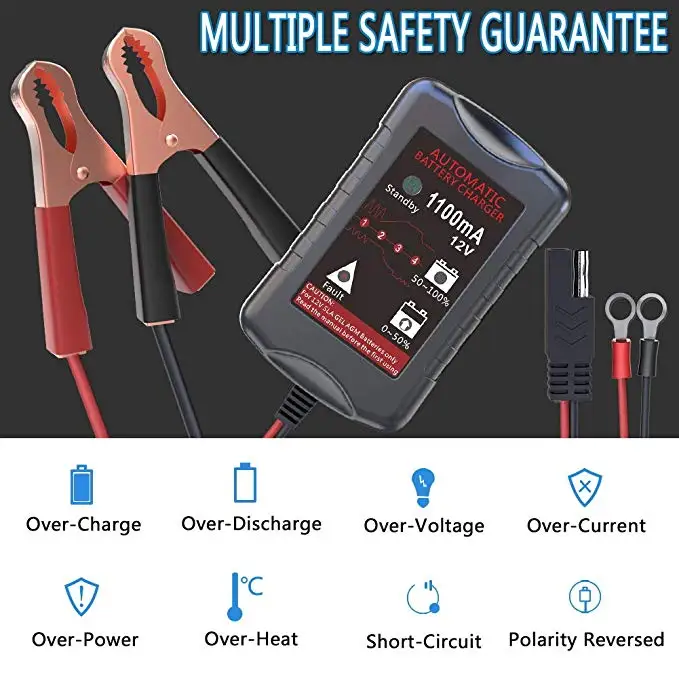

Safety protections:
- Over Voltage protection
- Short Circuit protection
- Polarity error protection
- Over power protection
4-stage charging process
Stage 1:initialization,when the charger power on then it start self-check
and detect the battery correct connect. low output voltage without
battery Fault LED is light, please CHECK THE POLARITY IS CORRECT.
Stage 2:Bulk charge,using the charger highest rated current for the type
of battery in use until it reaches 80% capacity( LEDs 50% ON ,100% blinking)
Stage 3:Absorption,the output voltage is limited to 7.3V(6V battery) or 14.5V(12V battery) while current declines as the battery charges to its full capacity without overheating( LEDs 50% ON ,100% blinking)
Stage 4:Float,At this stage,the battery is fully charged and the charger maintains the battery through pulse charging( LEDs 50% ON ,100% ON)
CE,Rohs approved
Warning:
1,This charger is designed for charging AGM,GEL,Flooded(Wet),Calium
type deep cycle,VRLA maintenance free lead acid batteries from 5 to
40Ah,Do not use for any other purpose
2,Since batteries may emit explosive gases,always provide good
ventilation and avoid any source of flames or sparks when charging.
3,To reduce risk of damage to electric plug and cord,pull by the
plug rather than by the cord when disconnecting charger.
4,Use of an improper extension cord could result in a risk of fire
and electric shock
5,Do not operate charger if you notice any signs of damage to charger or
cords
6.Do not disassemble the charger;take it to a qualified serviceman when
service of repair is required.in correct reassembly may result in a risk of
electrical shock or fire.
7.To reduce risk of electric shock,unplug charger from AC outlet before
attempting any maintenance or cleaning

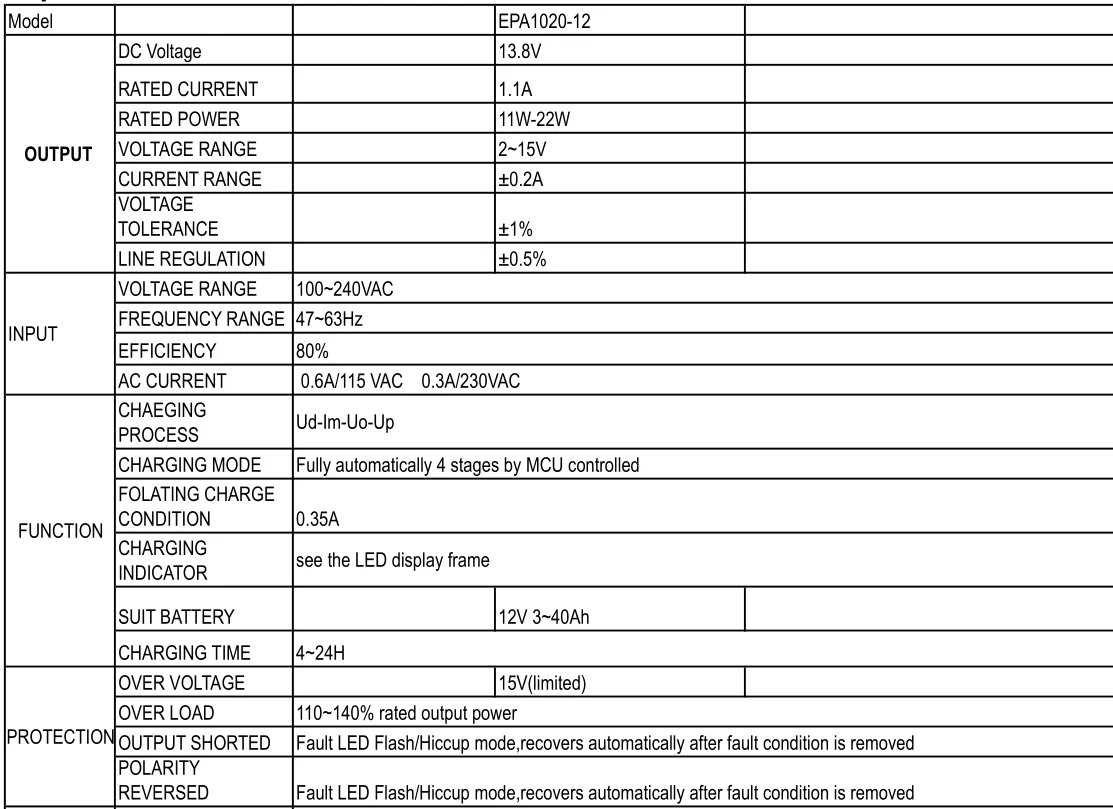

Specification
Certifications
Company Profile
About US:
Shenzhen Everpower electronics co., ltd , established in 2009, with more than 10 years research&development,production and sales experience ,is a professional manufacturer of all smart battery charger, car motorcycle battery charger, EV battery charger, power converter.We are located in Shenzhen, China, with over 150 staff, more than 10 people R&D team.Everpower integrated product research, development and production as a whole,support customize products order. Our battery charger are mainly exported to Europe and America, export more than 500, 000 pieces per year , hot selling in Amazon, Ebay, Wish, Ali-express,etc.We attained ISO9001 quality management certification, and most of product passed have passed global quality certifications including UL, ETL, GS, CB, FCC, CE, SAA, PSE international safety certification.
We focus on professional technology, high quality products, service with heart, do well-known brands in the smart charger industry, regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers all around the world for mutual development and benefits.
Everpower charger production process
Shipping and Payment
The Service We Provide - We Take Care Of Your Order
Punctual delivery time:
• We put your order into our tight production schedule, ensure your punctual delivery time.
• Production / inspection report before your order packed
• Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
- We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We forge your complain within 48hours.
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We cooperate with customer to bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
