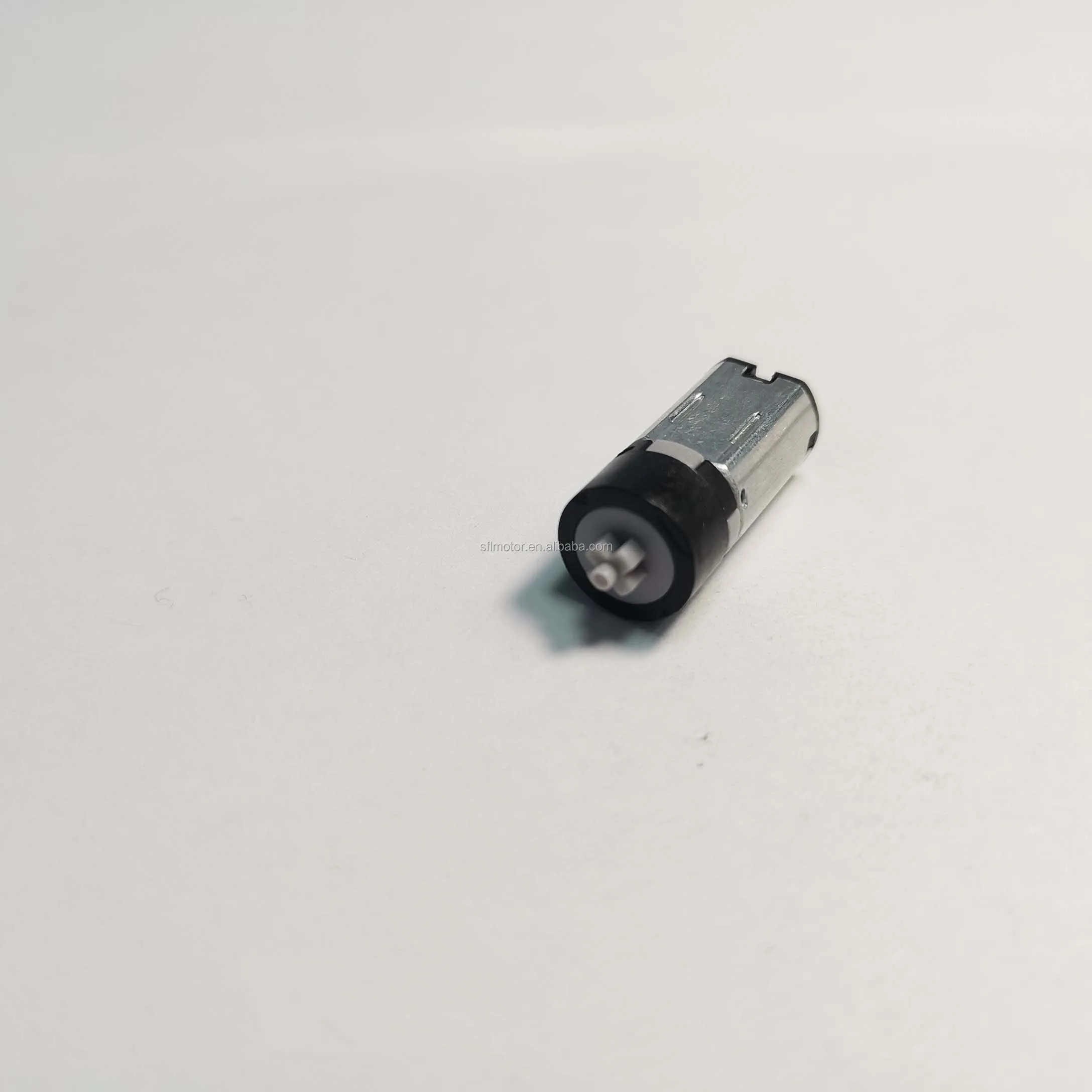

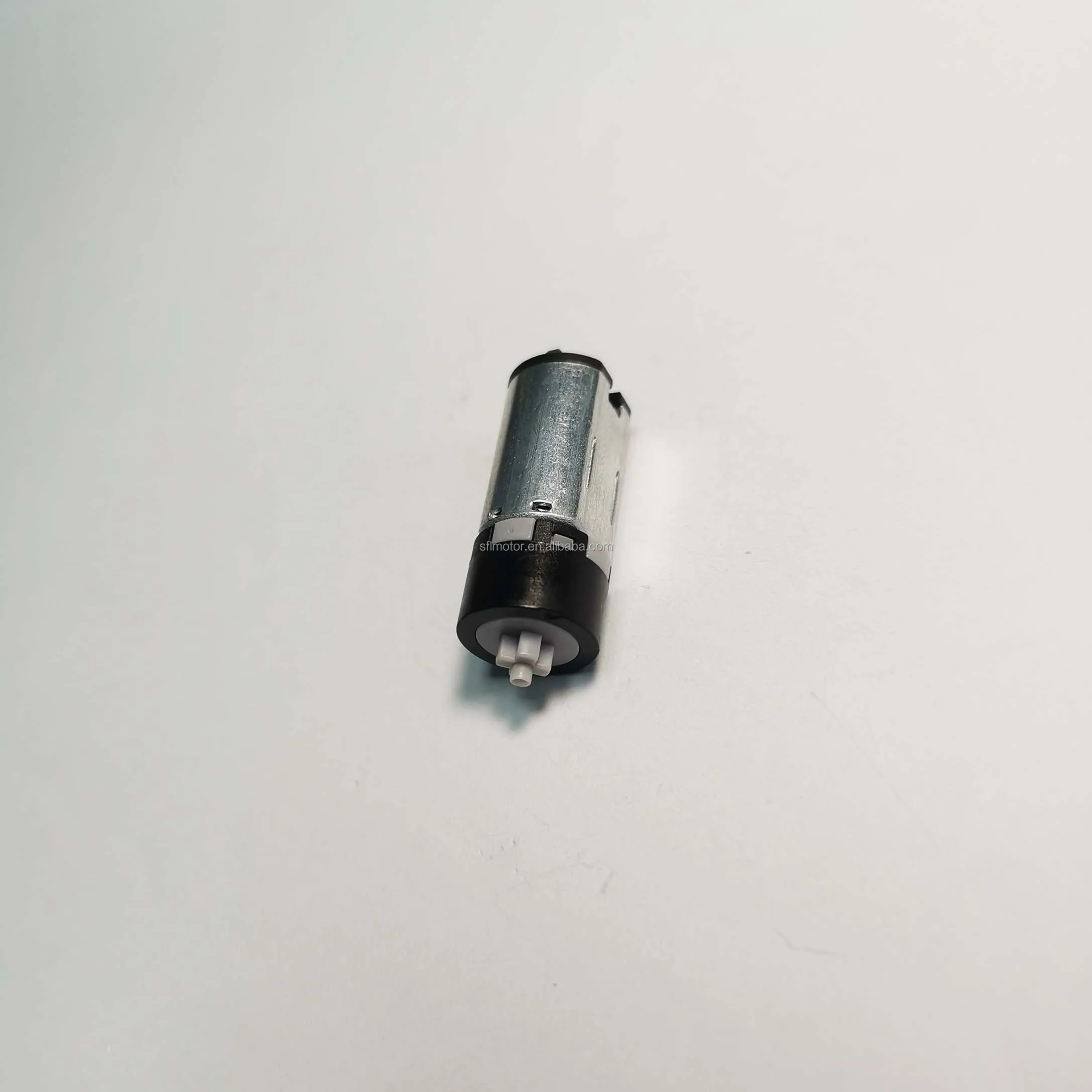

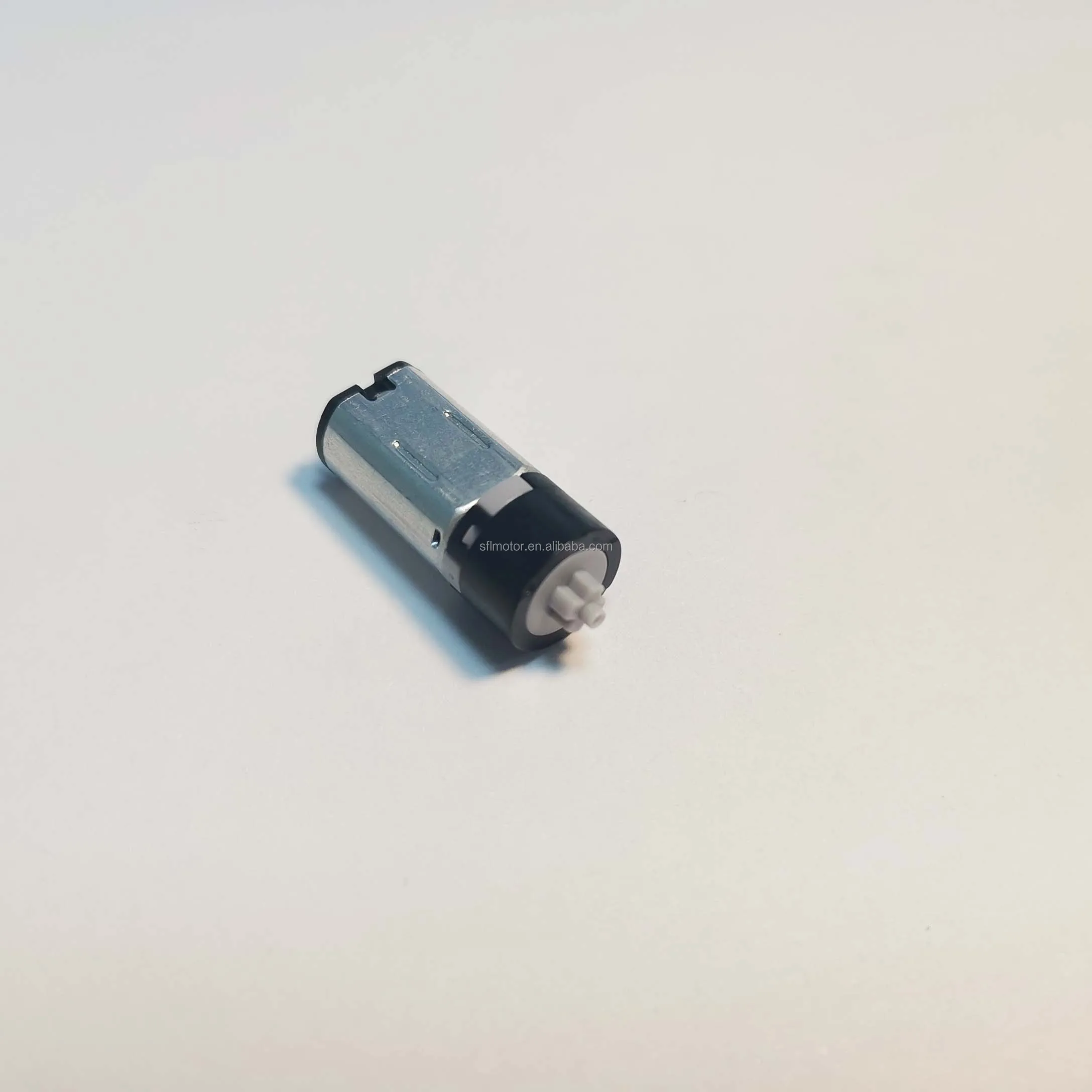

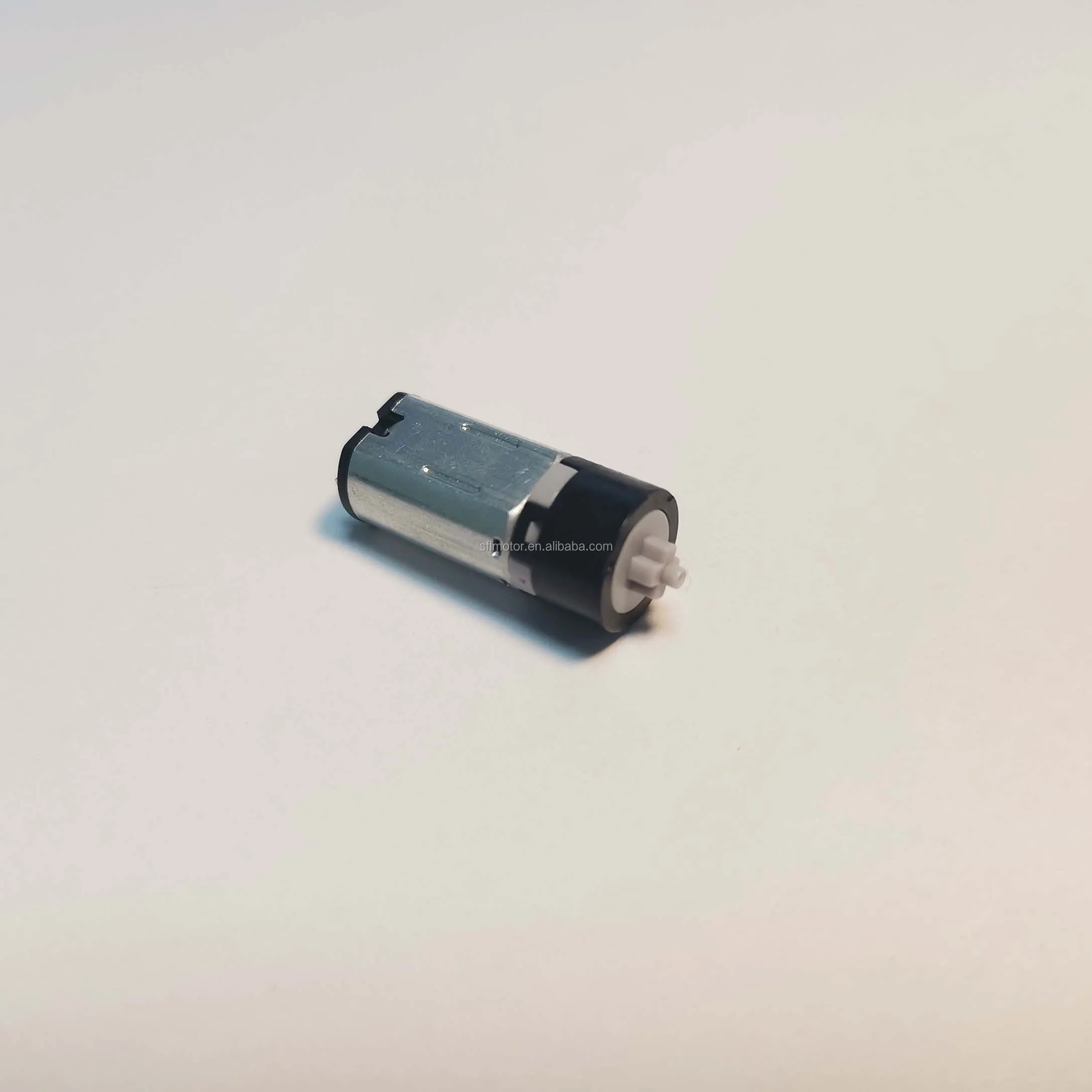

Eccentric 10mm plastic gearbox M20 micro dc planetary gear motor
- Category: >>>
- Supplier: Shenzhen Shengfulai Motor Technology Co. Ltd.
Share on (62199758948):
Product Overview
Description
Product Description
Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | r/min | mA | r/min | mA | mN.m | g.cm | w | mN.m | g.cm | mA | ||
| 10GR-M20VA-06250 | 2.0-4.0 | 3.0 | 50 | 35 | 38 | 65 | 6.12 | 60 | 0.1 | 20.4 | 200 | 16 |
| 10GR-M20VA-10105 | 2.0-4.5 | 3.7 | 135 | 75 | 110 | 180 | 11.22 | 110 | 0.4 | 64.28 | 630 | 92 |
| 10GR171-M10VA | 1.0-3.0 | 1.5 | 45 | 32 | 40 | 70 | 8.67 | 85 | 0.2 | 17.37 | 165 | 160 |
Remarks:Other parameters: according to customer demand for design

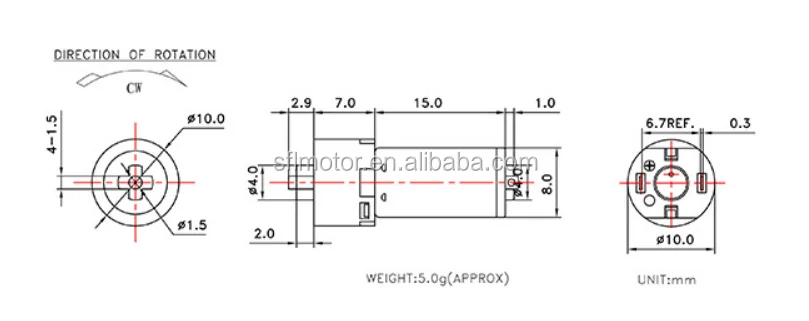

Appearance Size/ Unit: mm
Typical applications:
Company Information

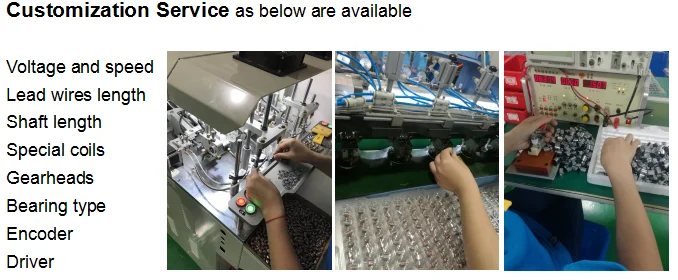

Our Services
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: The sample fee is according to the stock and cost.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
