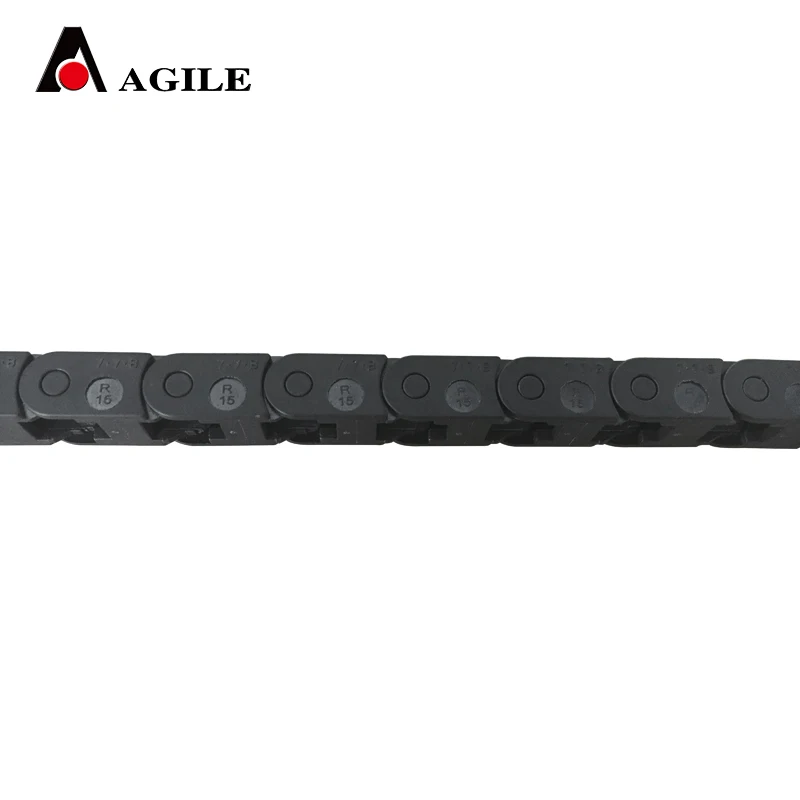

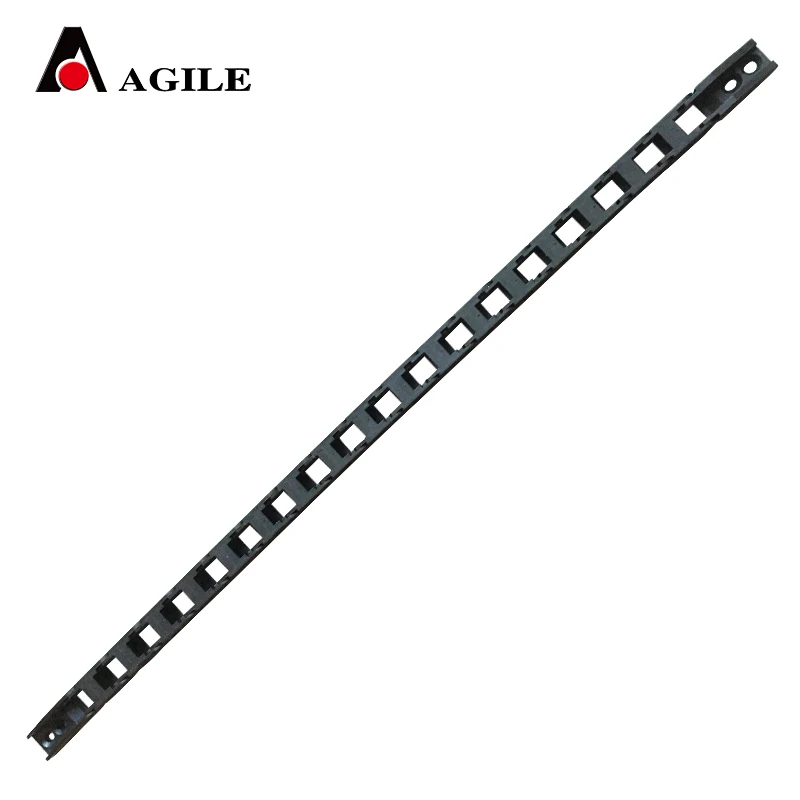

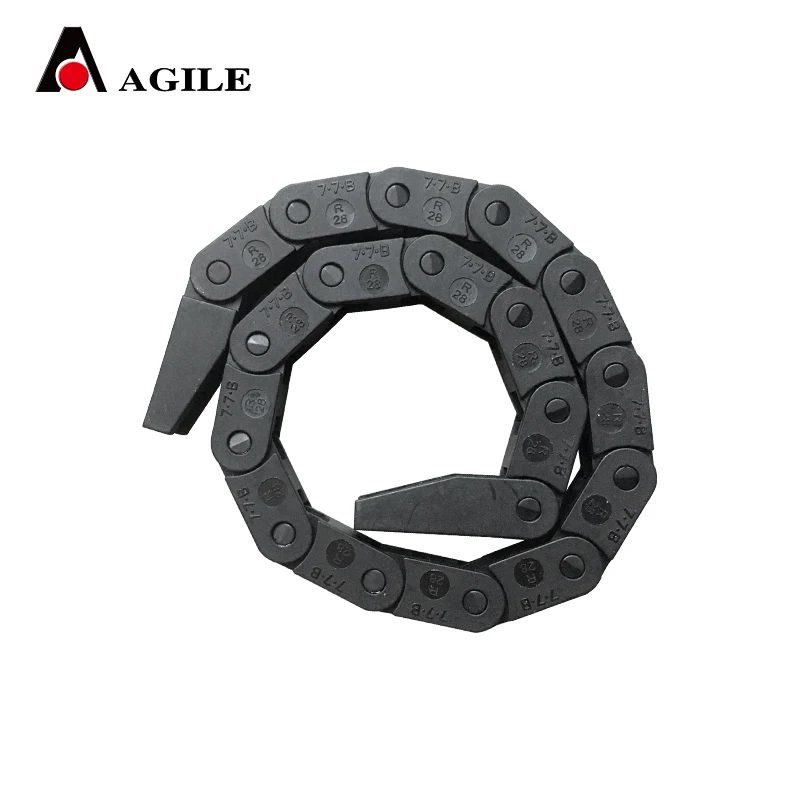

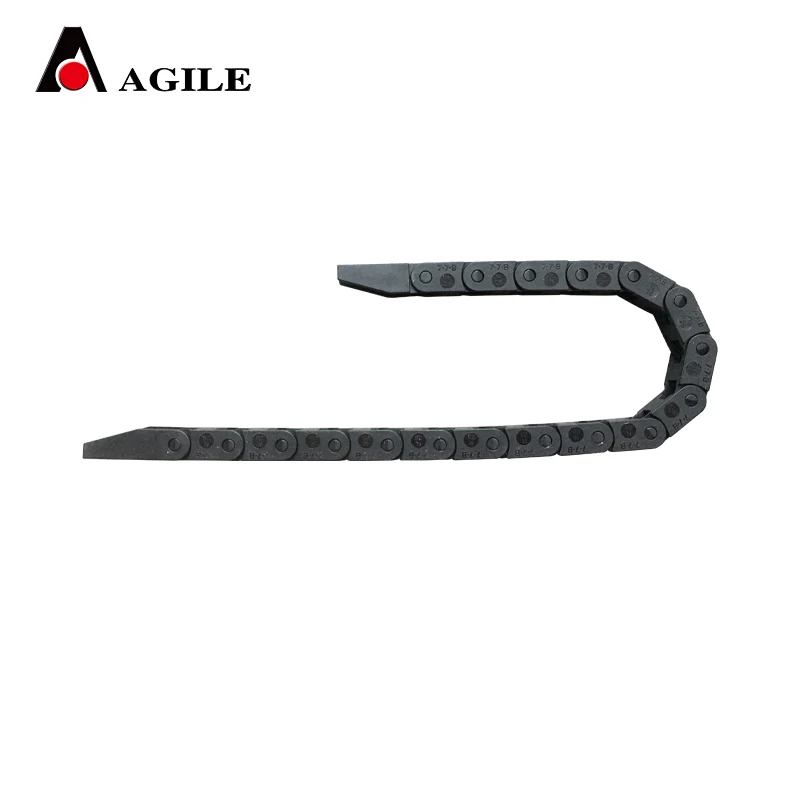

7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine
7*7 mm nylon both side bending cable chain for shoe making machine

7*7 mm nylon both side bending cable chain for shoe making machine

Share on (62199792376):


Price:

Quantity:


Product Overview

Description





1. Material: Reinforced Nylon PA6, PA66

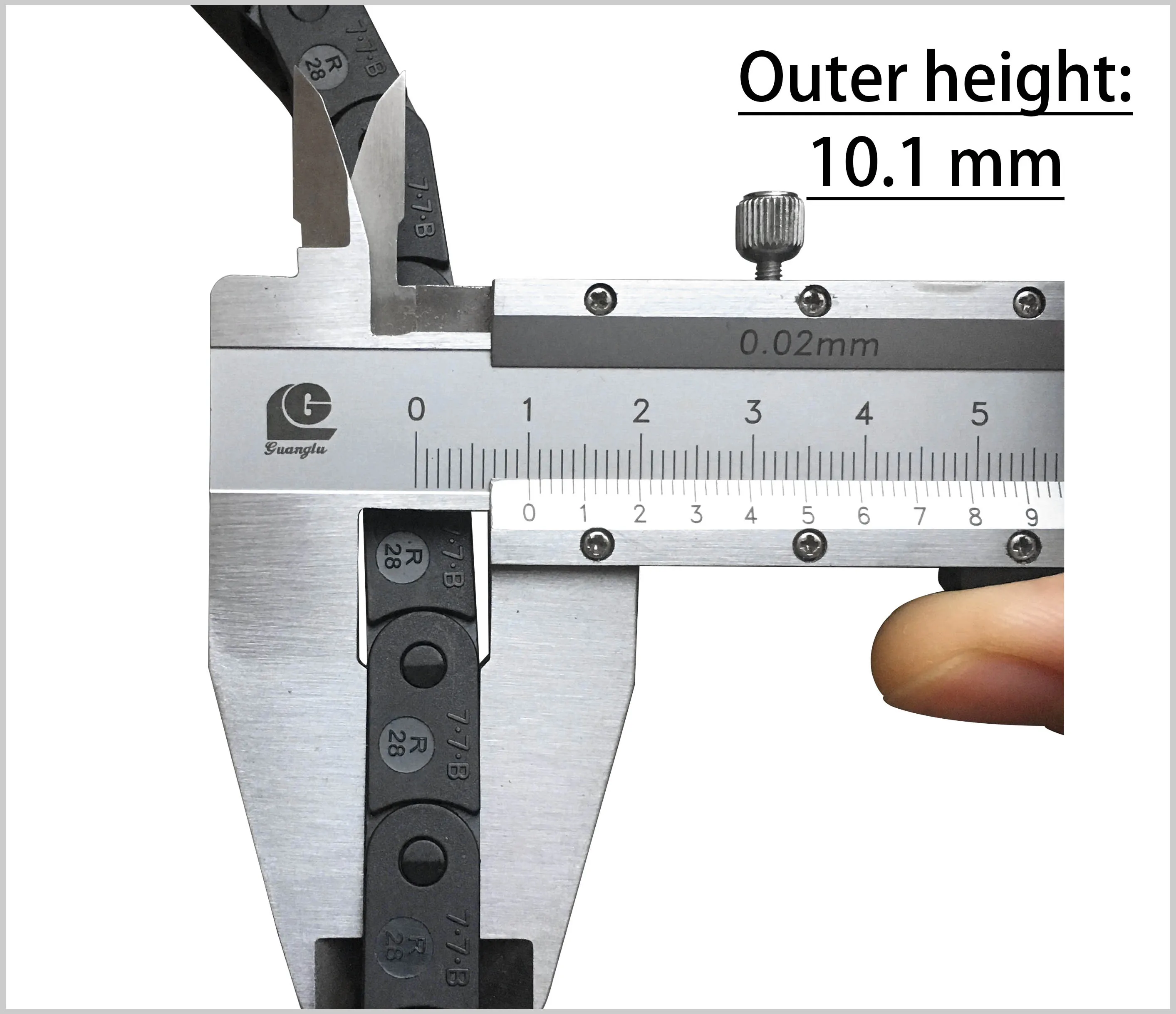

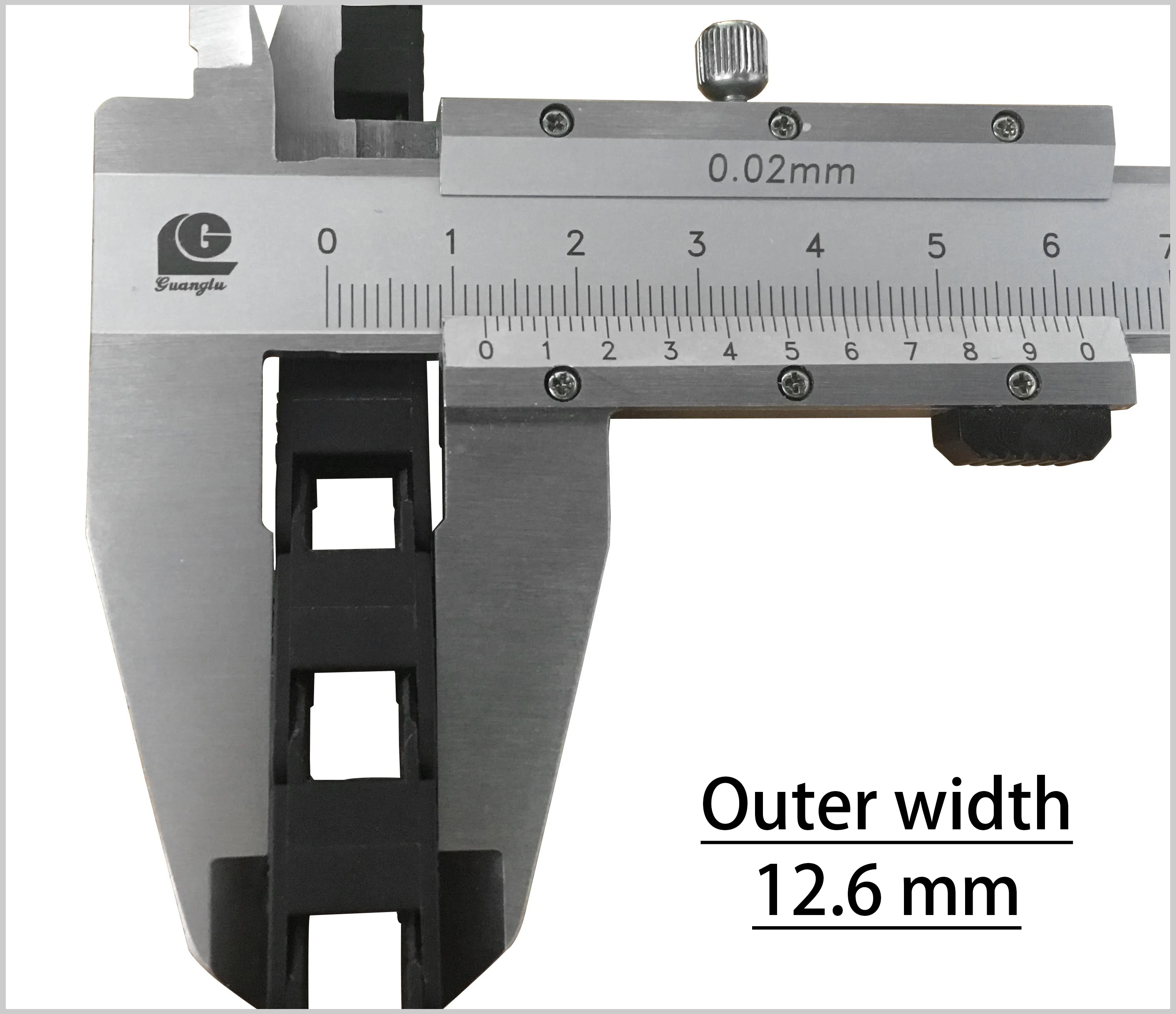

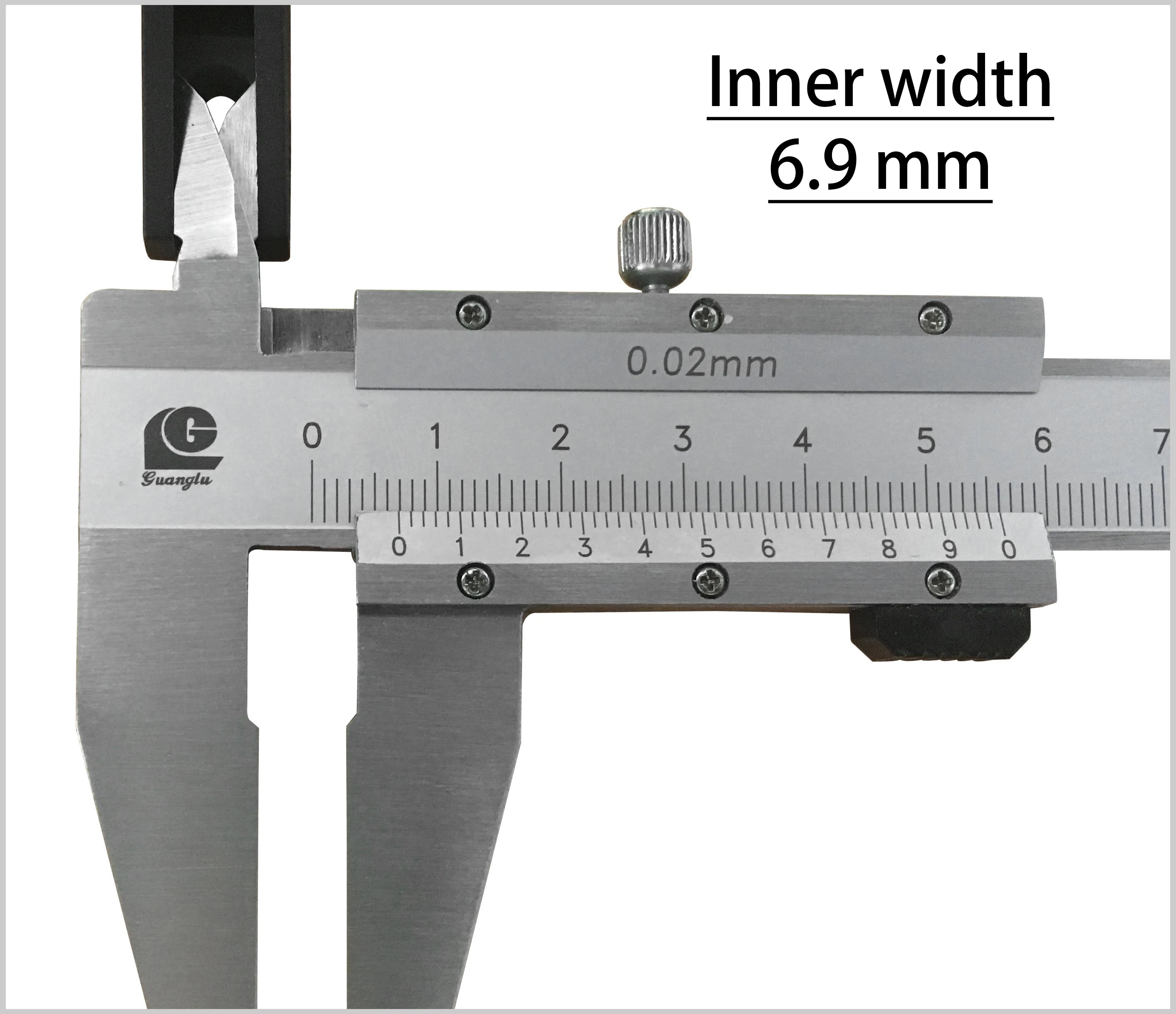

2. Size: Inner size: Height*width, 7*7 mm
3. Plenty of moulds for various sizes to choose. Also difference types, models. We can make new mould
for special requirements.
4, The raw material: Original new nylon raw material. We don't use recycling materials, which is cheap but
week in physical performance.
5, Operation and maintenance: Easy. We keep modifying and improving our moulds' structures according to
the feedback of our customers after usage. And always paying much attention to function.


Product Name
High strength nylon tank chain
Material
PA6, PA66
Color
Black
Standard
DIN GB ISO JIS BA ANSI
Working temperature
-40-130 ℃
Recommended gap
10%
Features
wearable, elastic, fire proof, self-lubricating.
Open side
None.

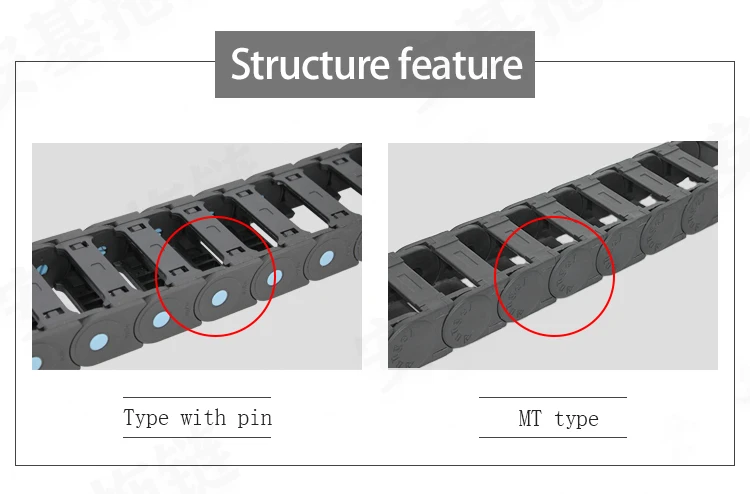

Structures








7*7 measurement






Series Dimension


TYPE
Inner dimensions Height*Width
Outter dimensions Height*Width
Radius
Pitch
Pitch/meter
Weight Kg
MT5-12
5*5
8*9
R10, R15
10
100
0.04
7*7
10*13
R15, R20
17.5
57
0.07
10*10
14*17
R28
20
50
0.13
10*15
14*22
R25
20
50
0.16
11*20
15*28
R28
20
50
0.17
10*40
13*48
R50
13.4
75
0.18
12*16
16*23
R35.5
20
50
0.19
12*43
19*50
R55
18
56
0.365
MT15
15*20 inside opening
20*29
R38
20
50
0.303
15*30 inside opening
20*39
R32
0.33
15*50
20*69
R75
0.427
MT18
18*24 inside opening
23*36
R45
33.5
30
0.4
18*36 inside opening
23*48
R38.5
33.8
30
0.435
18*50 inside opening
23*62
R37.5
30.5
33
0.55
18*25 outside opening
23*37
R43.5
30
33
0.332
18*37 outside opening
23*48
R38.5
31
33
0.373
MT30
30*38
41*61
R54.5
45.2
22
30*51
41*73
30*77
41*100
MT35
33*52
53*78
R145
46
22
33*75
53*91
33*100
53*126
33*175
53*201
MT45
45*50
63*80
R125
46
22
45*75
63*105
45*100
63*130
45*125
63*155
45*150
63*180
45*175
63*205
45*200
63*230
45*250
63*280

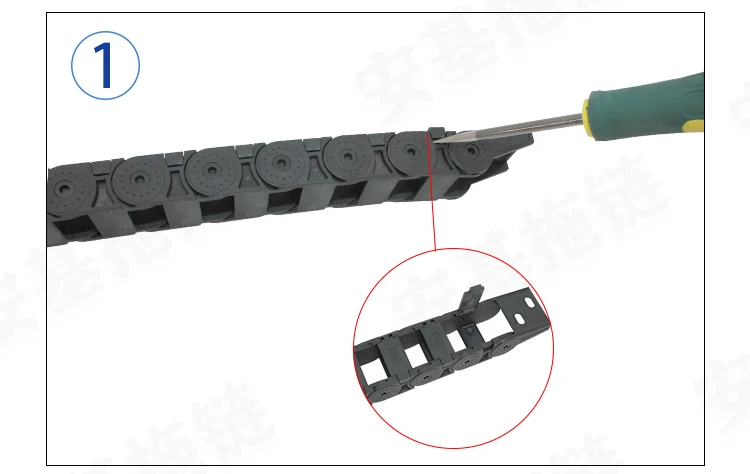

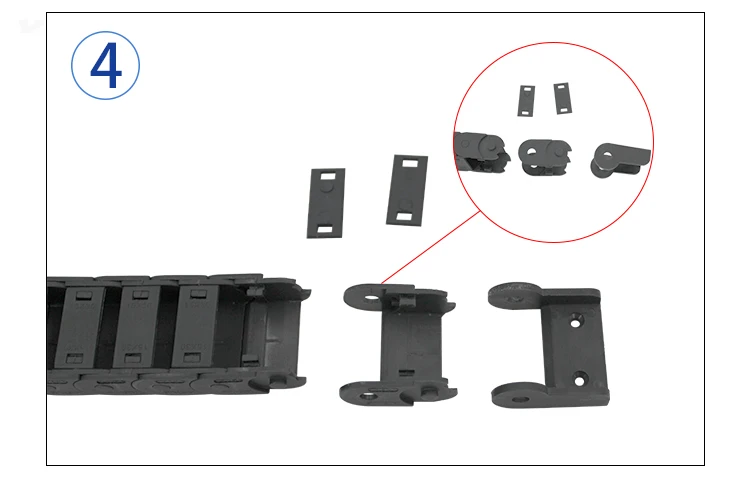

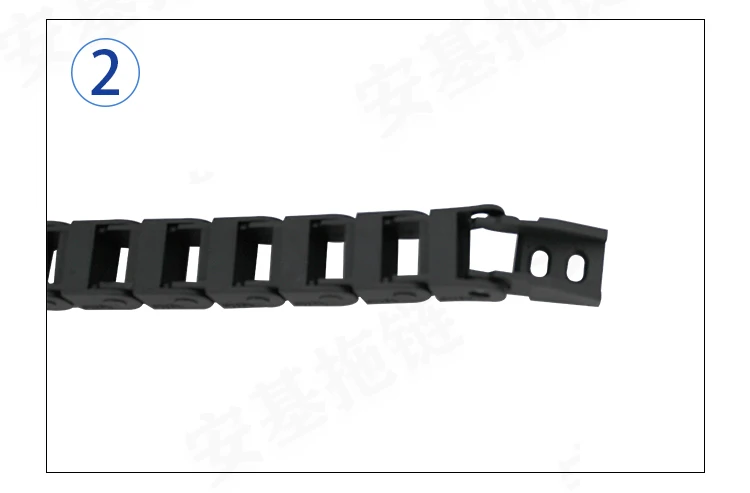

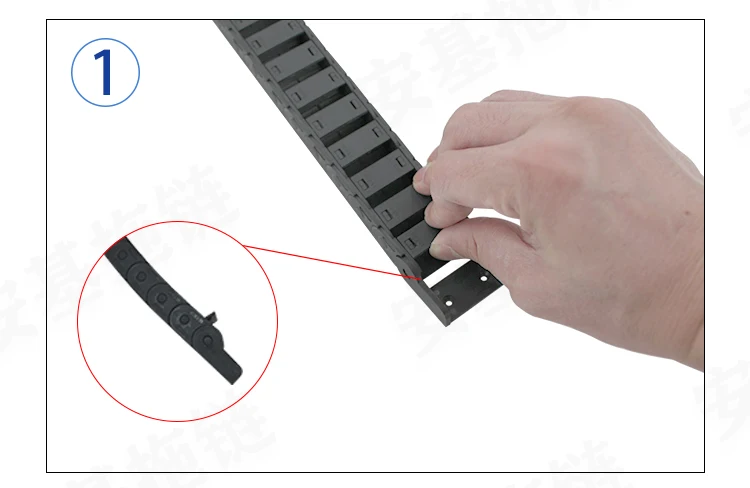

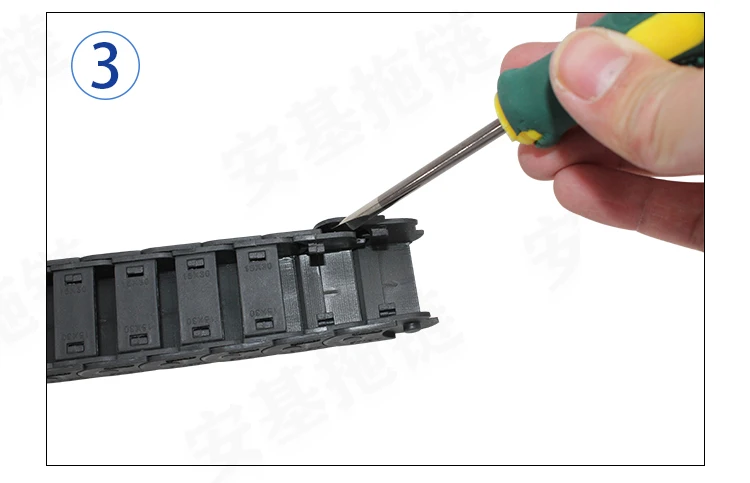

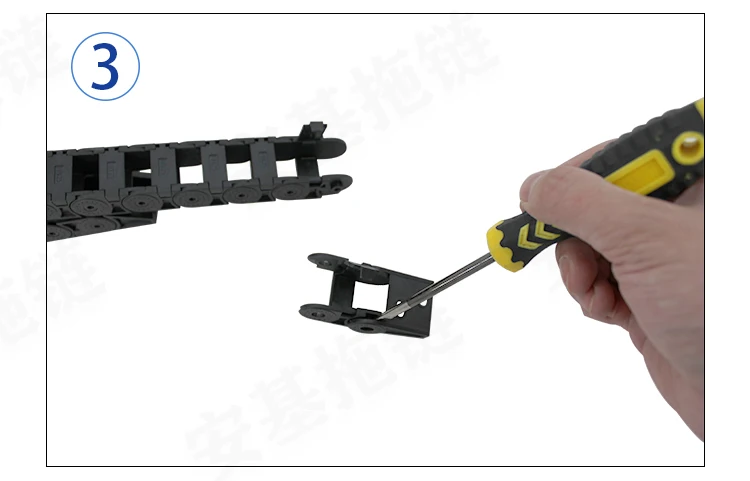

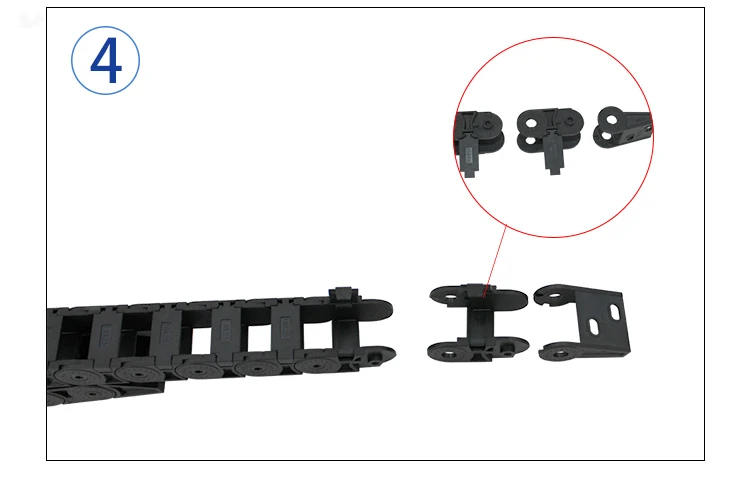

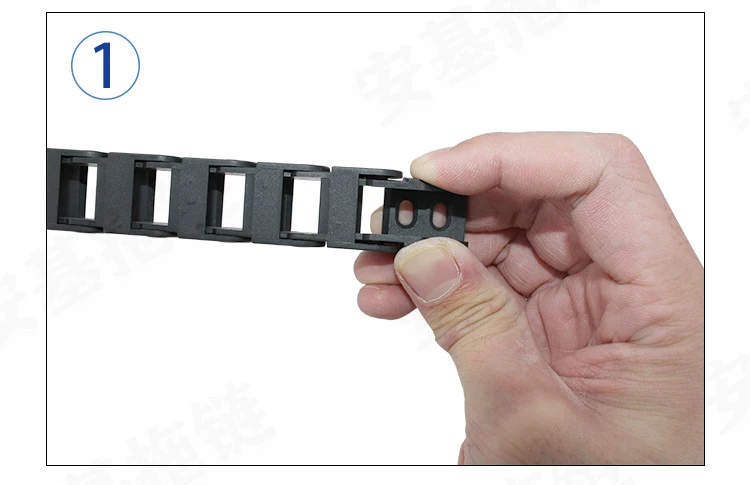

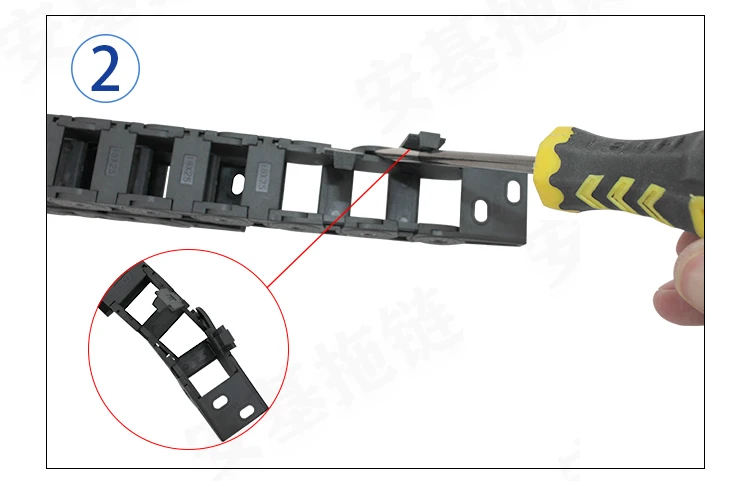

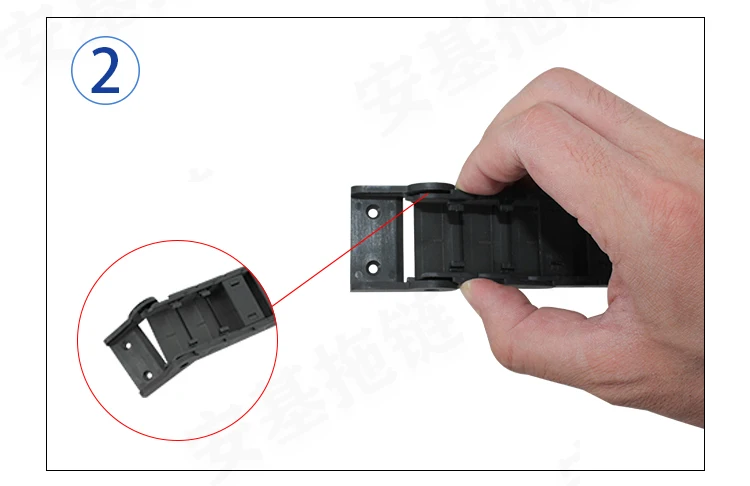

MT disassembling


BRIDGE TYPE OUTSIDE OPEN










FULLY ENCLOSED TYPE










HALF ENCLOSED INSIDE OPEN TYPE

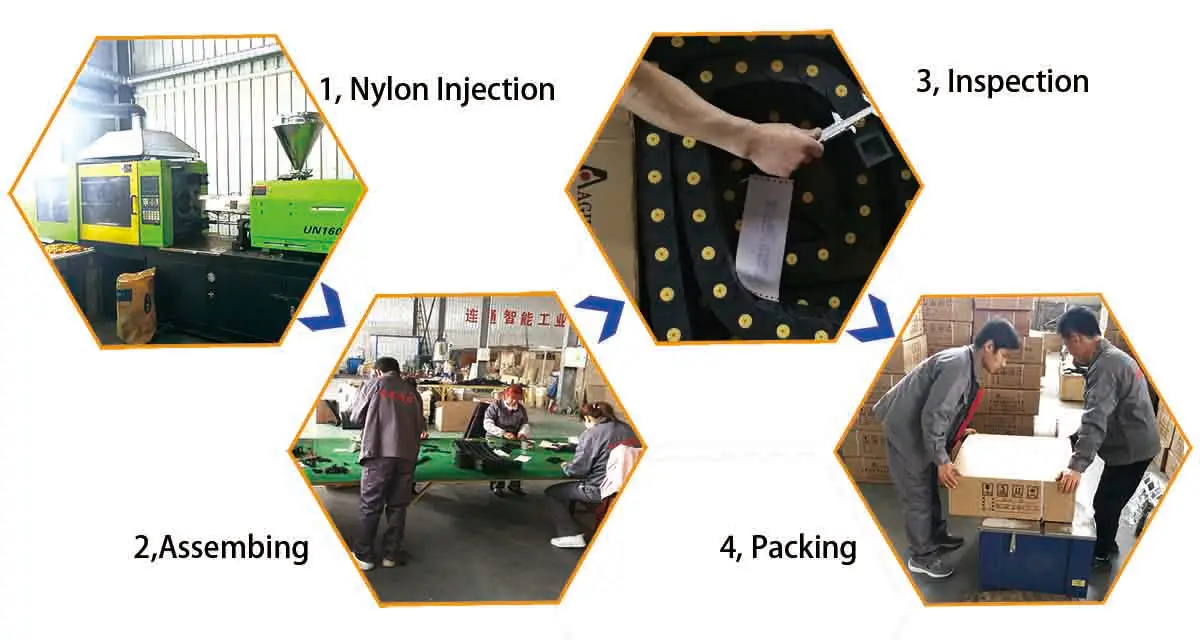

\t\t\t\t\t\t\t\t\tProduction flow \t\t\t\t\t\t\t




\t\t\t\t\t\t\t\t\tQuality Control \t\t\t\t\t\t\t




Quality control

1
Raw material control, including various kinds of test, such us DSC, flow rate, moisture content test, tensile test etc.

2
Production control. It shall follow strict orders in production, quality test in production is important.

3
Feed back. We seek feedbacks from all our users, and keep improving our quality, and correct any structure deficiency.


How to identify good products




\t\t\t\t\t\t\t\t\tCompany profile \t\t\t\t\t\t\t


Anjie electric

Shijiazhuang Anjie Electric Co., Ltd is located at Shijiazhuang city. Got about 300 square meters area as an office. We set the office in here to utilize the convenience of air shipping and easier approach of elites with higher abilities.

It is about 400 km from Beijing, there are 4 high speed train stations and 1 domestic airport. Which is very convenient for a visit.



Advanced nylon injection system.

Workshop.



Mould Storage.
