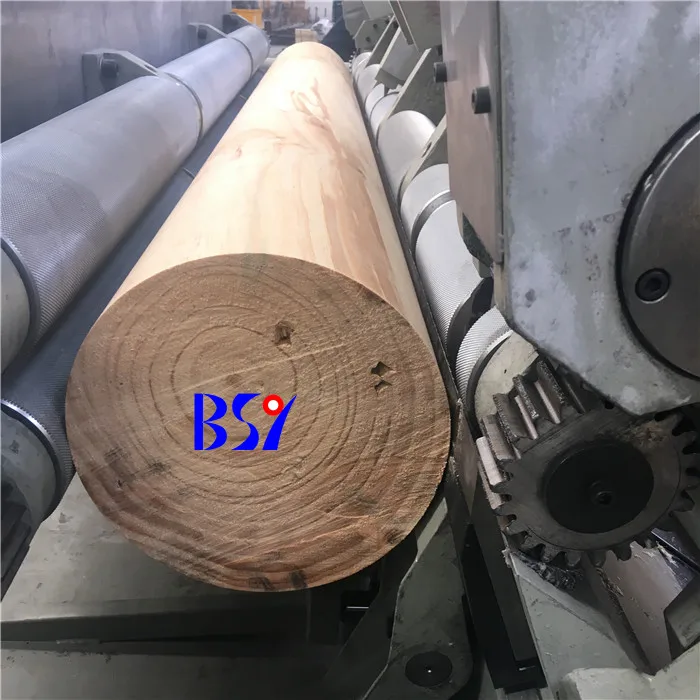

Automatic 8 feet spindless ziricote wood veneer rotary peeling lathe/ziricote veneer peeling machinery 8feet

Product Overview

Description

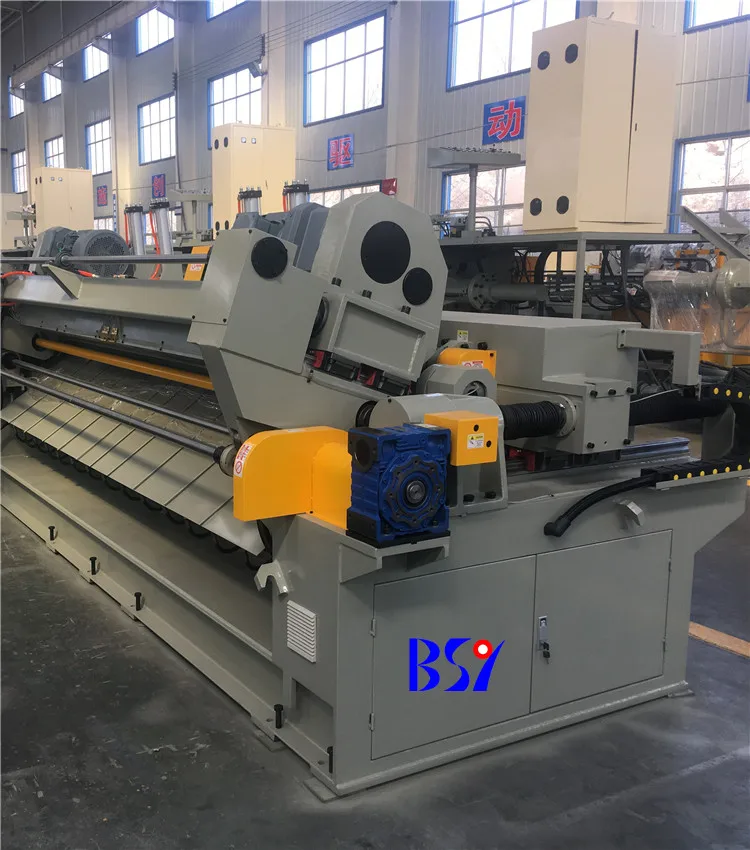

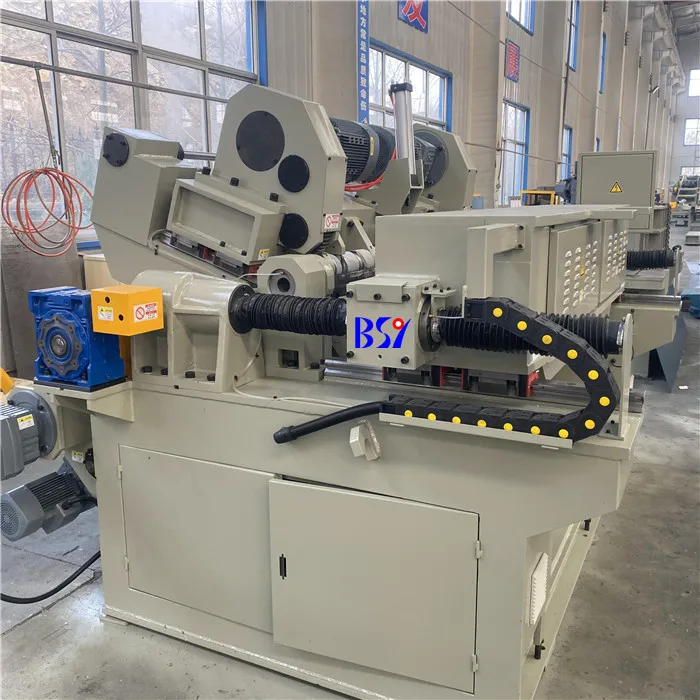

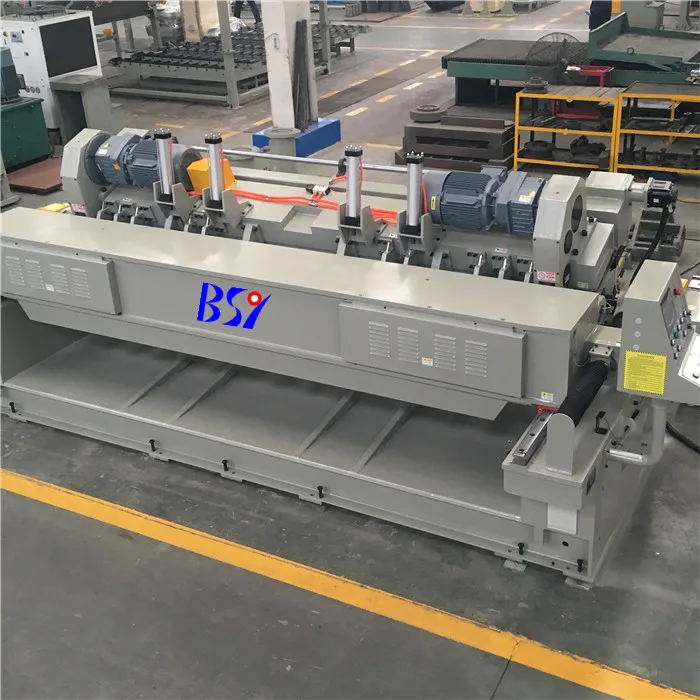

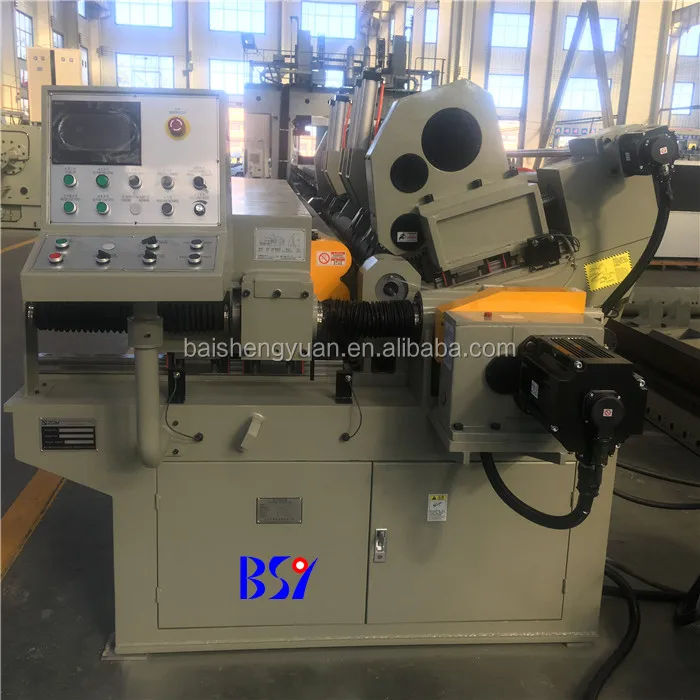

Automatic 8 feet spindless ziricote wood veneer rotary peeling lathe/ziricote veneer peeling machinery





Use:



Spindleless wood veneer peeling machine is mainly used for producing veneer from the wood (log),it’s the main machine in processing plywood.It can peel diameter less than 360mm,high efficiency,improve wood utilization



Features:

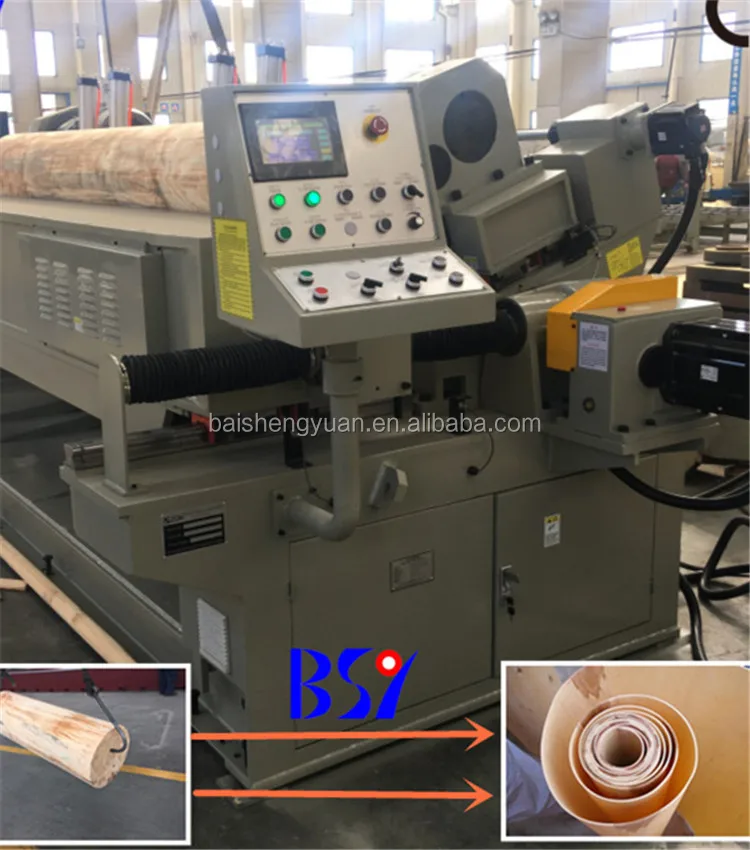

1. CNC system to control the main parts work,with good processing precision

2. Servo motor control the tool carriage ahead and back.(guaranted the veneer evenness and minimized) Brand: Mitsubishi

3. The knife assembling system is by hydraulic,with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.

4.  The transmission is gear box driving screw,the material of gear:high quality alloy.

5.  The main structure is welded by thick steel plate and do special surface dealing.

6.  With servo motor control knife-gap, the knife-gap automatic adjustment,with high precision

7. With ball screw and linear guide,with high positioning accuracy and high transmission efficiency



Main Technical Parameters:

MODEL	SL2600/5c	SL2600/5B	SL1350/5c	SL1350/5B
Max.cutting length (mm)	2600	2600	1350	1350
Max.cutting diameter (mm)	Φ 500	Φ 480	Φ 500	Φ 480
Log-core diameter (mm)	Φ 60	Φ 40	Φ 60	Φ 40
Cutting thickness (mm)	0.8 - 3.0	0.8 - 3.0	0.8 - 3.0	0.8 - 3.0
Veneer peeling speed(m/min)	30-80m/min	30-80m/min	30-80m/min	30-80m/min
Driven rollers motor Power (kw)	44kw	44kw	30kw	30kw
Feeding Servo motor power	11kw	11kw	7kw	7kw
Blade gap servo motor power	3.5kw	1.5kw	3.5kw	1.5kw
Hydraulic motor power	1.5kw	1.5kw	1.5kw	1.5kw
Total motor power	60kw	58kw	42kw	40kw
Overall dimensions (mm)	4600×2200×1900	4750×2150×1870	3350×2200×1900	3500×2150×1870
Weight (kg)	13500	11500	12000	10000kg

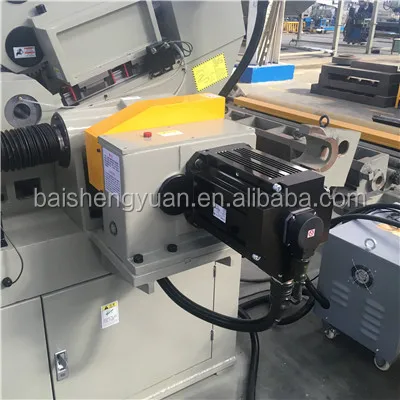

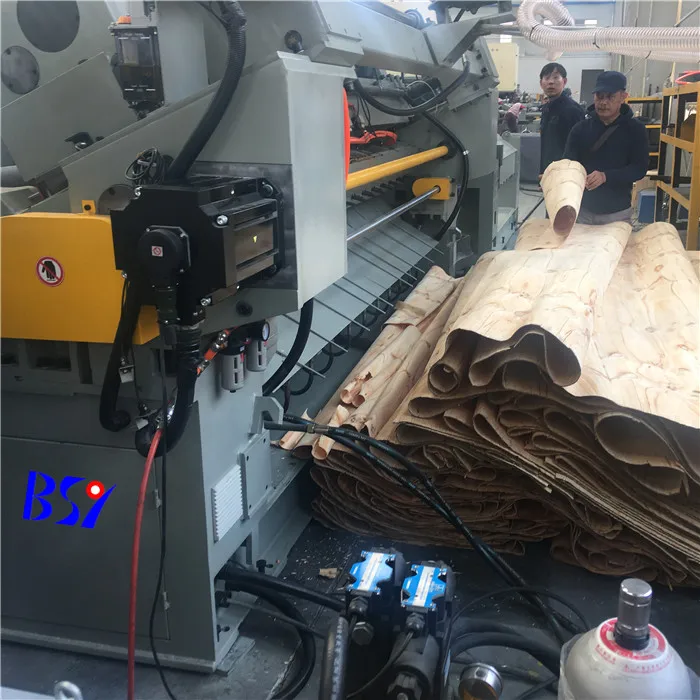

With two servo motor: One is for controlling knife-carriage(guaranteed the veneer evenness and minimized). The other control system is for blade shaft,confirm cutting with high precision
The knife assembling by hydraulic system,with hydraulic system for knife installation which makes easy to change knife when need to grind and save time.





Other plywood machinery you maybe interested in:

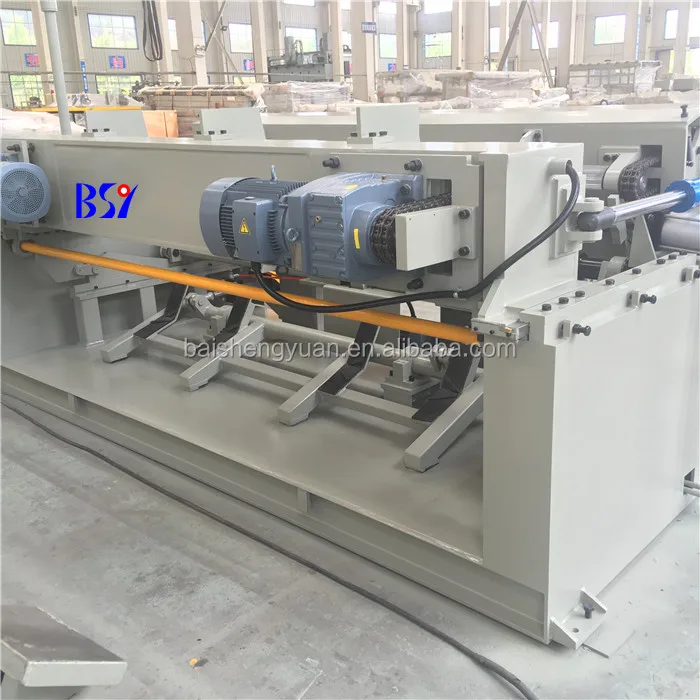

log debarking and rounding machine

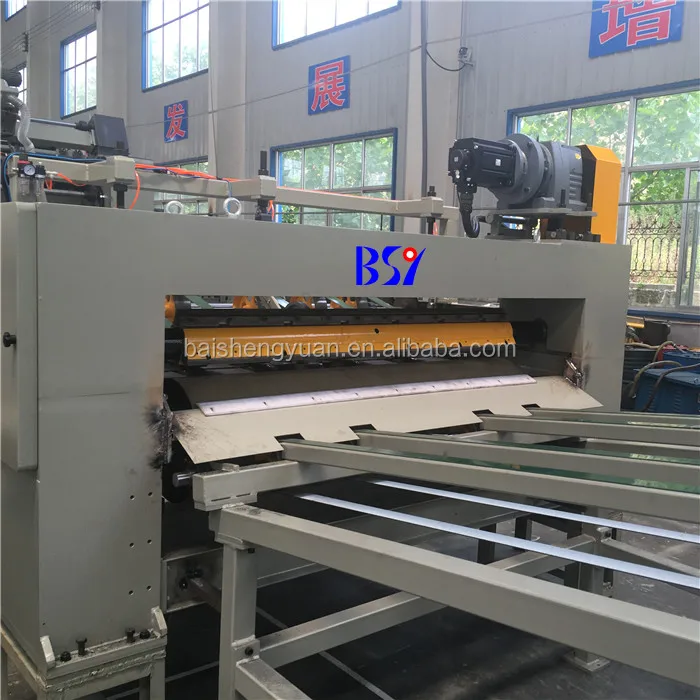

automatic veneer clipper machine
