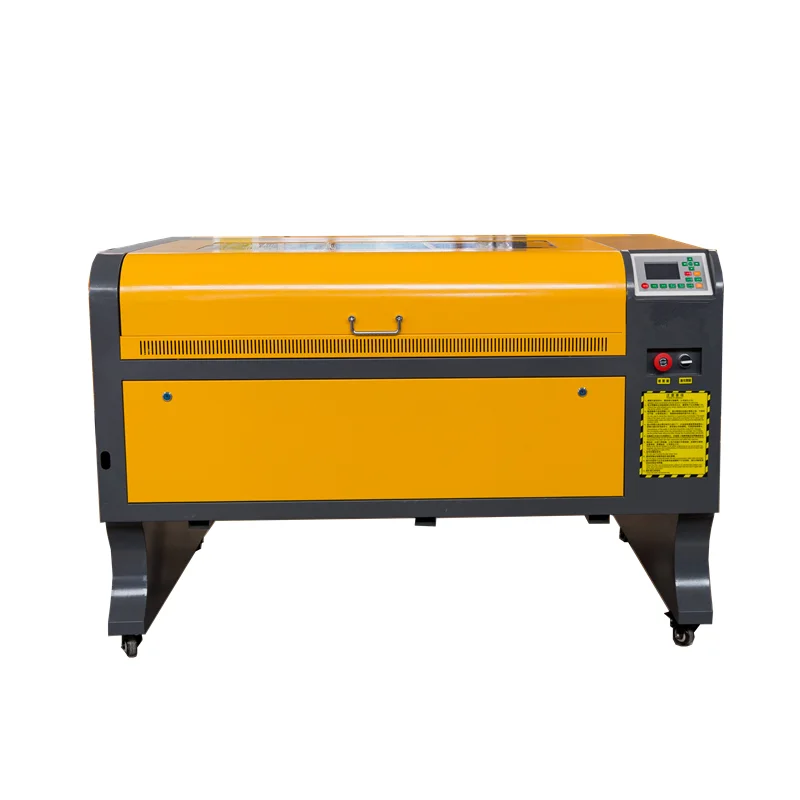

Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed
Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed

Liaocheng factory discount price 9060 acrylic laser cutting machines working table 900x600mm high speed

Share on (62199929211):


Price:RUB 91,933.92 - RUB 200,368.80

Quantity:


Product Overview

Description

Product Description

Product Application

Laser engraving machine is used for engraving and cutting on non-metal material. It is widely used on engraving or cutting on acrylic wood rubber glass PVC MDF leather etc.

SPECIFICATIONS FOR 6090 laser engraving machine

Basic performance parameters
working area
mm
900*600
laser power
W
60/80/100/130/150
laser type
/
sealed CO2 laser tube

Main performance parameters
cutting speed
mm/s
0-50
engraving speed
mm/s
0-500
cutting thickness
mm
0-20

Hydraulic system
engraving thickness
mm
0-2
Location precision
mm
<=0.01
lift range
mm
0-250

Main Features

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface
3. Air Assist, Remove heat and combustible gases from the cutting surface.
18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier intall, Safer transport.
40W exhaust fan, flow can be 5.27m³\Min.
5. Rotary Axis, Engrave any cylindrical object.

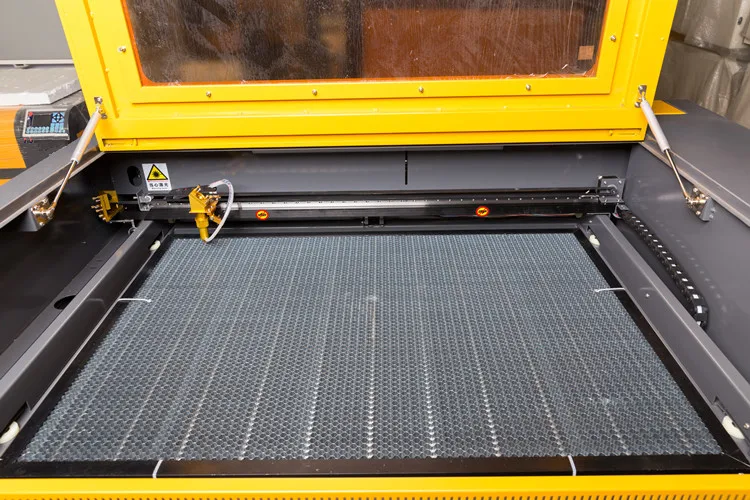

6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System.
15W Water Pump, flow can be 7.5L/H.

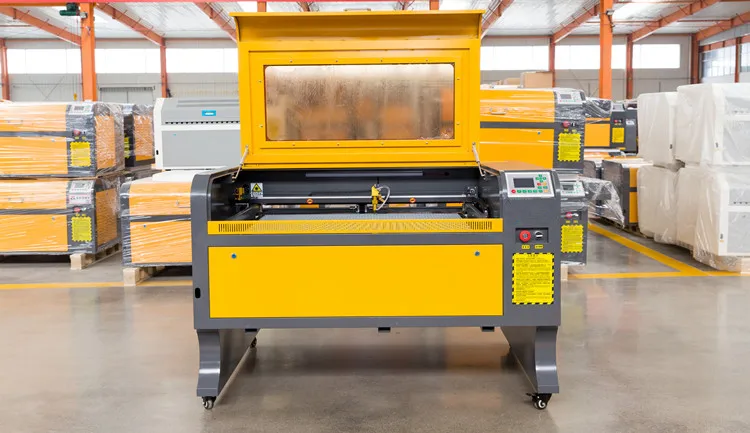

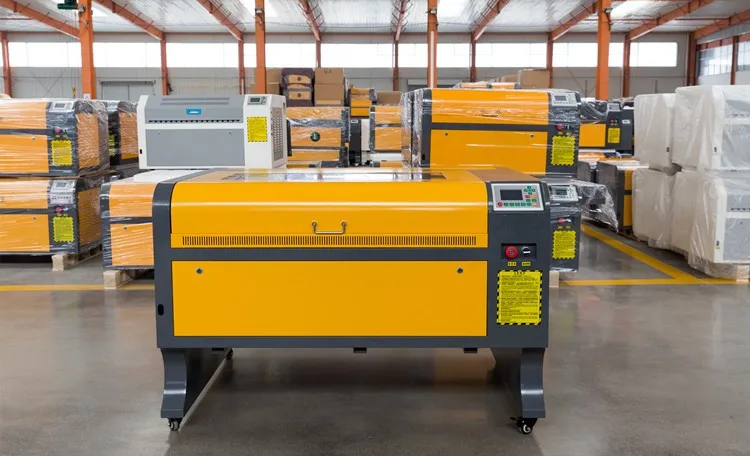

Detailed Images

Machine Parts

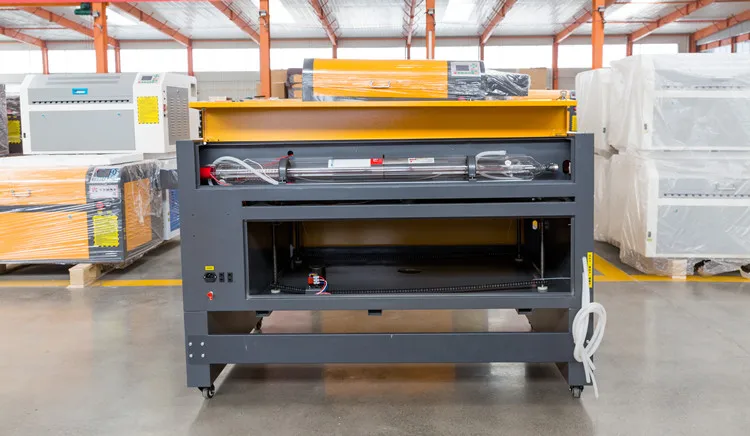

Name: sealed co2 laser tube

Brand:reci, EFR

World famous laser tube,

strong light beam,

long life span,

low fuel consumption.

Main Parts

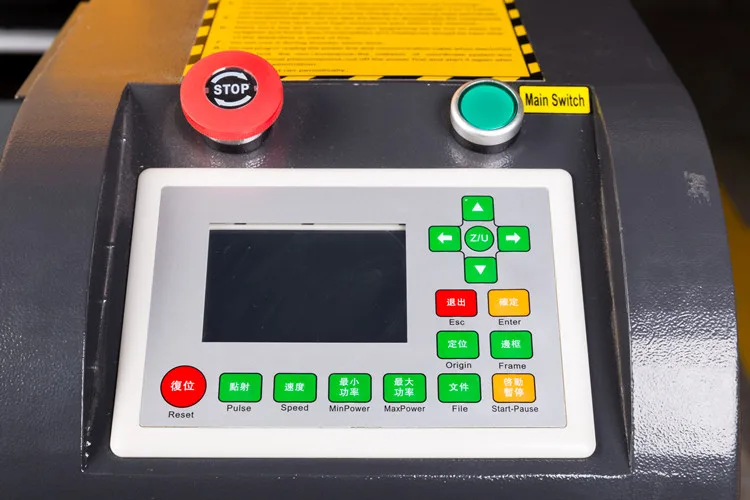

Name: ruida panel
Brand: ruida
Original: China

offline systerm, continue caving when power off,
stable performance, high speed transmission,
visualize working process, dynamic display track,
modify layer parameters online,
support mutliple language,
support coreldaw, Al and CAD software.

Machine Parts

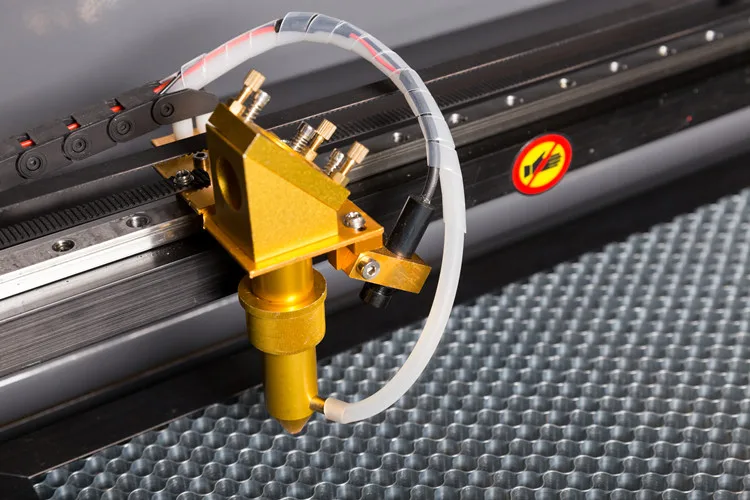

Name: industrial laser head
industrial laser head ,

long life span.

airblow protection system

red light positioning

Main Parts

Name: linear guide
Brand: taiwan imported
Taiwan imported
High positioning accuracy ,long life span.
reinforcement structure ,fast speed and low noise.
rust prevention,small friction and running smoothly.
high precision 3m belt, the error close to zero.


Our Service
Certifications
Packing & Delivery
Packaging
Size
1500 (L) * 1040 (W) * 1040 (H)
Weight
180kg



Packaging Details



The normal package is plywood box(Size: L*W*H).  or according to customers special request.
