| Model | JS500 |
| Discharge Capacity | 500L |
| Feeding Capacity | 800L |
| Product Capacity | ≤25m3/h |
| Aggregate Size(Pebble/ Gravel) | 60mm/60mm |
| Mixing Blade Speed | 35r/min |
| Mixing Motor Power | 18.5kw |
| Lifting Power | 5.5kw |
| Overall Size | 3050mm*2180mm*2680mm |
| Discharge Height | 2000mm/3800mm |
| Product Keywords | heated concrete mixer,harga mixer beton 1m3,gasoline cement mixer |

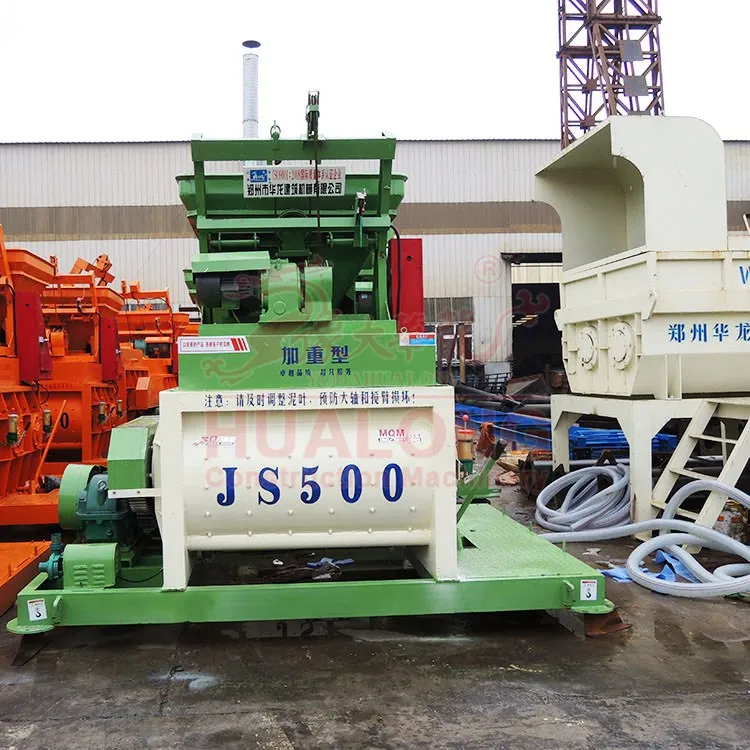

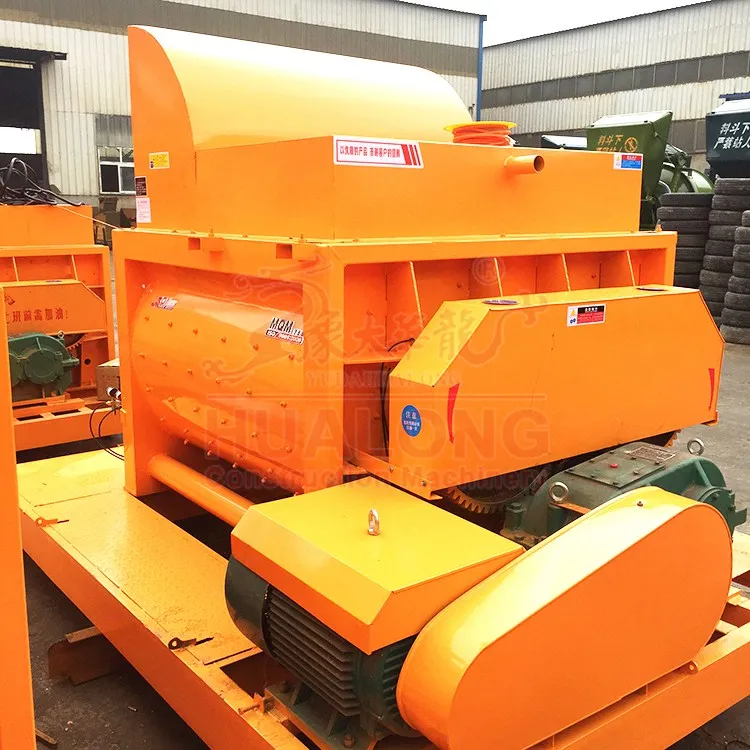

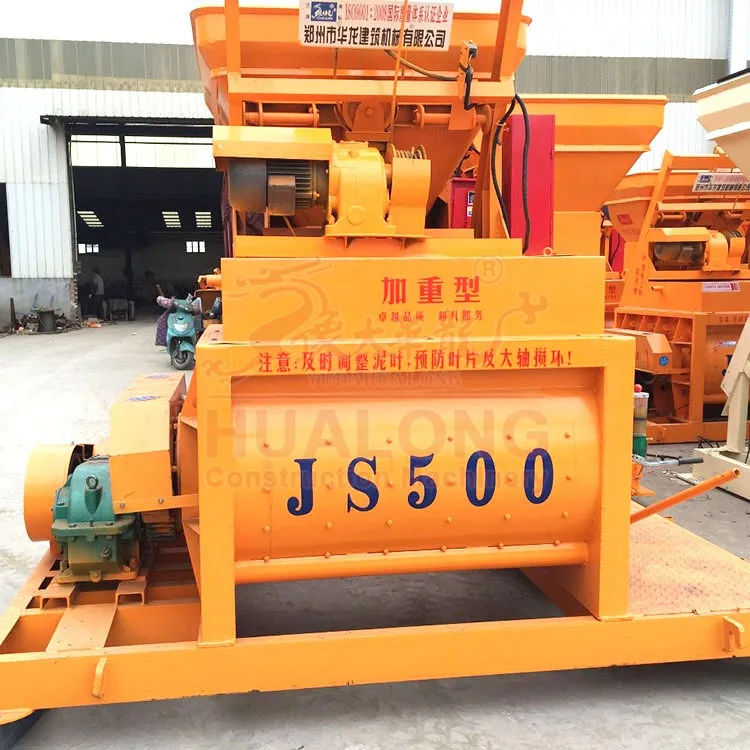

JS500 Twin Shaft Concrete Mixer
JS500 concrete mixer is compulsory double-shafts concrete mixer, which is composed of feeding system, discharging system, water supply system and electrical system and mainly used to produce commodity concrete, such as hard concrete, plastic concrete, fluid concrete, various mortars, etc. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine. It has reasonable instructure,high production efficiency,drive, reposefully and low noise .

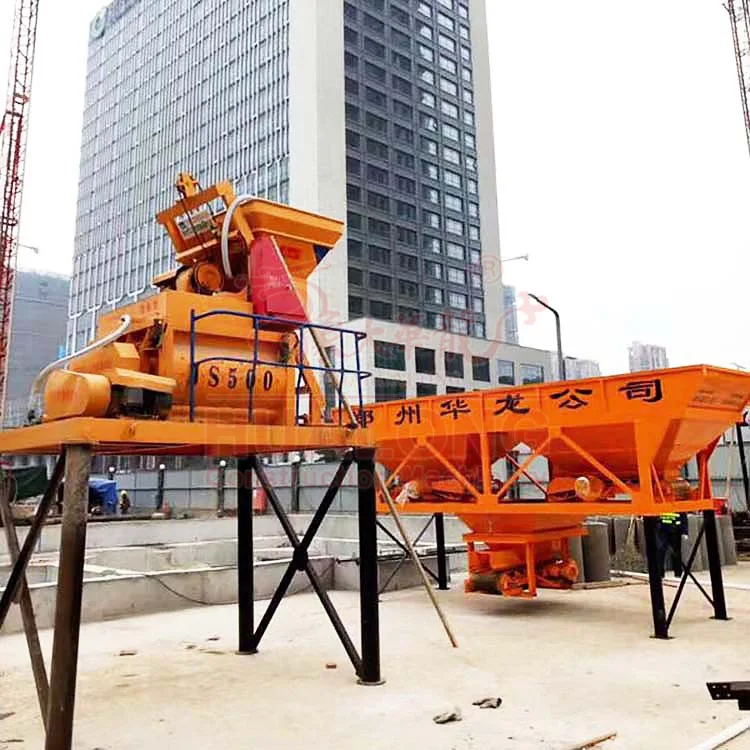

This product is twin-horizontal shaft forcing type concrete mixer with 500 Liter mixing capacity, it is the main machine of HZS25 concrete batching plant and it can be used as a simple type mixing plant combined with PLD800 concrete batching machine.
As a Twin-horizontal-shaft forced type concrete mixer, the JS series concrete mixer has been provided with double superiorities, that is single-independent work and combinatorial function with PL series burden machine, also provide the matching engine for mixing plant, it applies to all kinds of large, middle and small scale prefabricated-component factory as well as industry and civil construction like highway railway bridge irrigation jetty and so on.
