packing equipment for cosmetic eye patches from Guangzhou weidong

Product Overview

Description

Product description :



Application:

Suitable for one-time filling, filling and other different shapes of Alu/PVC, paper /Alu, Alu /Alu, Alu /Alu, Alu /Alu.



Product introductions:

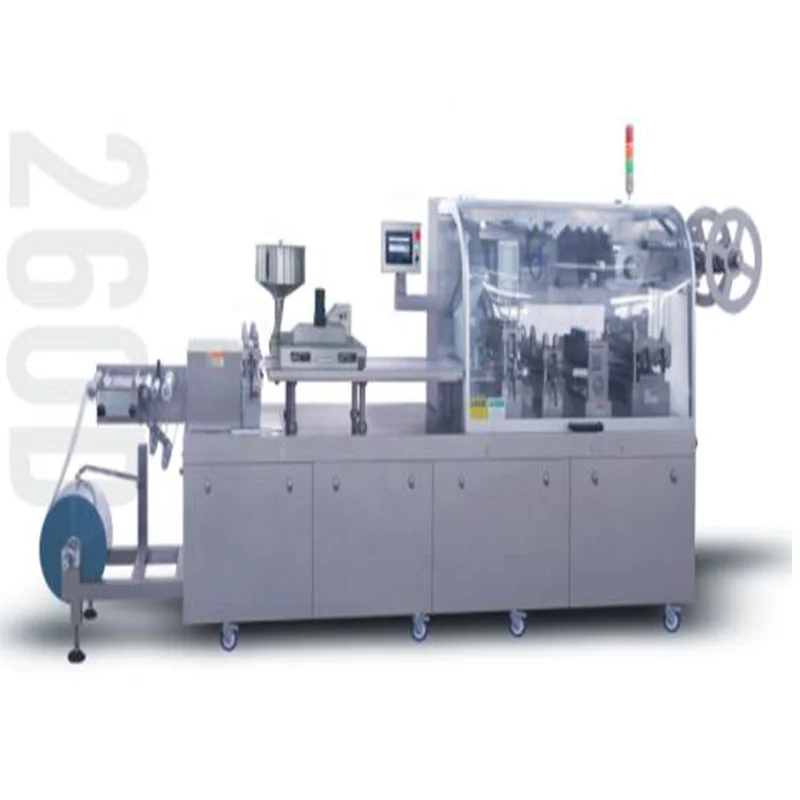

The machine is new innovating designed by our machine which is widely for packaging of medicine, which of function are reached to the advanced level of China. It is used for tablet, pill, honey pill, candy, liquid, paste, disposable syringe in regular and irregular shaped Alu/PVC, Alu/Alu or Paper /Alu in the field of pharmaceutical, health product, foodstuff, cosmetic , medical instrument and etc.



Product features:

1.Forming, heating sealing, batch marking, impression and cutting are with

Rack mandrel for exact and easy fixed position. it is equipped with ruler for easy correction and accuracy orientation.



2.Mechanical hand traction:  it adopts double rod of pendulum device which can increase the stroke travel range (up to 180mm). it widely is suitable for all kinds of size packaging of Plate heating, positive forming, upper and lower web plates,  heating sealing , automatic feeding, automatic impression and embossing and automatic cutting are easy and reliable operation.



3.It has Positive pressure forming and mechanical punch for uniformity and perfect forming. It is a machine with wide range of application for packaging.



4.The main drive shaft adopts parallel axis bevel gear reducer, forming, heating sealing, impression and etc. which of mould are adopting pill for tightly and accuracy position-setting, easier to change an save packing material.

5.The body of machine can be produced under the split production for easier moving into the working room.



Note:

Optional Equipped with Photocell detecting device

Optional Equipped with Acylic glass cover

Optional Equipped with ink jet coding device



Technical Specifications:

Punches Frequency:   6-60times/min

Production capacity:  4*40pcs/min,  9600  1s/h

Max. Forming area and depth : 260x180x26mm

Stroke travel range: 40-180mm( can be designed for length over to 180mm as per user’s required)

Standard plate size: 80x57mm( designed as per user’s requirement)

Air pressure: 0.4-0.6Mpa

Air compressed required: ≥0.3m3/min

Total power supply: 380V/220V 50Hz 6.2kw

Main motor: 1.5KW

PVC hard film: 0.25-0.5×260 mm

PTP Aluminum film

Dialysis paper: 50-100g×250mm

Mould cooling: Tap water or recycling water

Overall dimension: 3000×730×1600mm(L×W×H)

Weight: 1400kg
