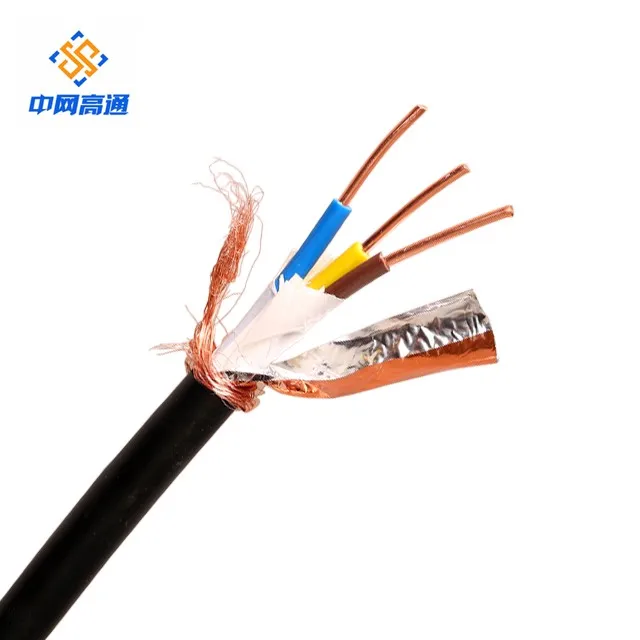

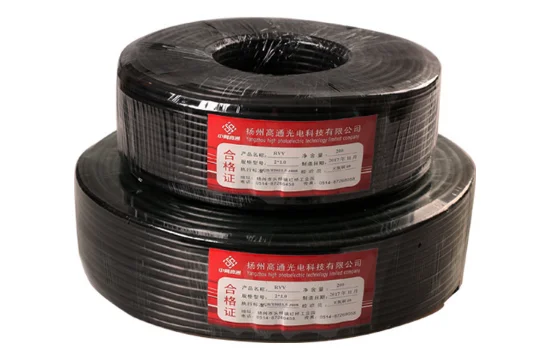

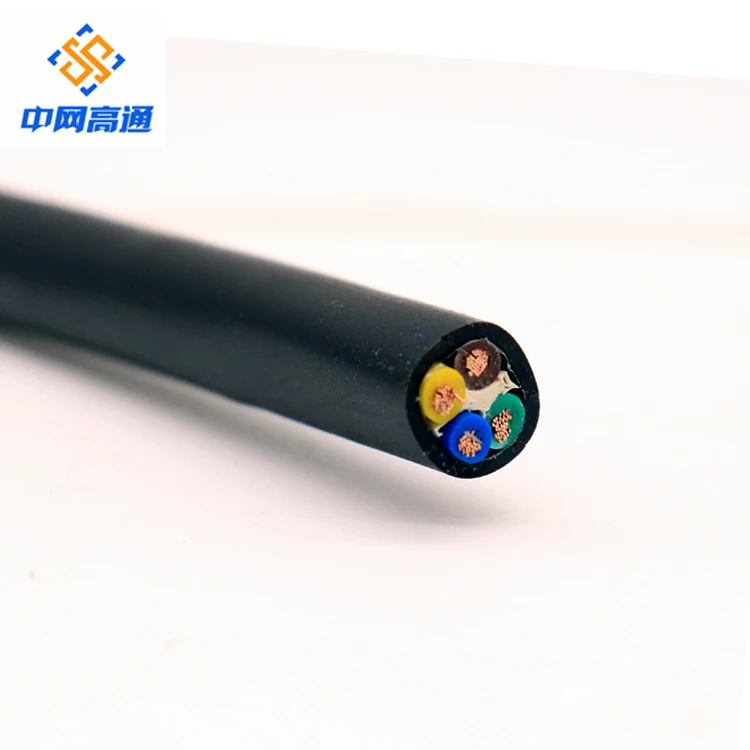

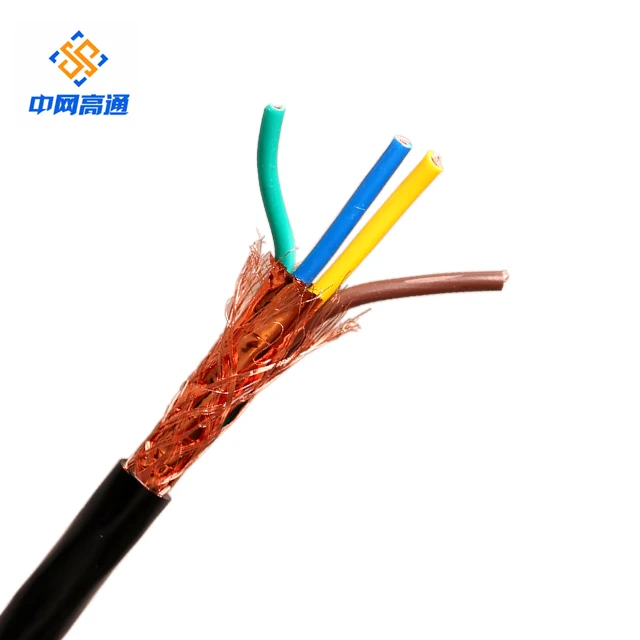

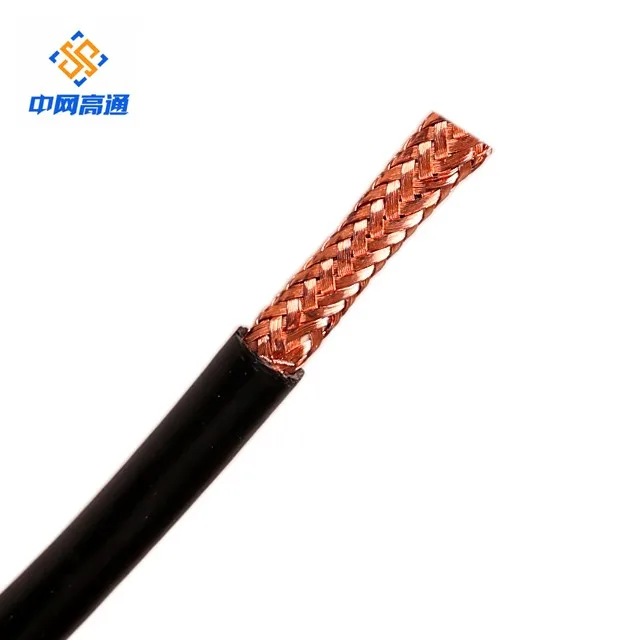

Multicore Copper Conductor Flexible PVC RVVP Control Cable
- Category: >>>
- Supplier: Yangzhou Gaotong Photoelectric Technology Co. Ltd.
Share on (62200212570):
Product Overview
Description
Product Details
No pre-determined socket, no terminal plug
It can be used in power lines, control lines and signal transmission lines for electrical appliances, instruments, electronic equipment and automation devices. It can be used in anti-theft alarm system, building intercom system, etc.
1,Conductor:copper/CCA/
2,Insulation:PVC/PE/LSZH
3,Filler:Polypropylene tape
4,Rip cord
5,Normal working temperature not exceeding 70 ℃
6,Rated voltage:300/500V
Product Parameters
Nominal Area mm2/AWG | Specification | Rated voltage | External Diameter mm |
0.2(25AWG) | 0.14*12 | 300/500V | 4.4 |
0.2(24AWG) | 0.15*12 | 300/500V | 4.4 |
0.3(23AWG) | 0.14*16 | 300/500V | 5.0 |
0.3(22AWG) | 0.15*18 | 300/500V | 5.0 |
0.4(21AWG) | 0.14*28 | 300/500V | 5.6 |
0.5(20AWG) | 0.15*28 | 300/500V | 5.6 |
0.75(19AWG) | 0.19*24 | 300/500V | 6.5 |
1.0(18AWG) | 0.18*32 | 300/500V | 6.8 |
1.0(17AWG) | 0.2*32 | 300/500V | 6.8 |
1.5(16AWG) | 0.19*48 | 300/500V | 7.4 |
2.0(15AWG) | 0.23*40 | 300/500V | 9.4 |
2.0(14AWG) | 0.24*45 | 300/500V | 9.4 |
2.6(13AWG) | 0.24*58 | 300/500V | 10.0 |
4.0(12AWG) | 0.24*80 | 300/500V | 11.0 |
4.0(11AWG) | 0.24*92 | 300/500V | 11.0 |
6.0(10AWG) | 0.24*115 | 300/500V | 11.6 |
Product Name | Insulated wire | ||||
color | Black and white or other custom colors | ||||
model | 0.5 0.75 1.0 1.5 2.5 | ||||
Material | colour coded PVC + copper | ||||
Rated temperature | -20~70°C | ||||
Reference standard | CE | ||||
Rated voltage | 300/500V | ||||
length | 200 metres or other customized metres | ||||
waterproof | Customized waterproof | ||||
Product Details Show
Factory
Why Choose Us
About us
1,The company specializes in the production of wire and cable.
Equipment & technology
2, Pay attention to the quality of wire and cable products.
Service
3, stable product quality , supply, the good faith management
Product Processing
Product Packing
Main Products
3 Core 17 AWG Waterproof Copper Electrical Wire and Cable
Mid. Order: 10,000 meters more quatities, more cheaper FOB Price: US $ 0.32-0.35/meter
4 Core 16 AWG Waterproof Copper Electrical Wire and Cable
Mid. Order: 10,000 meters more quatities, more cheaper FOB Price: US $ 0.4-0.43/meter
5 Core 22 AWG Waterproof Copper Electrical Wire and Cable
Mid. Order: 10,000 meters more quatities, more cheaper FOB Price: US $ 0.23-0.25/meter

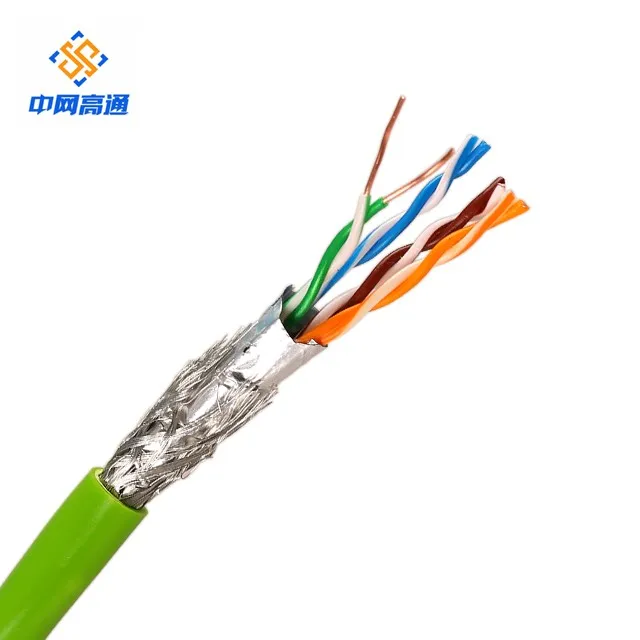

Network Cable
