VH 100 double arm high efficiency Pharmaceutical mixer & dry powder chemical mixing equipment
- Category: >>>
- Supplier: Shanghai Tianhe Machinery Equipment Co. Ltd.
Share on (62200296558):
Product Overview
Description
Product Description
- This machine is suitable for mixing dry material particles in pharmaceutical and other industries.
- The mixing tube has unique structure, high mixing efficiency, no dead Angle and even mixing.

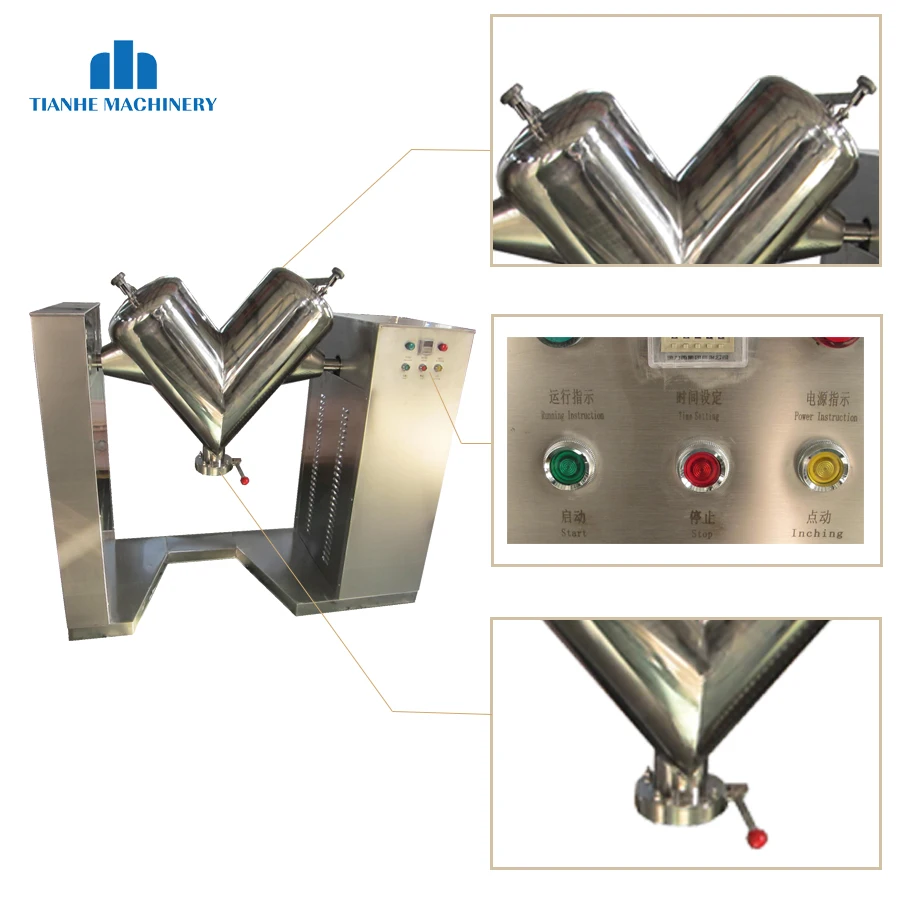

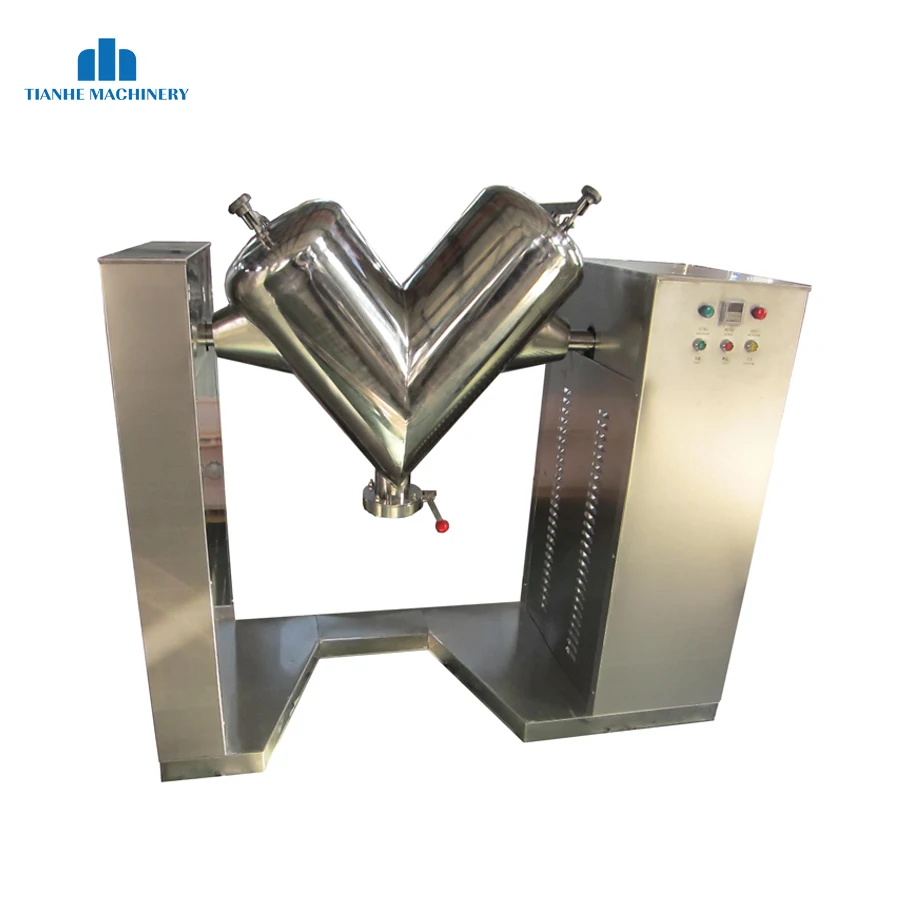

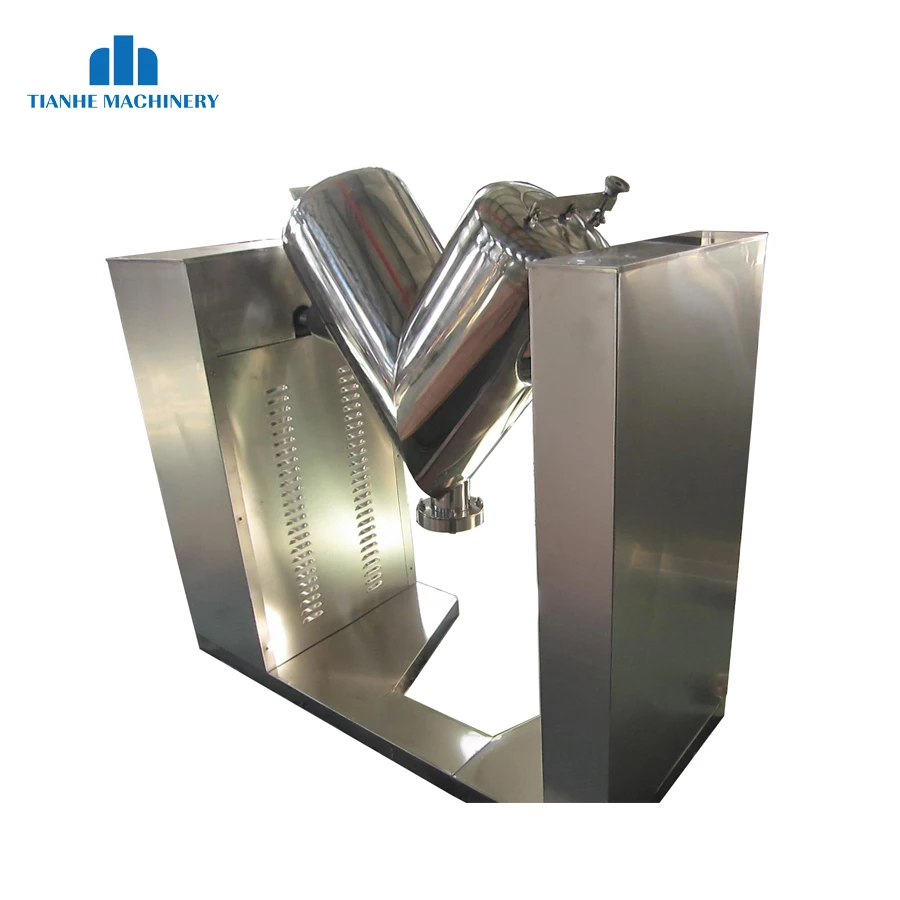

Detailed Images
Main Technical Parameters
Model | VH-100 |
Volume(L) | 100 |
Best charging quantity(Kg) | 28 |
Max.charging quantity(Kg) | 50 |
Dia. Of barrel(mm) | φ355 |
Dia. Of feeding port(mm) | φ160 |
Dia. Of discharging port(mm) | φ100 |
Rotary speed of barrel(r/min) | 20r/min |
Motor power(Kw) | 1.1 |
Using Guides
1.Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2.After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3.Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4.User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5.Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6.Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7.After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.

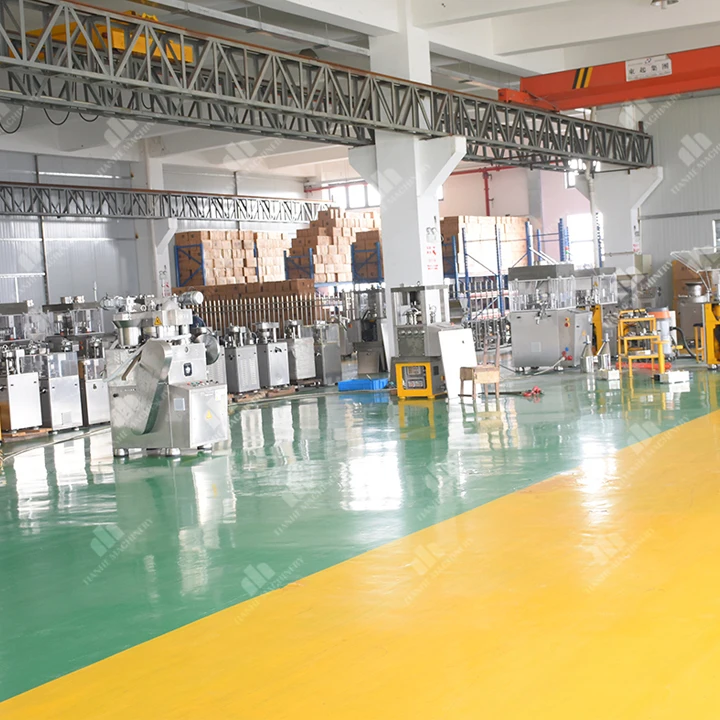

Company Information

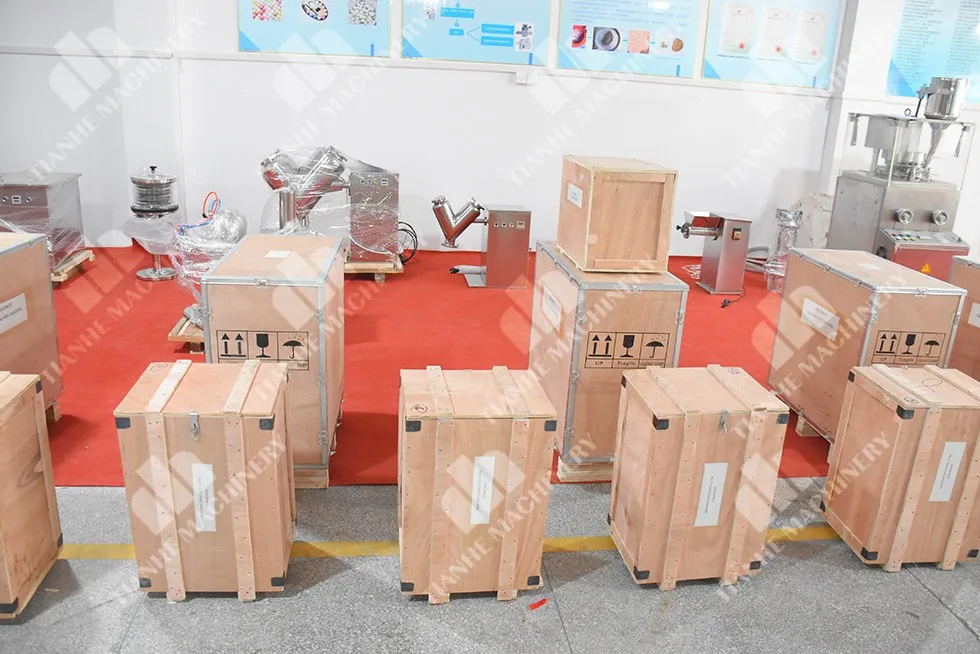

Packaging & Shipping

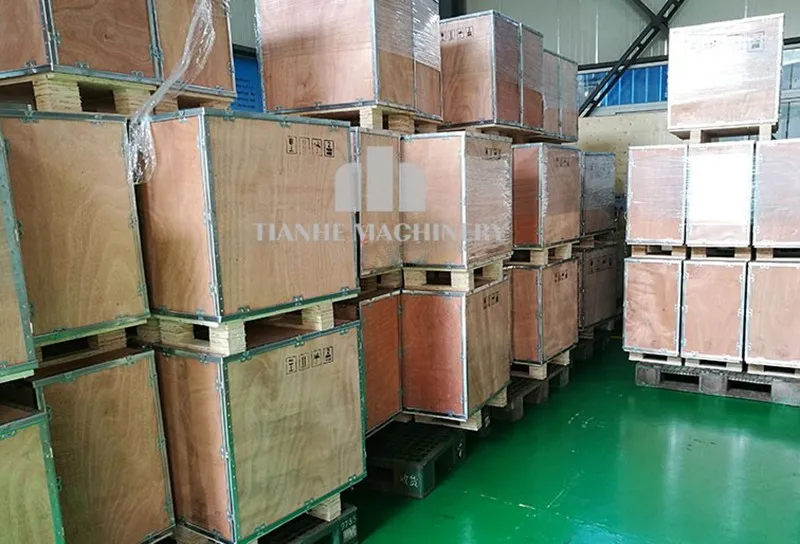

PACKAGING LOGISTICS
Certifications
Our Services
WE OFFER A FAVOURABLE TRANSPORT SCHEME.
WE WELCOME YOUR COOPERATION MORE PROFESSIONAILY AND EFFICIENTLY.
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to use the machine.
* View our Factory. Can offer service via skype whatsapp and so on.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A:No, We regret not to mention the sample.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 100% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
