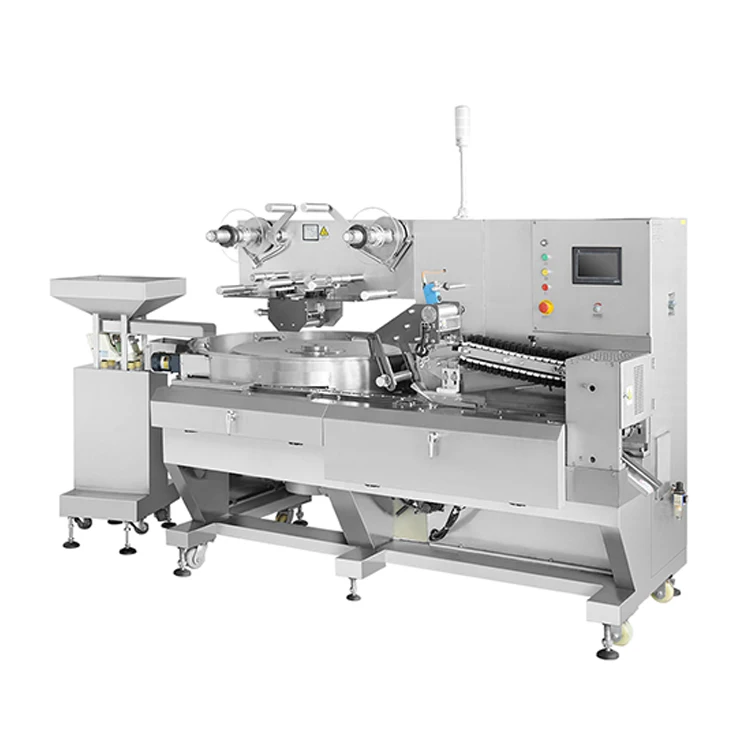

DXD 1600 high quality Food candy package machine

Product Overview

Description

PROPOSAL FOR CANDY

Machinery Name: Pillow Type Candy Packing Machine

             Model: DXD-1600 Pillow type packing machine.

Packing Type: Pillow Type

Item to be packed :  normal size

Capacity:300-400pcs/min  Empty package rate reduce than DXD-1200

Working Hour (suggestion): less than 12 hours per day.

 Packing material: PET+OPP, BOPP, CPP, PET+AL, and other one layer or double layer heated complex film.

 Technical Specification of Main Equipment:

Applicable Range:

The machine is suitable to pack candy and other similar product.

Parameters:



Production Capacity	1400bags/min
Shape of Candy	Square, Ellipse, Oblate,, Globular, ,Plum Blossom-Shaped
Packing Range	Length: 12-50mm , Width: 12-30mm, Height :5-18mm
Length of Finished Bag	50-120mm
Gross power	6kw
Power supply	380v  50HZ 3P/AC
Gross weight	1500kg
Overall dimensions (mm)	3700*1650*1700
Packing Material	OPP/CPP/PET/Al-plastic film/ Paper-rubber complex

Thickness of the film: 0.045-0.06mm

Option:

Body of the machine: Stainless steel

   Main electric component:
