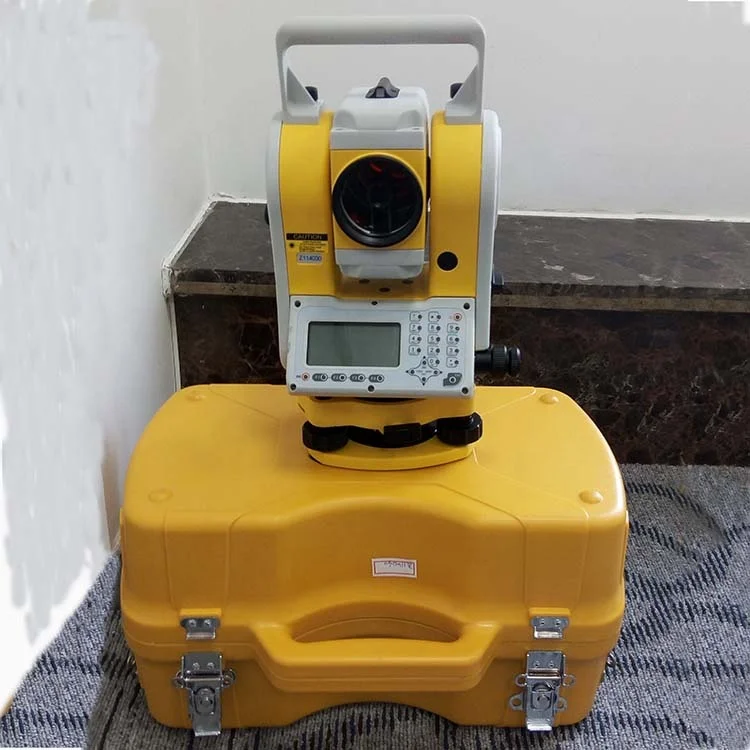

New Condition 600m Reflectorless Total Station One button Measurement

Product Overview

Description

New Condition 600m Reflectorless Total Station One-button Measurement

A total station (TS) or total station theodolite (TST) is an electronic/optical instrument used for surveying and building construction. It is an electronic transit theodolite integrated with electronic distance measurement (EDM) to measure both vertical and horizontal angles and the slope distance from the instrument to a particular point, and an on-board computer to collect data and perform triangulation calculations.

Technical Parameters of the total station:

Angle Measurement
Measurement Method	Absolute Encoding
Minimum Readout	1″/5″/10″(0.3mgon/1.5mgon/3mgon)adjustable
Accuracy	2”
Distance Measurement (ZTS-360 with Reflector)
Single Prism	3000m (9,842ft.) under good condition
Three Prisms	6000m (19,685ft.) under good condition
Reflective Sheet	800m (2,624 ft.)
Accuracy	2mm+2ppm
Measuring Time (Fine/ Tracking)	0.8s/0.3s
Distance Measurement(ZTS-360R Reflectorless)
Reflectorless Range	0.3~600m(0.98~1968 pies)
Single Prism	>7500m (24,606ft.)
Accuracy	3mm+2ppm
Measuring Time (Fine/ Tracking)	1.5s
Telescope
Magnification	30X
Field of View	1°30′(2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis
Working Range	±3′
Setting Accuracy	1″
Communication
Bluetooth
Interface	Standard RS232, USB, mini-B
Internal Data Memory	Approx. 20,000 Points, default 8G USB pen drive
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight black and white display with contrast adjustment/ Graphics: 192 x 96 pixels
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Trigger key	On right instrument support
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/Capacity	ZBA-400: 7.4V (DC) / 3400mAh
Operating Time With ZBA-400	Optimal 20 hours4 (Continuous angle and distance measurement every 30 seconds) / 10 hours (typical)
Measuring Times	Approx. 12000 times
Physical
Weight (without battery)	Approx. 3.7kg (8.38lb.)
Size	300mm x 150mm x150mm(HxWxD)
Environmental
Meteorological parameter modification	Manually(T-P senser is optional)
Operating Temperature	-20℃ ~+50℃ ( -4℉ to +122℉)
Storage Temperature	-25℃ ~+70℃ (-13℉to + 158℉)
Dust&Water Proof (IEC60529 Standard)/Humidity	IP66, 95%, non-condensing
